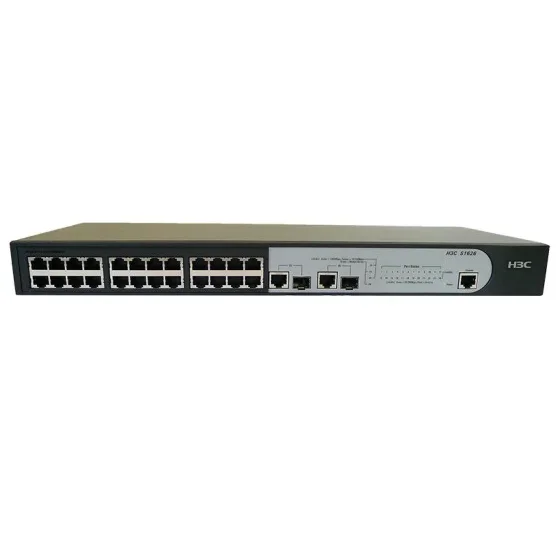

H3C SMB-S1626 24-port 100M+2GB optical port Enterprise level Layer 2 management VLAN Fast Ethernet switch anti DHCP

Attribute

S1626

S1626-PWR

S1650

Standard

IEEE 802.3 10BASE-T Ethernet

IEEE 802.3u 100BASE-TX Fast Ethernet

IEEE 802.3ab 1000BASE-T Gigabit Ethernet

IEEE 802.3z Gigabit Ethernet (Fibre)

ANSI/IEEE 802.3 NWay autonegotiation

IEEE 802.3x traffic control

Fixed port

24 10/100BASE-T self-negotiated Ethernet ports

2 10/100/1000BASE-T self-negotiated Ethernet ports (Combo port, port first)

1 Console port

24 10/100BASE-T self-negotiated Ethernet ports

2 10/100/1000BASE-T self-negotiated Ethernet ports (Combo port, port first)

1 Console

Port 1 to port 24, can be connected to the port of the device for remote power supply, the total power supply can not exceed 154W, a single port maximum power supply capacity of 30W

48 10/100BASE-T self-negotiated Ethernet ports

2 10/100/1000BASE-T self-negotiated Ethernet ports (Combo port, port first)

1 Console port

Optional port

2 1000Base-SX/LX SFP light vents

Fixed port properties

Connector type: RJ-45

Support half-duplex, full-duplex, self-negotiated work mode

MDI/MDI-X adaptation is supported

Optional port properties

Connector type: LC

Supports 1000Mbit/s transfer rate full duplex

Light

Per port: Link/Act

Per device: Power

SFP port: Module Active

Swap capacity

19.2Gbps

Forwarding capability

6.5Mpps

10.1Mpps

Swap mode

Store forwarding mode

MAC address table

Supports automatic address learning, automatic aging (aging time is 5 minutes)

Maximum support for MAC (Media Access Control) address: 8K

Form factor (long× wide × high)

440mm×173mm×44mm

With hanging ears, rack mountable

440mm×238mm×44mm

With hanging ears, rack mountable

Input voltage

100V~240V AC,50/60Hz

power consumption

<17W

<205W

< 26W

Operating temperature

0℃~40℃

Operating humidity

5% to 95%, non-condensed

The way the heat is dissipated

The heat sink is passively heat dissipated

Security features

S1626/S1626-PWR supports quad-element (IP-MAC-PORT-VLAN) binding, and S1650 supports triple-(IP-MAC-PORT) binding

Support for smart binding (one-click binding)

DHCP-Snooping is supported

Supports anti-ARP spoofing, supports attack source location, ARP speed limit

Ip-ACL, MAC-ACL, VLAN-ACL are supported

Support for stream-based mirroring (ACL)

Supports anti-DoS attacks

Supports anti-worm attacks

Supports a 3/4-dollar binding script configuration

Supports the management of VLANs

Supports two levels of user management and advanced user password protection

Black hole addresses are supported

Supports anti-MAC address flooding attacks

Supports port-based and MAC-based 802.1X

Support for AAA certification, Radius certification

Port isolation is supported

Port-based Quest VLAN is supported

MAC-based Quest VLAN (S1650 not supported)

Supports dynamic VLAN distribution

VLAN

Up to 512 VLANs that meet IEEE 802.1q are supported

Up to 26 (S1626/S1626-PWR) or 50 (S1650) port-based VLANs are supported

Priority Queue (QoS)

Supports 802.1p, DSCP priority

Supports 4 priority queues per port

Support for WRR, HQ-WRR queue scheduling

STP

STP/RSTP support is supported

Multicast

IGMP Snooping is supported, S1626/S1626-PWR supports up to 256 multicast groups, and S1650 supports up to 512 groups

Port security

Supports 512 static MAC address table/MAC address filtering table (static MAC address table, MAC address filter table share 512 table items)

Up to 512 port and MAC address binding table items (MAC address binding shares 512 MAC table items with static MAC addresses)

Port aggregation

Supports 6 clusters of up to 8 ports per group

Supports manual and static LACP aggregation

Port mirroring

Port-based two-way mirroring is supported

Port bandwidth control

Supports speed limits for message traffic to and from ports with a granularity of 64Kbps

Support for flow-based flow limits (ACL speed limits)

Broadcast storm suppression

Broadcast storm suppression based on bandwidth percentage is supported on all ports

Device management

Web network management is supported

Supports management through the Console port

Supports Telnet remote management

DHCP-client support

Support for SNMP v2c, support for RMON

Support for iMC

Equipment maintenance

Supports debugging information output

Supports profile import export

Support for Syslog (System Logs)

Support for Ping

Backup upgrades are supported

VCT support (cable diagnostics)
