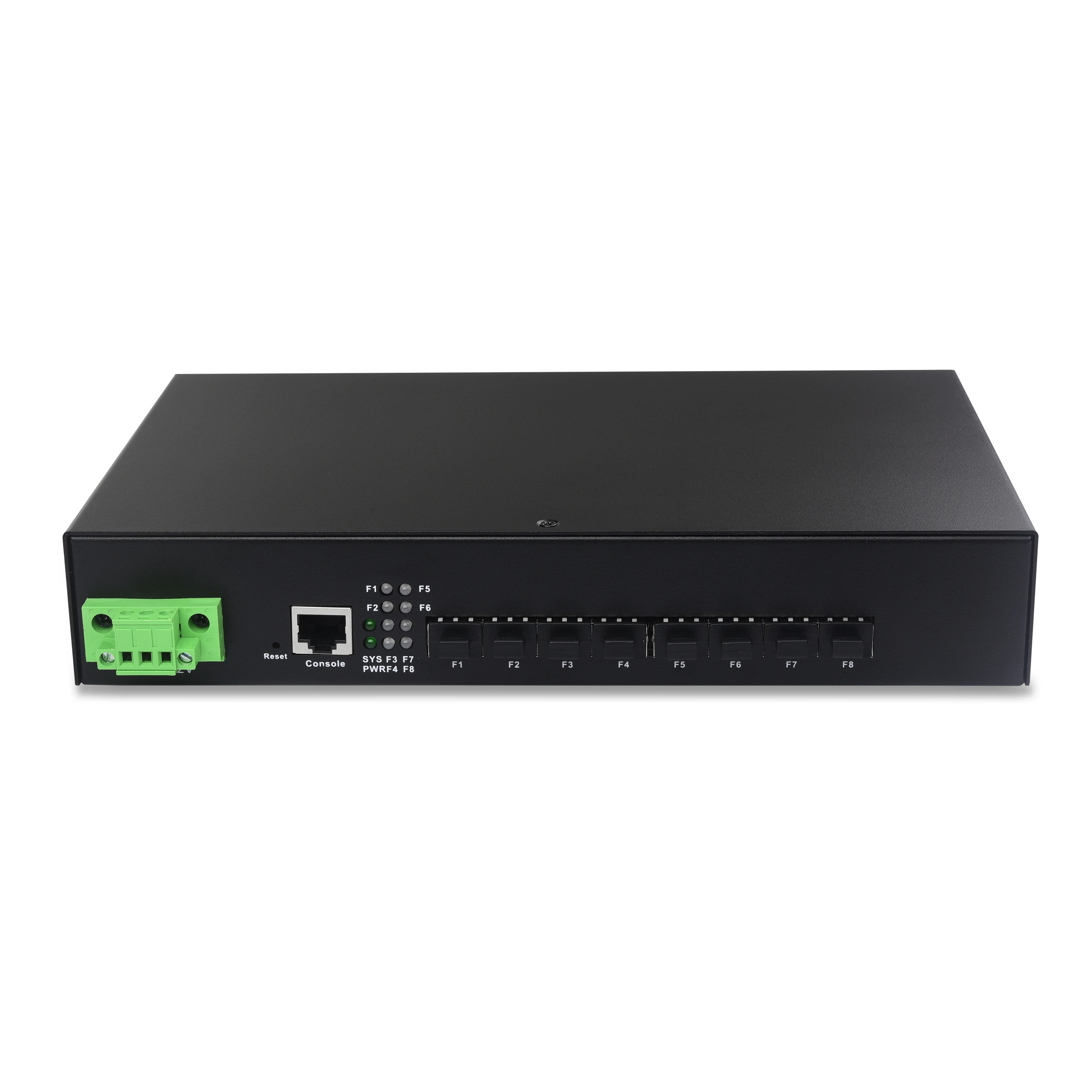

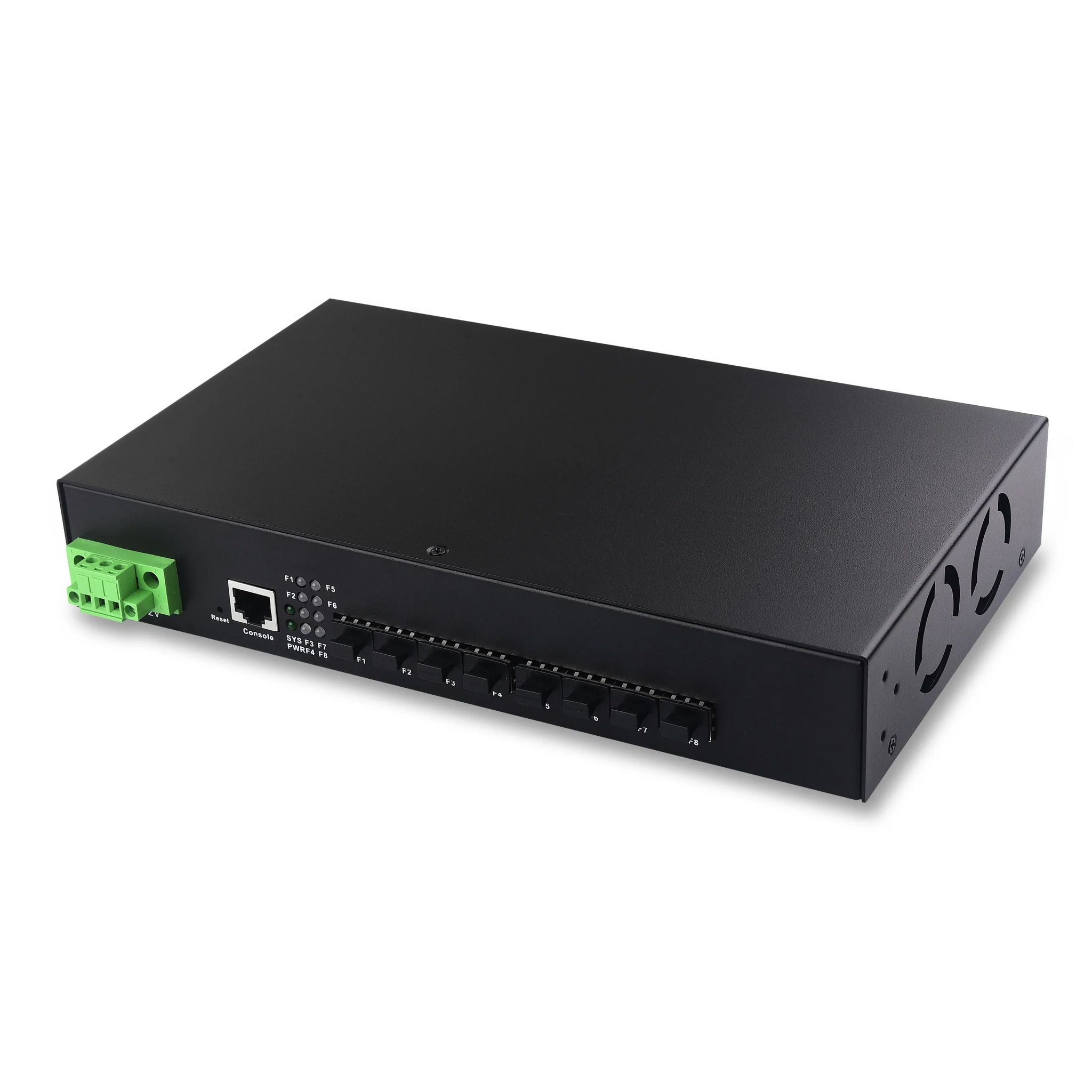

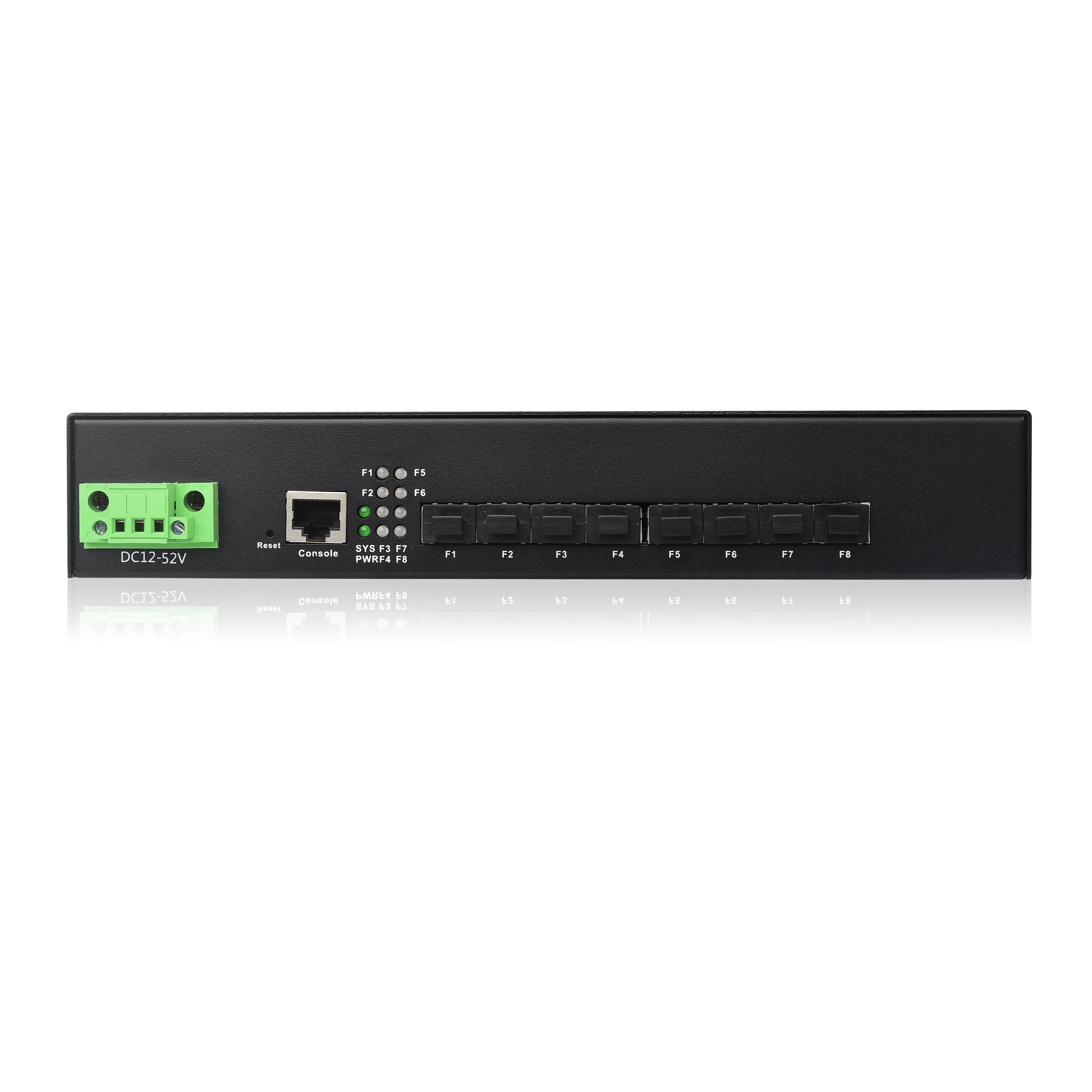

FOWAY7508 High-end intelligent 10 Gigabit Layer 3 managed ring network enterprise fiber switch, supports 8*10G SFP+ slots

item

value

Model Number

FOWAY7508

Type

Enterprise Switch

Place of Origin

N/A

Brand Name

Item Name

8 port switch

Interfaces

8 10G SFP+Slots 1 RJ45 Console Port

Transmission rate

1000Mbps

Power Supply

DC10-58V/AC 100-240V 50-60HZ

Max Power Consumption

<10W

POE Standard

IEEE802.3af, IEEE802.3at

MAC address

16K

color

black

Warranty

3 Years

Hardware Features & Performance

Model

FOWAY7508

General

Standard and Protocols

IEEE 802.3i 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX/FX
IEEE 802.3ab 1000BASE-T
IEEE 802.3z 1000BASE-X
IEEE 802.3ae 10GBASE-SR/LR
IEEE 802.3av GVRP
IEEE 802.3x Flow control
IEEE 802.3ad Link Aggregation
IEEE 802.1v Protocol VLAN
IEEE 802.1d Spanning Tree Protocol (STP) IEEE 802.1s Rapid Spanning Tree (RSTP) IEEE 802.1w Multiple Spanning Tree (MSTP) IEEE
802.1q VLANs / VLAN tagging
IEEE 802.1x Network Login Security
IEEE 802.1p QoS

Network Media

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) 1000BASE-X: MMF, SMF
10GBASE-LR
10GBASE-SR

Interfaces

8 10G SFP+Slots
1 RJ45 Console Port

Performance

Switching Capacity

160Gbps

Packet Forwarding Rate

120Mpps

MAC Address Table

16K

Flash memory capacity

256MB

The memory capacity

2G

Jumbo Frame

12KB

Physical& Environment

Certification

CE, FCC

Power Supply

DC10-58V/AC 100-240V 50-60HZ

Max Power Consumption

<10W

Max Heat Dissipation

220.69 BTU/h

Dimensions (W × D × H)

253 × 150 × 44 mm

Fan Quantity

2 removable fan module

Operating Temperature

0°C~50°C (32°F~104°F)

Storage Temperature

-40°C~70°C (-40°F~158°F)

Operating Humidity

10% ~ 90%RH, non-condensing

Storage Humidity

5%~90%RH, non-condensing

Software Features

L3 Features

-L3 Routing
*128 IPv4 Interface entries
*256 IPv4 Static Routing entries
*8K IPv4 Dynamic Routing entries
-RIP v1, v2
-OSPF v1, v2,V3
-IGMP v1, v2, v3

-Multicast Routing
*Static Multicast Route
*PIM-DM/SM
-ARP Proxy
-DHCP Server/Relay
-VRRP
-BFD

L2 Features

-Link Aggregation
*static link aggregation
*802.3ad LACP
*Up to 64 aggregation groups, containing 8 ports per group
-Spanning Tree Protocol
*802.1D STP
*802.1w RSTP
*802.1s MSTP
*32 MSTP Instance

-Loopback Detection
-Flow Control
*802.3x Flow Control
-Port Mirroring
*One-to-One
*Many-to-One
*Flow-Based
*Tx/Rx/Both
-LLDP, LLDP-MED

L2 Multicast

-1024 IGMP groups
-IGMP Snooping
*IGMP v1/v2/v3 Snooping
*IGMP Fast Leave
*MVR
*IGMP Snooping

-MLD Snooping
*MLD v1/v2 Snooping
*MLD Snooping Querier
*Fast Leave
*Limited IP Multicast
*Static Multicast Forwarding

VLAN

-VLAN Group
*4K VLAN Groups
-802.1Q tag VLAN
-MAC VLAN
-Protocol VLAN

-VLAN VPN (QinQ)
-GVRP
-Private VLAN
