Fortinets FortiGate 601E Security Appliance FortiGuard AI-Powered VPN Firewall with Web/DNS Security 7G Throughput FG-601E

Regular price: R 281,071.88
Sale price: R 281,071.88
Regular price: ~~R 372,960.77~~
Unit price: per

Shipping calculated at checkout.

Default Title

Quantity must be 1 or more

FG-601E, Fortinet FG-601E Firewall, 2x 10GE SFP+/10x GE RJ45/8x GE SFP

Description

Fortinet FG-601E, 2x 10 GE SFP+ slots, 10x GE RJ45 ports (including 1x MGMT port, 1x HA port, 8x switch ports), 8x GE SFP slots, SPU NP6 and CP9 hardware accelerated, 2x 240 GB onboard

FG-601E is the Fortinet NGFW Middle-range Series FortiGate 601E firewall. The FortiGate 600E /601E series delivers next generation firewall capabilities for mid-sized to large enterprises, with the flexibility to be deployed at the campus or enterprise branch.

Quick Spec

Sku	FG-601E
Firewall	36 Gbps
IPS	10 Gbps
NGFW	9.5 Gbps
Threat Protection	7 Gbps
Interfaces	2 x 10GE SFP+ slots 8 x GE SFP slots 8 x GE RJ45 ports 2 x GE RJ45 management ports

Related Products

Types	Model	Description
Basic Firewall	FG-601E	2x 10 GE SFP+ slots, 10x GE RJ45 ports (including 1x MGMT port, 1x HA port, 8x switch ports), 8x GE SFP slots, SPU NP6 and CP9 hardware accelerated, 2x 240 GB onboard SSD storage
1 year bundle	FG-601E-BDL-950-12	FG-601E Hardware plus 1 Year 24*7 FortiCare and FortiGuard Unified (UTM) Protection (FG-601E & FC-10-F6H1E-950-02-12)
1 year License	FC-10-F6H1E-950-02-12	1 year Unified (UTM) Protection (24x7 FortiCare plus Application Control, IPS, AV, Web Filtering and Antispam, FortiSandbox Cloud) of FG-601E
3 year bundle	FG-601E-BDL-950-36	FG-601E Hardware plus 3 Year 24*7 FortiCare and FortiGuard Unified (UTM) Protection (FG-601E & FC-10-F6H1E-950-02-36)
3 year License	FC-10-F6H1E-950-02-36	3 year Unified (UTM) Protection (24x7 FortiCare plus Application Control, IPS, AV, Web Filtering and Antispam, FortiSandbox Cloud) of FG-601E
5 year bundle	FG-601E-BDL-950-60	FG-601E Hardware plus 5 Year 24*7 FortiCare and FortiGuard Unified (UTM) Protection (FG-601E & FC-10-F6H1E-950-02-60)
5 year License	FC-10-F6H1E-950-02-60	5 year Unified (UTM) Protection (24x7 FortiCare plus Application Control, IPS, AV, Web Filtering and Antispam, FortiSandbox Cloud) of FG-601E

Compare to Similar Item

Table 4 shows the comparison of FG-601E and FG-600E.

Sku	FG-601E	FG-600E
Firewall	36 Gbps	36 Gbps
IPS	10 Gbps	10 Gbps
NGFW	9.5 Gbps	9.5 Gbps
Threat Protection	7 Gbps	7 Gbps
Interfaces	2 x 10GE SFP+ slots 8 x GE SFP slots 8 x GE RJ45 ports 2 x GE RJ45 management ports	2 x 10GE SFP+ slots 8 x GE SFP slots 8 x GE RJ45 ports 2 x GE RJ45 management ports
Local Storage	2x 240 GB SSD	NIL

Product Features

Fortinets FortiGate 601E Security Appliance FortiGuard AI-Powered VPN Firewall with Web/DNS Security 7G Throughput FG-601E

Product Specifications

Model: FG-601E

Brand: Fortinet

Type: FortiGate 601E

10 GE SFP+ Slots: 2

GE SFP Slots: 8

GE RJ45 Interfaces: 8

GE RJ45 Management Ports: 2

USB Ports: 2

RJ45 Console Port: 1

Local Storage: 2 × 240 GB SSD

Included Transceivers: 2 × SFP (SX 1 GE)

IPv4 Firewall Throughput (1518/512/64 byte, UDP): 36 / 36 / 27 Gbps

IPv6 Firewall Throughput (1518/512/86 byte, UDP): 36 / 36 / 27 Gbps

Firewall Latency (64 byte, UDP): 2 μs

Firewall Throughput (Packets per Second): 40.5 Mpps

Concurrent Sessions (TCP): 8 million

New Sessions per Second (TCP): 450,000

Firewall Policies: 10,000

IPsec VPN Throughput (512 byte): 20 Gbps

Gateway-to-Gateway IPsec VPN Tunnels: 2,000

Client-to-Gateway IPsec VPN Tunnels: 50,000

SSL-VPN Throughput: 7 Gbps

Concurrent SSL-VPN Users (Max, Tunnel Mode): 10,000

SSL Inspection Throughput (IPS, avg. HTTPS): 8 Gbps

SSL Inspection CPS (IPS, avg. HTTPS): 5,500

Application Control Throughput (HTTP 64K): 15 Gbps

Virtual Domains (Default/Maximum): 10 / 10

Maximum Number of FortiSwitches Supported: 64

Maximum Number of FortiAPs (Total/Tunnel): 1024 / 512

Maximum Number of FortiTokens: 5,000

Maximum Number of Registered FortiClients: 2,000

High Availability Configurations: Active-Active, Active-Passive, Clustering

IPS Throughput: 10 Gbps

NGFW Throughput: 9.5 Gbps

Threat Protection Throughput: 7 Gbps

Height × Width × Length: 1.75 × 17.0 × 15.0 in (44.45 × 432 × 380 mm)

Form Factor: 1 RU

AC Power Supply: 100–240V AC, 50–60 Hz

Power Consumption (Avg/Max): 129 W / 244 W

Current (Maximum): 6 A @ 100V

Heat Dissipation: 832 BTU/h

Redundant Power Supplies: Optional

Operating Temperature: 32–104°F (0–40°C)

Storage Temperature: -31–158°F (-35–70°C)

Humidity: 10–90% non-condensing

Noise Level: 59 dBA

Operating Altitude: Up to 7,400 ft (2,250 m)

Compliance: FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB

Certifications: ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; USGv6/IPv6

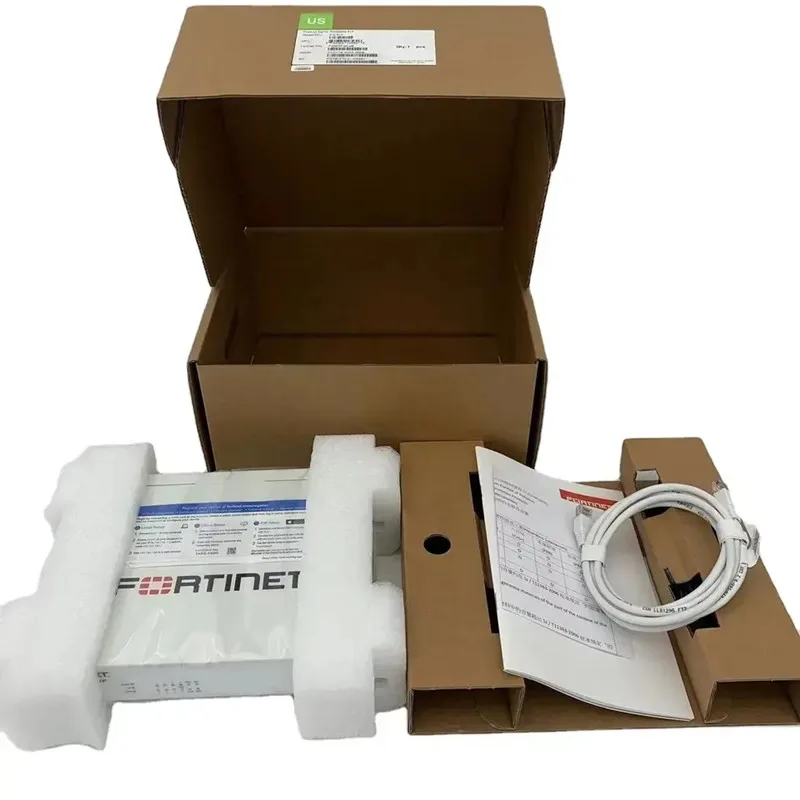

Product packaging

On the fence about this Fortinets FortiGate 601E Security Appliance FortiGuard AI-Powered VPN Firewall with Web/DNS Security 7G Throughput FG-601E? Don't be. Let our satisfaction guarantee address your concerns.
