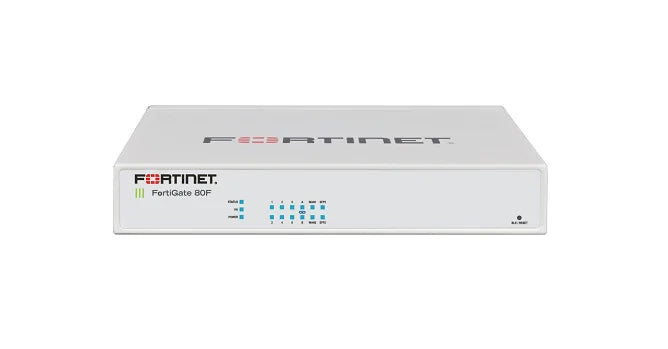

Fortinet FortiGate 80F Hardware FG-80F with 8*GE RJ45 ports, 2*RJ45/SFP shared media WAN ports, Next-Gen Firewall Networking Devices
SPECIFICATIONS
Brand Name: FORTINET
Installation Method: Assembly
High-concerned Chemical: None
Products Status: Stock
Product name: Firewall
Condition: NIB Original
Model: FG-80F
Type: Firewall
Model Number: FG-80F
Device Type: Firewall Network
MOQ: 1 Pcs
Warranty: 1 Year
Product Description
FG-80F - Fortinet FortiGate NGFW Middle-range Series - Fortinet FortiGate 80F Hardware - 8 x GE RJ45 ports, 2 x RJ45/SFP shared media WAN ports
The FortiGate 80F series provides an application- centric, scalable, and secure SD-WAN solution in a compact, fanless, desktop form factor for enterprise branch offices and mid-sized businesses.
Specs Overview
Product Code |
FG-80F |
Ethernet Technology |
Gigabit Ethernet |
Product Family |
FortiGate 80F |
Total Number of Ports |
10 |
Interfaces
1. 2 x GE RJ45/SFP Shared Media Ports
2. 2 x WAN GE RJ45 Ports, FG-80F-Bypass model only: 1x Bypass GE RJ45 Port Pair (WAN1 and Port1, default configuration)
3. 6 x GE RJ45* Ports
4. 2 x GE RJ45* FortiLink Ports
FG-80F provides these features:
Security
- ● Identifies thousands of applications inside network traffic for deep inspection and granular policy enforcement
- ● Protects against malware, exploits, and malicious websites in both encrypted and non-encrypted traffic
- ● Prevent and detect against known and unknown attacks using continuous threat intelligence from AI-powered FortiGuard Labs security services
Performance
- ● Delivers industry’s best threat protection performance and ultra-low latency using purpose-built security processor (SPU) technology
- ● Provides industry-leading performance and protection for SSL encrypted traffic
Certification
- ● Independently tested and validated best security effectiveness and performance
- ● Received unparalleled third-party certifications from NSS Labs
Networking
- ● Delivers advanced networking capabilities that seamlessly integrate with advanced layer 7 security and virtual domains (VDOMs) to offer extensive deployment flexibility, multi-tenancy and effective utilization of resources
- ● n Delivers high-density, flexible combination of various high-speed interfaces to enable best TCO for customers for data center and WAN deployments
Management
- ● Includes a management console that is effective, simple to use, and provides comprehensive network automation and visibility
- ● Provides Zero Touch Integration with Fortinet’s Security Fabric’s Single Pane of Glass Management
- ● Predefined compliance checklists analyze the deployment and highlight best practices to improve the overall security posture
Security Fabric
- ● Enables Fortinet and Fabric-ready partners’ products to provide broader visibility, integrated end-to-end detection, threat intelligence sharing, and automated remediation
Compare to Similar Items
Module |
FG-80F |
FG-81F |
Ethernet Technology |
Gigabit Ethernet |
Gigabit Ethernet |
Product Family |
FortiGate 80F |
FortiGate 80F |
Total Number of Ports |
10 |
10 |
Manageable |
Yes |
Yes |
Technical Specifications
FG-80F Specifications | |
Interfaces and Modules | FG-80F |
GE RJ45/SFP Shared Media Pairs | 2 |
GE RJ45 Internal Ports | 6 |
GE RJ45 FortiLink Ports (Default) | 2 |
GE RJ45 PoE/+ Ports | - |
GE RJ45 PoE/+ FortiLink Ports (Default) | - |
Bypass GE RJ45 Port Pair | - |
Wireless Interface | - |
USB Ports 3.0 | 1 |
Console (RJ45) | 1 |
Internal Storage | - |
Trusted Platform Module (TPM) | Yes |
Bluetooth Low Energy (BLE) | Yes |
Signed Firmware Hardware Switch | - |
System Performance-Enterprise Traffic Mix | |
IPS Throughput 2 | 1 . 4 Gbps |
NGFW Throughput 24 | 1Gbps |
Threat Protection Throughput 2,5 | 900 Mbps |
System Performance and Capacity | |
IPv4 Firewall Throughput(1518 / 512 /64 byte, UDP) | 10 / 10 / 7 Gbps |
Firewall Latency (64 byte, UDP) | 3.23 μs |
Firewall Throughput (Packet per Second) | 10.5 Mpps |
Concurrent Sessions (TCP) | 1.5 Million |
New Sessions/Second (TCP) | 45 000 |
Firewall Policies | 5000 |
IPsec VPN Throughput (512 byte)' | 6.5 Gbps |
Gateway-to-Gateway IPsec VPN Tunnels | 200 |
Client-to-Gateway IPsec VPN Tunnels | 2500 |
SSL-VPN Throughput | 950 Mbps |
Concurrent SSL-VPN Users(Recommended Maximum, Tunnel Mode) | 200 |
SSL Inspection Throughput(IPS,avg HTTPS)3 | 715 Mbps |
SSL Inspection CPS (IPS, avg.HTTPS)3 | 700 |
SSL Inspection Concurrent Session(IPS,avg HTTPS)3 | 100 000 |
Application Control Throughput(HTTP 64K)2 | 1.8 Gbps |
CAPWAP Throughput (HTTP 64K) | 9 Gbps |
Features
item |
value |
Products Status |
Stock |
Place of Origin |
N/A |
Product name |
Firewall |
Condition |
NIB Original |
Model |
FG-80F |
Type |
Firewall |
Model Number |
FG-80F |
Device Type |
Firewall Network |
MOQ |
1 Pcs |
Lead Time |
As per Shipping Policies |
Shipping |
DHL UPS FEDEX |
Warranty |
1 Year |
