Fortinet Fortigate 200F Security Firewall with 16x GE RJ45 Ports 2x 10 GE SFP+ FortiLink Slots (default) 2x 10 GE SFP+ Slots FG-200F
Fortinet Fortigate 200F Security Firewall with 16x GE RJ45 Ports 2x 10 GE SFP+ FortiLink Slots (default) 2x 10 GE SFP+ Slots FG-200F
Fortinet Fortigate 200F Security Firewall with 16x GE RJ45 Ports 2x 10 GE SFP+ FortiLink Slots (default) 2x 10 GE SFP+ Slots FG-200F
Fortinet Fortigate 200F Security Firewall with 16x GE RJ45 Ports 2x 10 GE SFP+ FortiLink Slots (default) 2x 10 GE SFP+ Slots FG-200F
Fortinet Fortigate 200F Security Firewall with 16x GE RJ45 Ports 2x 10 GE SFP+ FortiLink Slots (default) 2x 10 GE SFP+ Slots FG-200F
Fortinet Fortigate 200F Security Firewall with 16x GE RJ45 Ports 2x 10 GE SFP+ FortiLink Slots (default) 2x 10 GE SFP+ Slots FG-200F
  • Load image into Gallery viewer, Fortinet Fortigate 200F Security Firewall with 16x GE RJ45 Ports 2x 10 GE SFP+ FortiLink Slots (default) 2x 10 GE SFP+ Slots FG-200F
  • Load image into Gallery viewer, Fortinet Fortigate 200F Security Firewall with 16x GE RJ45 Ports 2x 10 GE SFP+ FortiLink Slots (default) 2x 10 GE SFP+ Slots FG-200F
  • Load image into Gallery viewer, Fortinet Fortigate 200F Security Firewall with 16x GE RJ45 Ports 2x 10 GE SFP+ FortiLink Slots (default) 2x 10 GE SFP+ Slots FG-200F
  • Load image into Gallery viewer, Fortinet Fortigate 200F Security Firewall with 16x GE RJ45 Ports 2x 10 GE SFP+ FortiLink Slots (default) 2x 10 GE SFP+ Slots FG-200F
  • Load image into Gallery viewer, Fortinet Fortigate 200F Security Firewall with 16x GE RJ45 Ports 2x 10 GE SFP+ FortiLink Slots (default) 2x 10 GE SFP+ Slots FG-200F
  • Load image into Gallery viewer, Fortinet Fortigate 200F Security Firewall with 16x GE RJ45 Ports 2x 10 GE SFP+ FortiLink Slots (default) 2x 10 GE SFP+ Slots FG-200F

Fortinet Fortigate 200F Security Firewall with 16x GE RJ45 Ports 2x 10 GE SFP+ FortiLink Slots (default) 2x 10 GE SFP+ Slots FG-200F

R 219,265.26
R 219,265.26
R 304,535.08
Sold out
Shipping calculated at checkout.

Fortinet Fortigate 200F Security Firewall with 16x GE RJ45 Ports 2x 10 GE SFP+ FortiLink Slots (default) 2x 10 GE SFP+ Slots FG-200F

SPECIFICATIONS

Brand Name: FORTINET

Concurrent Sessions (TCP): 3 Million

Condition: New Original

DIY Supplies: Electrical

Electronic: Yes

Firewall Throughput (Packet per Second): 16.5 Mpps

High-concerned chemical: None

New Sessions/Second (TCP): 280,000

Product name: Fortinet Fortigate 200Fall Router

Warranty: 1 Year

Brand Name: Fortinet

Model Number: FG-200F

Product Status: Stock

Throughput: 3.5 Gbps

Type: Wired & Wireless

VPN Support: Yes

Product Description

Fortinet Fortigate 200F Security Firewall with 16x GE RJ45 Ports 2x 10 GE SFP+ FortiLink Slots (default) 2x 10 GE SFP+ Slots FG-200F

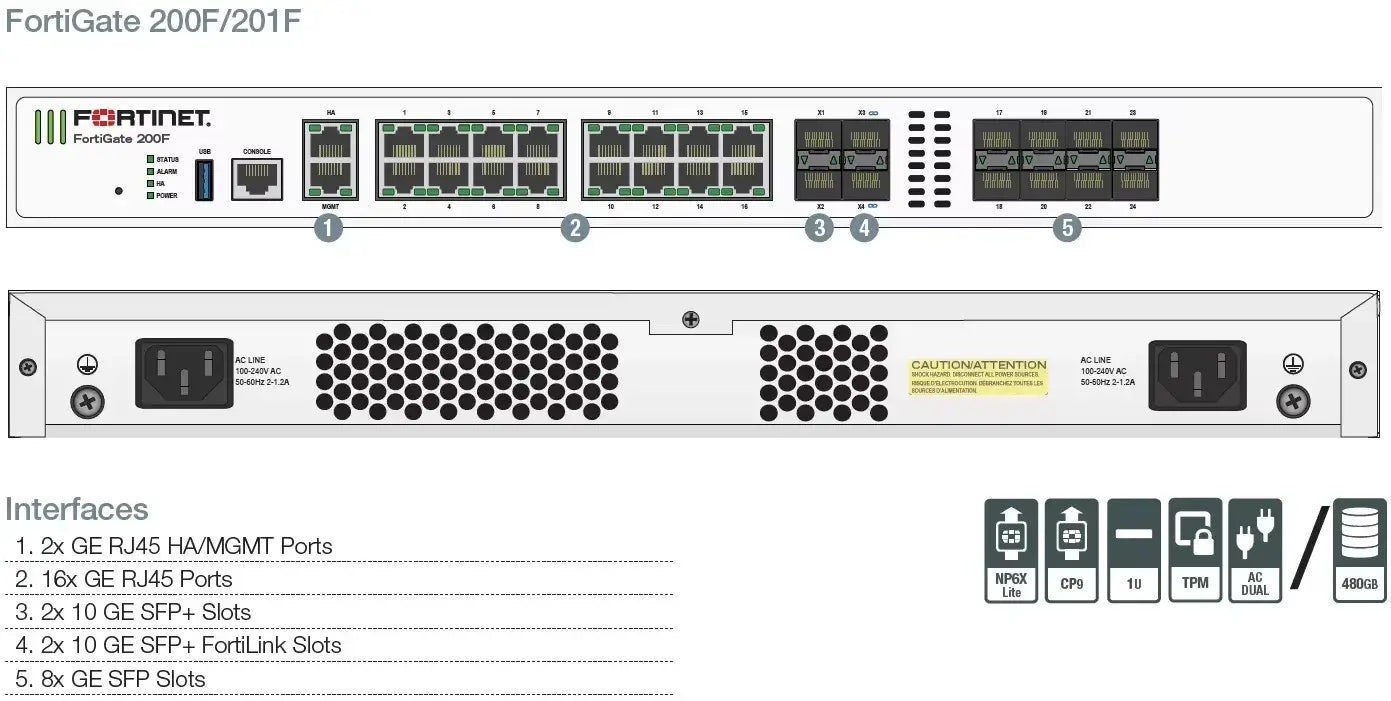

GE RJ45 Ports

16

10 GE SFP+ FortiLink Slots (default)

2

10 GE SFP+ Slots

2

USB Port

1

IPS Throughput 2

5 Gbps

NGFW Throughput 2, 4

3.5 Gbps

Threat Protection Throughput 2, 5

3 Gbps

System Performance and Capacity

IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP)

27 / 27 / 11 Gbps

Firewall Latency (64 byte, UDP)

4.78 μs

Firewall Throughput (Packet per Second)

16.5 Mpps

Concurrent Sessions (TCP)

3 Million

New Sessions/Second (TCP)

280,000

Firewall Policies

10,000

IPsec VPN Throughput (512 byte) 1

13 Gbps

Gateway-to-Gateway IPsec VPN Tunnels

2,500

Client-to-Gateway IPsec VPN Tunnels

16,000

SSL-VPN Throughput

2 Gbps

Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode)

500

SSL Inspection Throughput (IPS, avg. HTTPS) 3

4 Gbps

SSL Inspection CPS (IPS, avg. HTTPS) 3

3,500

SSL Inspection Concurrent Session (IPS, avg. HTTPS) 3

300,000

Application Control Throughput (HTTP 64K) 2

13 Gbps

CAPWAP Throughput (HTTP 64K)

20 Gbps

Virtual Domains (Default / Maximum)

10 / 10

Maximum Number of FortiSwitches Supported

64

Maximum Number of FortiAPs (Total / Tunnel)

256 / 128

Dimensions and Power

Height x Width x Length (inches)

1.73 x 17.01 x 13.47

Height x Width x Length (mm)

44 x 432 x 342

Weight

9.92 lbs (4.5 kg)

Form Factor

Ear Mount, 1 RU

AC Power Supply

100–240V AC, 50/60 Hz

Power Consumption (Average / Maximum)

101.92 W / 118.90 W

Current (Maximum)

100V / 2A, 240V / 1.2A

Heat Dissipation

405.70 BTU/h

Redundant Power Supplies

Yes
On the fence about this Fortinet Fortigate 200F Security Firewall with 16x GE RJ45 Ports 2x 10 GE SFP+ FortiLink Slots (default) 2x 10 GE SFP+ Slots FG-200F? Don't be. Let our satisfaction guarantee address your concerns.
