Fortinet 24-Port Gigabit Ethernet 24xGE RJ45/4xGE SFP/Layer 2/3 Network Switch with POE SNMP QoS FortiGate Integrated Security FS-224E
Fortinet 24-Port Gigabit Ethernet 24xGE RJ45/4xGE SFP/Layer 2/3 Network Switch with POE SNMP QoS FortiGate Integrated Security FS-224E
  • Load image into Gallery viewer, Fortinet 24-Port Gigabit Ethernet 24xGE RJ45/4xGE SFP/Layer 2/3 Network Switch with POE SNMP QoS FortiGate Integrated Security FS-224E
  • Load image into Gallery viewer, Fortinet 24-Port Gigabit Ethernet 24xGE RJ45/4xGE SFP/Layer 2/3 Network Switch with POE SNMP QoS FortiGate Integrated Security FS-224E

Fortinet 24-Port Gigabit Ethernet 24xGE RJ45/4xGE SFP/Layer 2/3 Network Switch with POE SNMP QoS FortiGate Integrated Security FS-224E

R 11,430.53
R 11,430.53
R 14,859.69
Sold out
Shipping calculated at checkout.

Fortinet 24-Port Gigabit Ethernet 24xGE RJ45/4xGE SFP/Layer 2/3 Network Switch with POE SNMP QoS FortiGate Integrated Security FS-224E

Description

FS-224E is the Layer 2/3 FortiGate switch controller compatible switch with 24 x GE RJ45 ports, 4 x GE SFP.

Quick Specs

Product Code

FS-224E

Form Factor

1 RU Rack Mount

Switching Capacity (Duplex)

56 Gbps

Packets Per Second (Duplex)

83 Mpps

MAC Address Storage

16 K

Height x Depth x Width (inches)

1.73 x 9 x 12.99

Height x Depth x Width (mm)

44 x 230 x 330

Power Required

100–240V AC, 50–60 Hz

Power Consumption (Average / Maximum)

17.2 W / 17.3 W

FortiSwitch Secure Access switches deliver a Secure, Simple, Scalable Ethernet solution with outstanding security, performance and manageability for threat conscious small to mid-sized businesses, distributed enterprises and branch offices. Tightly integrated into the FortiGate Network Security Platform, the FortiSwitch Secure Access switches can be managed directly from the familiar FortiGate interface. This single pane of glass management provides complete visibility and control of all users and devices on the network, regardless of how they connect.

Security Fabric Integration

Reduces complexity and decreases management cost with network security functions managed through a single console via FortiGate. This integration allows all users to be authenticated against the same user database, regardless of whether they connect to the wired or wireless network, including temporary guest users.

In addition, same security policy can apply to a user or device regardless of how or where they connect to the network.

Simplify Network Deployment

The Power over Ethernet (PoE) capability in some models, enables simple installation of wireless Access Points and IP phones in the network.

Highlights

  • ● Secure Access switches suitable for wiringcloset and desktop installations
  • ● Ideal for converged network environments; enabling voice, data and wireless traffic to be delivered across a single network
  • ● Devices are identified and users authenticated prior to being granted access to the network
  • ● Centralized security and access management from FortiGate interface
  • ● Up to 48 ports in a compact 1 RU form factor
  • ● Stackable up to 300 switches per FortiGate depending on model
  • ● Supports Wire-speed switching and Store and Forward forwarding mode

Compare to Similar Items

Module

FS-224E

FS-248D

Total Network Interfaces

24x GE RJ45 ports and

4x GE SFP ports

48x GE RJ45 ports and

4x GE SFP ports

Switching Capacity (Duplex)

56 Gbps

104 Gbps

Packets Per Second (Duplex)

83 Mpps

155 Mpps

MAC Address Storage

16 K

16 K

Link Aggregation Group Size

8

8

Power Consumption* (Average / Maximum)

17.2 W / 17.3 W

38.66 W / 39.19 W

Product Highlights

FortiSwitch 224E delivers outstanding security performance and manageability for threat conscious small to mid sized businesses this enterprise switch features 24 gigabit ethernet ports and 4 high speed 10G SFP ports for uplink connectivity providing up to 128 Gbps switching capacity the device seamlessly integrates with FortiGate next generation firewalls through the FortiLink protocol allowing centralized security management and simplified network deployment while ensuring secure access for all users and devices on the network

Specifications

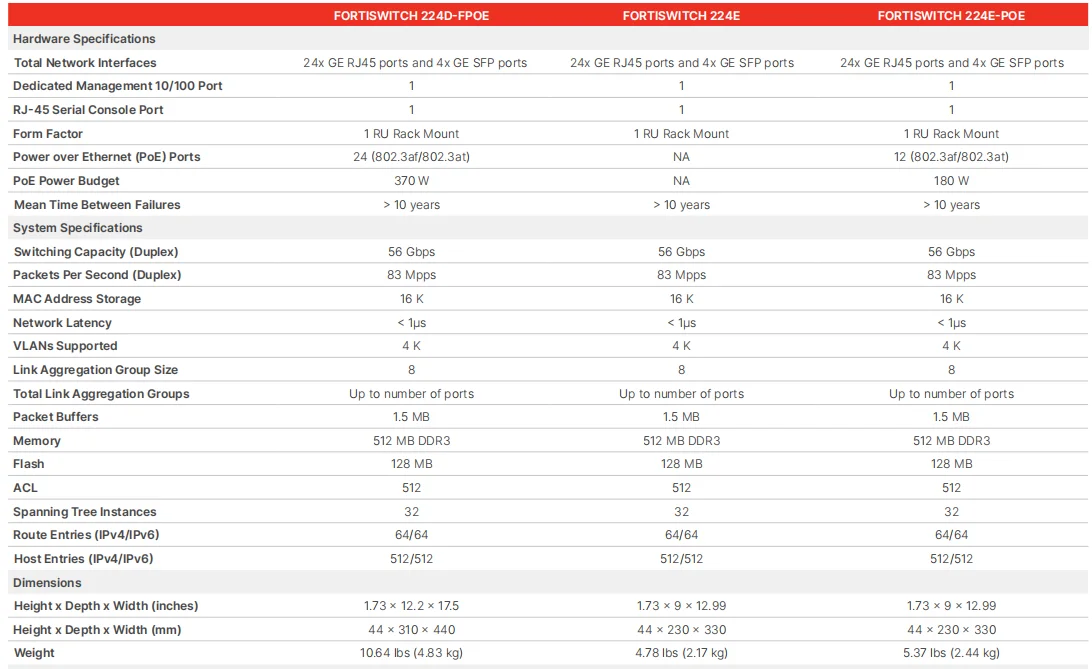

Hardware specification

Total Network Interfaces

24x GE RJ45 ports and 4x GE SFP ports

Dedicated Management 10/100 Port

1

RJ-45 Serial Console Port

1

Form Factor

1 RU Rack Mount

Power over Ethernet (PoE) Ports

NA

PoE Power Budget

NA

Mean Time Between Failures

> 10 years

System specification

Switching Capacity (Duplex)

56 Gbps

Packets Per Second (Duplex)

83 Mpps

MAC Address Storage

16 K

Network Latency

< 1µs

VLANs Supported

4 K

Link Aggregation Group Size

8

Total Link Aggregation Groups

Up to number of ports

Packet Buffers

1.5 MB

DRAM

512 MB

FLASH

128 MB

Dimensions

Height x Depth x Width (inches)

1.73 x 9 x 12.99

Height x Depth x Width (mm)

44 x 230 x 330

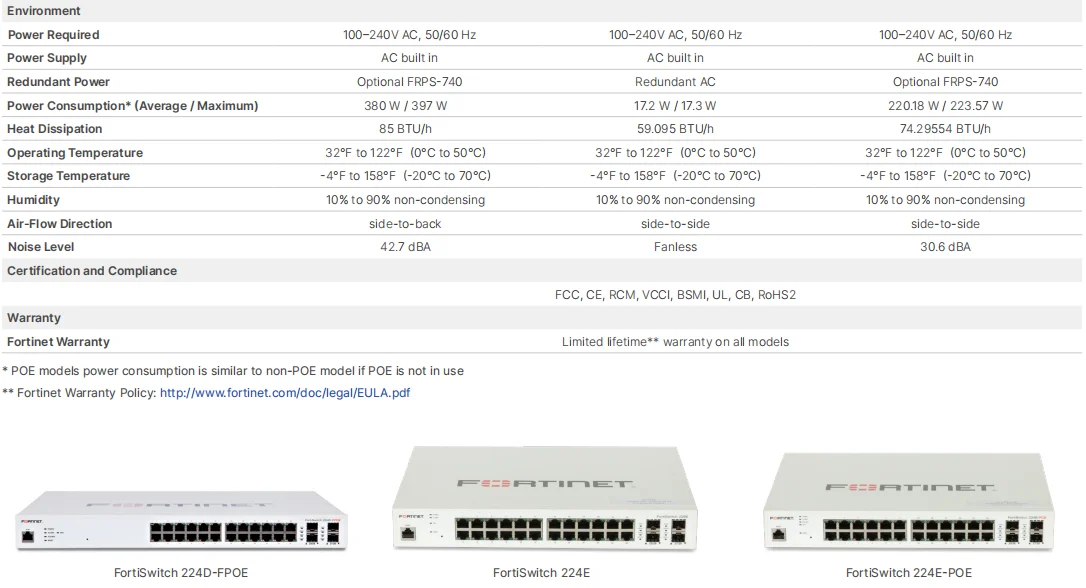

Environment

Power Required

100–240V AC, 50–60 Hz

Power Supply

AC Built in

Redundant Power

Redundant AC

Power Consumption (Average / Maximum)

17.2 W / 17.3 W

Heat Dissipation

59.095 BTU/h

Operating Temperature

32–122°F (0–50°C)

Storage Temperature

-4–158°F (-20–70°C)

Humidity

10–90% non-condensing

The Fortinet 24-Port Gigabit Ethernet 24xGE RJ45/4xGE SFP/Layer 2/3 Network Switch with POE SNMP QoS FortiGate Integrated Security FS-224E is evocative, to say the least, but that's why you're drawn to it in the first place.
