Enterprise Switch CE8860-4C-EI HW data center switch 4 sub-card slots port side air without power supply, 4 core, 1.5GHz, 4GB DRAM

Regular price: R 790,466.95
Sale price: R 790,466.95
Regular price: ~~R 929,960.95~~
Unit price: per

Shipping calculated at checkout.

Default Title

Quantity must be 1 or more

SPECIFICATIONS

Model Number: CE8860-4C-EI

Type: Enterprise Switch

Brand Name: HW

Use: Enterprise

Product name: CE8860-4C-EI

Warranty: 1 Year

Description

CE8860-4C-EI HW data center switch 4 sub-card slots port side air without power supply

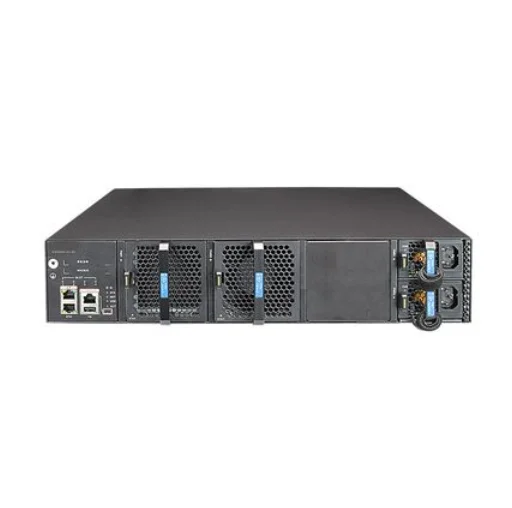

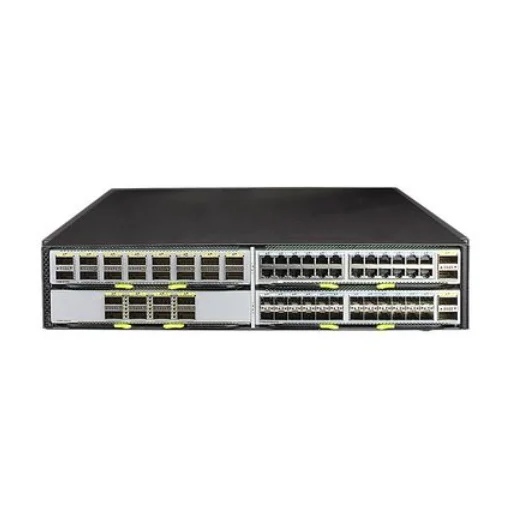

CE8860-4C-EI exterior

Interface description

Console interface

The Console interface is used to connect the console to achieve field configuration functions, and the Console debugging cable is required.

Attribute	Description
Connector type	RJ45
Complies with standards	RS232
Working mode	Duplex UART (Universal Asynchronous Receiver/Transmitter)
Baud rate	9600bit/s~115200bit/s the default is 9600bit/s

Mini USB port

The Mini USB interface is used to connect the console to implement the field configuration function of the system, and the configuration terminal on the other side needs to install the USB serial port driver. As long as the Mini USB interface is wired normally, the serial port switches to the Mini USB interface.

ETH MANAGEMENT INTERFACE (RJ45)

The ETH management interface (RJ45) is used to configure the network port connection of the terminal or network management workstation, to build a field or remote configuration environment, and the standard network cable of Category 5 or higher is required.

Attribute	Description
Connector type	RJ45
Complies with standards	IEEE802.3ab
Working mode	10/100/1000Mbit/s adaptive full-duplex mode
Maximum effective distance	100m

THE CE8860EI DEVICE HAS TWO ETH MANAGEMENT INTERFACES (RJ45), AND THE PRECAUTIONS FOR USING THE TWO INTERFACES ARE AS FOLLOWS:

Two interfaces cannot be used at the same time, just select one of them.
Before the device boots, you can choose to use interface 1 or interface 2 in the BIOS menu, and use interface 1 by default, which can be set in the Basic Configuration Guide - BIOS Menu Introduction - ModifyIng ethernet interface parameters.
After successful device enrollment:
- If both management interfaces are wired and Up, interface 1 will be used as the primary, interface 2 will be automatically used as a backup without configuration, and the management port number displayed in the device CLI interface is MEth0/0/0.
- If the two management interfaces are connected after the device is successfully registered, the plug-in, first-use principle is implemented.
- If interface 1 fails, the system automatically switches to interface 2, and when interface 1 fails, it will only fail back to interface 1 if interface 2 fails or the device restarts. You can check which interface is currently in use by looking at the LEDs on the physical interface (the ETH interface link LED in use will be solid green, the ACT light will blink yellow when there is data transmission, and the LEDs of the standby interface will all be off).

USB PORT

THE USB INTERFACE CAN BE CONNECTED TO A U DISK FOR LOG BACKUP, SYSTEM SOFTWARE BACKUP AND UPLOAD, AND SUPPORTS THE U DISK OPENING FUNCTION.

Specifications

Specification	Description
Physical parameters		Dimensions (w×d× h): 442.0mm×600.0mm×88.1mm. Weight (including 2 power supply modules and 2 fan modules, if you support multiple models of modules, take the maximum weight): 21.2kg.
Environment parameters	Temperature	Working temperature: 0 °C ~ 40 °C (0 m ~ 1800 m).Illustrate: 1800m ~ 5000m altitude, the maximum temperature specification is reduced by 1 °C for each increase of 220m in altitude. STORAGE TEMPERATURE: -40 °C ~ +70 °C.
	Relative humidity	5% RH TO 95% RH, NON-CONDENSING.
	Altitude	<5000m
	NOISE (SOUND PRESSURE, ROOM TEMPERATURE 27°C)	Rear front air duct: <58dBA. Front and rear air ducts: < 56dBA.
Power parameters	The type of power input	Ac/dc/hvdc
	Ac input characteristics	Rated voltage range: 100V AC~130V AC/200V AC~240V AC;50/60Hz. Maximum voltage range: 90V AC~290V AC; 47Hz~63Hz.
	Dc input characteristics	RATED VOLTAGE RANGE: -48V DC~-60V DC. MAXIMUM VOLTAGE RANGE: -38.4V DC~-72V DC.
	Hvdc input characteristics	240V HVDC RATED VOLTAGE: 240V DC. 240V HVDC MAXIMUM VOLTAGE RANGE: 188V DC ~ 290V DC. 380V HVDC RATED VOLTAGE RANGE: 240V DC~ 380V DC. 380V HVDC MAXIMUM VOLTAGE RANGE: 188V DC ~ 400V DC.
	Rated input current	1200W AC &240V DC Power Module (PAC-1K2WA Series): 10A(100V AC~130V AC)/8A(200V AC~240V AC)/8A(240V DC). 1200W HVDC POWER MODULE (PHD-1K2WA SERIES): 8A (240V DC~380V DC). 1200W DC POWER MODULE (PDC-1K2WA SERIES): 38A(-48V DC~-60V DC).
The power consumption of the whole machine	Maximum power consumption	FULL CONFIGURATION OF 4 CE88-D8CQ CARDS: 625W. FULL CONFIGURATION OF 4 CE88-D16Q CARD: 585W. FULL CONFIGURATION OF 4 CE88-D24T2CQ CARD: 750W. FULL CONFIGURATION OF 4 CE88-D24S2CQ CARD: 602W. FULL CONFIGURATION OF 4 CE88-D24S2CQ-U CARD: 718W.
The power consumption of the whole machine	Typical power consumption	FULLY CONFIGURED WITH 4 CE88-D8CQ ADD-IN CARDS: 355W (100% LOAD, 32-PORT QSFP28 HIGH-SPEED CABLE, DUAL POWER SUPPLY). FULLY CONFIGURED WITH 4 CE88-D16Q ADD-IN CARDS: 340W (100% LOAD, 64-PORT QSFP+ HIGH-SPEED CABLE, DUAL POWER SUPPLY). Fully configured with 4 CE88-D24T2CQ add-in cards: 522W (100% load, 96-port 3m network cable and 8-port QSFP28 high-speed cable, dual power supply). FULLY CONFIGURED WITH 4 CE88-D24S2CQ CARDS: 399W (100% LOAD, 96-PORT SFP28 HIGH-SPEED CABLE AND 8-PORT QSFP28 HIGH-SPEED CABLE, DUAL POWER SUPPLY). FULLY CONFIGURED WITH 4 CE88-D24S2CQ-U CARDS: 505W (100% LOAD, 96-PORT SFP28 HIGH-SPEED CABLE AND 8-PORT QSFP28 HIGH-SPEED CABLE, DUAL POWER SUPPLY).
Heat consumption of the whole machine	Maximum heat consumption	Full configuration of 4 CE88-D8CQ card: 2134BTU/hr. Full configuration of 4 CE88-D16Q card: 1998BTU/hr. Full configuration of 4 CE88-D24T2CQ cards: 2561BTU/hr. Full configuration of 4 CE88-D24S2CQ card: 2056BTU/hr. Full configuration of 4 CE88-D24S2CQ-U card: 2450BTU/hr.
Heat consumption of the whole machine	Typical heat consumption	Fully configured with 4 CE88-D8CQ cards: 1212BTU/hr (100% load, 32-port QSFP28 high-speed cable, dual power supply). Fully configured with 4 CE88-D16Q add-in cards: 1161BTU/hr (100% load, 64-port QSFP+ high-speed cable, dual power supply). Fully configured with 4 CE88-D24T2CQ add-in cards: 1783BTU/hr (100% load, 96-port 3m network cable and 8-port QSFP28 high-speed cable, dual power supply). Fully configured with 4 CE88-D24S2CQ cards: 1363BTU/hr (100% load, 96-port SFP28 high-speed cable and 8-port QSFP28 high-speed cable, dual power supply). Fully configured with 4 CE88-D24S2CQ-U cards: 1723BTU/hr (100% load, 96-port SFP28 high-speed cable and 8-port QSFP28 high-speed cable, dual power supply).
Lightning protection specifications		Power protection: AC: Common mode 4kV, differential mode 2.5kV. DC: Common mode 4kV, differential mode 2kV.
Cooling	Heat dissipation	Wind cooling dissipates heat
Cooling	Cooling air ducts	Front, rear or rear front air ducts, depending on the fan module and power supply module selected.
Reliability and availability	Power module backup	Support 1+1 backup
	Fan module backup	THE CONFIGURATION USES TWO FAN MODULES TO SUPPORT 1+1 BACKUP OF FAN MODULES AT AMBIENT TEMPERATURES BELOW 35°C.
	Hot-swappable	power supply modules and fan modules are hot-swappable.
	MTBF (YEARS)	40.88
	MTTR AVERAGE REPAIR TIME (HOURS)	1.75
	Usability	0.99999511530
technical specifications	Processor	4 core, 1.5GHz
	DRAM Memory	4GB
	NOR Flash	16MB
	NAND Flash	1GB
Stack	Interfaces that support service port stacking	See the interface description on each card.

Every product is unique, just like you. If you're looking for a product that fits the mold of your life, the Enterprise Switch CE8860-4C-EI HW data center switch 4 sub-card slots port side air without power supply, 4 core, 1.5GHz, 4GB DRAM is for you.
