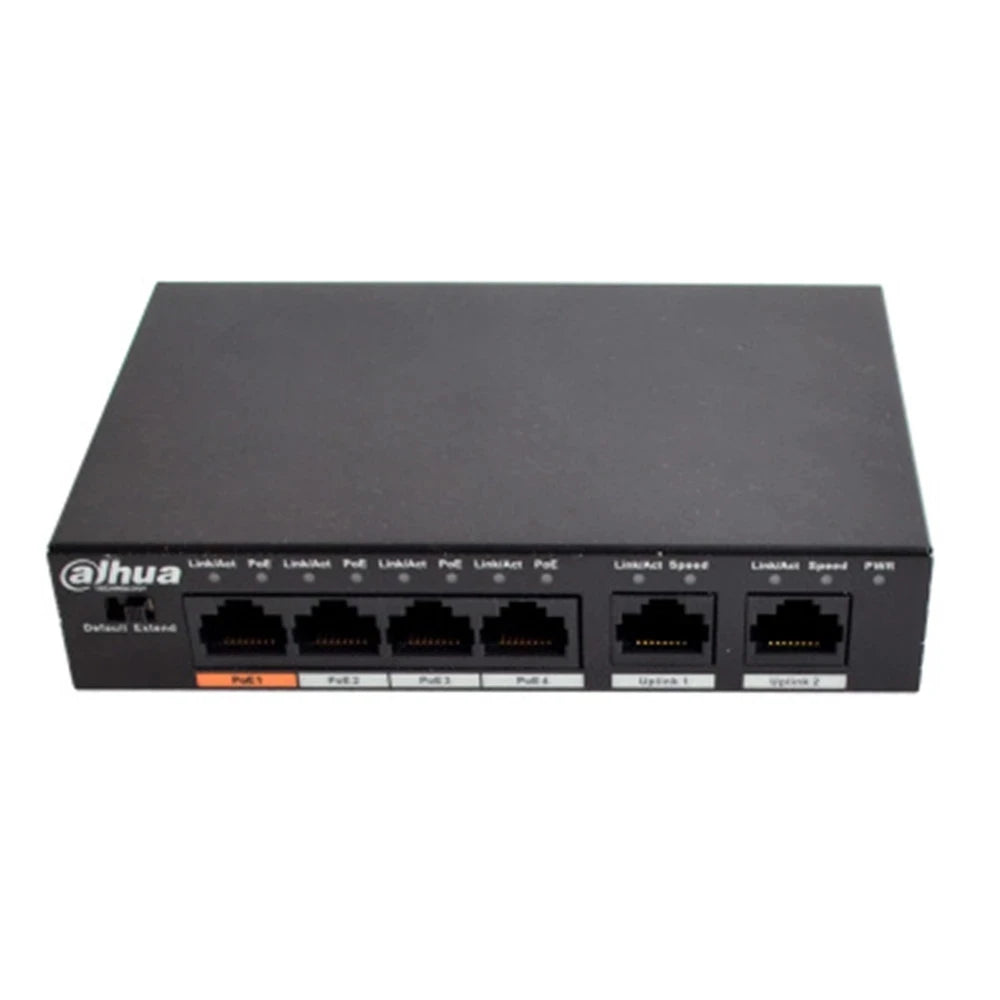

Dahua 4ch PoE Switch DH-S1500C-4ET2ET-DPWR 4CH Ethernet Switch with 250m Power Transit Distance Support PoE PoE+&Hi-PoE Protocol

Dahua 4ch PoE Switch DH-S1500C-4ET2ET-DPWR 4CH Ethernet Switch with 250m Power Transit Distance Support PoE PoE+&Hi-PoE Protocol

SPECIFICATIONS

Brand Name: DAHUA

Certification: CE

Certification: FCC

Certification: UL

Model Number: DH-S1500C-4ET2ET-DPWR

POE Switch: 4 POE ports +2 UP-LINK ports

Features

DH-S1500C-4ET2ET-DPWR

4 POE Port Fast Ethernet PoE Switch

> Desktop Small Layer 2 PoE Switch for Powering and Data Exchange

> MAC auto learning, aging, MAC address capacity is 2K

> RJ45 port supports 10/100 Mbps self-adaptation

> Supports IEEE802.3af and IEEE803.3at power supply standards

> Supports 250m long distance power transmission

> 4 PoE Ports, 2 UP-LINK Ports

Technical Specifications

PD Alive:

Turn the switch to the ON state：

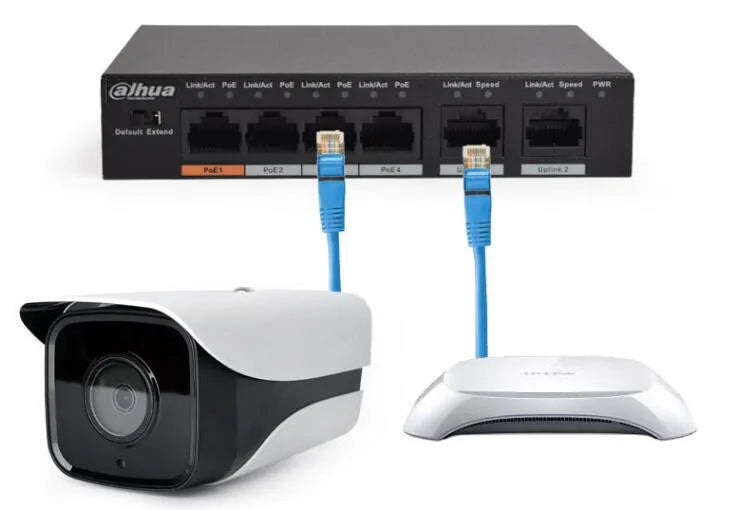

When the switch senses that the POE camera has no traffic output, it judges that the camera isn't working, and restarts the poe camera through POE switch to solve the camera freeze up !

Extend Mode:

Switch to the ON state: long-distance transmission mode, POE1 port transmission bandwidth is 10Mbps, support Cat6 cable, the maximum transmission distance is 250 Meter! (need your poe cameras models support e-POE)

Switch to the OFF state: standard Ethernet mode, transmission bandwidth is 100Mbps, supporting Cat6 cable, the maximum transmission distance is 100 Meter!
