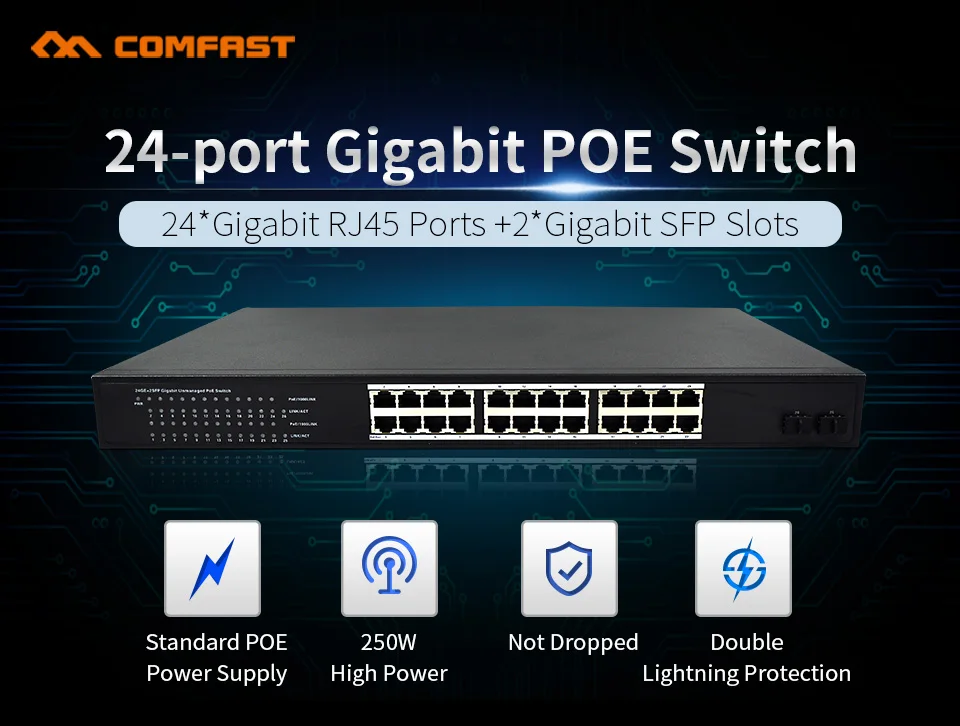

COMFAST 24-Port Gigabit POE Ethernet Switch With Rj45 Port 24* 10/100/1000M 2*SFP IEEE802.3af/at POE Power Switch Hotel Office

COMFAST 24-Port Gigabit POE Ethernet Switch With Rj45 Port 24* 10/100/1000M 2*SFP IEEE802.3af/at POE Power Switch Hotel Office

SPECIFICATIONS

Brand Name: COMFAST

High-concerned Chemical: None

Function: POE

Number of Interfaces: 24

Certification: CE

Switch Type: Ethernet

Package: Yes

Communication Mode: Full-Duplex & Half-Duplex

Model Number: CF-SG1241P

Transmission Rate: 10/100/1000Mbps

switch gigabit: poe switch

switch ethernet: switch poe

Standards: IEEE802.3af/at

Mac Address: 4K, Automatic Learning, Automatic Updates

LED Indicator: PWR (Green), PoE(Orange), LINK/ACT(Green)

Transmission Mode: Store and Forward

Max Frame Size: 1536Byte

Backplane Bandwidth: 8.8G

Input Power: AC: 100-240V, 50/60Hz

Output Power: DC: 55V/5.6A

24 port poe switch: poe switch gigabit mordual

Wireless switch: switch router

switch poe tplink 802.3af: 2 port gigabit switch

wifi wall switch: network switch

gigabit fiber optic switch: network switch

24 Gigabit POE Ethernet Switch with Rj45 Port 24* 10/100/1000M CF-SG1241P for Hotel Office

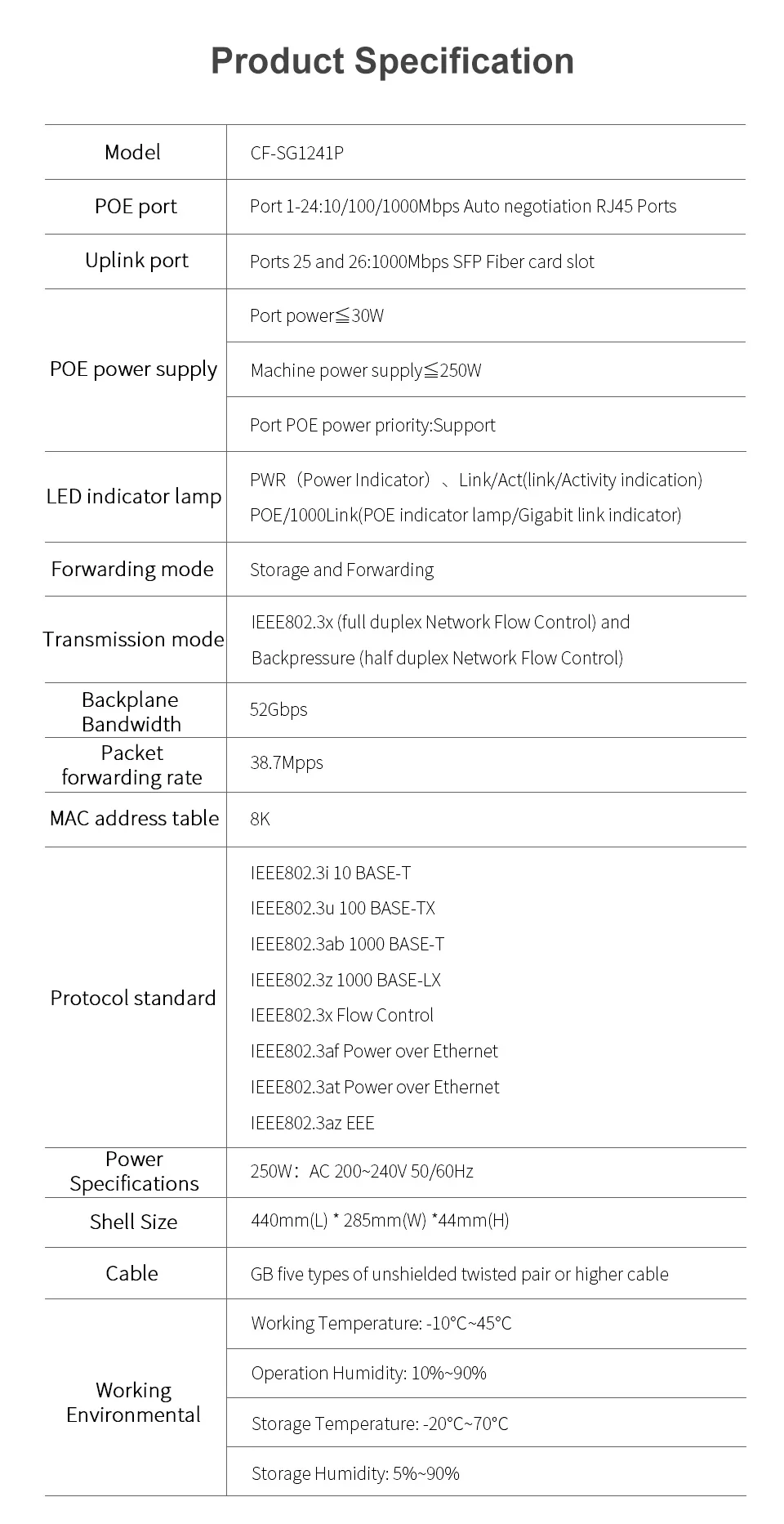

Technical Specifications

--CF-SG1241P Gigabit Unmanaged PoE Switch

--24 10/100/1000Mbps Rj45 adaptive POE power ports

--SmartLink power management, StepLink step-by-step start function

--Support IEEE802.3 af/IEEE802.3 at standard PoE power supply

--The maximum power supply for a single port is 30W

--Support port power supply priority to ensure continuous power supply for key network nodes

--Support I E E E 80 2. 3 x full duplex flow control and Backpressure half duplex flow control

--Supports intelligent self-adaptation, and it can work after plugging in the Internet cable. It does not require the user to configure or make any settings separately, which greatly facilitates the user to do projects.

Application Environment

• Metropolitan fiber broadband network: data such as telecommunications, cable television, network system integration, network operators.

• Broadband private network: applicable to private networks in finance, government, petroleum, railway, electric power, public security, transportation, education and other industries.

• Multimedia transmission: integrated transmission of images, voices, and data, suitable for applications such as distance learning, video conferencing, and video phones.

• Real-time monitoring: real-time control signals, images and data are simultaneously transmitted.

Product Features

①Smartlink power management、StepLink step-by-step enable function to protect the safe and stable operation of POE switch;

②SuppotIEEE802.3af/IEEE802.3at Standard POE power supply;

③Single port power supply is less than or equal to 30W;

④Automatic detection and identification of standard POE powered devices, Intelligent power supply;

⑤Support port power supply priority to ensure continuous power supply to key nodes of the network;

⑥Support IEEE802.3x (full duplex Network Flow Control) and Backpressure (half duplex Network Flow Control);

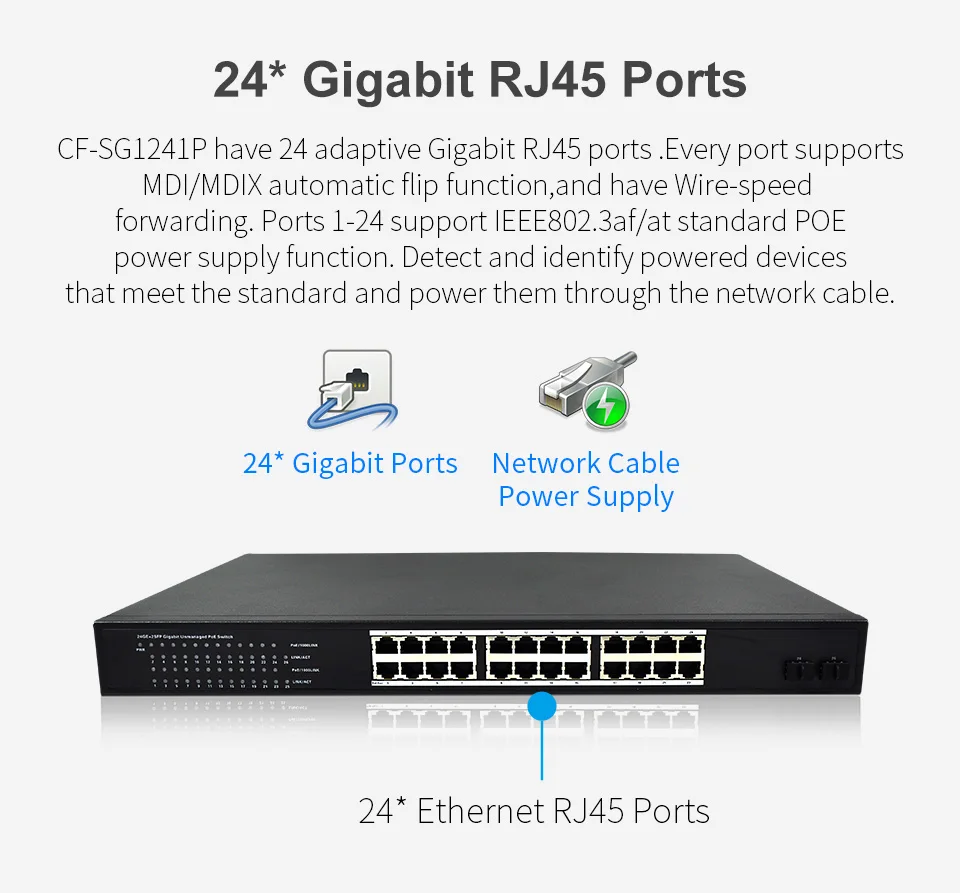

24* Gigabit RJ45 Ports

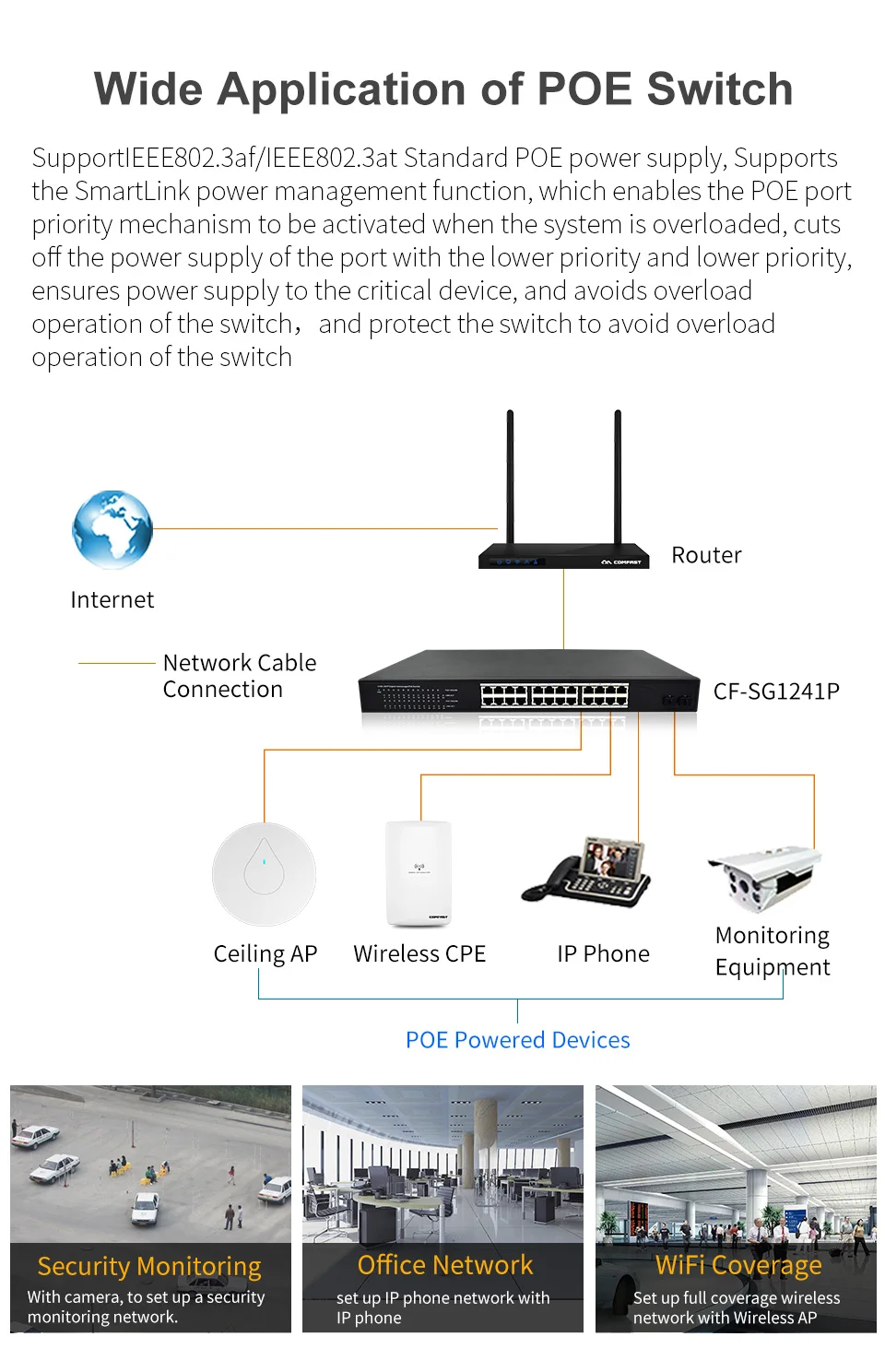

CF-SG1241P have 24 adaptive Gigabit RJ45 ports. Every port supports MDI/MDIX automatic flip function,and have Wire-speed forwarding. Ports 1-24 support IEEE802.3af/at standard POE power supply function. Detect and identify powered devices that meet the standard and power them through the network cable. Wide Application of POE Switch

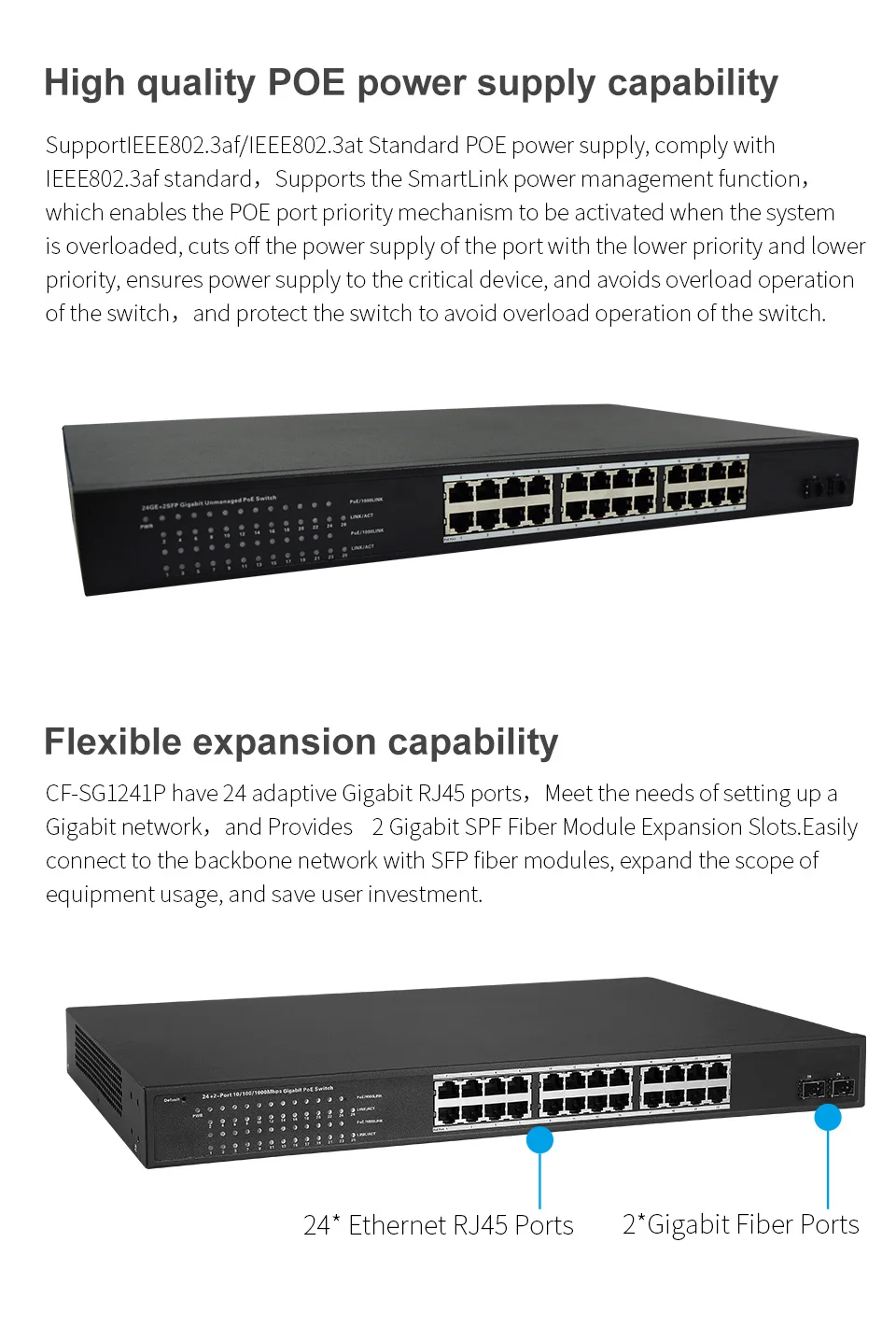

Support lEEE802.3af/IEEE802.3at Standard POE power supply, Supports the SmartLink power management function, which enables the POE port priority mechanism to be activated when the system is overloaded, cuts off the power supply of the port with the lower priority and lower priority, ensures power supply to the critical device, and avoids overload operation of the switch, and protect the switch to avoid overload operation of the switchHigh quality POE power supply capability

Support lEEE802.3af/IEEE802.3at Standard POE power supply, comply with IEEE802.3af standard，Supports the SmartLink power management function, which enables the POE port priority mechanism to be activated when the system is overloaded, cuts off the power supply of the port with the lower priority and lower priority, ensures power supply to the critical device, and avoids overload operation of the switch, and protect the switch to avoid overload operation of the switch.

Flexible expansion capability

CF-SG1241P have 24 adaptive Gigabit RJ45 ports, Meet the needs of setting up a Gigabit network, and Provides 2 Gigabit SPF Fiber Module Expansion Slots.Easily connect to the backbone network with SFP fiber modules, expand the scope of equipment usage, and save user investment.Intelligent Adaptation Plug and Play

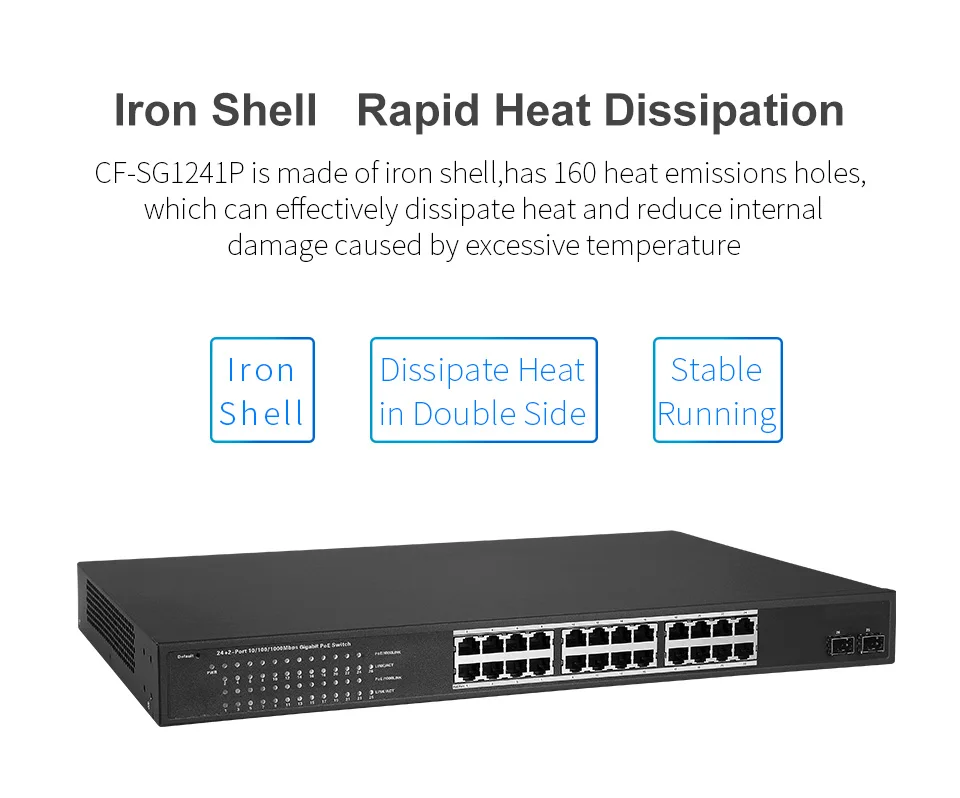

Plug in the Internet cable to work, no need to set up separately.Time and mind.Iron Shell Rapid Heat Dissipation

CF-SG1241P is made of iron shell,has 160 heat emissions holes,which can effectively dissipate heat and reduce internal damage caused by excessive temperature
