Huawei CloudEngine S5735-L switch with 4810/100/1000 Ports, 410GE SFP+ Uplink ports, Gigabit Ethernet Network Switch S5735-L48T4X-A

Regular price: R 32,417.95
Sale price: R 32,417.95
Regular price: ~~R 32,966.95~~
Unit price: per

Shipping calculated at checkout.

Default Title

Quantity must be 1 or more

CloudEngine S5735-L series S5735-L48T4X-A simplified desktop access gigabit ethernet network switch with 10GE uplink

Products Description

S5735-L48T4X-A - Huawei S5700 Series Switches

Huawei CloudEngine S5735-L switch with 48*10/100/1000 Ports, 4*10GE SFP+ Uplink ports, Gigabit Ethernet Network Switch S5735-L48T4X-A

S5735-L48T4X-A is the Huawei S5735-L switch with 48 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports. Huawei CloudEngine S5735-L is a series of simplified gigabit access switches that provide 12–48 flexible all-GE downlink ports and four fixed GE or 10 GE uplink ports. They are designed for enterprise campus network access and gigabit to the desktop. Built on next-generation, high-performance hardware and powered by Huawei’s Versatile Routing Platform (VRP), CloudEngine S5735-L switches feature flexible Ethernet networking, diversified security control, and support for multiple Layer 3 routing protocols — providing higher performance and more powerful service processing capabilities for networks.

Quick Spec

Product Model	S5735-L48T4X-A
Forwarding Performance	132 Mpps
Switching Capacity2	176 Gbit/s/432 Gbit/s
Fixed Ports	48 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports
PoE+	Not supported

Supported Transceivers

Model	Description
OMXD30000	Huawei Optical Transceiver OMXD30000, SFP+, 10G, Multi-mode Module (850nm, 0.3km, LC)
OSX010000	Optical Transceiver, SFP+, 10G, Single-mode Module (1310nm, 10km, LC)
SFP-GE-LX-SM1310	Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC)
OSXD22N00	Optical Transceiver, SFP+, 10G, Multi-mode Module (1310nm, 0.22km, LC, LRM)
SFP-10G-USR	10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.1km, LC)
OMXD30009	Transceiver, QSFP+, 1310nm, 41.25Gbps, -7dBm, 2.3dBm, -11.5dBm, LC, SMF, 10
SFP-10G-LR	Huawei Optical Transceiver SFP-10G-LR, SFP+, 10G, Single-mode Module (1310nm, 10km, LC)

Compare to Similar Items

Table 3 shows the comparison.

Product Model	S5735-L12T4S-A S5735-L12P4S-A	S5735-L24T4S-A S5735-L24P4S-A	S5735-L24T4X-A S5735-L24P4X-A	S5735-L48T4S-A	S5735-L48T4X-A S5735-L48P4X-A	S5735-L32ST4X-A
Forwarding Performance	24 Mpps	42 Mpps	96 Mpps	78 Mpps	132 Mpps	108 Mpps
Switching Capacity2	32 Gbit/s/336 Gbit/s	56 Gbit/s/336 Gbit/s	128 Gbit/s/336 Gbit/s	104 Gbit/s/432 Gbit/s	176 Gbit/s/432 Gbit/s	144 Gbit/s/432 Gbit/s
Fixed Ports	12 x 10/100/1000Base-T ports, 4 x GE SFP ports	24 x 10/100/1000Base-T ports, 4 x GE SFP ports	24 x 10/100/1000Base-T ports, 4 x 10 GE SFP+ ports	48 x 10/100/1000BASE-T ports, 4 x GE SFP ports	48 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports	24 x GE SFP ports, 8 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports
PoE+	CloudEngine S5735-L12P4S-A: Supported CloudEngine S5735-L24P4S-A: Supported CloudEngine S5735-L24P4X-A: Supported CloudEngine S5735-L48P4X-A: Supported Other: Not supported

Technical Specifications

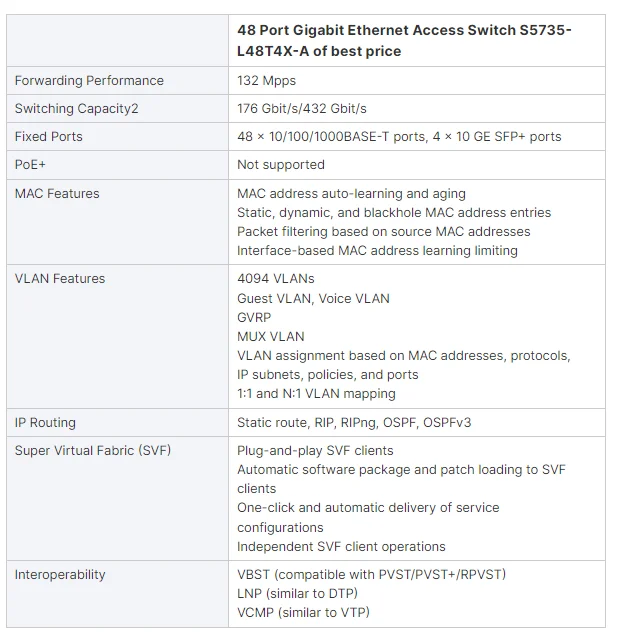

S5735-L48T4X-A Specification
Forwarding Performance	132 Mpps
Switching Capacity2	176 Gbit/s/432 Gbit/s
Fixed Ports	48 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports
PoE+	Not supported
MAC Features	MAC address auto-learning and aging Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses Interface-based MAC address learning limiting
VLAN Features	4094 VLANs Guest VLAN, Voice VLAN GVRP MUX VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports 1:1 and N:1 VLAN mapping
IP Routing	Static route, RIP, RIPng, OSPF, OSPFv3
Super Virtual Fabric (SVF)	Plug-and-play SVF clients Automatic software package and patch loading to SVF clients One-click and automatic delivery of service configurations Independent SVF client operations
Interoperability	VBST (compatible with PVST/PVST+/RPVST) LNP (similar to DTP) VCMP (similar to VTP)

Every product is unique, just like you. If you're looking for a product that fits the mold of your life, the Huawei CloudEngine S5735-L switch with 48*10/100/1000 Ports, 4*10GE SFP+ Uplink ports, Gigabit Ethernet Network Switch S5735-L48T4X-A is for you.
