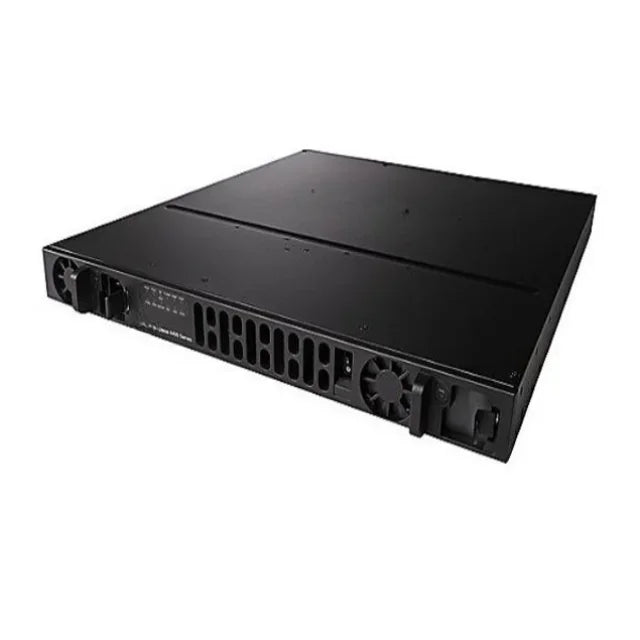

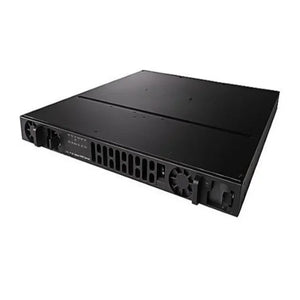

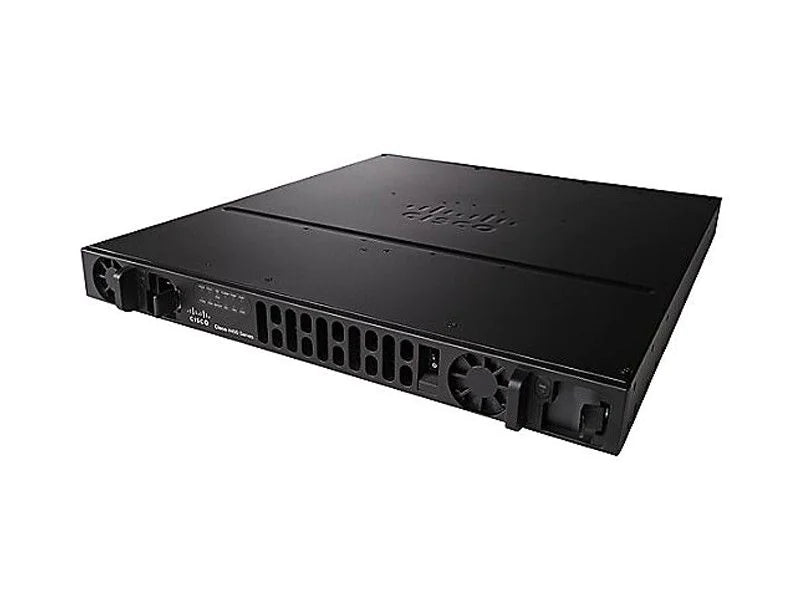

Cisco Router 4000 Series ISR 4431 AXV Bundle,PVDM4-64 w/APP,SEC,UC lic,CUBE-25 Integrated Services Gbit Ethernet router ISR4431-AXV/K9

Product Number

ISR4431-AXV/K9

Product Description

Cisco ISR 4431 AXV Bundle. PVDM4-64 w/APP. SEC. UC lic. CUBE-25

Aggregate Throughput

500Mbps to 1Gbps

Total onboard WAN or LAN 10/100/1000 ports

4

RJ-45-based ports

4

SFP-based ports

4

NIM slots

3

OIR (all I/O modules)

Yes

Onboard ISC slot

1

Default flash memory

8 GB

Maximum flash memory

32 GB

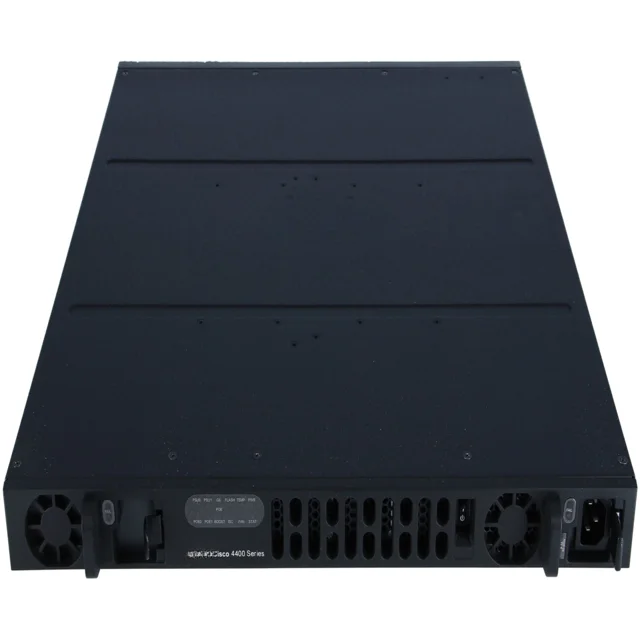

LEDs

Represents

Color

Description

PSU

Power Supply Unit (P0 and P1) Status

Green

PSU is on and is providing power.

Amber

PSU is on but with errors or in a failure condition.

Off

Power supply is turned off.

GE POE

Internal PoE Daughter Card Status

Green

PSU is installed and providing power

Amber

PSU is installed but in a failure condition.

Off

PSU is off.

FLASH

System Flash Status

Blinking Green

Compact flash/eUSB flash is present and currently being accessed.

TEMP

Temperature Status

Solid green

All temperature sensors in the system are within acceptable range.

Amber

One or more temperature sensors in the system are outside the acceptable range.

Off

Temperature is not being monitored.

PWR

System Power

Green

System power is on and functioning correctly.

Green blinking

System power is in the process of shutting down.

Amber

System power is up, but low level initialization failed.

Amber blinking

System power is up, but the system failed to come out of reset.

Off

System power is off.

POE BOOST

Power Over Ethernet Boost Mode

Green

Two PoE power supplies are installed and operating in boost mode.

Off

This can mean one of the following:

·No PoE PSU installed.

·One PoE PSU installed.

·Two PoE PSUs installed and operating in redundant mode.

ISC

ISC Slot Status

Green

PVDM4 is present and enabled.

Amber

Initialized with error.

Off

Not present.

FAN

Fan Status

Green

All fans are operating.

Amber

One fan has stopped working.

Blinking Amber

Two or more fans have stopped working, or the fan tray has been removed.

Off

Fans are not being monitored.

STAT

System Status

Solid green

System operating normally.

Blinking amber

BIOS/Rommon is booting.

Amber

BIOS/Rommon has completed booting, and system is at Rommon prompt or booting platform software.

Off

System is not out of reset or BIOS image is not loadable.

Product Number

ISR4431-AXV/K9

ISR4321-AXV/K9

Product Description

Cisco ISR 4431 AXV Bundle. PVDM4-64 w/APP. SEC. UC lic. CUBE-25

Cisco ISR 4321 AXV Bundle, with CUBE-10, IPBase, APP, SEC and UC licenses.

Aggregate Throughput

500Mbps to 1Gbps

50 Mbps to 100 Mbps

Total onboard WAN or LAN 10/100/1000 ports

4

2

RJ-45-based ports

4

2

SFP-based ports

4

1

NIM slots

3

2

Onboard ISC slot

1

1

ISR4431-AX/K9 Specification

Product Number

ISR4431-AXV/K9

Product Description

Cisco ISR 4431 AXV Bundle. PVDM4-64 w/APP. SEC. UC lic. CUBE-25

Aggregate Throughput

500Mbps to 1Gbps

Total onboard WAN or LAN 10/100/1000 ports

4

RJ-45-based ports

4

SFP-based ports

4

Enhanced service-module slots

0

Doublewide service-module slots

0

NIM slots

3

OIR (all I/O modules)

Yes

Onboard ISC slot

1

Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM

(Combined control/services/data planes)

NA

Maximum memory DDR3 ECC DRAM (Combined control/services/data planes)

NA

Default memory DDR3 ECC DRAM (data plane)

2 GB

Maximum memory DDR3 ECC DRAM (data plane)

2 GB

Default memory DDR3 ECC DRAM (control/services plane)

4 GB

Maximum memory DDR3 ECC DRAM (control/services plane)

16 GB

Default flash memory

8 GB

Maximum flash memory

32 GB

External USB 2.0 slots (type A)

2

USB console port -type B mini (up to 115.2 kbps)

1

Serial console port - RJ45 (up to 115.2 kbps)

1

Serial auxiliary port - RJ45 (up to 115.2 kbps)

1

Power-supply options

Internal: AC, DC, and PoE

Redundant power supply

Internal: AC, DC, and PoE

AC input voltage

100 to 240 VAC autoranging

AC input frequency

47 to 63 Hz

AC input current range, AC power supply (maximum)

3 to 1.3A

AC input surge current

60 A peak and less than 5 Arms per half cycle

Typical power (no modules) (watts)

65

Maximum power with AC power supply (watts)

250 (no PoE)

Maximum power with PoE power supply (platform only) (watts)

500 with PoE redundant

Maximum endpoint PoE power available from PoE power supply (watts)

250 W with optional redundancy

Product Name

ISR4431-AXV/K9

attributes

Cisco Router

Applicable scenarios

Enterprise, Shopping mall, Factory, Hotel, School, Restaurant
