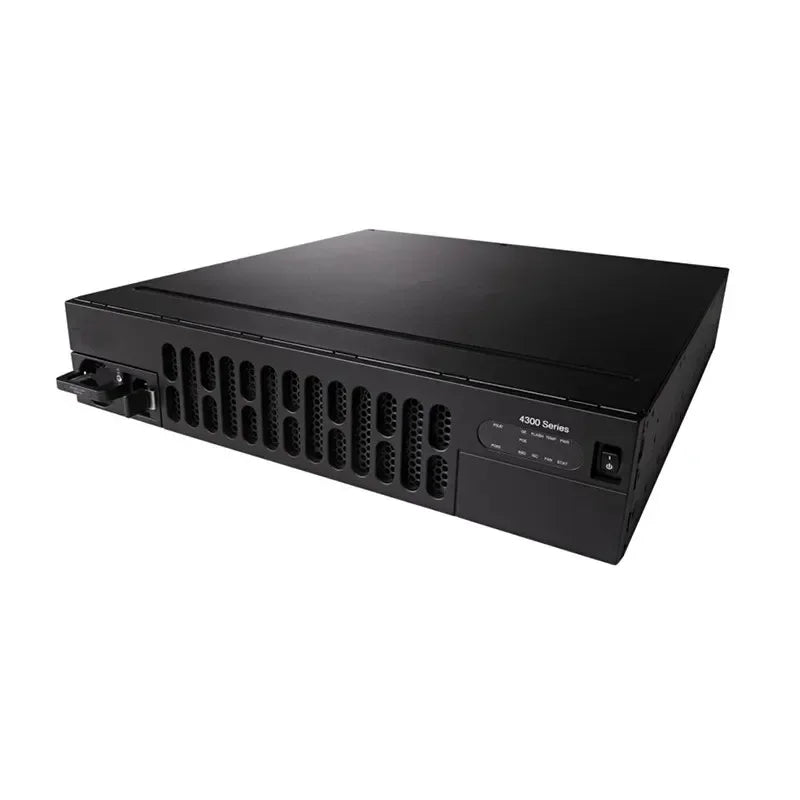

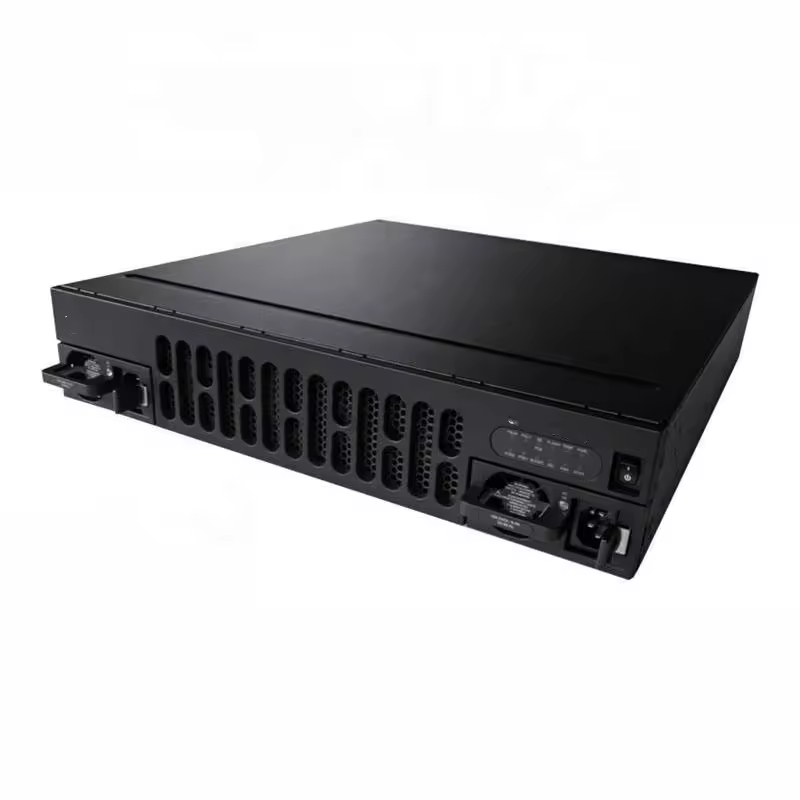

Cisco ISR4351/K9 (3GE,3NIM,2SM,4G FLASH,4G DRAM,IP Base) 200Mbps-400Mbps system throughput, 3WAN/LAN port 3SFP ports, multi-Core CPU

Product Code

Cisco ISR4351/K9

Aggregate Throughput

200 Mbps to 400 Mbps

Total onboard WAN or LAN 10/100/1000 ports

3

RJ-45-based ports

3

SFP-based ports

3

Enhanced service-module (SM-X) slot

2

NIM (Network Interface Modules) slots

3

Onboard ISC slot

1

Memory

4 GB (default) / 16 GB (maximum)

Flash Memory

4 GB (default) / 16 GB (maximum)

Power-supply options

Internal: AC, DC (roadmap), and PoE

Rack height

2 RU

Dimensions (H x W x D)

43.9 x 438.15 x 507.2 mm

Items

Models

Descriptions

Console and Auxillary Cables

CAB-AUX-RJ45

Cisco CAB-AUX-RJ45 Auxiliary Cable 8ft with RJ45 and DB25M

CAB-ETH-S-RJ45

Cisco Router Cable CAB-ETH-S-RJ45

CAB-CONSOLE-RJ45

Cisco CAB-CONSOLE-RJ45 Console Cable 6ft with RJ45 and DB9F

CAB-CONSOLE-USB

Cisco CAB-CONSOLE-USB Console Cable 6 ft with USB Type A and mini-B

Licenses

L-SL-4350-APP-K9=

Cisco AppX license L-SL-4350-APP-K9= with 1300 conns/ISRWAAS or vWAAS for ISR4351

Network Interface Modules

NIM-1MFT-T1/E1

Cisco Fourth-Generation Multiflex Trunk Voice and WAN network interface module

NIM-2CE1T1-PRI

Cisco Multiflex Trunk Voice and WAN network interface module

NIM-4E/M

Analog voice network interface card (ear and mouth)

NIM-2FXS

Cisco Analog voice network interface card NIM-2FXS

NIM-2FXS/4FXO

Cisco Analog voice network interface card NIM-2FXS/4FXO

NIM-8MFT-T1/E1

Cisco Fourth-Generation Multiflex Trunk Voice and WAN network interface module

SFPs for On-Board GE Ports

GLC-SX-MMD

Cisco GLC-SX-MMD 1000BASE-SX SFP transceiver module, MMF, 850nm, DOM

GLC-LH-SMD

Cisco GLC-LH-SMD 1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM

GLC-ZX-SMD

Cisco GLC-ZX-SMD 1000BASE-ZX SFP transceiver module, SMF, 1550nm, DOM

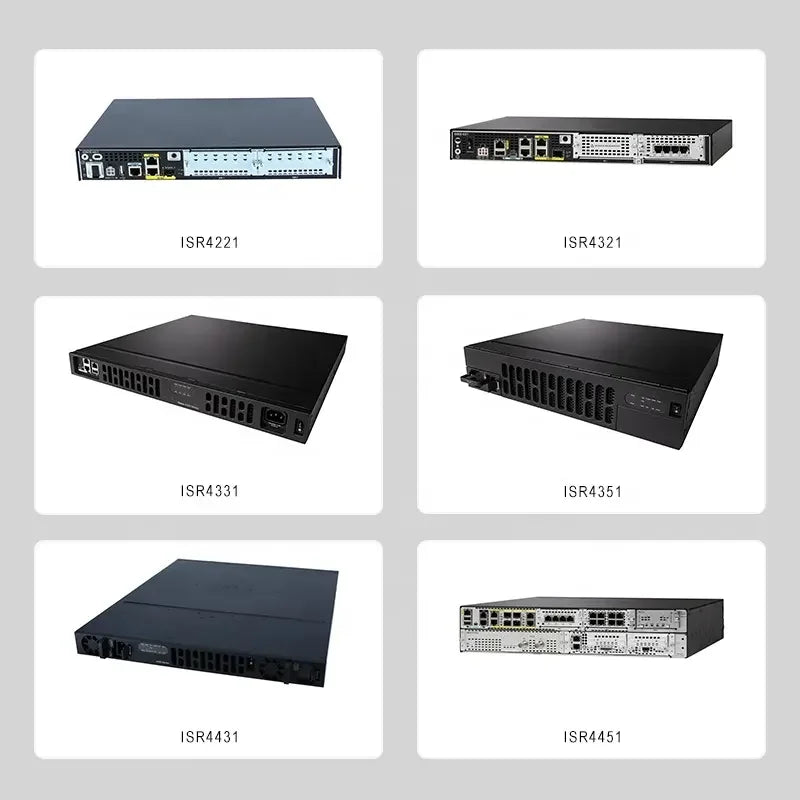

Technical Specifications

ISR4461/K9

ISR4451-X/K9

ISR4431/K9

ISR4351/K9

ISR4331/K9

ISR4321/K9

ISR4221/K9

Aggregate Throughput

1.5Gbps

1 Gbps to

2 Gbps

500 Mbps to

1 Gbps

200 Mbps to

400 Mbps

100 Mbps to

300 Mbps

50 Mbps to

100 Mbps

35 Mbps to 75 Mbps

Total onboard WAN or LAN 10/100/1000 ports

4

4

4

3

3

2

2

RJ-45-based ports

4

4

4

3

2

2

2

SFP-based ports

4

4

4

3

2

1

1

Enhanced service-module slots

3

2

0

2

1

0

0

Doublewide service-module slots

2

1 (assumes no singlewide SM-X modules installed)

0

1 (assumes no singlewide SM-X modules installed)

0

0

0

NIM slots

3

3

3

3

2

2

2

OIR (all I/O modules)

Yes

Yes

Yes

Yes

Yes

Yes

No

Onboard ISC slot

1

1

1

1

1

1

No

Cisco ISR4351/K9 Specification

Aggregate Throughput

200 Mbps to 400 Mbps

Total onboard WAN or LAN 10/100/1000 ports

3

RJ-45-based ports

3

SFP-based ports

3

Enhanced service-module slots

2

Doublewide service-module slots

1 (assumes no singlewide SM-X modules installed)

NIM slots

3

OIR (all I/O modules)

Yes

Onboard ISC slot

1

Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM

(Combined control/services/data planes)

4 GB

Maximum memory DDR3 ECC DRAM (Combined control/services/data planes)

16 GB

Default memory DDR3 ECC DRAM (data plane)

NA

Maximum memory DDR3 ECC DRAM (data plane)

NA

Default memory DDR3 ECC DRAM (control/services plane)

NA

Maximum memory DDR3 ECC DRAM (control/services plane)

NA

Default flash memory

4 GB

Maximum flash memory

16 GB

External USB 2.0 slots (type A)

2

USB console port -type B mini (up to 115.2 kbps)

1

Serial console port - RJ45 (up to 115.2 kbps)

1

Serial auxiliary port - RJ45

(up to 115.2 kbps)

1

Power-supply options

Internal: AC, DC, and PoE

Redundant power supply

N/A

AC input voltage

100 to 240 VAC autoranging

AC input frequency

47 to 63 Hz

AC input current range, AC power supply (maximum)

7.1 to 3.0A

AC input surge current

60 A peak and less than 12 Arms per half cycle

Typical power (no modules) (watts)

48

Maximum power with AC power supply (watts)

430

Maximum power with PoE power supply (platform only) (watts)

990

Maximum endpoint PoE power available from PoE power supply (watts)

500
