Cisco Catalyst 9200 series Switch C9200L-48P-4X-A 10G, C9200L-48P-4G-E 1G, C9200L-48P-4G-A 1G, C9200L-48P-4X-E 10G, Network Essentials
Product Description
Cisco Catalyst 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise – it is secure, always on, and IT simplified.
C9200L-48P-4X-A 10G
Cisco Switch Catalyst 9200, Catalyst 9200L 48-port PoE+ 4x10G uplink Switch, Network Advantage
C9200L-48P-4X-A is the Catalyst 9200L48 ports full PoE+ 4x10G uplink Switch, with Network Advantage software. Cisco Catalyst 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise C it is secure, always on, and IT simplified.
Quick Specs
Model |
C9200L-48P-4X-A |
Downlinks total 10/100/1000 or PoE+ copper ports |
48 ports full PoE+ |
Uplink configuration |
4x 10G fixed uplinks |
Default primary AC power supply |
PWR-C5-1KWAC |
Fans |
Fixed redundant |
Software |
Network Advantage |
Stacking bandwidth |
80 Gbps |
DRAM |
2 GB |
Flash |
4 GB |
Switching capacity |
176 Gbps |
Forwarding rate |
261.9 Mpps |
Chassis Dimensions |
1.73 x 17.5 x 11.3 in 4.4 x 44.5 x 28.8 cm |
C9200L-48P-4G-E 1G
Cisco Catalyst 9200, Catalyst 9200L48-port PoE+ 4x1G uplink Switch, Network Essentials
C9200L-48P-4G-E is the Catalyst 9200L48 ports full POE+ 4x1G uplink Switch, withNetwork Essentials software. Cisco Catalyst 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise C it is secure, always on, and IT simplified.
Quick Specs
Model |
C9200L-48P-4G-E |
Downlinks total 10/100/1000 or PoE+ copper ports |
48 ports full POE+ |
Uplink configuration |
4x 1G fixed uplinks |
Default primary AC power supply |
PWR-C5-1KWAC |
Fans |
Fixed redundant |
Software |
Network Essentials |
Stacking bandwidth |
80 Gbps |
DRAM |
2 GB |
Flash |
4 GB |
Switching capacity |
104 Gbps |
Forwarding rate |
154.76 Mpps |
Chassis Dimensions |
1.73 x 17.5 x 11.3 in 4.4 x 44.5 x 28.8 cm |
C9200L-48P-4G-A 1G
Cisco Catalyst 9200, Catalyst 9200L48-port PoE+ 4x1G uplink Switch, Network Advantage
C9200L-48P-4G-A is the Catalyst 9200L24 ports full PoE+ 4x10G uplink Switch, with Network Advantage software. Cisco Catalyst 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise C it is secure, always on, and IT simplified.
Quick Specs
Model |
C9200L-48P-4G-A |
Downlinks total 10/100/1000 or PoE+ copper ports |
48 ports full POE+ |
Uplink configuration |
4x 1G fixed uplinks |
Default primary AC power supply |
PWR-C5-1KWAC |
Fans |
Fixed redundant |
Software |
Network Advantage |
Stacking bandwidth |
80 Gbps |
DRAM |
2 GB |
Flash |
4 GB |
Switching capacity |
104 Gbps |
Forwarding rate |
154.76 Mpps |
Chassis Dimensions |
1.73 x 17.5 x 11.3 in 4.4 x 44.5 x 28.8 cm |
Weight |
4.35 Kg |
Compare to Similar Items
Product number |
Product description |
C9200L-48T-4G-A |
Catalyst 9200L 48-port Data 4x1G uplink Switch, Network Advantage |
C9200L-48T-4G-E |
Catalyst 9200L 48-port Data 4x1G uplink Switch, Network Essentials |
C9200L-48P-4G-A |
Catalyst 9200L48-port PoE+ 4x1G uplink Switch, Network Advantage |
C9200L-48P-4G-E |
Catalyst 9200L48-port PoE+ 4x1G uplink Switch, Network Essentials |

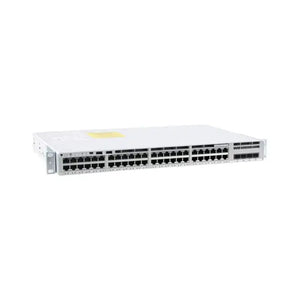

C9200L-48P-4X-E 10G
Cisco Catalyst 9200, Catalyst 9200L 48-port PoE+ 4x10G uplink Switch, Network Essentials
C9200L-48P-4X-E is the Catalyst 9200L48 ports full PoE+ 4x10G uplink Switch, with Network Advantage software. Cisco Catalyst 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise C it is secure, always on, and IT simplified.
Quick Specs
Model |
C9200L-48P-4X-E |
Downlinks total 10/100/1000 or PoE+ copper ports |
48 ports full PoE+ |
Uplink configuration |
4x 10G fixed uplinks |
Default primary AC power supply |
PWR-C5-1KWAC |
Fans |
Fixed redundant |
Software |
Network Essentials |
Stacking bandwidth |
80 Gbps |
DRAM |
2 GB |
Flash |
4 GB |
Switching capacity |
176 Gbps |
Forwarding rate |
261.9 Mpps |
Chassis Dimensions |
1.73 x 17.5 x 11.3 in 4.4 x 44.5 x 28.8 cm |
Inventory Last Updated: Apr 02, 2025
