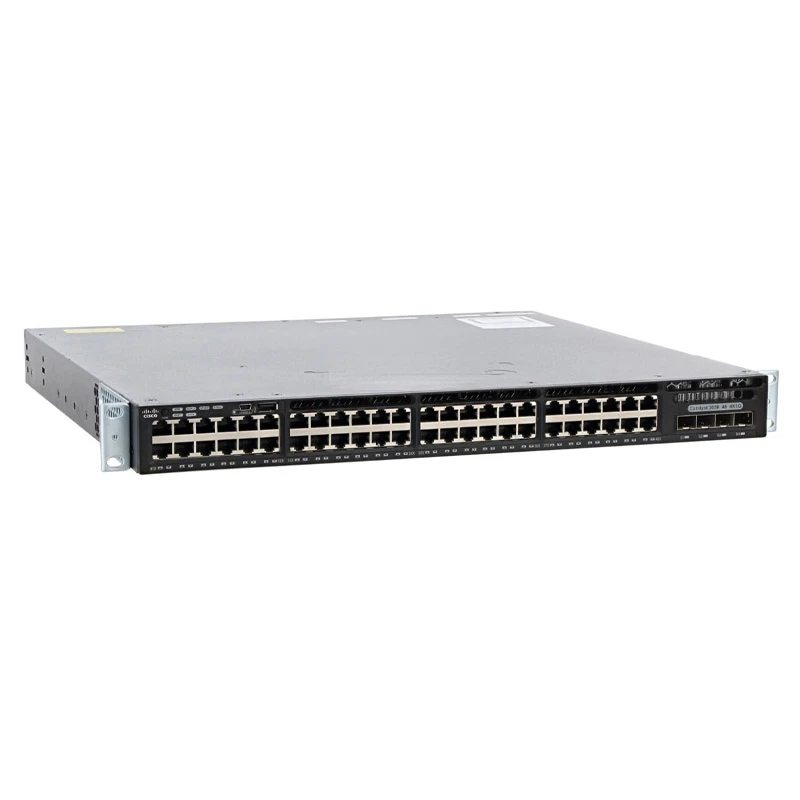

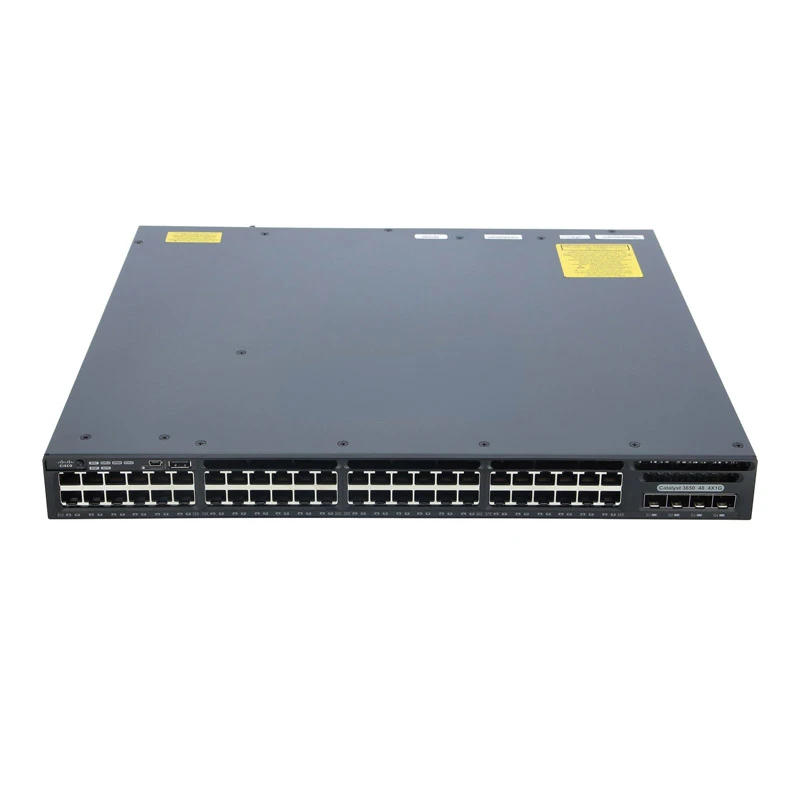

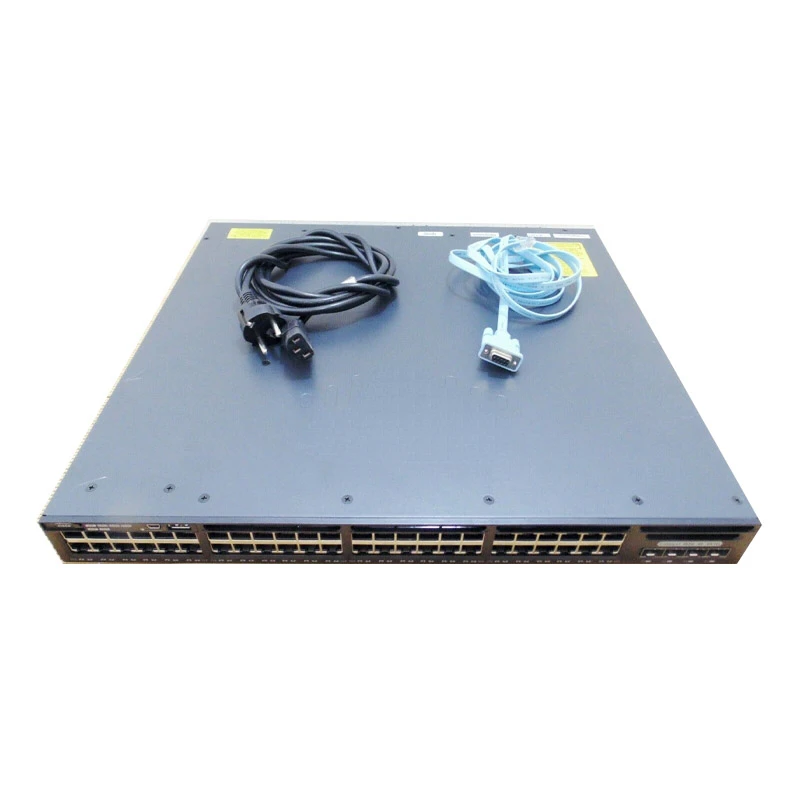

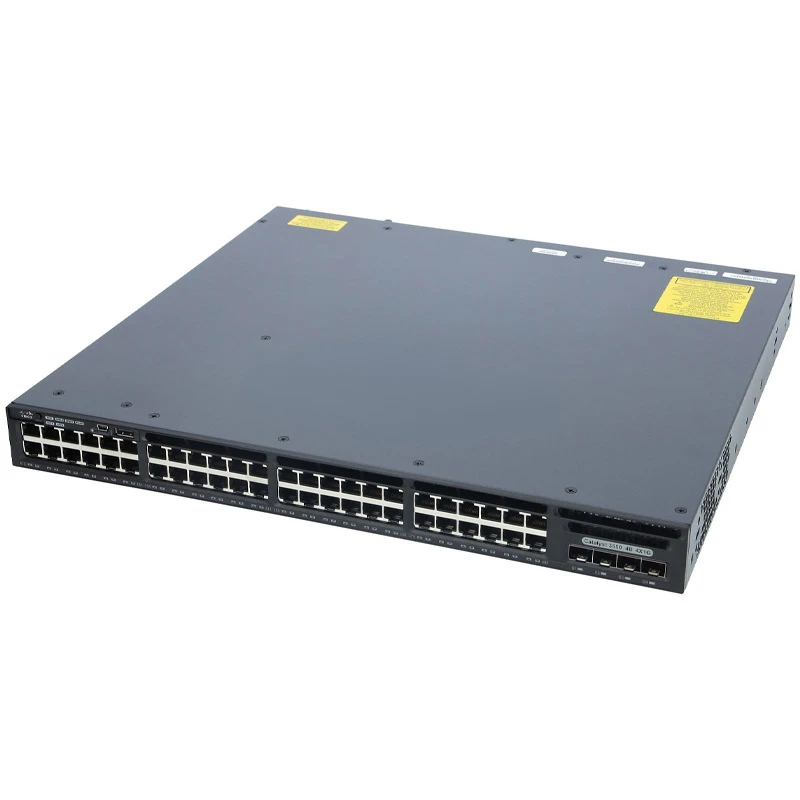

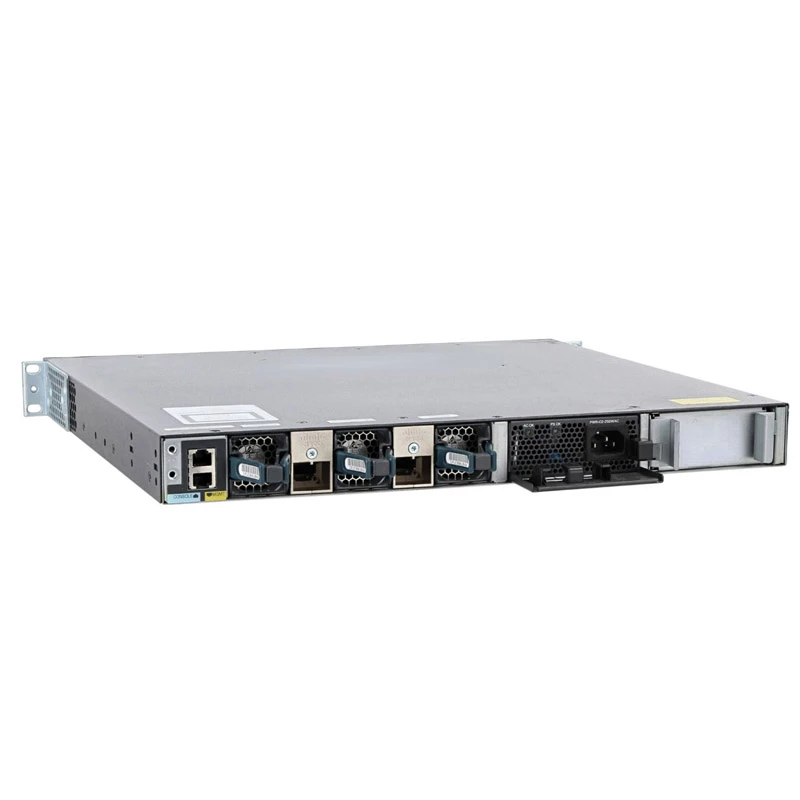

Cisco Catalyst 48Port Data 4x1G Uplink LAN Base Switch, 48*10/100/1000 Ethernet ports L3 4*1G SFP uplinks IP Base IOS WS-C3650-48TS-S

Product Code

Enclosure Type

Rack-mountable - 1U

Feature Set

IP Base

Uplink Interfaces

4 x 1G SFP

Ports

48 x 10/100/1000 Ethernet ports

Maximum stacking number

9

Stack bandwidth

160 Gpbs

Forwarding Performance

77.37Mpps

Switching Capacity

176Gbps

RAM

4 G

Flash Memory

2G

Number of AP per switch/stack

50

Number of wireless clients per switch/stack

1000

Dimensions

44.5 cm x 44.5 cm x 4.4 cm

Package Weight

17.49 Kg

Switching capacity

176 Gbps on 48-port models (non-multigigabit models)
92 Gbps on 24-port models (non-multigigabit models)
254 Gbps on 24-port Multigigabit models with 2x10G uplink
272 Gbps on 24-port Multigigabit models with 4x10G uplink
392 Gbps on 48-port Multigigabit models with 4x10G uplink
472 Gbps on 48-port Multigigabit models with 8x10G uplink
472 Gbps on 48-port Multigigabit models with 2x40G uplink

Stacking bandwidth

160 Gbps

Total number of MAC addresses

32,000

Total number of IPv4 routes (ARP plus learned routes)

24,000

FNF entries

48,000 flow on 48-port models
24,000 flows on 24-port models

DRAM

4 GB

Flash

2 GB (non-Multigigabit models) and 4GB (Multigigabit models)

VLAN IDs

4,094

Total switched virtual interfaces (SVIs)

1,000

Jumbo frame

9198 bytes

Total routed ports per 3650 stack

208

Wireless

Number of access points per switch/stack

25

Number of wireless clients per switch/stack

1000

Total number of WLANs per switch

64

Wireless bandwidth per switch

Up to 40 Gbps on 48-port models
Up to 20 Gbps on 24-port models

Supported Aironet access point series

3700, 3600, 3500, 2600, 1600, 1260, 1140, 1040

Models

Fixed Uplinks

Total 10/100/1000 Ethernet Ports

Default AC Power Supply

Available PoE Power

WS-C3650-24TS

4 x Gigabit Ethernet with Small Form‑Factor Pluggable (SFP)

24

250 WAC

-

WS-C3650-48TS

48

WS-C3650-24PS

24 PoE+

640 WAC

390 W

WS-C3650-48PS

48 PoE+

WS-C3650-48FS

48 PoE+

1025 WAC

775 W

WS-C3650-24TD

2 x 10 Gigabit Ethernet with SFP+ and 2 x 1 Gigabit Ethernet with SFP

24

250 WAC

WS-C3650-48TD

48

WS-C3650-24PD

24 PoE+

640 WAC

390 W

WS-C3650-24PDM

24 PoE+

Fixed 640 WAC

390 W

WS-C3650-48PD

48 PoE+

640 WAC

390 W

WS-C3650-48FD

48 PoE+

1025 WAC

775 W

WS-C3650-8X24PD

24 PoE+ (with 8 100-Mbps and 1-, 2.5-, 5-, and 10-Gbps ports)

715 WAC

435 W

WS-C3650-12X48FD

48 PoE+ (with 12 100-Mbps and 1-, 2.5-, 5-, and 10-Gbps ports)

1100 WAC

660 W

WS-C3650-48TQ

4 x 10 Gigabit Ethernet with SFP+ or 4 x Gigabit Ethernet with SFP

48

250 WAC

WS-C3650-48PQ

48 PoE+

640 WAC

390 W

WS-C3650-48FQ

48 PoE+

1025 WAC

775 W

WS-C3650-48FQM

48 PoE+

Fixed 975 WAC

775 W

WS-C3650-8X24UQ

24 UPOE (with 8 100-Mbps and 1‑, 2.5-, 5-, and 10-Gbps ports)

1100 WAC

820 W

WS-C3650-12X48UQ

48 UPOE (with 12 100-Mbps and 1‑, 2.5-, 5-, and 10-Gbps ports)

1100 WAC

660 W

WS-C3650-12X48UR

8 x 10 Gigabit Ethernet with SFP+ or 8 x Gigabit Ethernet with SFP

48 UPOE (with 12 100-Mbps and 1-, 2.5-, 5-, and 10-Gbps ports)

1100 WAC

660 W

WS-C3650-12X48UZ

2 x 40 Gigabit Ethernet with QSFP+

48 UPOE (with 12 100-Mbps and 1-, 2.5-, 5-, and 10-Gbps ports)

1100 WAC

660 W

Models

Default Power Supply

Available PoE Power

Support Secondary Power Supply

24-port data switch

PWR-C2-250WAC

-

Yes

48-port data switch

Yes

24-port PoE switch

PWR-C2-640WAC

390 W

Yes

48-port PoE switch

Yes

48-port full PoE switch

PWR-C2-1025WAC

775 W

Yes

24-port mini PoE switch

Fixed 640 WAC

390W

No, but supports RPS 2300

48-port mini PoE switch

Fixed 975 WAC

775W

No, but supports RPS 2300

24-port Multigigabit PoE switch

PWR-C1-715WAC

435 W

Yes

24-port Multigigabit UPOE switch

PWR-C1-1100WAC

820 W

Yes

48-port Multigigabit full PoE switch

48-port Multigigabit UPOE switch

660 W

Yes
