Cisco Catalyst 3650 switch 48 Port Full PoE 2x10G Uplink IPServices, WS-C3650-48FD-E, ISR4351 series ISR4351-AX/K9, ISR4351-SEC/K9, ISR4351-V/K9 Routers
Description

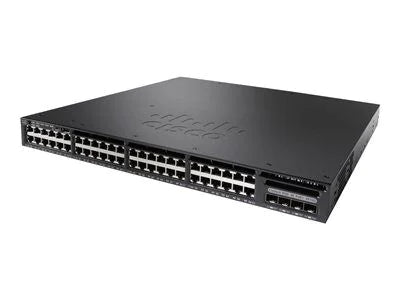

WS-C3650-48FD-E
Cisco Catalyst 3650 48 Port Full PoE 2x10G Uplink IPServices
Cisco Catalyst WS-C3650-48FD-E is the next generation of enterprise-level stable access layer switch and integrates with 48 POE+ Ethernet ports and 2 x 1G SFP, 2 x 10G SFP+ or 4 x 1G uplink ports in IP Services feature set.
Quick Specs
Product Code |
WS-C3650-48FD-E |
Enclosure Type |
Rack-mountable - 1U |
Feature Set |
IP Services |
Uplink Interfaces |
2 x 1G SFP + 2 x 10G SFP+ OR 4 x 1G SFP uplink ports |
Ports |
48 x 10/100/1000 POE+ Ethernet ports |
Available PoE Power |
775W |
Maximum stacking number |
9 |
Stack bandwidth |
160Gbps |
Forwarding Performance |
104.16Mpps |
Switching Capacity |
176Gbps |
RAM |
4 GB |
Flash Memory |
2 GB |
Number of AP per switch/stack |
50 |
Number of wireless clients per switch/stack |
1000 |
Dimensions |
44.5 x 44.8 x 4.4 cm |

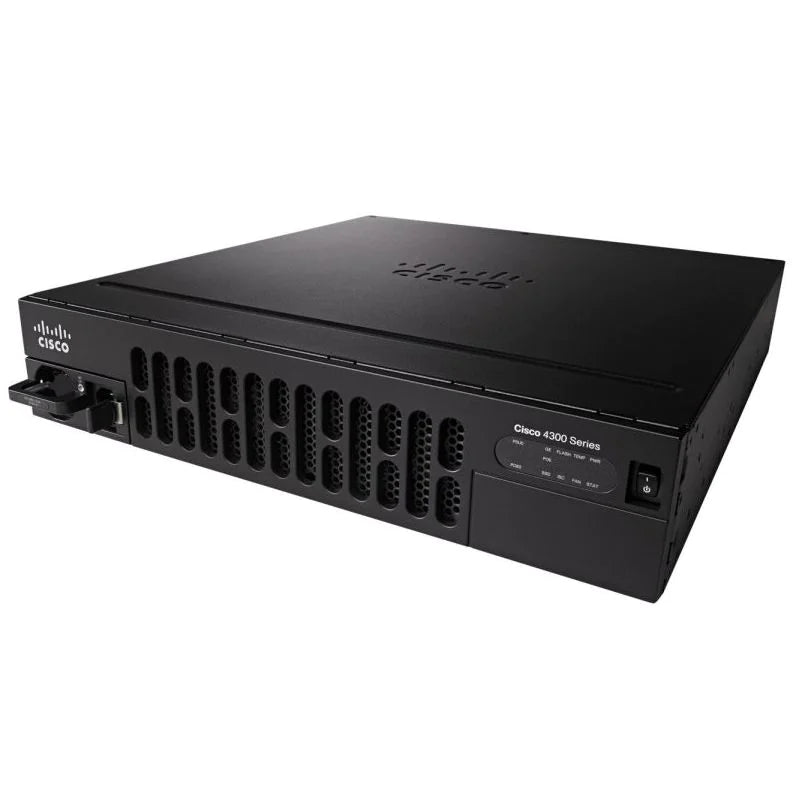

ISR4351-AX
ISR4351-AX/K9 - Cisco Router 4000 Series, ISR 4351 AX Bundle w/ APP.SEC license
Cisco 4351 Integrated Services Router, which supports 3 Network Interface Modules (NIM) slots, delivers 200 Mbps to 400 Mbps aggregate throughput. ISR4351-AX/K9 is the Cisco ISR 4351 router with AX Bundle w/ APP.SEC license.
Quick Specs
Product Code |
ISR4351-AX/K9 |
Aggregate Throughput |
200 Mbps to 400 Mbps |
Total onboard WAN or LAN 10/100/1000 ports |
3 |
RJ-45-based ports |
3 |
SFP-based ports |
3 |
Enhanced service-module (SM-X) slot |
2 |
NIM (Network Interface Modules) slots |
3 |
Onboard ISC slot |
1 |
Memory |
4 GB (default) / 16 GB (maximum) |
Flash Memory |
4 GB (default) / 16 GB (maximum) |
Power-supply options |
Internal: AC, DC (roadmap), and PoE |
Rack height |
2 RU |
Dimensions (H x W x D) |
43.9 x 438.15 x 507.2 mm |

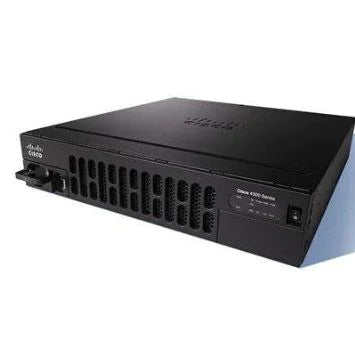

ISR4351-V
Cisco ISR4351-V/K9 (3GE,3NIM,2SM,4G FLASH,4G DRAM,Voice Bundle), 200Mbps-400Mbps system throughput, 3 WAN/LAN ports, 3 SFP ports, multi-Core CPU,2 service module slots, Security, Voice, WAAS, Intelligrnt WAN, OnePK, AVC
Cisco ISR4351-V/K9 is ideally designed for the mid-size or even large enterprise branch environment, deliver advanced services and unprecdent level of WAN intelligence with VOIP features enabled. Scalability, High-performance, Network Services, Security and smart router is made to run multiple services.
Quick Specs
Product Code |
ISR4351-V/K9 |
Aggregate Throughput |
200 Mbps to 400 Mbps |
Total onboard WAN or LAN 10/100/1000 ports |
3 |
RJ-45-based ports |
3 |
SFP-based ports |
3 |
Enhanced service-module (SM-X) slot |
2 |
NIM (Network Interface Modules) slots |
3 |
Onboard ISC slot |
1 |
Memory |
4 GB (default) / 16 GB (maximum) |
Flash Memory |
4 GB (default) / 16 GB (maximum) |
Power-supply options |
Internal: AC, DC (roadmap), and PoE |
Rack height |
2 RU |
Dimensions (H x W x D) |
43.9 x 438.15 x 507.2 mm |
ISR4351-SEC
Cisco ISR4351-SEC/K9 (3GE,3NIM,2SM,4G FLASH,4G DRAM,Security Bundle), 200Mbps-400Mbps system throughput, 3 WAN/LAN ports, 3 SFP ports, multi-Core CPU,2 service module slots, Security, VPN, WAAS, Intelligrnt WAN, OnePK, AVC
Cisco ISR4351-SEC/K9 is the Cisco ISR4351/k9 router with Security Bundle. Its other specifications are the same as ISR4351/k9.
Quick Specs
Product Code |
Cisco ISR4351-SEC/K9 |
Bundle |
Security Bundle |
Aggregate Throughput |
200 Mbps to 400 Mbps |
Total onboard WAN or LAN 10/100/1000 ports |
3 |
RJ-45-based ports |
3 |
SFP-based ports |
3 |
Enhanced service-module (SM-X) slot |
2 |
NIM (Network Interface Modules) slots |
3 |
Onboard ISC slot |
1 |
Memory |
4 GB (default) / 16 GB (maximum) |
Flash Memory |
4 GB (default) / 16 GB (maximum) |
Power-supply options |
Internal: AC, DC (roadmap), and PoE |
Rack height |
2 RU |
Dimensions (H x W x D) |
88.9 mm x 438.15 mm x 469.9 mm |
Specifications of WS-C3650-48FD-E
Dimensions |
|
Width |
17.5 Inches (44.5 Cm) |
Depth |
19.125 Inches (48.6 Cm) |
Height |
1.73 Inches (4.4 Cm) |
Shipping Weight |
17.49 Kg |
Rack Mounting Kit |
optional |
MTBF in hours |
383,760 |
Compliant Standards |
· IEEE 802.1D Spanning Tree Protoco · IEEE 802.1p CoS Prioritization · IEEE 802.1Q VLAN · IEEE 802.1s · IEEE 802.1w · IEEE 802.1X · IEEE 802.1X-Rev · IEEE 802.11 · IEEE 802.1ab (LLDP) · IEEE 802.3ad · IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports · IEEE 802.3 10BASE-T · IEEE 802.3u 100BASE-TX · IEEE 802.3ab 1000BASE-T · IEEE 802.3z 1000BASE-X · RMON I and II standards · SNMP v1, v2c, and v3 |
System software / license |
|
System software |
IOS IP Service |
EnergyWise license |
ENERGY-MGMT, ENERGY-MGT-100-K9 |
