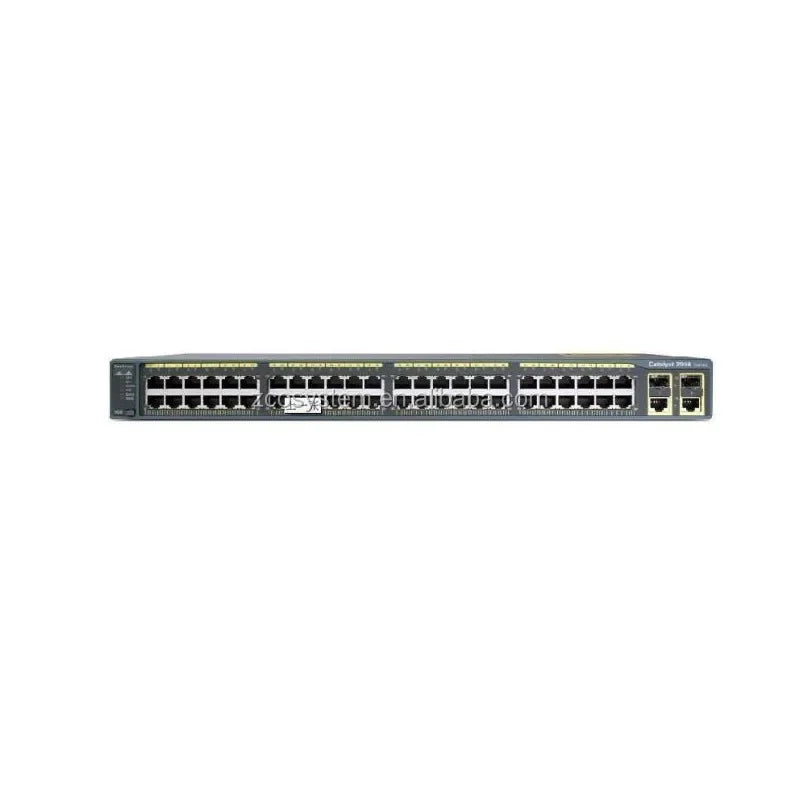

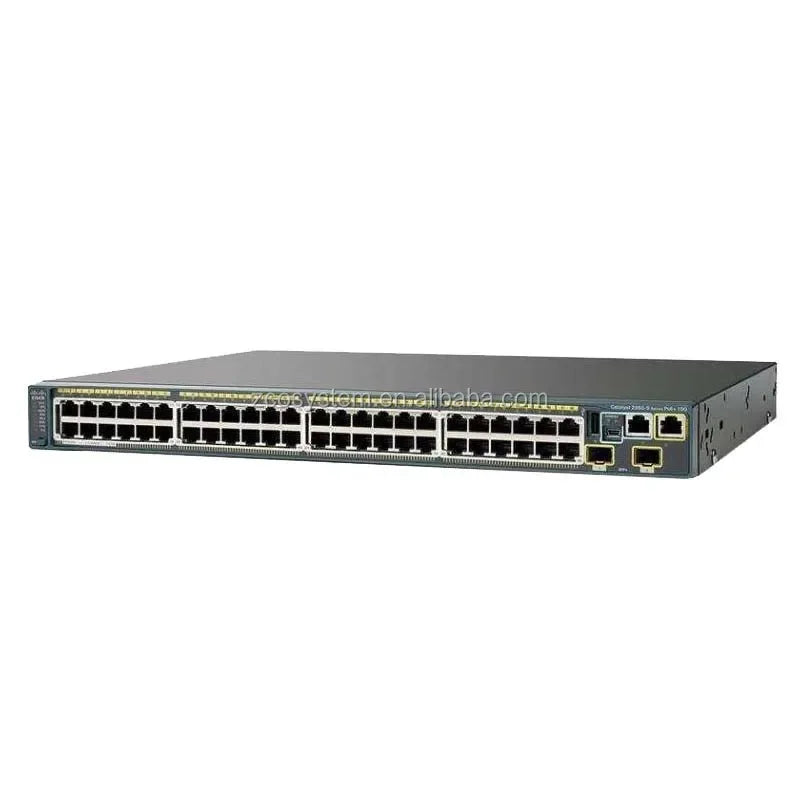

Cisco Catalyst 2960-XR Series Switches 48 port Network Switch WS-C2960XR-48TD-I, Catalyst 2960-XR 48 GigE, 2 x 10G SFP+, IP Lite

Regular price: R 159,231.95
Sale price: R 159,231.95
Regular price: ~~R 162,353.95~~
Unit price: per

Shipping calculated at checkout.

Default Title

Quantity must be 1 or more

Description

Cisco Catalyst 2960-XR series switches offer power resiliency with optional dual field-replaceable power supplies and IP Lite Cisco IOS software with dynamic routing and Layer 3 features. WS-C2960XR-48TD-I is one of 2960-XR switches, IP Lite switch, supporting forty-eight 10/100/1000 Ethernet ports and two 10G SFP+ uplinks. IP Lite Image enables basic access layer 3 routing features, such as RIPV1, V2, OSPF stub, EIGRP stub, HSRP, VRRP, PIM stub, etc.

The WS-C2960XR-48TD-I supports stacking with the optional stack kit. It has the FlexStack-Plus module (hot-swappable) that inserts in the slot located in the switch rear panel, and a 0.5-meter FlexStack cable to connect the FlexStack-Plus module ports. The stack module should purchase separately.

Specs Summary

Product Code	WS-C2960XR-48TD-I
Enclosure Type	Rack-mountable - 1U
Feature Set	IP Lite
Uplink Interfaces	2 x 10G SFP+
Ports	48 x 10/100/1000 Ethernet Gigabit ports
Forwarding Bandwidth	108Gbps
Maximum stacking number	8
Stack bandwidth	80G
Switching Bandwidth	216Gbps
RAM	512 MB
Flash Memory	128 MB
Dimensions	44.5 cm x 40.8 cm x 4.45 cm
Package Weight	16.15 Kg

Compare to Similar Items

Models	WS-C2960XR-48TS-I	WS-C2960XR-48TD-I
Ports	48 x 10/100/1000 Ethernet Gigabit ports	48 x 10/100/1000 Ethernet Gigabit ports
Uplinks	4 x 1G SFP	2 x 10G SFP+
Feature Set	IP Lite	IP Lite
FlexStack-Plus Stacking	Optional	Optional

The Accessories of WS-C2960XR-48TD-I

Models	Description
C2960X-STACK	Catalyst 2960-X FlexStack Plus Stacking Module
CAB-STK-E-0.5M	Cisco FlexStack Stacking Cables
GLC-LH-SMD	Cisco GLC-LH-SMD 1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM
GLC-SX-MMD	1000BASE-SX SFP transceiver module, MMF, 850nm, DOM
CAB-CONSOLE-RJ45	Console Cable 6ft with RJ45 and DB9F
CAB-CONSOLE-USB	Console Cable 6 ft with USB Type A and mini-B

Specifications

Device Type	Switch - 48 ports - L3 - Managed - stackable
Enclosure Type	Desktop, rack-mountable 1U
Subtype	Gigabit Ethernet
Ports	48 x 10/100/1000 + 2 x SFP+
Performance	Switching capacity: 216 Gbps Forwarding performance: 130.9 Mpps
Capacity	Virtual interfaces (VLANs): 1023
Jumbo Frame Support	9216 bytes
Max Units In A Stack	8
Routing Protocol	OSPF, RIP-1, RIP-2, HSRP, VRRP, PIM-SM, PIM-DM, PIM-SSM, policy-based routing (PBR), RIPng
Remote Management Protocol	SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, SSH, CLI
Authentication Method	Secure Shell (SSH), RADIUS, TACACS+
Features	Layer 2 switching, auto-negotiation, ARP support, Fast EtherChannel, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, MLD snooping, Dynamic ARP Inspection (DAI), Uni-Directional Link Detection (UDLD), Shaped Round Robin (SRR), Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), layer 3 load balancing, Per-VLAN Rapid Spanning Tree (PVRST), Energy Efficient Ethernet, Multicast VLAN Registration (MVR), Strict Priority Queuing (SPQ), Class of Service (CoS)
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3az
Processor	1 x ARM: 600 MHz
RAM	512 MB
Flash Memory	128 MB
Status Indicators	Port status, port transmission speed, port duplex mode, system, link/activity
Expansion / Connectivity
Interfaces	48 x 10Base-T/100Base-TX/1000Base-T - RJ-45 2 x SFP+ 1 x USB Type A 1 x USB Type B 1 x console RJ-45

The Cisco Catalyst 2960-XR Series Switches 48 port Network Switch WS-C2960XR-48TD-I, Catalyst 2960-XR 48 GigE, 2 x 10G SFP+, IP Lite was built with people like you in mind. Something to keep you happy. Every. Single. Day.

Inventory Last Updated: Apr 01, 2025
