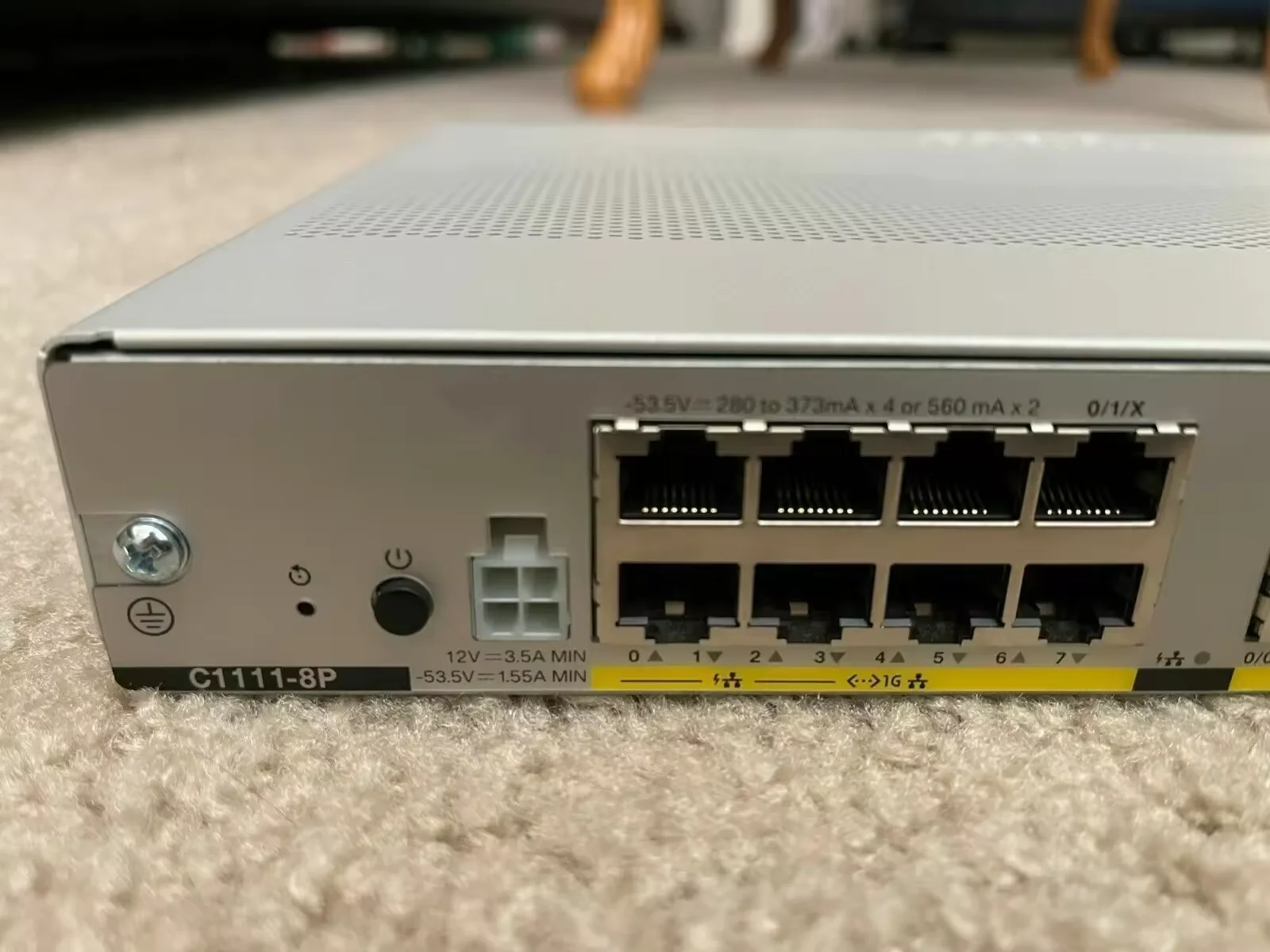

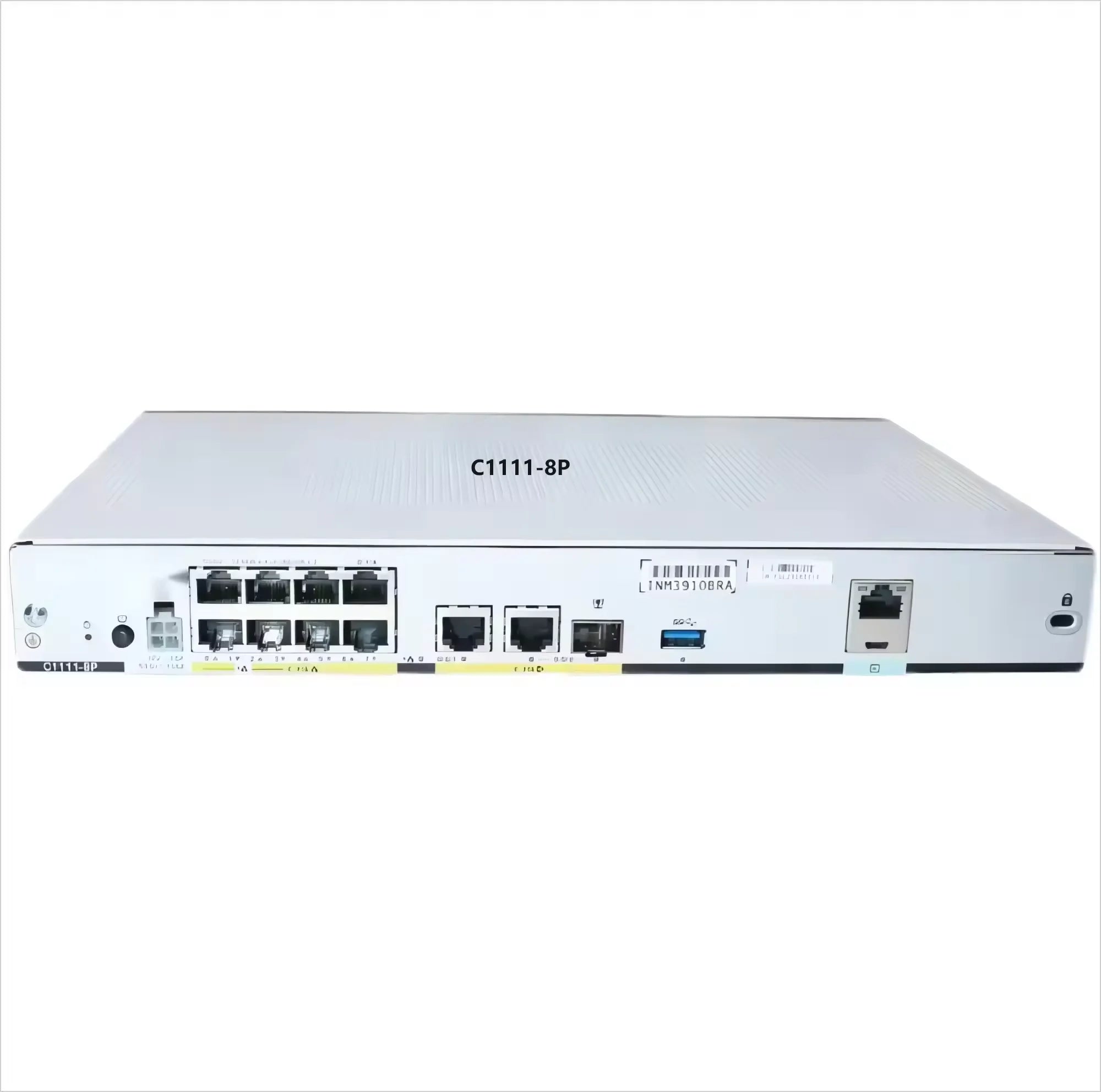

Cisco 1100 Series Integrated Services Router ISR 1100 8Ports Dual GE WAN Ethernet Router C1111-8P Internet Ethernet Enterprise Router

Model

C1111-8P

GE

1

GE/SFP combo

1

ADSL2/VDSL2+

N/A

LTE Advanced (CAT6)

N/A

802.11ac

N/A

GE

8

PoE

4

PoE+

2

Integrated USB 3.0 AUX/console

Yes

Dimensions (H x W x D)

1.75 x 12.7 x 9.03 in.

(42 x 323 x 230mm) (includes rubber feet)

Weight with AC PS (w/o modules)

5.5 Lbs. (2.5 kg) maximum

Business need

Features/description

Lightweight, compact size with low power consumption

• ● Can be deployed in many different environments where space, heat dissipation, and low power consumption are critical factors.

High performance to run concurrent services

• ● High performance allows customers to take advantage of broadband network speeds while running secure, concurrent data, voice, video, and wireless services.

High availability and business continuity

• ●  Redundant WAN connections for failover protection and loadbalancing.
• ●  Dynamic failover protocols such as Virtual Router Redundancy Protocol (VRRP; RFC 2338), Hot Standby Router Protocol (HSRP), and Multigroup HSRP (MHSRP).

Consistent, high application performance levels

• ●  The router can run multiple services simultaneously with minimal performance degradation

Risk mitigation with multilevel security

• ●  Network perimeter security with integrated application inspection firewall.
• ●  Data privacy through high-speed IP Security (IPsec) Triple Data Encryption Standard (3DES), and Advanced Encryption Standard (AES) encryption.
• ●  High-performance VPNs: DMVPN, FlexVPN, GET VPN, EzVPN
• ●  Cisco Umbrella™ security architecture to provide content filtering via category-based URL classification and blocking, thus helping increase productivity and providing better use of company resources.
• ●  Enforced security policy with OpenDNS.
• ●  Security hardware acceleration.
• ●  Trustworthy systems with Field-Programmable Gate Array (FPGA) and hardware anchor.
• ●  Encrypted traffic analytics maintain integrity of encrypted flow

Unified control of wired and wireless networks from a common console for streamlined operations

• ●  Simplifies and centralizes configuration and management of wireless and wireline devices. Supports WLAN services without requiring a wireless LAN controller.
• ●  Supports Mobility Express for WLAN-enabled routers.

Remote configuration and management to keep local IT staff lean

• ●  Supports separate console/auxiliary and USB ports.
• ●  Can be configured to work with optional USB token.
• ●  Supports TR-069.

Performance

• ●  Crypto performance up to 250 Mbps for 1100-8P and 150 Mbps for 1100-4P.
• ●  A distributed multicore architecture with the industry’s first internal services plane.
• ●  Remote installation of application-aware services that run identically to their counterparts in dedicated appliances.

Lower WAN expenditures

• ●  Cisco Software-Defined WAN (SD-WAN) (over the Cisco Application Policy Infrastructure Controller Enterprise Module [APIC-EM]) support for optimized WAN connection.

Pay as you grow: IPsec performance upgrade model

• ●  Router IPsec capacity can be increased with a remote performance-on-demand license upgrade (no hardware upgrade) for exceptional savings andCapEx budget management.

IT consolidation, space savings, and improved Total Cost of Ownership (TCO)

• ●  Single converged branch platform integrates routing, switching, security, and performance management capabilities.

Business continuity and increased resiliency

• ●  The entire 1100 Series supports Power over Ethernet (PoE) and PoE+ power to endpoints.

Small Form-Factor Pluggable

ISR 1100 8P

ISR 1100 4P

Description

GLC-EX-SMD

Yes

Yes

1000BASE-EX SFP transceiver module, SMF, 1310nm, DOM.

GLC-LH-SMD

Yes

Yes

GE SFP, LC connector LX/LH transceiver; with DOM.

GLC-SX-MMD

Yes

Yes

GE SFP, LC connector SX transceiver; with DOM.

GLC-ZX-SMD

Yes

Yes

1000BASE-ZX SFP; with DOM.

GLC-FE-100ZX

Yes

Yes

100BASE-ZX SFP (80km).

GLC-GE-100FX

Yes

Yes

100FX SFP on GE ports.

GLC-BX-D

Yes

Yes

1000BASE-BX SFP, 1490NM.

GLC-BX-U

Yes

Yes

1000BASE-BX SFP, 1310NM.

Model

C1111-8P

C1111-4P

WAN GE

1

1

WAN GE/SFP combo

1

1

ADSL2/VDSL2+

N/A

N/A

LTE Advanced (CAT6)

N/A

N/A

802.11ac

N/A

N/A

LAN GE

8

4

PoE

4

2

PoE+

2

1

Integrated USB 3.0 AUX/console

Yes

Yes

C1111-8P Specifications

Dimensions (H x W x D)

1.75 x 12.70 x 9.015 in.

Weight

4.37 lb. (1.98 kg)

Maximum power consumption (excluding external PS loss)

18W

External power supply

●  AC input voltage: Universal 100 to 240 VAC, 50 to 60 Hz

●  Output voltage: 12 VDC

●  Maximum output power: 66W

●  Requires 150W power supply for optional PoE and PoE+

●  PoE output voltage of -53.5 VDC

Operating conditions

●  Temperature: 0° to 40°C at sea level, 1°C/1000 ft derating from 40°C

●  Altitude: 0 to 10,000 ft (0 to 3048 m)

●  Humidity: 10% to 85% relative humidity (non-condensing)

Nonoperating conditions

●  Temperature: -40° to +70°C (-40° to +158°F)

●  Altitude: 0 to 15,000 ft (0 to 4572 m)

●  Humidity: 5% to 95% relative humidity (non-condensing)

–

WAN

GE: 2

DSL: NO

LTE(CAT6): NO

USB port

802.11ac: NO

GE: 8

SD-WAN IPsec throughput
(1400 bytes)

1889 Mbps

SD-WAN IPsec throughput (IMIX)

465 Mbps

SD-WAN overlay tunnels

200

IPv4 forwarding throughput (IMIX)

1673 Mbps

IPsec throughput (multi tunnel, IMIX)

468 Mbps

Number of IPsec IPv4 tunnels

100

lash/DRAM

4 GB

Number of ACLs per system

4K

Number of IPv4 ACEs per system

Number of IPv4 routes

280K

Number of IPv6 routes

260K

Number of NAT sessions

100K

Number of VRFs

1K
