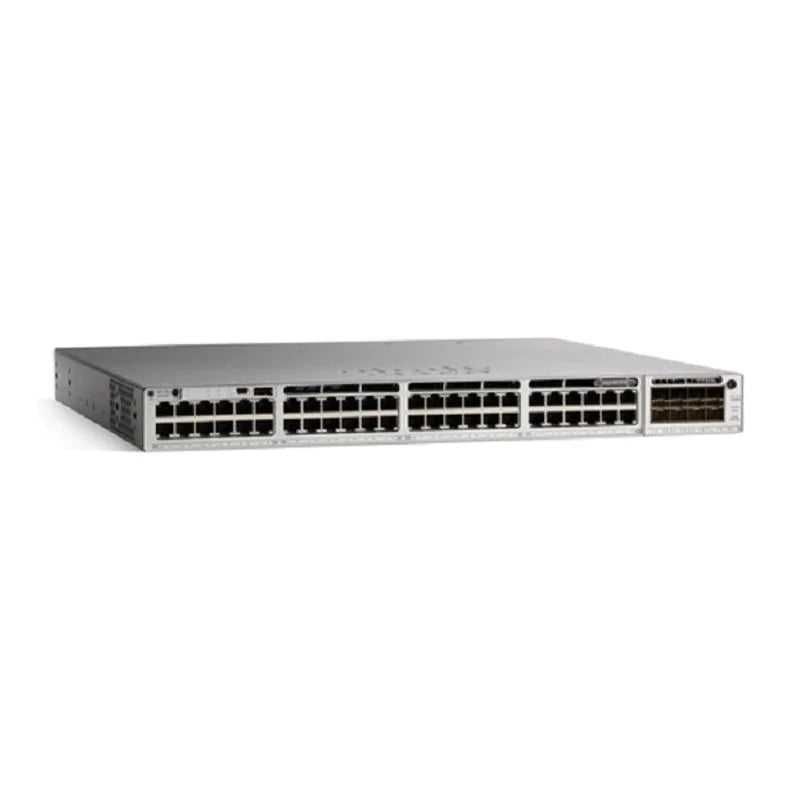

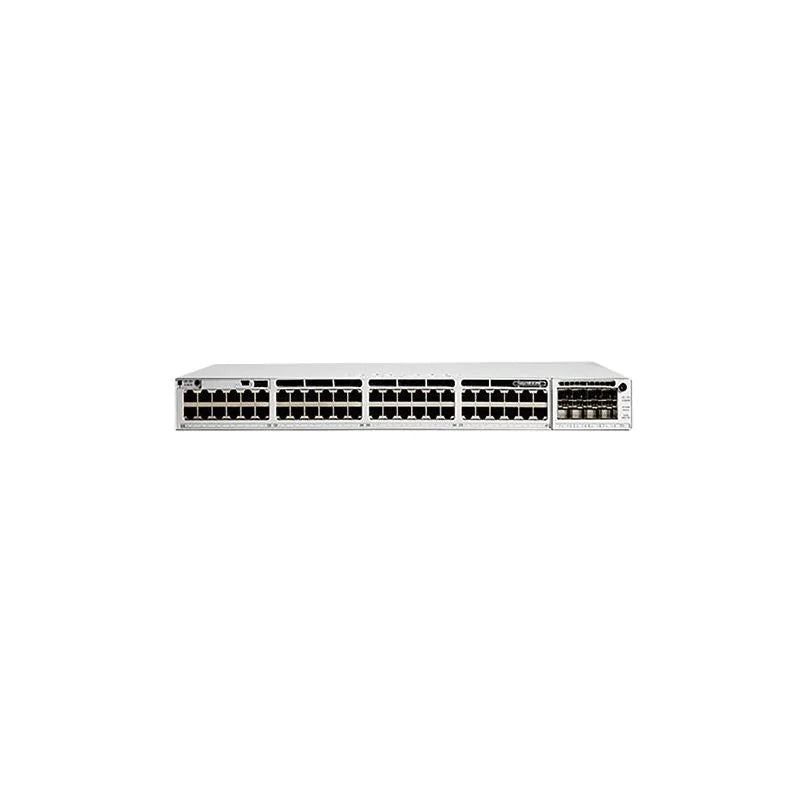

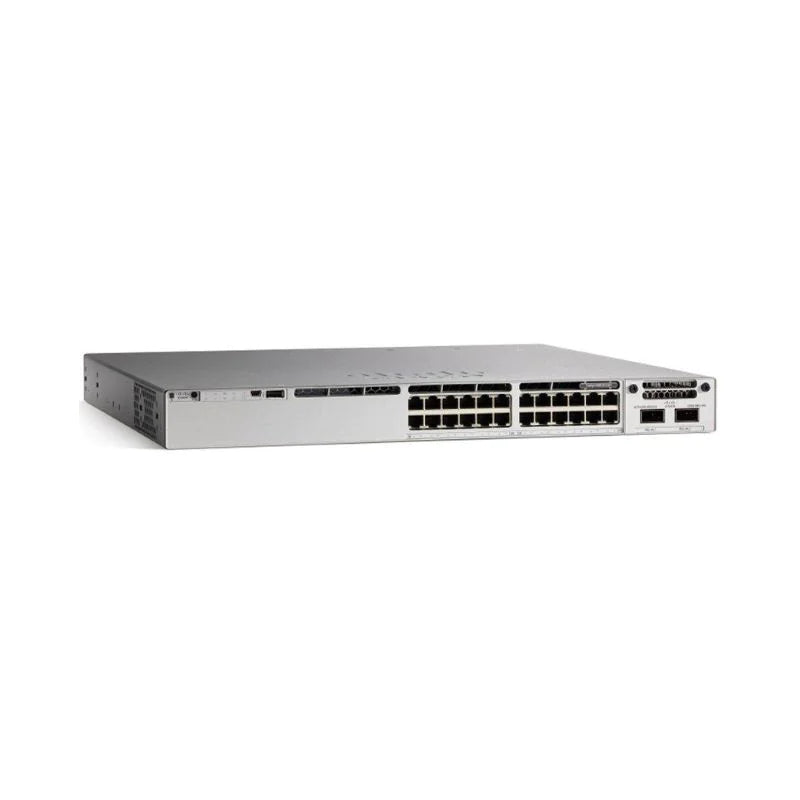

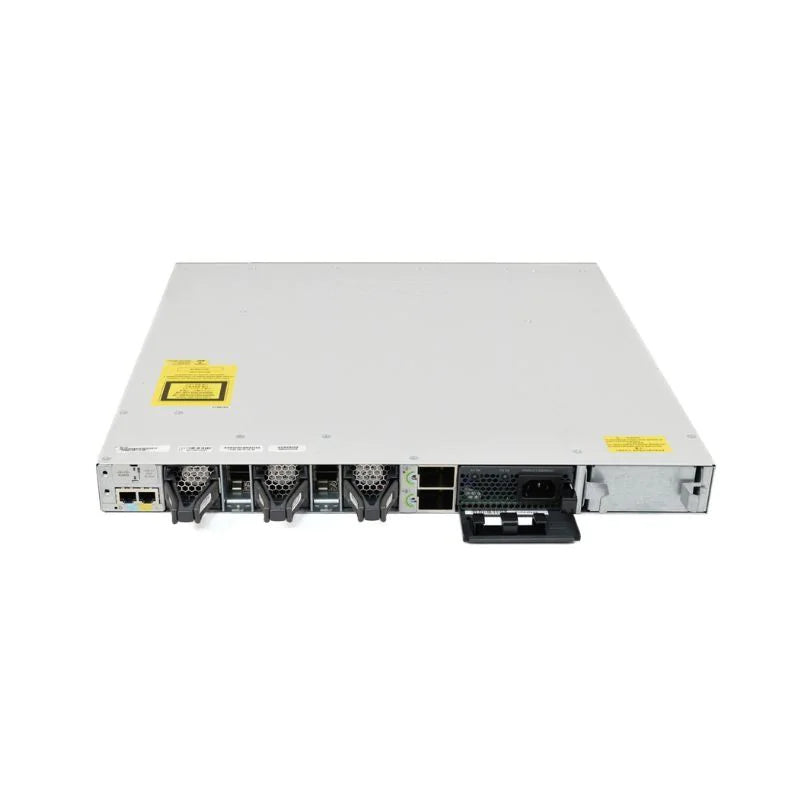

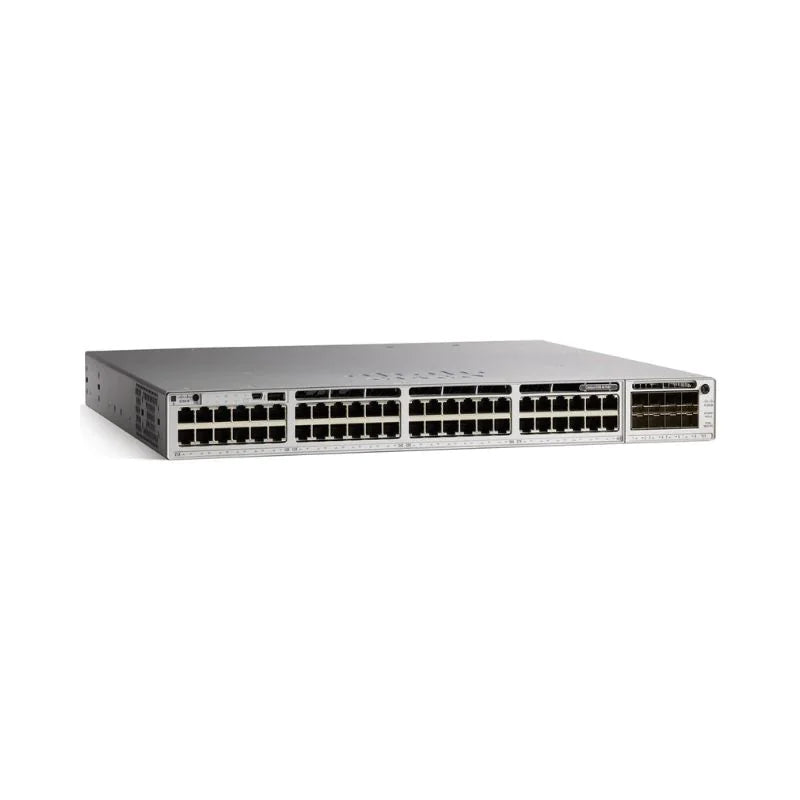

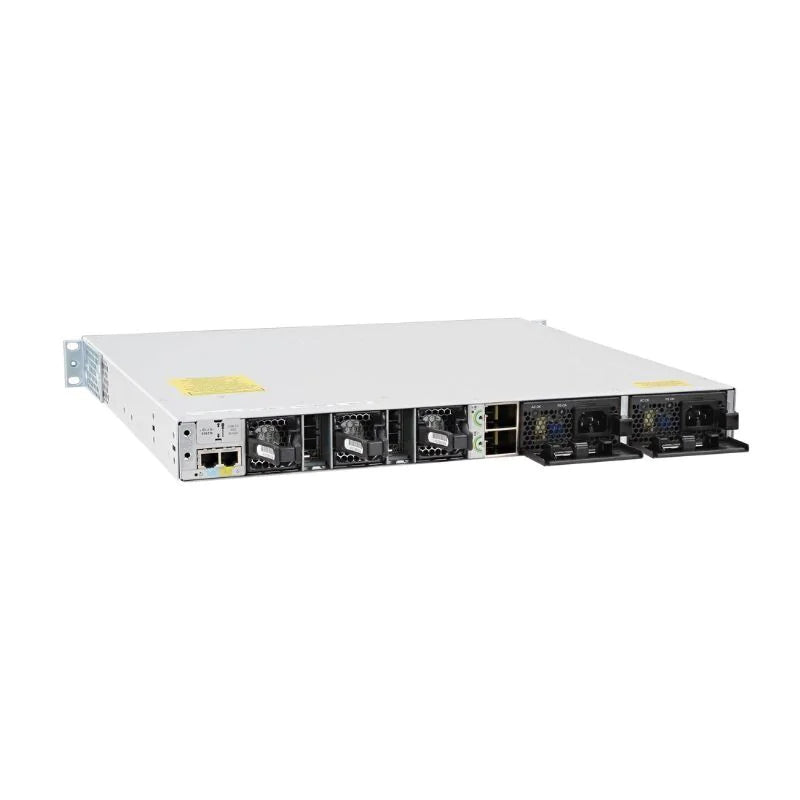

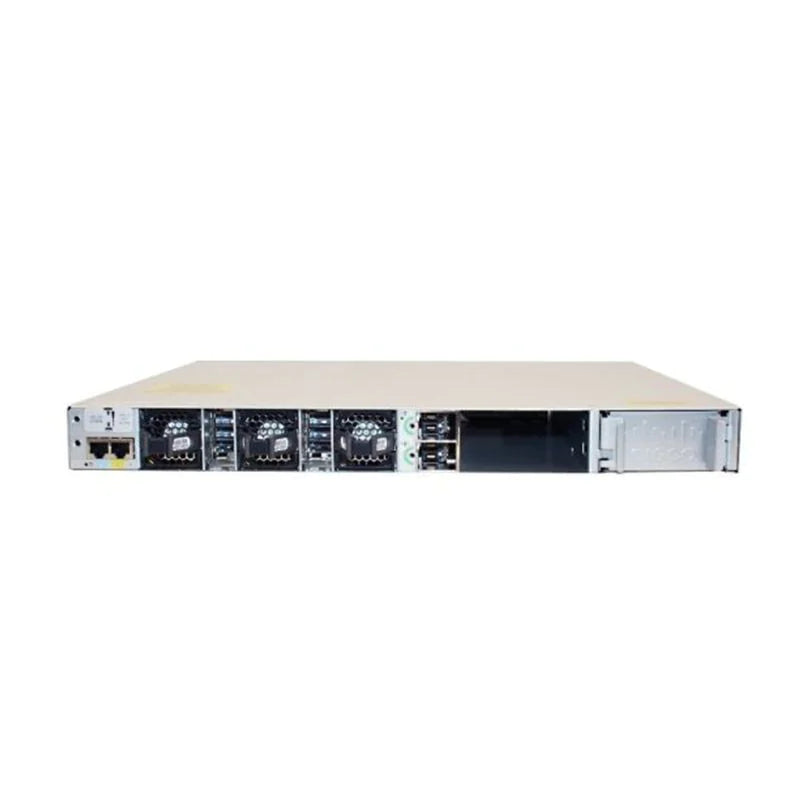

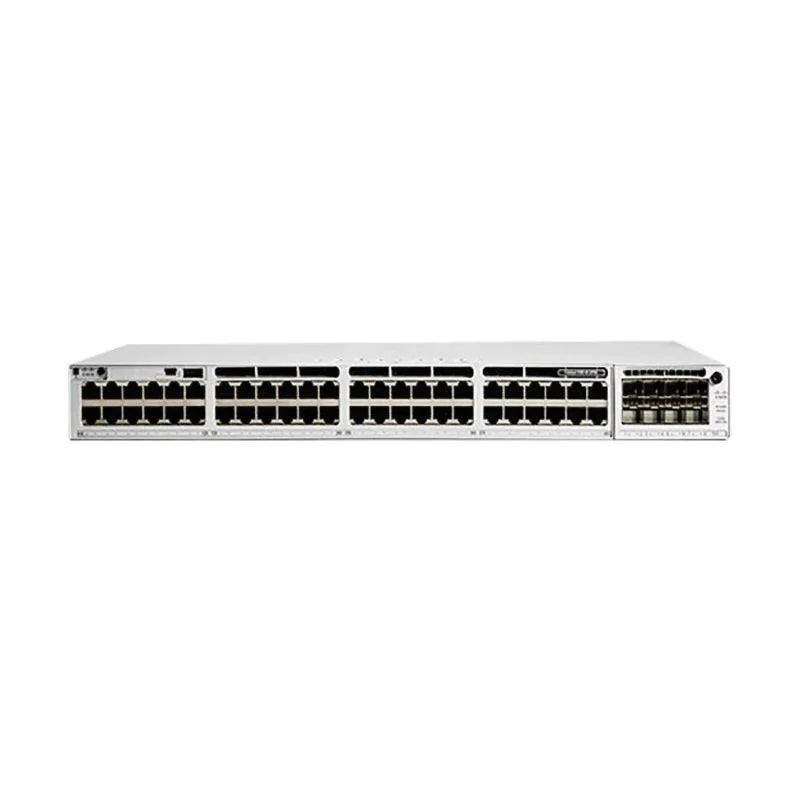

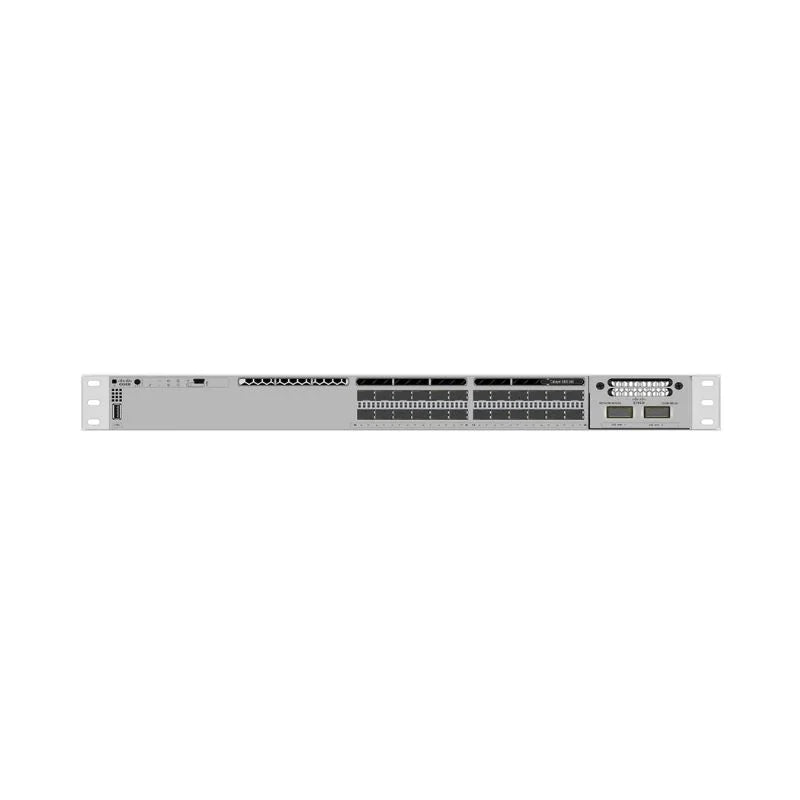

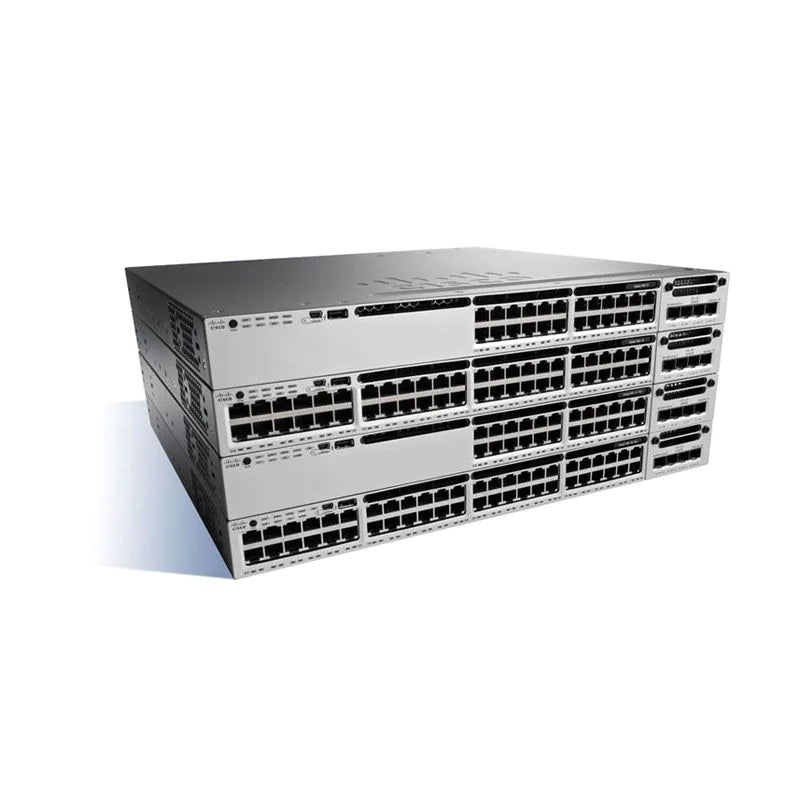

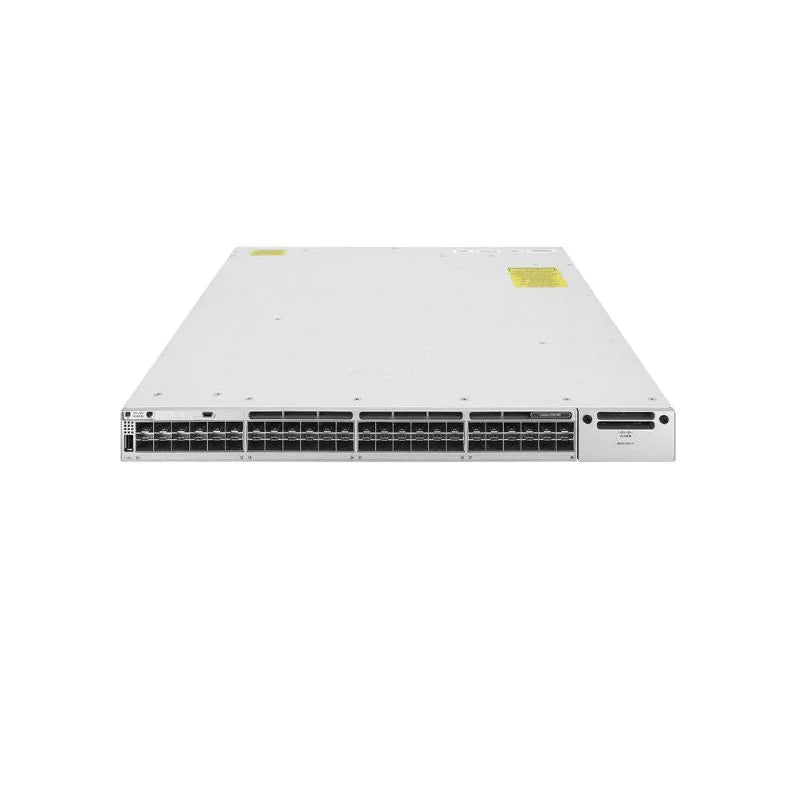

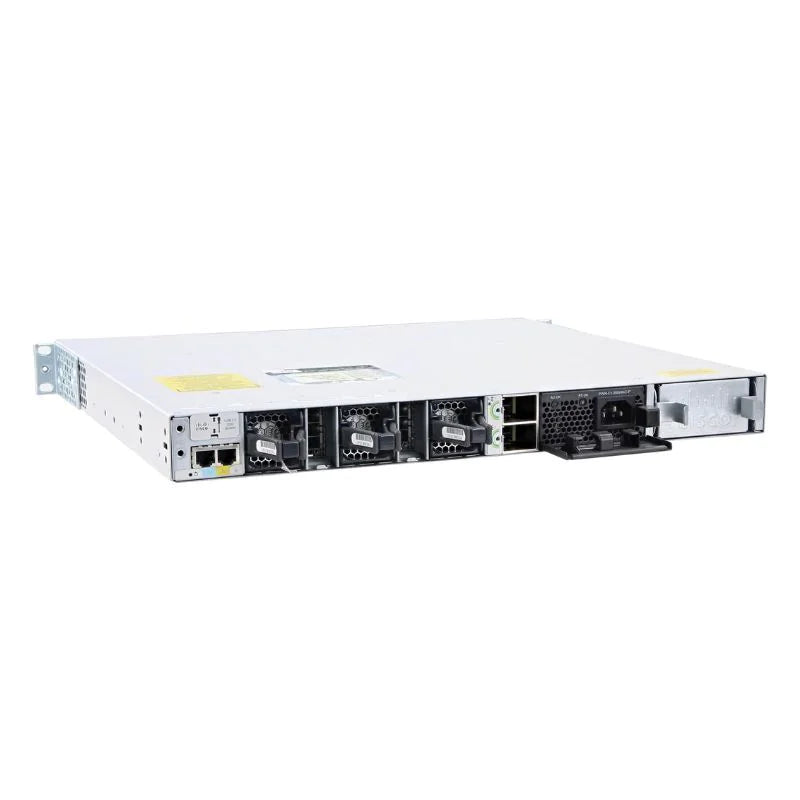

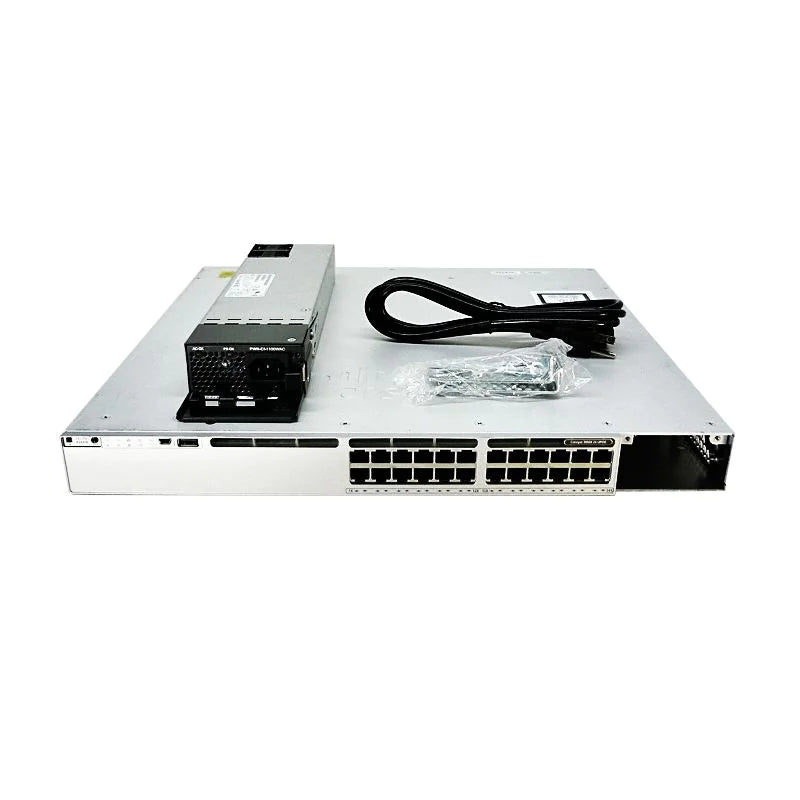

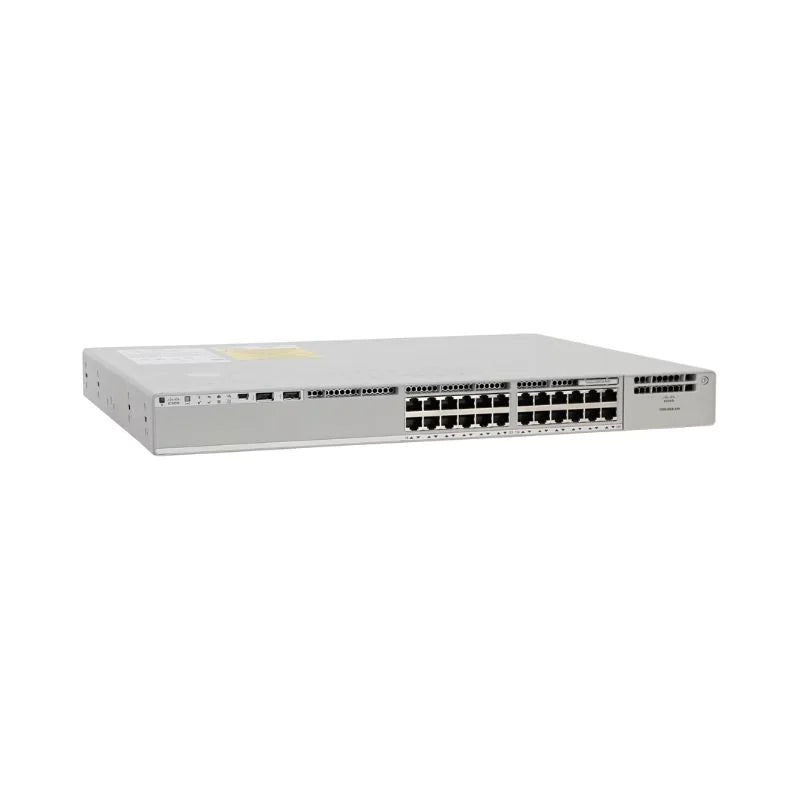

Catalyst 9300 24/48 Ports 1G Switch C9300-24T/C9300-24P/C9300-48T/C9300-48P/C9300-24S/C9300-48S/C9300-24U/9300-24UX/C9300-48UXM-E/-A

Regular price: R 50,501.41
Sale price: R 50,501.41
Regular price: ~~R 64,432.83~~
Unit price: per

Shipping calculated at checkout.

Specification

Quantity must be 1 or more

Catalyst 9300 24/48 Ports 1G copper with modular uplinks, data only, Network Advantage C9300-24T/C9300-24P/C9300-48T/C9300-48P/C9300-24S/C9300-48S/C9300-24U/9300-24UX/C9300-48UXM-E/-A

Description

The Cisco Catalyst C9300 series is an enterprise-grade switch engineered to empower modern networks with scalable capacity, advanced cloud integration, and exceptional operational flexibility.

Product Features Comparison

Model	C9300-24T-A	C9300-48T-A	C9300-48T-E	C9300-24S-E
Port Configuration	24	48	48	24x 1G SFP
Switching Capacity	208 Gbps	256 Gbps	256 Gbps	208 Gbps
Forwarding Rate	154.76 Mpps	154.76 Mpps	154.76 Mpps	154.76 Mpps
PoE Budget	--	--	--	N/A
Stacking Capability	Yes	Yes	Yes	Yes

Product Features Comparison

Model	C9300-24P-E	C1-WS3650-24UQ/K9	C9200-48P-E	C1000-24P-4X-L
Brand	Cisco	Cisco	Cisco	Cisco
Port Configuration	24 PoE+	24 × Multigigabit (100M/1G/2.5G/5G) RJ45 ports, 4 × 10G SFP+ uplinks	48 ports full PoE+	24 × 10/100/1000BASE-T PoE+ (RJ45, IEEE 802.3af/at), 4 × SFP+ uplinks (10GBASE-X)
Switching Capacity	208 Gbps on 24-port Gigabit Ethernet model	272 Gbps	176 Gbps	128 Gbps (10G: 64 Gbps / 1G: 56 Gbps)
Forwarding Rate	154.76 Mpps	130.95 Mpps	261.9 Mpps	95.23 Mpps (64-byte L3 packets)
PoE Budget	445W	Up to 640W (with PWR-C2-1025WAC)	n/a	195W (total)
Stacking Capability	Cisco StackWise-480 / StackPower: Yes, 480 Gbps stacking bandwidth	StackWise-160 (up to 160 Gbps bandwidth), up to 9 units	160 Gbps stacking bandwidth	n/a

Product Features Comparison

Model	C9300-48T-E	C9300-48U-A	C9300-48P-E	C9200L-48T-4G-E
Brand	Cisco	Cisco	Cisco	Cisco
Port Configuration	48 x 10/100/1000 or Multigigabit Copper Ports	48 Cisco UPOE	48 POE+	48 x 10/100/1000 Ethernet ports
Switching Capacity	256 Gbps on 48-port Gigabit Ethernet model	256 Gbps on 48-port Gigabit Ethernet model	256 Gbps on 48-port Gigabit Ethernet model	176 Gbps
Forwarding Rate	154.76 Mpps	154.76 Mpps	154.76 Mpps	130.95 Mpps
PoE Budget	--	822W	437W	n/a
Stacking Capability	Yes (StackWise-480/StackPower)	Yes (StackWise-480/StackPower)	Yes (StackWise-480/StackPower)	n/a

Product Features Comparison

Model	C9300-48P-E	C9300-48U-E	C9300-48T-E	C9200-48P-A
Brand	Cisco	Cisco	Cisco	Cisco
Port Configuration	48 POE+	48 Cisco UPOE	48	48 ports full PoE+
Switching Capacity	256 Gbps on 48-port Gigabit Ethernet model	256 Gbps on 48-port Gigabit Ethernet model	256 Gbps on 48-port Gigabit Ethernet model	176 Gbps
Forwarding Rate	154.76 Mpps	154.76 Mpps	154.76 Mpps	261.9 Mpps
PoE Budget	437W	822W	--	n/a
Stacking Capability	Cisco StackWise-480: Yes; Cisco StackPower: Yes	Cisco StackWise-480: Yes; Cisco StackPower: Yes	Cisco StackWise-480: Yes; Cisco StackPower: Yes	160 Gbps

Product Features Comparison

Model	C9300-24U-E	C9300L-24P-4X-A	C9300-48S-A	C1-WS3850-24S/K9
Port Configuration	24 Cisco UPOE	24P GE PoE+	48x 1G SFP	24 × SFP ports
Switching Capacity	208 Gbps on 24-port Gigabit Ethernet model	56 Gbps - 176 Gbps	256 Gbps	92 Gbps
Forwarding Rate	154.76 Mpps	41.66 Mpps - 130.95 Mpps	190.47 Mpps	68.4 Mpps
PoE Budget	830W	n/a	N/A	N/A
Stacking Capability	Cisco StackWise-480: Yes	StackWise-320	Cisco StackWise-480: Yes	StackWise-480 (up to 9 units)

Specifications

Model: C9300-24P-E

Brand: Cisco

Part Number: C9300-24P-E

Product Description:

Catalyst 9300 24-port PoE+, Network Essentials

Total 10/100/1000 or Multigigabit copper ports: 24 PoE+

Default AC power supply: 715W AC

Available PoE power: 445W

Cisco StackWise-480: Yes

Cisco StackPower: Yes

Default power supply: PWR-C1-715WAC

Switching capacity: 208 Gbps on 24-port Gigabit Ethernet model

Stacking bandwidth: 480 Gbps

Total number of MAC addresses: 32,000

Total number of IPv4 routes (ARP plus learned routes):

32,000 (24,000 direct routes and 8,000 indirect routes)

IPv4 routing entries: 32,000

IPv6 routing entries: 16,000

Multicast routing scale: 8,000

QoS scale entries: 5,120

ACL scale entries: 5,120

Packet buffer per SKU: 16 MB buffer for 24- or 48-port Gigabit Ethernet models

FNF entries: 64,000 flow on 24- and 48-port Gigabit Ethernet models

DRAM: 8 GB

Flash: 16 GB

VLAN IDs: 4,000

Total Switched Virtual Interfaces (SVIs): 2,000

Jumbo frames: 9,198 bytes

Total routed ports per 9300 Series stack: 208

Wireless bandwidth per switch: Up to 48 Gbps on 24-port Gigabit Ethernet model

Forwarding rate: 154.76 Mpps

Dimensions (H x W x D): 1.73 x 17.5 x 17.5 in

Weight: 7.4 kg

Mean time between failures (hours): 299,000

Safety certifications:

● UL 60950-1
● CAN/CSA-C222.2 No. 60950-1
● EN 60950-1
● IEC 60950-1
● AS/NZS 60950.1
● IEEE 802.3

Electromagnetic emissions certifications:

● 47 CFR Part 15
● CISPR22 Class A
● EN 300 386 V1.6.1
● EN 55022 Class A
● EN 55032 Class A
● CISPR 32 Class A
● EN61000-3-2
● EN61000-3-3
● ICES-003 Class A
● TCVN 7189 Class A
● V-3 Class A
● CISPR24
● EN 300 386
● EN55024
● TCVN 7317

Environmental:

Reduction of Hazardous Substances (ROHS) 5

On the fence about this Catalyst 9300 24/48 Ports 1G Switch C9300-24T/C9300-24P/C9300-48T/C9300-48P/C9300-24S/C9300-48S/C9300-24U/9300-24UX/C9300-48UXM-E/-A? Don't be. Let our satisfaction guarantee address your concerns.
