Cambium 16-Port Combo Pon OLT - CB-Pon-OLT-XGS-16

Description

Cambium 16-Port Combo PON OLT

Cambium 16-Port Combo Pon OLT, 16 PON ports with Gpon, XGS-Pon, Combo Pon support, dual 100 GbE/40 GbE QSFP28 and dual 25 GbE/10 GbE SFP+ uplink ports

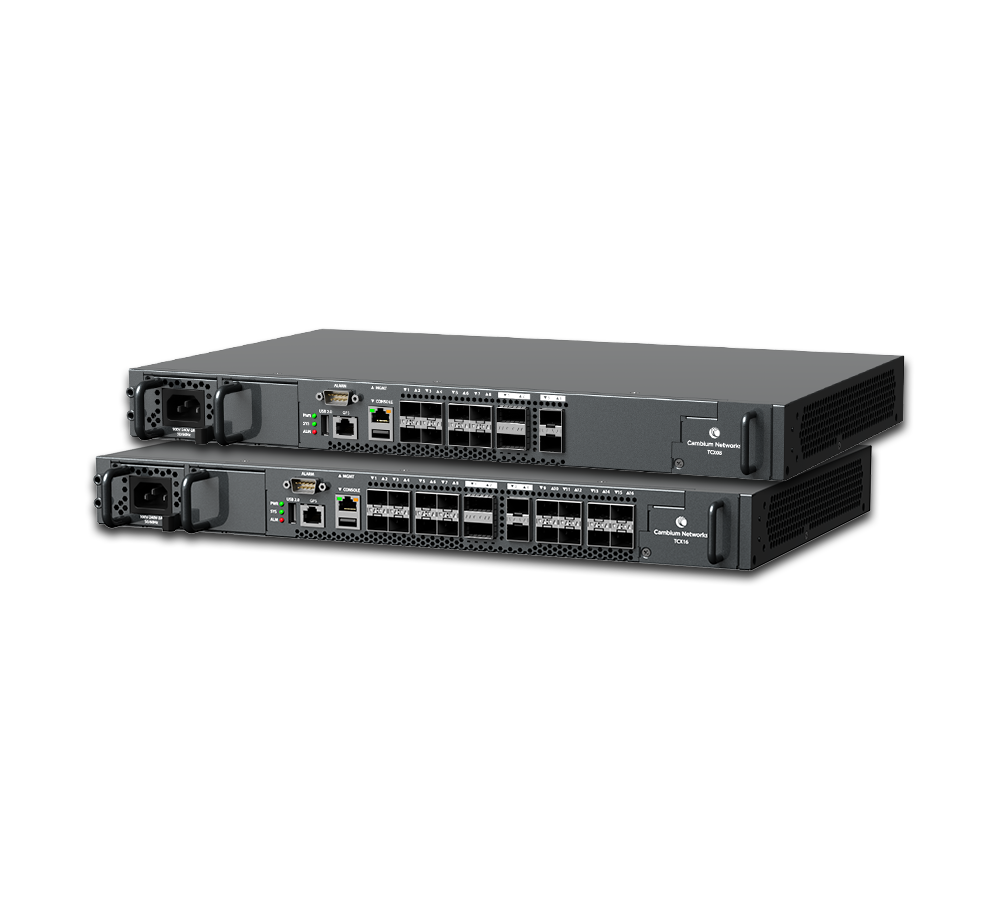

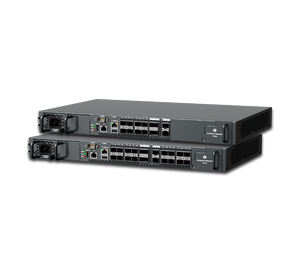

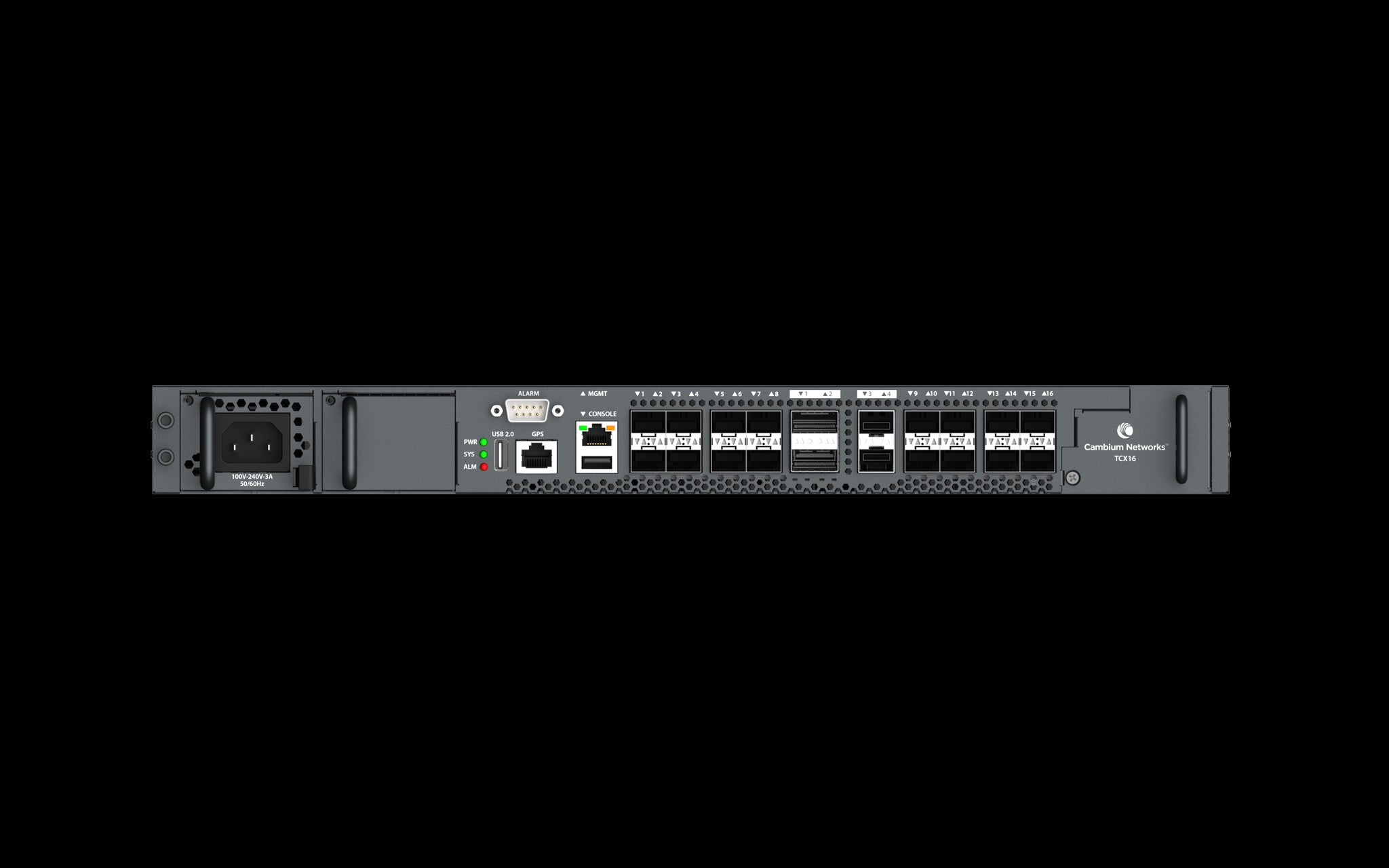

The Combo PON OLT features a compact design, 16 PON ports with GPON, XGS-PON, and Combo PON support, as well as dual 100 GbE / 40 GbE QSFP28 and dual 25 GbE /10 GbE SFP+ uplink ports. The Combo PON OLT delivers fast, reliable multi-gigabit services that are simple and scalable. This highly scalable 1RU OLT enables service providers to meet the growing demand for high-speed internet.

16-Port Combo PON OLT

FTTx Reimagined: Simple to Acquire, Deploy and Manage

Optical line terminals (OLTs) designed to deliver exceptional broadband experiences at a low total cost of ownership (TCO).

FEATURES AND BENEFITS
•  Zero-touch installations with Cloud and on-premise pre-configuration

•  Multi-gigabit symmetric customer speeds for fast and reliable connections

•  Dual AC/DC power supplies for added reliability and minimal downtime.

SKU#: CB-PON-OLT-XGS-16
Warranty: 1 Year
Manufacturer SKU#: TCX16-0A00

Categories:
Fibre Optics, Cambium Networks, 10G PON
Brand: Cambium

Key Features

PSU not included, add CB-Pon-OLT-PSU-AC or CB-Pon-OLT-PSU-DC

Specifications

Uplink
2x QSFP28 (supporting 100GE or 40GE or 4x25GE) and 2x SFP28/SFP+ (supporting 25GbE or 10GbE)

PON
8- or 16-port PON supporting PON: GPON, XGS-PON, or Combo PON maximum split ratios: XGS-PON 1:256, GPON 1:128 (ITU-T G.9807.1, ITU-T G.984.1, ITU-T G.984.2, ITU-T G.984.3, ITU-T G.984.4)

Management
Console ports: USB 2.0, D-SUB 9-pin, 1x RJ-45 out-of-band management (100/1000-BaseT) in-band and out-of-band IPv4 & IPv6 management

Networking
DHCP relay, option 82 support IGMP V2/V3 multicast support VLAN tagging, support IEEE 802.1Q, SVLAN, CVLAN, Q-in-Q IEEE 802.1p QoS service prioritization support

Single Management Interface
8- or 16-port PON downlink interfaces and 4 uplink interfaces

Dimensions
4.15 x 4.15 x 1.3 in (105 x 105 x 33mm)

Management
cnMaestro management with support for Netconf/Yang SNMP v2c & v3, Syslog, CLI, API, and cnMaestro RSTP rogue ONT detection, AES encryption, FEC dynamic bandwidth allocation (DBA): NSR status reporting (SR), traffic monitoring (TM) DBA

Performance
Non-blocking switching capacity: 300Gb/s; jumbo frames: 9K; MAC address: 16K; VLAN number: 4K

Environmental
4+1 left-to-right airflow fan modules (SDA FAN) operating temperature: -40°F to 149°F (-40°C to +65°C) relative humidity: 5% to 95%

Power
Hot swappable redundant power modules (AC is a priority when AC and DC are present) SDA AC: Universal 250W AC (100~240VAC, 50Hz to 60Hz) SDA DC: -48VDC 250W (-72~-38.4VDC)

Certifications
FCC, ICES, EN, IEC, CAN/CSA, ETSI, ANSI/UL, AS/NZS (details in product documentation)
The Cambium 16-Port Combo Pon OLT, 16 PON ports with Gpon, XGS-Pon, Combo Pon support, dual 100 GbE/40 GbE QSFP28 and dual 25 GbE/10 GbE SFP+ uplink ports is a sensational customer favorite, and we hope you like it just as much.
