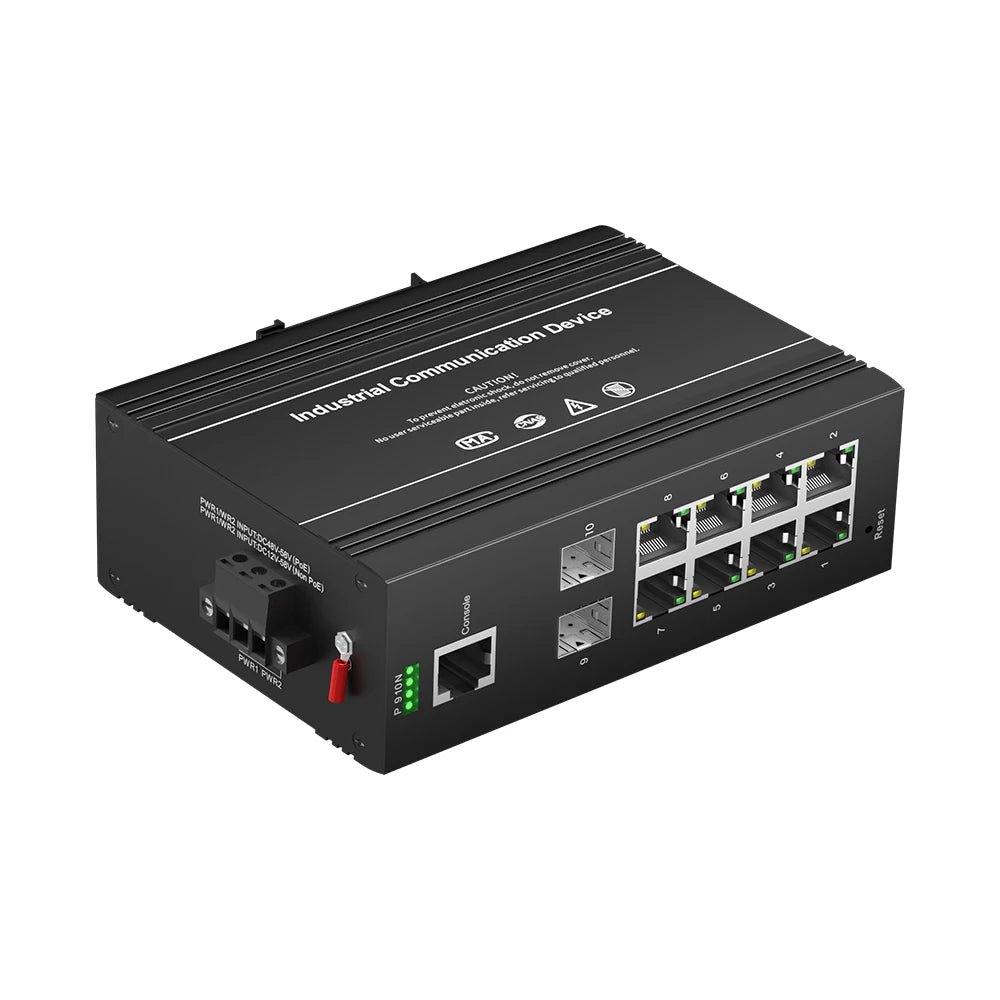

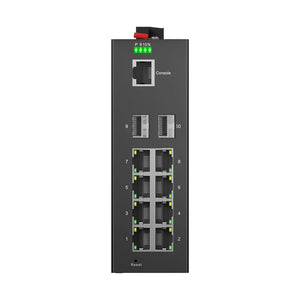

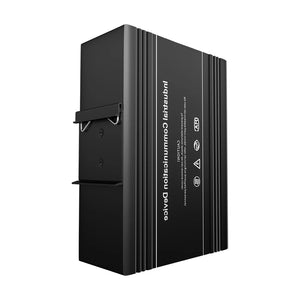

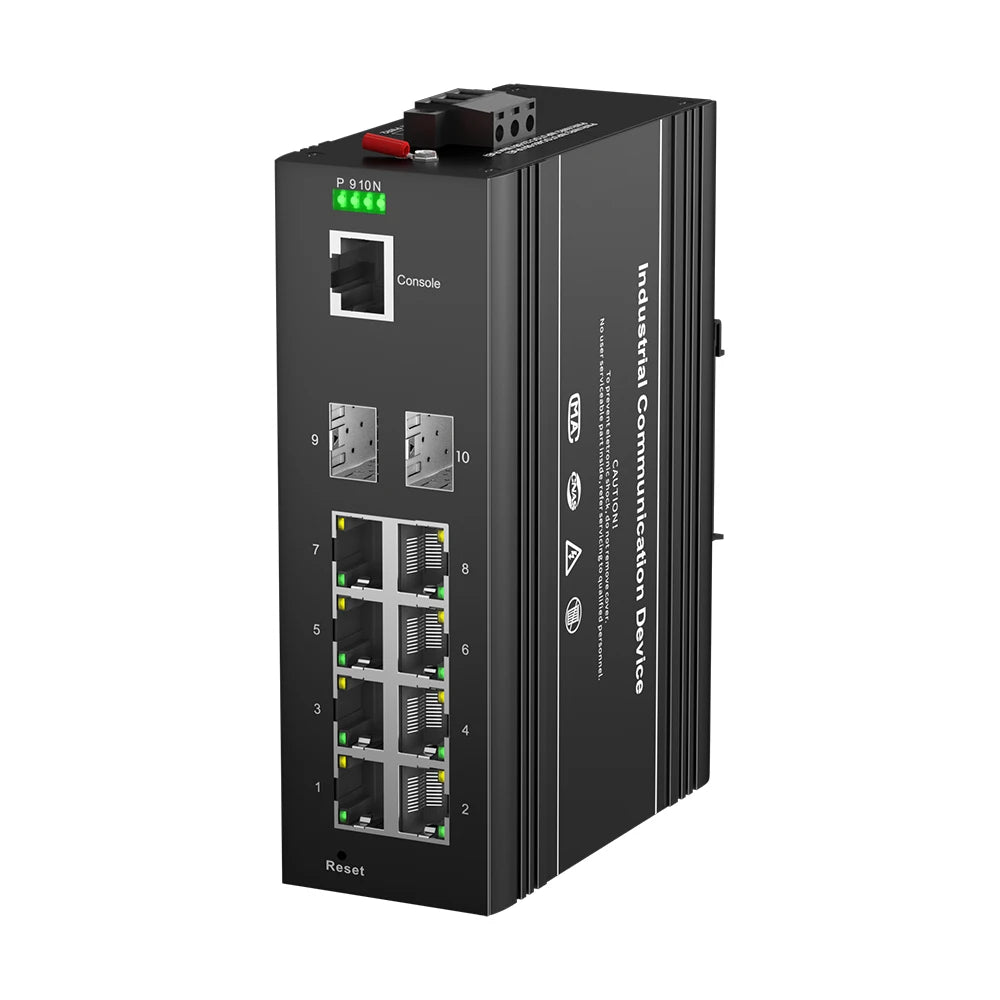

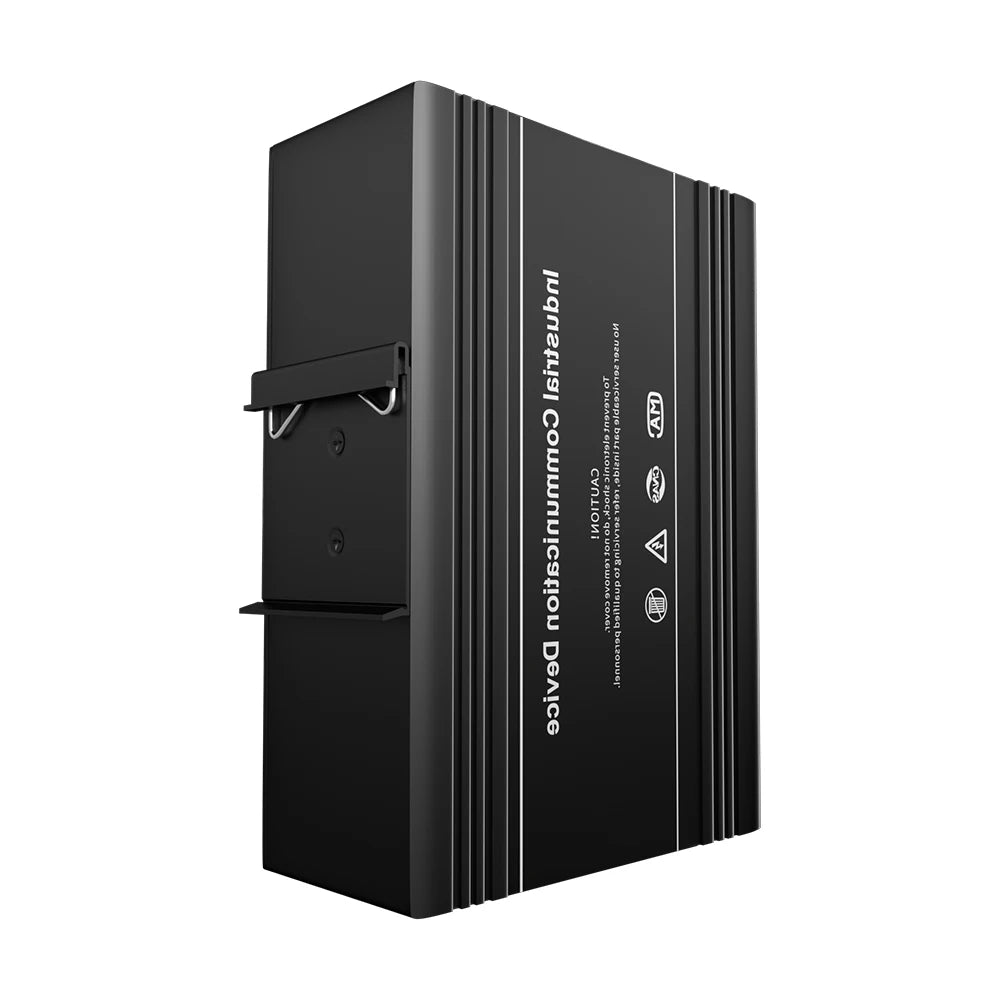

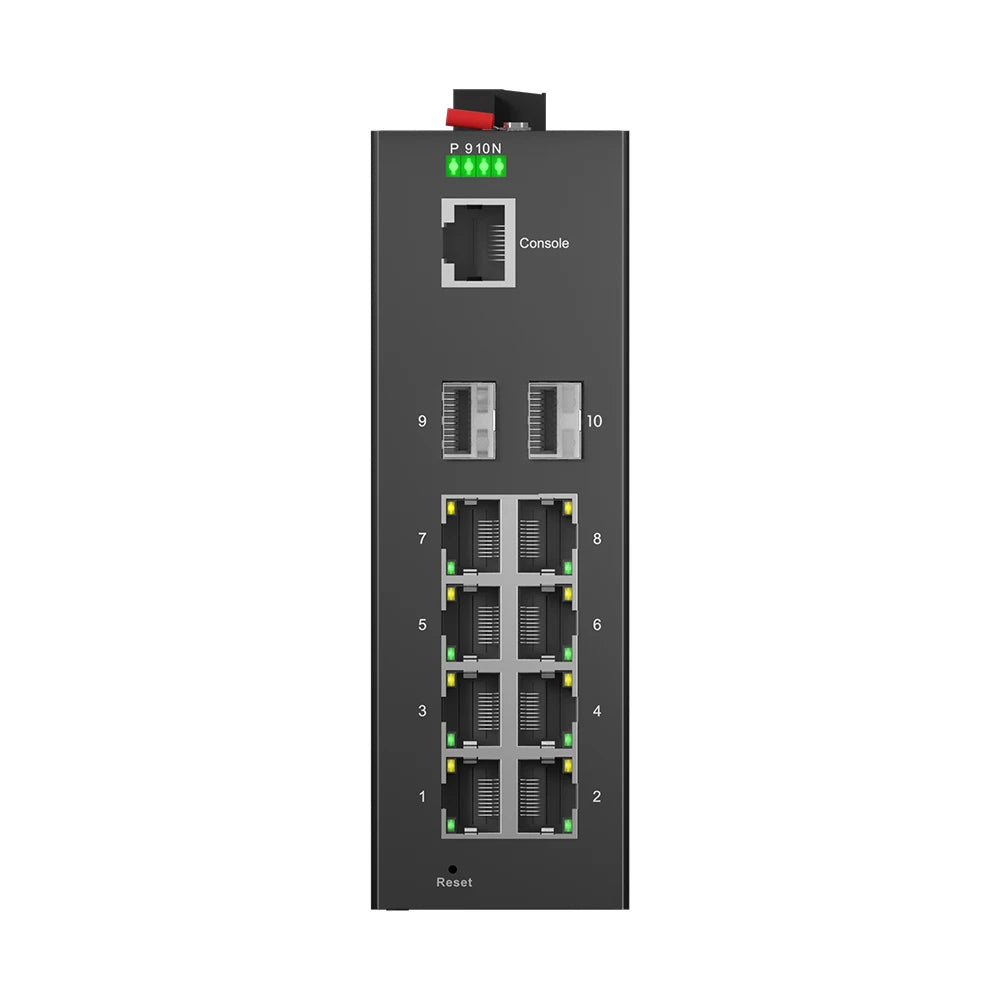

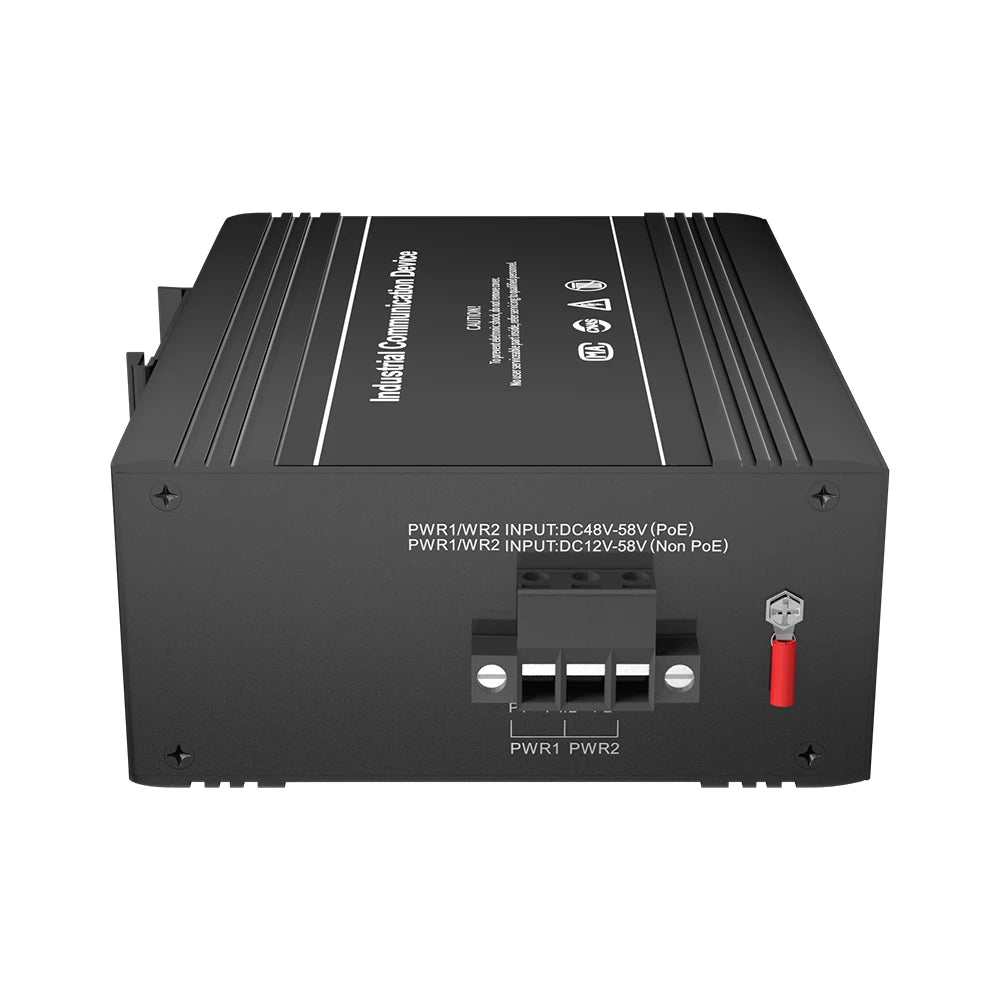

Bullscom Industrial 8-Port Gigabit PoE+ Switch 240W Budget, 2 SFP Managed DIN-Rail IP40 -40°C to 75°C, IEEE802.3af/at
Bullscom Industrial 8-Port Gigabit PoE+ Switch 240W Budget, 2 SFP Managed DIN-Rail IP40 -40°C to 75°C, IEEE802.3af/at
Bullscom Industrial 8-Port Gigabit PoE+ Switch 240W Budget, 2 SFP Managed DIN-Rail IP40 -40°C to 75°C, IEEE802.3af/at
Bullscom Industrial 8-Port Gigabit PoE+ Switch 240W Budget, 2 SFP Managed DIN-Rail IP40 -40°C to 75°C, IEEE802.3af/at
Bullscom Industrial 8-Port Gigabit PoE+ Switch 240W Budget, 2 SFP Managed DIN-Rail IP40 -40°C to 75°C, IEEE802.3af/at
  • Load image into Gallery viewer, Bullscom Industrial 8-Port Gigabit PoE+ Switch 240W Budget, 2 SFP Managed DIN-Rail IP40 -40°C to 75°C, IEEE802.3af/at
  • Load image into Gallery viewer, Bullscom Industrial 8-Port Gigabit PoE+ Switch 240W Budget, 2 SFP Managed DIN-Rail IP40 -40°C to 75°C, IEEE802.3af/at
  • Load image into Gallery viewer, Bullscom Industrial 8-Port Gigabit PoE+ Switch 240W Budget, 2 SFP Managed DIN-Rail IP40 -40°C to 75°C, IEEE802.3af/at
  • Load image into Gallery viewer, Bullscom Industrial 8-Port Gigabit PoE+ Switch 240W Budget, 2 SFP Managed DIN-Rail IP40 -40°C to 75°C, IEEE802.3af/at
  • Load image into Gallery viewer, Bullscom Industrial 8-Port Gigabit PoE+ Switch 240W Budget, 2 SFP Managed DIN-Rail IP40 -40°C to 75°C, IEEE802.3af/at

Bullscom Industrial 8-Port Gigabit PoE+ Switch 240W Budget, 2 SFP Managed DIN-Rail IP40 -40°C to 75°C, IEEE802.3af/at

R 23,586.95
R 23,586.95
R 40,097.95
Sold out
Shipping calculated at checkout.

Bullscom Industrial 8-Port Gigabit PoE+ industrial Switch 240W Budget, 2 SFP Managed DIN-Rail IP40 -40°C to 75°C, IEEE802.3af/at

SPECIFICATIONS

100/1000BaseSFP+: 2

Ambient Relative Humidity: 5 to 95% (non-condensing)

Authentication: IEEE 802.1X

Brand Name: Bullscom

Buffer: 4.1 M

CS: 10 V

Certification: CE,FCC,RoHS

Class of Service: IEEE 802.1p

Communication Mode: Full-Duplex & Half-Duplex

Connection: 1 removable 3-contact terminal block

Console Port: 1 RJ45

DDM: Supported

DHCP Server/Client: Supported

Dimensions: 48 x 104 x 143 mm (1.89 x 4.09 x 5.63 in)

EFT: Power: 2 kV; Signal: 2 kV

EMC: EN 55032/24

EMI: CISPR 32, FCC Part 15B Class A

ESD: Contact: 6 kV; Air: 8 kV

Filter: GMRP, GVRP, IGMP v1/v2, Port-based VLAN

Freefall: IEC 60068-2-31

Function: POE,QoS,SNMP,VLAN Support

Hign-concerned Chemical: None

Housing: Aluminum

IP Rating: IP40

IPv4/IPv6: Supported

Industrial Protocols: EtherNet/IP

Input Voltage: 12 to 58 VDC, Redundant dual inputs

Installation: DIN-rail mounting

LACP: Supported

Link Aggregation: Supported

MAC address table: 8 K

MSTP: Supported

MTBF: 708,972 hrs

Model Number: 77-2GX8GP-M

Multiple Spanning Tree Protocol: IEEE 802.1s

Number of Interfaces: 10

Operating Temperature: -40 to 75°C (-40 to 167°F)

Origin: Mainland China

Overload Current Protection: Supported

Package: Yes

Packet forwarding rate: 14.88 Mpps

PoE Budget: 240W

PoE Management: Supported

PoE Pinout: 1,2,3,6

PoE Ports: 1-8

PoE Ports (10/100/1000BaseT(X), RJ45 connector)onnector): 8

PoE Protocol: IEEE802.3af/at

RS: 80 MHz to 1 GHz: 20 V/m

RSTP: Supported

Rapid Spanning Tree Protocol: IEEE 802.1w

Reverse Polarity Protection: Supported

SNMP: Supported

SNMPv1/v2c/v3: Supported

STP: Supported

Shock: IEC 60068-2-27

Spanning Tree Protocol: IEEE 802.1D-2004

Storage Temperature (package included): 40 to 85°C (-40 to 185°F)

Surge: Power: 2 kV; Signal: 2 kV

Switch Capacity: 20 G

Switch Type: Gigabit Switch

Syslog: Supported

Telnet: Supported

Transmission Rate: 10/100/1000Mbps

VLAN: Yes

VLAN Tagging: IEEE 802.1Q

Vibration: IEC 60068-2-6

Warranty Period: 5 years

Weight: 0.6 kg

flow control: IEEE 802.3x

Description

Professional-Grade Industrial PoE Switch for Harsh Environments



The 77-2GX8GP-M Industrial PoE Switch delivers high-performance networking with 8× Gigabit PoE+ ports (240W total budget) and 2× SFP fiber slots, perfect for demanding industrial applications like factories, traffic systems, and outdoor deployments. Built with a rugged IP40 metal housing, it operates reliably in extreme temperatures (-40°C to 75°C) and resists shocks/interference.


Key Features:



✅ High Power & Flexibility

  • 8× 10/100/1000Mbps PoE+ ports (IEEE802.3af/at, 30W per port, 240W total)

  • 2× Gigabit SFP slots for fiber uplinks (100/1000BASE-X)

  • Redundant 48-58V DC power input with reverse polarity protection

✅ Built for Tough Conditions

  • IP40 aluminum enclosure (dust/shock-resistant)

  • Wide operating temperature (-40°C to 75°C / -40°F to 167°F)

  • DIN-Rail mountable for easy industrial installation

✅ Advanced L2+ Management

  • VLAN (802.1Q/Port-based), QoS, IGMP snooping, LACP aggregation

  • Static routing for efficient traffic control

  • Multiple management options: Web, CLI, SSH, Telnet, SNMP

✅ Ideal for:

  • IP cameras, wireless APs, sensors, VoIP phones

  • Factory automation, traffic control, oil/gas, outdoor networks

Why Choose This Switch?

✔ Reliable in extreme environments – No downtime in harsh conditions.
✔ Scalable PoE power – Supports high-demand devices like PTZ cameras.
✔ Easy to manage – Enterprise features at an industrial price.

The Bullscom Industrial 8-Port Gigabit PoE+ Switch 240W Budget, 2 SFP Managed DIN-Rail IP40 -40°C to 75°C, IEEE802.3af/at is far and away, one of our most popular items. People can't seem to get enough of it.
