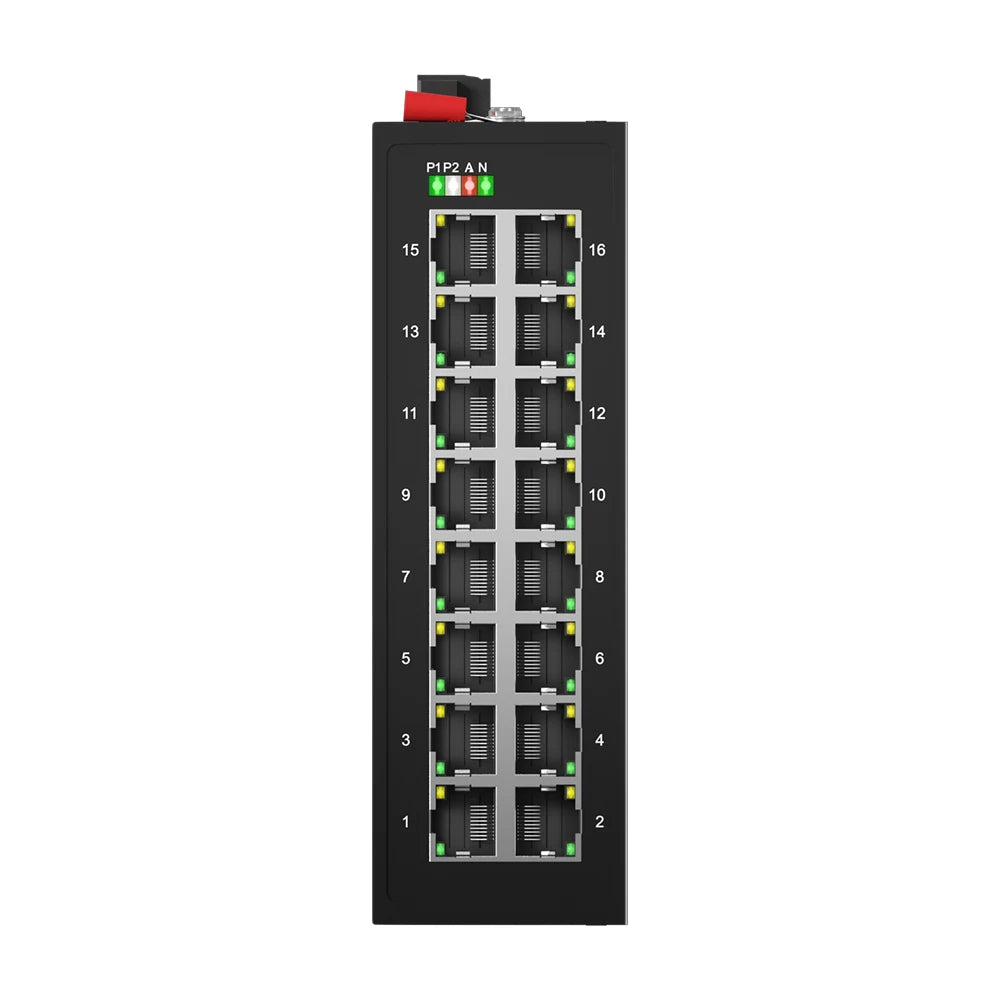

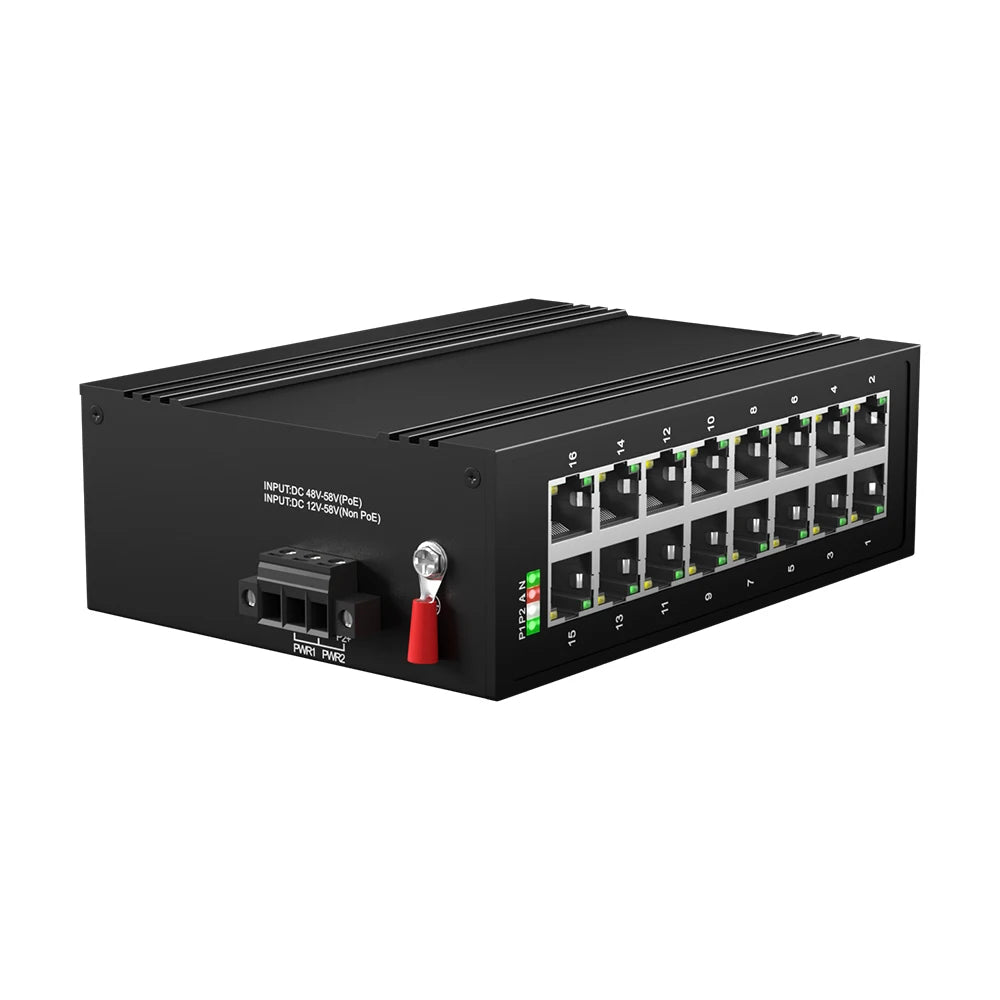

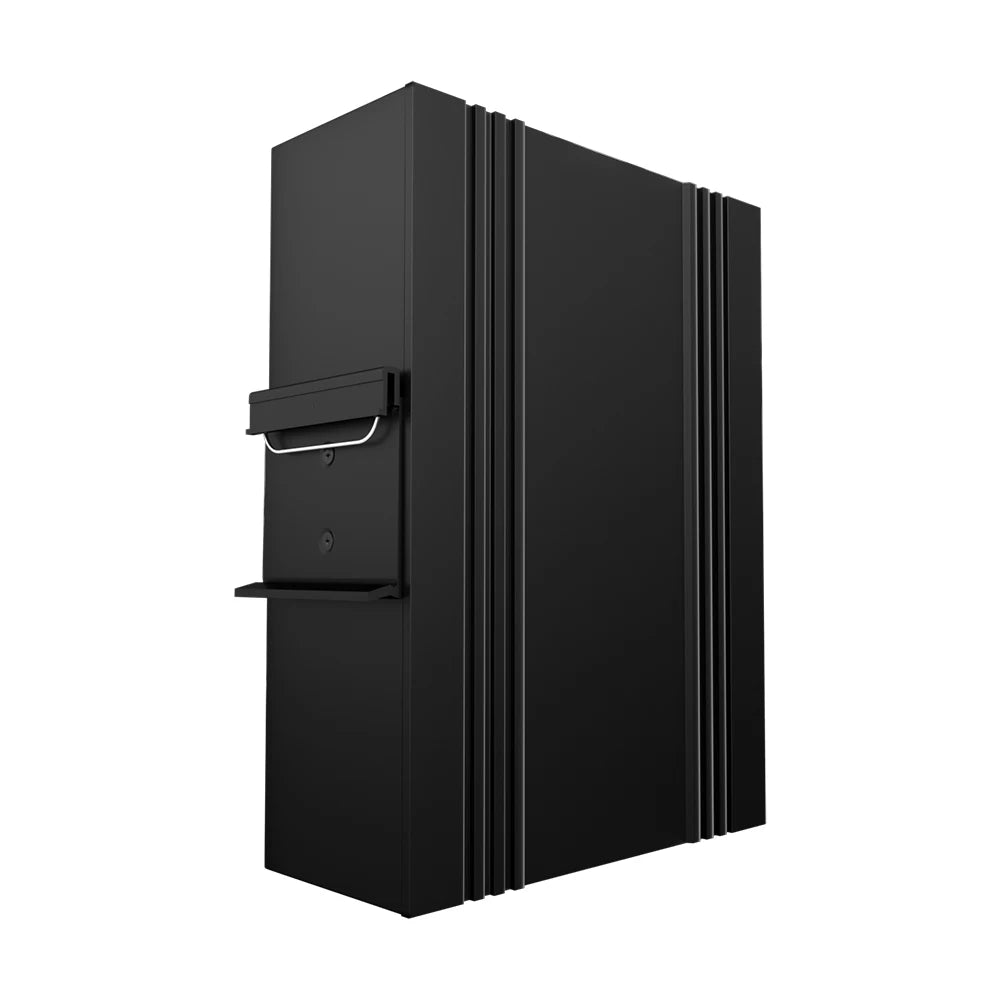

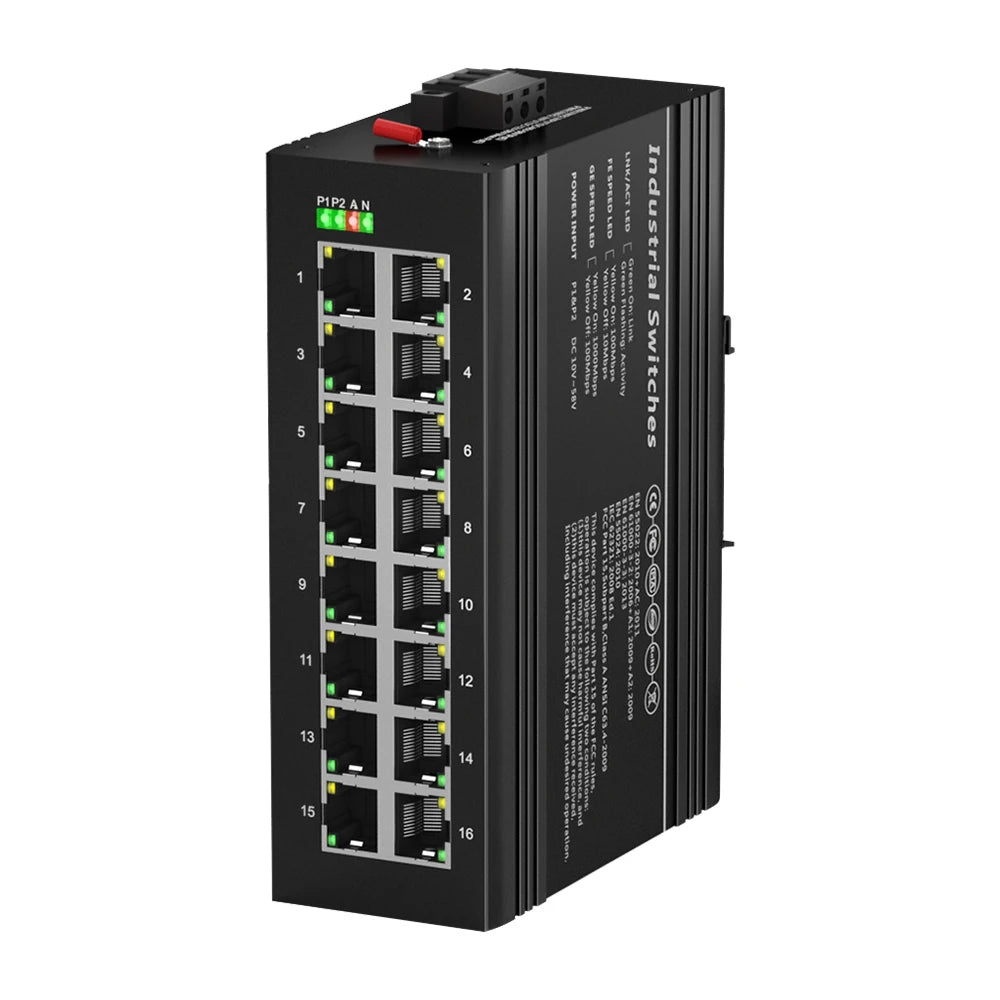

Bullscom Industrial 16-Port 10/100/1000BaseT(X) RJ45 Ethernet Switch, Rugged Metal Housing, DIN-Rail Mount, Wide Temperature Range

Regular price: R 24,336.95
Sale price: R 24,336.95
Regular price: ~~R 41,372.95~~
Unit price: per

Shipping calculated at checkout.

Color

Quantity must be 1 or more

SPECIFICATIONS

10/100/1000BaseT(X) Ports (RJ45 connector): 16

Ambient Relative Humidity: 5 to 95% (non-condensing)

Brand Name: Bullscom

CS: 10 V

Certification: CE,FCC,RoHS

Communication Mode: Full-Duplex & Half-Duplex

Connection: 1 removable 3-contact terminal block(s)

Dimensions: 143 x 104 x 48 mm (5.62 x 4.09 x 1.89 in)

EFT: Power: 1 kV; Signal: 1 kV

EMC: EN 61000-6-2/-6-4

EMI: CISPR, 32, FCC Part 15B Class A

ESD: Contact: 6 kV; Air: 8 kV

Freefall: IEC 60068-2-32

Function: VLAN Support

High-concerned Chemical: None

Housing: Metal

Input Voltage: 12 to 58VDC

Installation: DIN-rail mounting

MAC Table Size: 8K

MTBF: 3,404,784 hrs

Model Number: 45-16GT

Number of Interfaces: 17

Operating Temperature: EDS-G2005-EL-T: -40 to 75°C (-40 to 167°F)

Package: Yes

Packet Buffer Size: 2M

Processing Type: Store and Forward

RS: 80 MHz to 1 GHz: 20 V/m

Safety: EN 62368-1 (LVD)

Shock: IEC 60068-2-27

Storage Temperature (package included): -40 to 85°C (-40 to 185°F)

Surge: Power: 1 kV; Signal: 1 kV

Switch Capacity: 32G

Switch Type: Fast Switch

Transmission Rate: 10/100/1000Mbps

VLAN: Yes

Vibration: IEC 60068-2-6

Warranty Period: 3 years

Weight: 0.85 kg

Description

Upgrade your industrial network with this 16-Port Gigabit Ethernet Switch, designed for harsh environments. Built with a heavy-duty metal housing, this switch ensures reliable 10/100/1000 Mbps Fast Ethernet connectivity for industrial automation, surveillance, and control systems. Featuring DIN-rail mounting, wide operating temperature range (-40°C to 75°C), and high EMI protection, it’s perfect for factories, power plants, and outdoor installations.

✔ Plug-and-play setup with no configuration needed
✔ Non-blocking switching for seamless data transfer
✔ Redundant power input (12-48V DC) for fail-safe operation
✔ IP40 protection against dust and moisture
✔ 5-year warranty for peace of mind

Ideal for SCADA systems, IoT networks, and industrial automation where durability and stability are critical.

Key Features:

16 x 10/100/1000 Mbps RJ45 ports (Auto-MDI/MDIX, auto-negotiation)
Industrial-grade metal casing (IP40 protection)

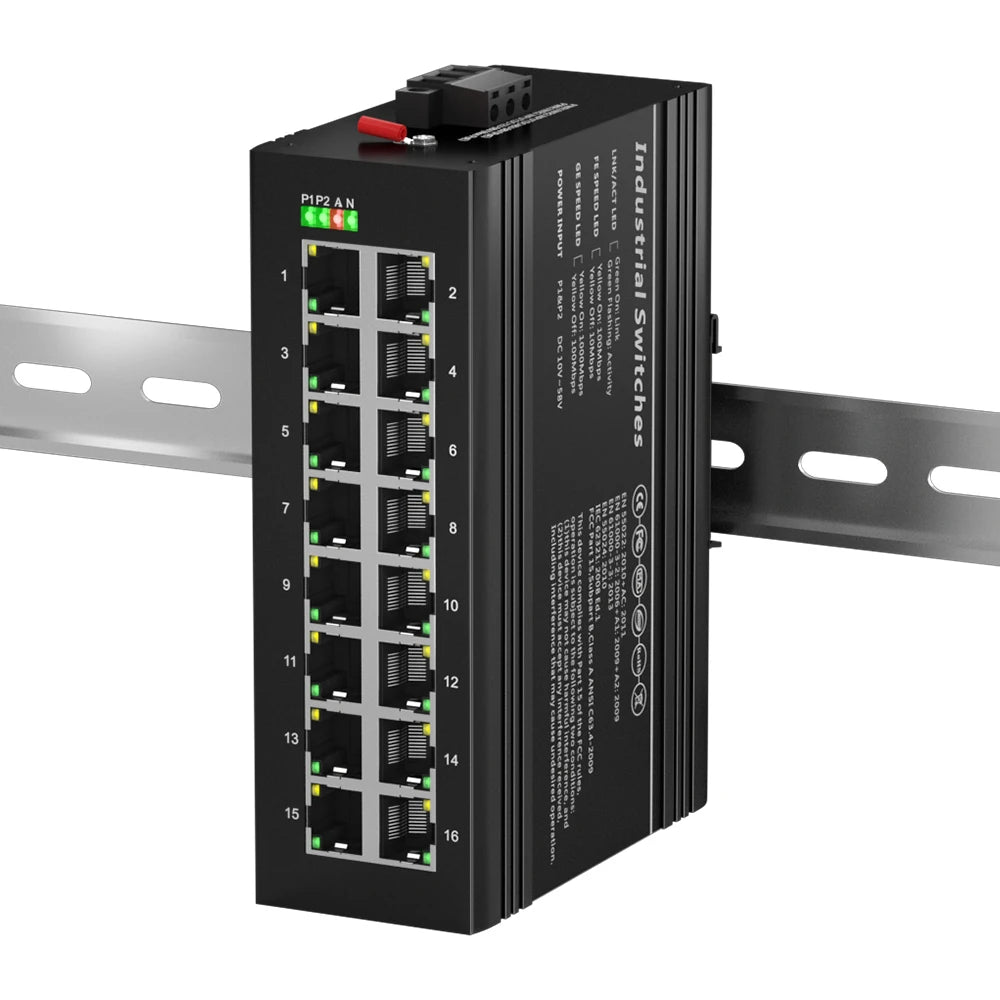

DIN-rail mounting
Wide operating temperature: -40°C to 75°C

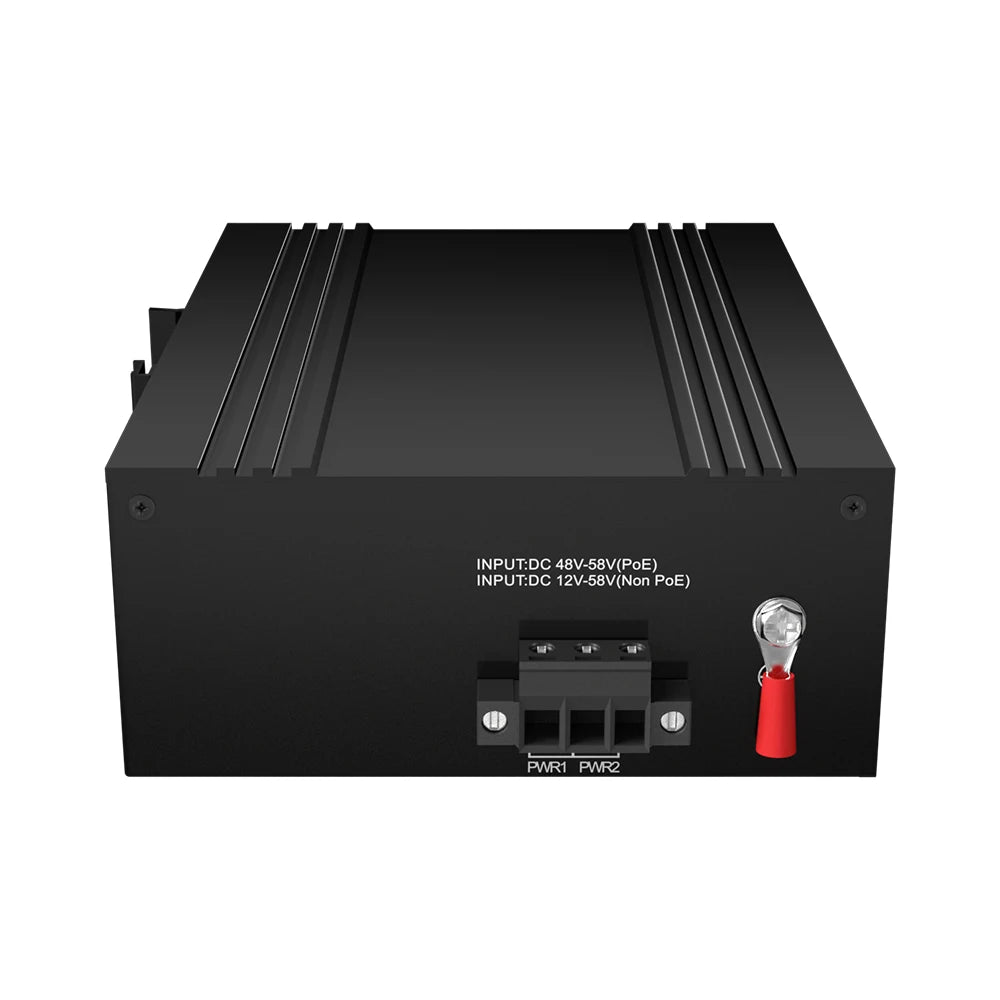

Dual power inputs (12-48V DC) with reverse polarity protection
Low power consumption & fanless design (silent operation)
Store-and-forward switching with 1Gbps backplane bandwidth
EMI/ESD protection for stable performance in noisy environments
Plug-and-play, no software configuration required

Applications:

✔ Factory automation & machinery
✔ Oil & gas, mining, and transportation systems
✔ Smart city & traffic control networks
✔ Renewable energy (solar/wind farm monitoring)
✔ Security cameras & NVR systems

Every product is unique, just like you. If you're looking for a product that fits the mold of your life, the Bullscom Industrial 16-Port 10/100/1000BaseT(X) RJ45 Ethernet Switch, Rugged Metal Housing, DIN-Rail Mount, Wide Temperature Range is for you.
