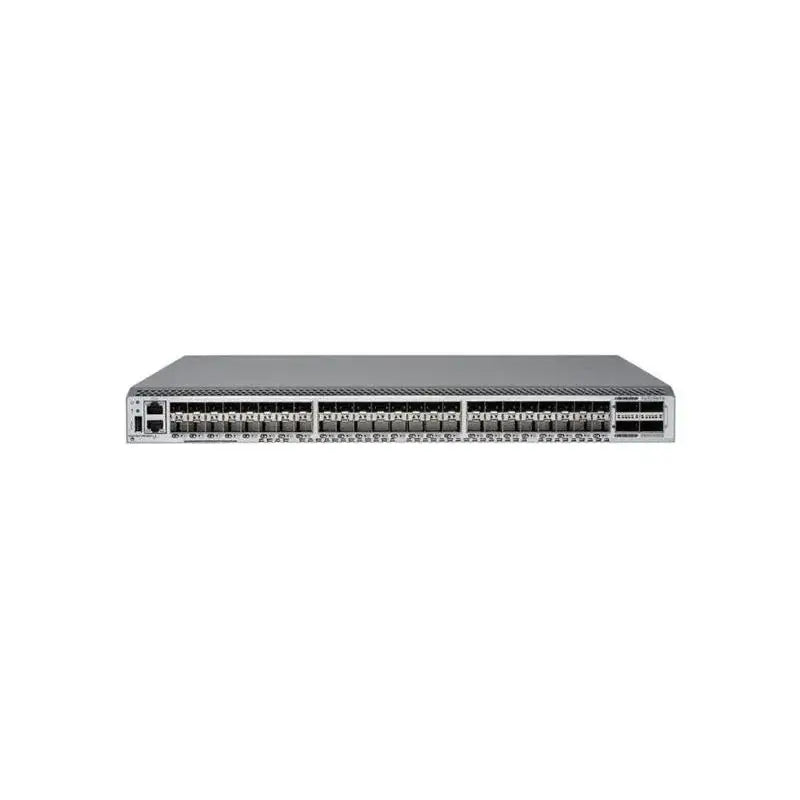

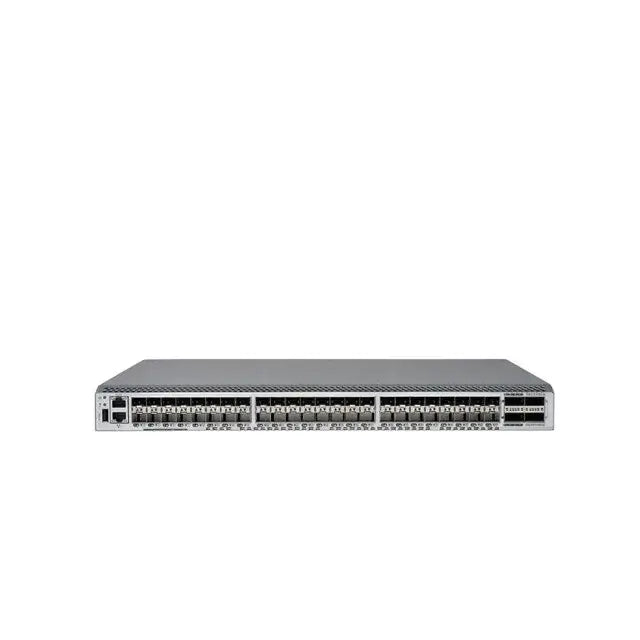

Brocade G620 series 64 port switch, 24 port activation, including 24 Brocade 32Gb/s shortwave multi-mode modules, port side exhaust BR-G620-24-32G-R

Description

The Brocade BR-G620-24-32G-R is a highly capable 64-port switch, featuring 24 ports activated and 24 Brocade 32Gb/s shortwave multi-mode modules. This port-side exhaust switch is ideal for enterprise data centers seeking high speed, reliable connectivity and scalability.

BR-G620-24-32G-R Product Highlights

  • Breakthrough performance: Get the performance you need to support critical business applications and the most from your investment in solid state storage technology.
  • Increased scalability: Reduce operating costs and management complexity by simplifying scale-out architectures—all in a 1U form factor.
  • Operational stability: Reduce risk with the industry’s first built-in metrics. Achieve greater control and operational insights to quickly identify issues and easily meet or crush SLAs.

Comparison Features

Features BR-G620-24-32G-R CISCO Nexus 93180YC-EX Arista 7050QX-32S Juniper QFX5100-48S Extreme X690-48x-2q
Total Ports 64 48 32 48 48
Activated Ports 24 24 16 24 24
Port Speed 32Gb/s 25Gb/s 40Gb/s 40Gb/s 100Gb/s
Module Type Shortwave multi-mode SR, LR SR, LR SR, LR SR, LR
Cooling Port side exhaust Front-to-back Back-to-front Front-to-back Front-to-back

BR-G620-24-32G-R Product Application Scenarios

  • Enterprise data centers
  • Cloud computing environments
  • High-performance computing

Optional Add-ons

Model Description
XBR-000259 Power supply unit
XBR-000162 Fan assembly
XBR-000144 Rack mount kit

Product Details



Specifications

BR-G620-24-32G-R Specification
Fibre Channel ports Switch mode (default): Minimum of 24 ports and maximum of 64 ports configuration. Port numbers above minimum are enabled through 12-port SFP+ increments via Ports on Demand (PoD) licenses and through one 4-port QSFP PoD, providing 16-port increments through a Q-Flex license; E_Ports, F_Ports, M_Port, D_Ports, EX_Ports.
Brocade Access Gateway default port mapping: 40 SFP+ F_Ports, 8 SFP+ N_Ports
Scalability Full-fabric architecture with a maximum of 239 switches
Certified maximum 6,000 active nodes; 56 switches, 19 hops in Brocade Fabric OS® fabrics; larger fabrics certified as required
Performance Fibre Channel: 4.25Gb/s line speed, full duplex; 8.5Gb/s line speed, full duplex; 14.025Gb/s line speed, full duplex; 28.05Gb/s line speed, full duplex; auto-sensing of 4, 8, 16, and 32G port speeds. 10G optionally programmable to fixed port speed. Auto-sensing of 4×32/4×16/4×8/4×4 Gb/s speeds on the QSFP ports with Brocade FOS v8.2.0.
ISL trunking Frame-based trunking with up to eight 64G SFP+ ports per ISL trunk; up to 512Gb/s per ISL trunk; up to two (4 x 32G) QSFP ports per ISL trunk. Exchange-based load balancing across ISLs with DPS included in Brocade Fabric OS.
Aggregate bandwidth 2Tb/s
Maximum fabric latency Latency for locally switched ports is <780 ns (including FEC); compression is 1 μs per node.
Maximum frame size 2,112-byte payload
Frame buffers 15,360 dynamically allocated
Classes of service Class 2, Class 3, Class F (inter-switch frames)
Port types F_Port, E_Port, M_Port, D_Port (ClearLink Diagnostic Port) on 24 SFP+ ports
Brocade Access Gateway mode: F_Port and NPIV-enabled N_Port
Data traffic types Fabric switches supporting unicast
Size Width: 440.00 mm (17.32 in.)
Height: 43.90 mm (1.73 in.)
Depth: 355.60 mm (14.00 in.)
System weight 7.07 kg (15.59 lb) with two power supplies, fans, without transceivers
8.41 kg (18.54 lb) with two power supplies, fans, fully populated with transceivers
Operating environment Temperature: 0°C to 40°C/32°F to 104°F
Humidity: 10% to 85% (non-condensing)
Non-operating environment Temperature: –25°C to 70°C/–13°F to 158°F
Humidity: 10% to 90% (non-condensing)
Operating altitude Up to 3,000 m (9,843 ft)
Storage altitude Up to 12 km (39,370 ft)

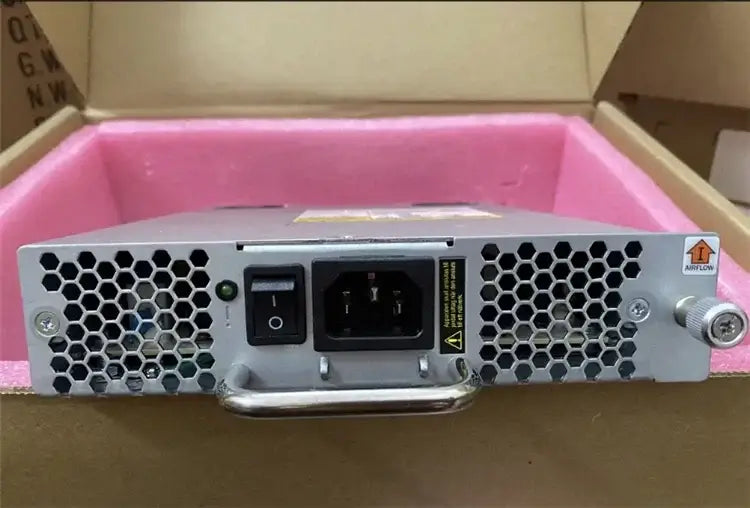

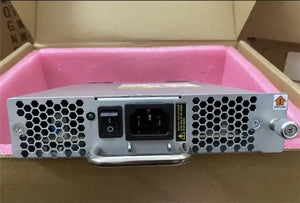

Power supply Base switch includes a single, hot-swappable power supply with integrated system cooling fans. Optional dual redundant hot-swappable power supply.
AC input 90V to 264V, maximum input current: 3.5A
Input line frequency 47 Hz to 63 Hz
Power consumption Maximum 205W with all 64 ports populated with 48×32G SFP+ SWL optics and 4× (4×32G) QSFP SWL optics.
85W for empty chassis with no optics
