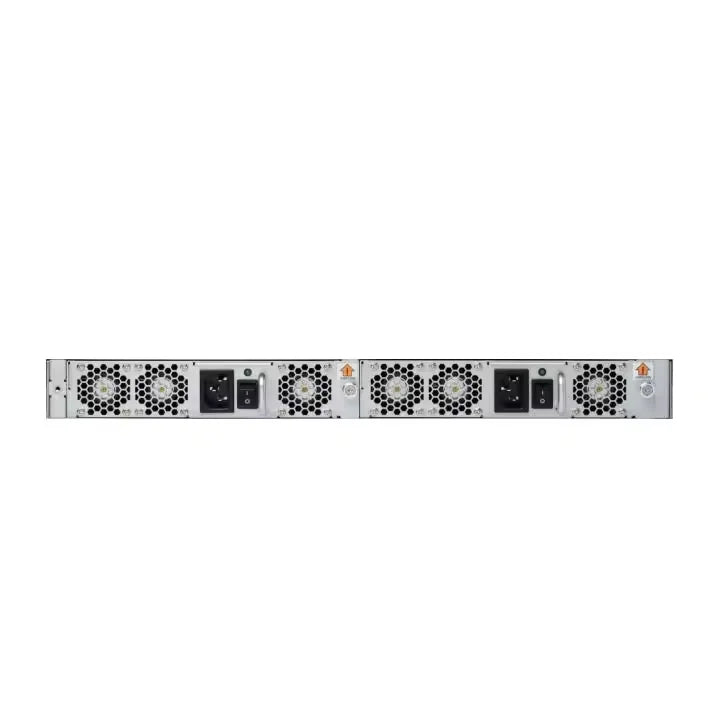

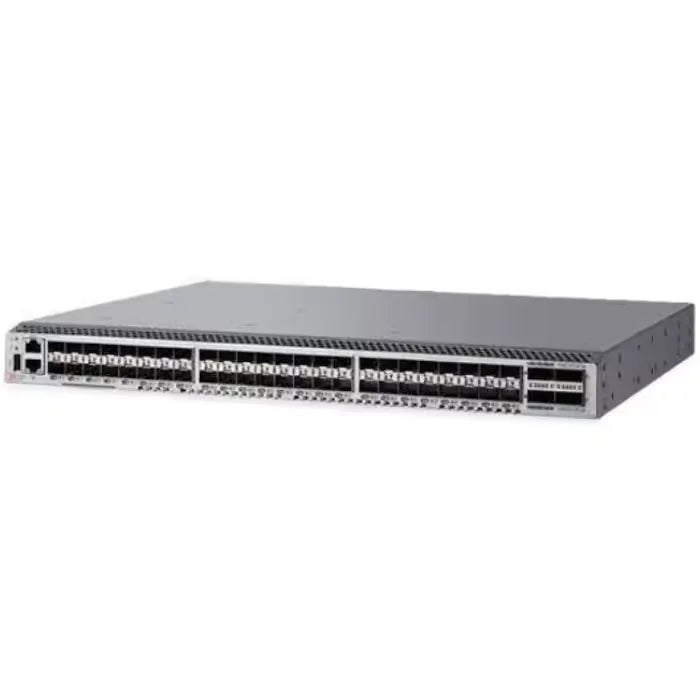

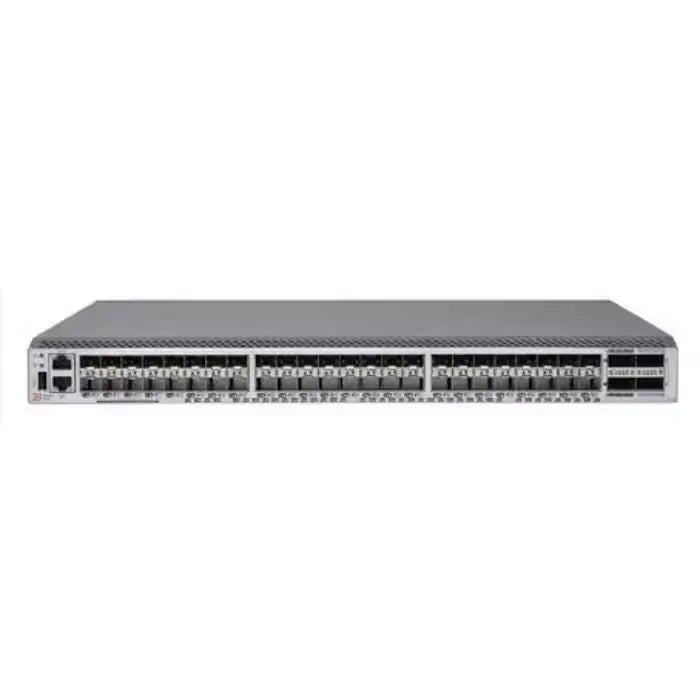

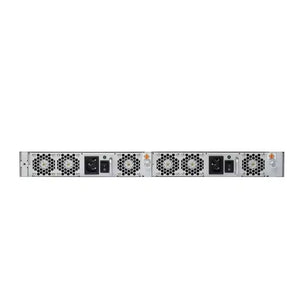

Brocade BR-G610-8-16G-0 G610 24 port switch, 8 port activation, including 8 Brocade 16Gb/s shortwave multi-mode modules, port side exhaust
Brocade BR-G610-8-16G-0 G610 24 port switch, 8 port activation, including 8 Brocade 16Gb/s shortwave multi-mode modules, port side exhaust
Brocade BR-G610-8-16G-0 G610 24 port switch, 8 port activation, including 8 Brocade 16Gb/s shortwave multi-mode modules, port side exhaust
Brocade BR-G610-8-16G-0 G610 24 port switch, 8 port activation, including 8 Brocade 16Gb/s shortwave multi-mode modules, port side exhaust
  • Load image into Gallery viewer, Brocade BR-G610-8-16G-0 G610 24 port switch, 8 port activation, including 8 Brocade 16Gb/s shortwave multi-mode modules, port side exhaust
  • Load image into Gallery viewer, Brocade BR-G610-8-16G-0 G610 24 port switch, 8 port activation, including 8 Brocade 16Gb/s shortwave multi-mode modules, port side exhaust
  • Load image into Gallery viewer, Brocade BR-G610-8-16G-0 G610 24 port switch, 8 port activation, including 8 Brocade 16Gb/s shortwave multi-mode modules, port side exhaust
  • Load image into Gallery viewer, Brocade BR-G610-8-16G-0 G610 24 port switch, 8 port activation, including 8 Brocade 16Gb/s shortwave multi-mode modules, port side exhaust

Brocade BR-G610-8-16G-0 G610 24 port switch, 8 port activation, including 8 Brocade 16Gb/s shortwave multi-mode modules, port side exhaust

R 229,393.95
R 229,393.95
R 293,624.95
Sold out
Shipping calculated at checkout.

Brocade G610 series 24 port switch, 8 port activation, including 8 Brocade 16Gb/s shortwave multi-mode modules, port side exhaust

Description

This Brocade G610 series switch, part of the BR-G610-8-16G-0 lineup, offers a robust 24-port setup, activated with 8 ports and 16Gb/s shortwave multi-mode modules. It’s tailored for data-centric enterprises seeking efficient network performance with port side exhaust capabilities, ensuring optimal airflow and cooling.

BR-G610-8-16G-0 Product Features

  • Simple and Scalable:  Install in three easy steps. Start small and grow on demand from 8 to 24 ports.
  • Flash-Ready:  Power up from 16 to 32G on demand Seamlessly transition to next-generation NVMe flash arrays
  • Always-on: Sensors proactively monitor VM health and performance to pinpoint issues before they impact operations Recover automatically from common networking problems

BR-G610-8-16G-0 Product Highlights

  • 24-port switch capability
  • 8 port activation
  • 16Gb/s shortwave speed
  • Multi-mode modules
  • Port side exhaust

Product Features Comparison

Feature BR-G610-8-16G-0 Cisco Nexus 5548UP Juniper EX4300-48P HP 5900AF-48XG Dell S4048-ON Arista 7050X Extreme X465
Port Count 24 48 48 48 48 48 48
Port Activation 8 Full Full Full Full Full Full
Speed 16Gb/s 40Gb/s 10Gb/s 40Gb/s 10Gb/s 100Gb/s 10Gb/s
Module Type Shortwave Multi-mode QSFP+ SFP+ SFP+ SFP+ SFP/QSFP SFP+
Exhaust Type Port Side Rear Side Front Side Rear Side Front Side Front Side Rear Side

BR-G610-8-16G-0 Product Application Scenarios

  • Data center enhancements
  • Enterprise network expansions
  • High-speed data transfers

Optional Add-ons

Model Description
BR-7160-SW-16GG 16Gb/s SW Module
BR-RACPSU-1600 1600W Redundant Power Supply
BR-RFAN-6145 Replacement Fan Assembly

Technical Specifications

BR-G610-8-16G-0 Specification
Fibre Channel ports Switch mode (default): 8-, 16-, and 24-port configurations (8-port increment through Ports on Demand [PoD] license); E_Ports, F_Ports, M_Ports, and D_Ports
Brocade Access Gateway default port mapping: 16 F_Ports, 8 N_Ports
Scalability Full-fabric architecture with a maximum of 239 switches
Certified maximum 6,000 active nodes; 56 switches, 19 hops in Brocade Fabric OS® fabrics; larger fabrics certified as required
Performance Fibre Channel: 4.25Gb/s line speed, full duplex; 8.5Gb/s line speed, full duplex; 14.025Gb/s line speed, full duplex; 28.05Gb/s line speed, full duplex; auto-sensing of 4, 8, 16, and 32G port speeds.
ISL trunking Frame-based trunking with up to eight 32G SFP+ ports per ISL trunk; up to 256Gb/s per ISL trunk.
Exchange-based load balancing across ISLs with DPS included in Brocade Fabric OS fabrics
Aggregate bandwidth 768 Gbps end-to-end full duplex
Maximum fabric latency Latency for locally switched ports is 700 ns; Forward Error Correction (FEC) adds 400 ns between E_Ports (enabled by default).
Maximum frame size 2,112-byte payload
Frame buffers 2000 dynamically allocated
Classes of service Class 2, Class 3, Class F (inter-switch frames)
Port types F_Port, E_Port, M_Port, D_Port (ClearLink Diagnostic Port) on 24 SFP+ ports
Brocade Access Gateway mode: F_Port and NPIV-enabled N_Port
Data traffic types Fabric switches supporting unicast
Size Width: 428.80 mm (16.88 in.)
Height: 42.90 mm (1.69 in.)
Depth: 306.60 mm (12.07 in.)
System weight 4.20 kg (9.26 lb) with one integrated power supply and fans, without transceivers
4.80 kg (10.58 lb) with one integrated power supply and fans, fully populated with transceivers
Operating environment Temperature: 0°C to 40°C/32°F to 104°F
Humidity: 10% to 85% (non-condensing)
Non-operating environment Temperature: –25°C to 70°C/–13°F to 158°F
Humidity: 10% to 90% (non-condensing)
Operating altitude Up to 3,000 m (9,843 ft)
Storage altitude Up to 12 km (39,370 ft)
Power supply Base switch includes a single, hot-swappable power supply with integrated system cooling fans. Optional dual redundant hot-swappable power supply.
AC input 90V to 264V, maximum input current: 2.2A
Input line frequency 47 Hz to 63 Hz
Power consumption 76.52W with all 24 ports populated with 32G SWL optics
55.83W for idle configuration (all optics loaded but not initialized)
Every product is unique, just like you. If you're looking for a product that fits the mold of your life, the Brocade BR-G610-8-16G-0 G610 24 port switch, 8 port activation, including 8 Brocade 16Gb/s shortwave multi-mode modules, port side exhaust is for you.
