ATD-G24F2E-RS 10/100/1000M adaptive fast Ethernet Enterprise Optical Fiber Switch Gigabit 24Port Fiber optical SC SFP 2 Ethernet 3KM

Regular price: R 19,757.95
Sale price: R 19,757.95
Regular price: ~~R 20,035.95~~
Unit price: per

Shipping calculated at checkout.

Default Title

Quantity must be 1 or more

SPECIFICATIONS

Certification: CE

Model Number: ATD-G24F2E-RS

Type: Fiber Optic Transceivers, Fiber Optical Switch

Brand Name: Atongda/OEM

Use: cctv, CCTV

Warranty Time: 3

Network: Wired LAN, TCP

Transmission Distance: 0-20KM

Fiber Port: SC Optional

Working Temperature: -30 °C ~ +75 °C

Power supply: AC110-240V

Product Features

ATD-G24F2E-RS 10/100/1000M adaptive fast Ethernet Enterprise Optical Fiber Switch Gigabit 24Port Fiber optical SC SFP 2 Ethernet 3KM

Product Name	10/100/1000M self-adaption fiber switch
Product features	◆Provide 24 independent 10M/100/1000Mbps self-adaption fiber port. ◆With 1310 / 1550nm or 1310 / 1550nm DFB single fiber optical and electronic integrated module, the performance is stable and reliable. ◆ Single fiber switch must be used in pairs, which 1310nm is transmitter, 1550nm is receiver and 1550nm is transmitter, 1310nm is receiver.
	Function	◆ Unique switch chip design with 1m SSRAM buffer and 2K MAC address table.
	Package	◆Ethernet 100Base-T or 1000base TX to 100base FX fiber media converter. ◆Support IEEE 802.3, IEEE 802.3U , IEEE 802.3X , IEEE 802.1d. ◆Support full duplex flow control or half duplex back pressure flow control with automatic negotiation (Auto Negotiation).
		◆Support 10/100/1000Mbps self-adaption. ◆ High quality optical and electrical integrated module provides good optical and electrical features to ensure reliable data transmission and long working life. ◆Provide remote link loss diagnosis, electrical link and optical link connection diagnosis, dynamic data transmission, full / half duplex, rate indicator.
		◆Provide dual RJ-45 electric interface NIC and HUB, connect computer network card or hub with NIC to connect switch and hub. ◆External high-precision power supply, unique design appearance. ◆Internal power consumption：25w ◆The average trouble free working time is more than 50000 hours, meeting the Telecom level operation standard. ◆Complete after-sales service, providing three-year quality assurance and life-long maintenance service.

Product description

ATD-G24F2E-RS 10/100/1000Mbps adaptive fast Ethernet fiber switch (also known as fiber media converter), built-in 24 port 10/100/1000Mbps
adaptive switch, which can convert 24 independent 10Base-T and 100base TX twisted pair electrical signals with 100base FX optical signals. It extends the transmission distance of the network from the limit of 100m copper wire to 20km (single-mode full duplex
mode). It can support two different types of network connection : 10/100/1000Base- TX and 100/1000Base- FX. The data transmission
between the two types of network connection is realized by using exchange technology and store and forward technology. It supports
multiple fiber transmission of dual fiber single mode and single fiber single mode.

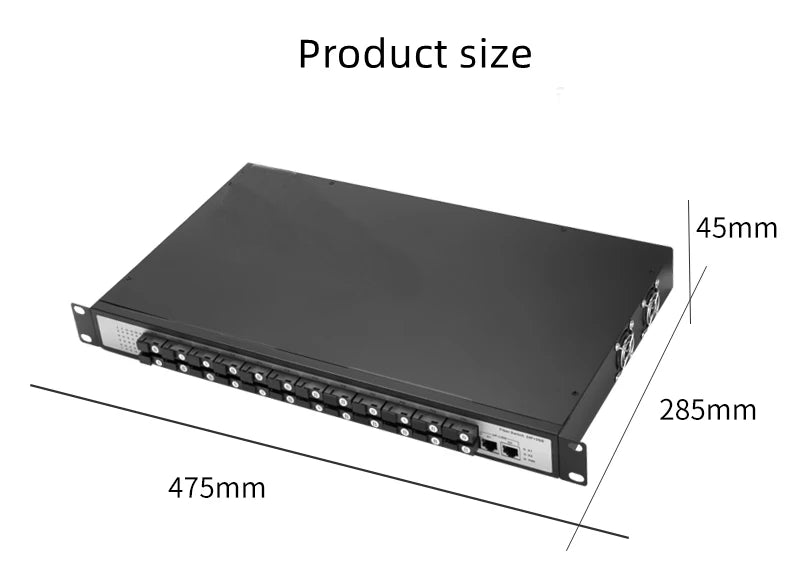

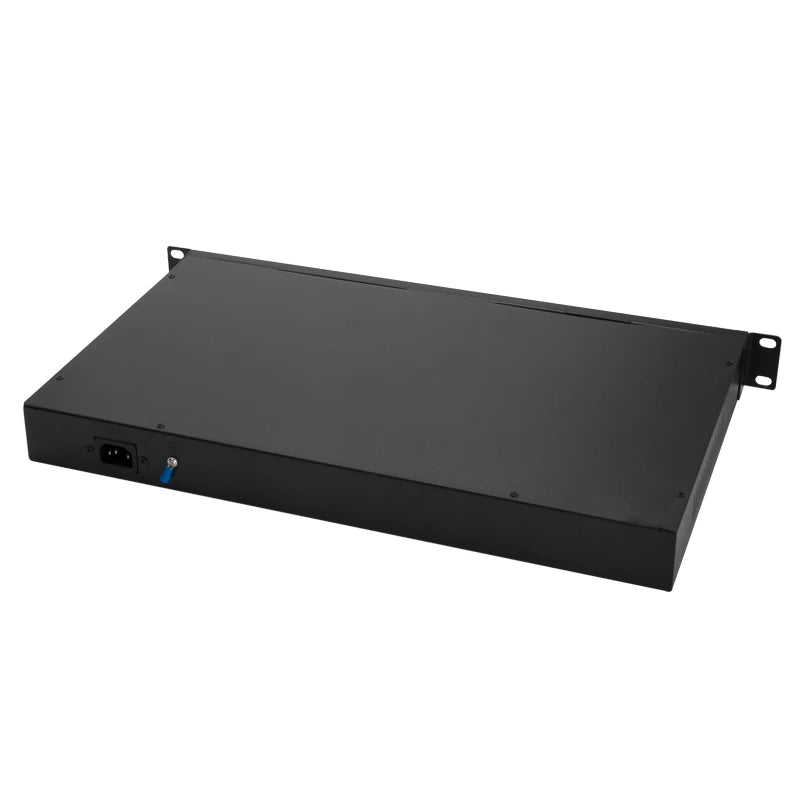

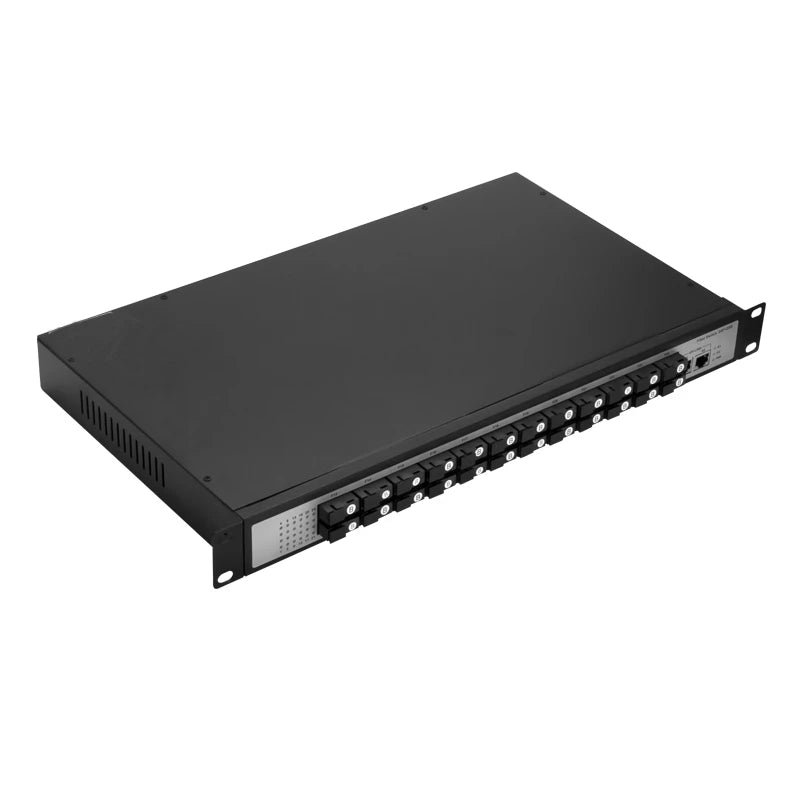

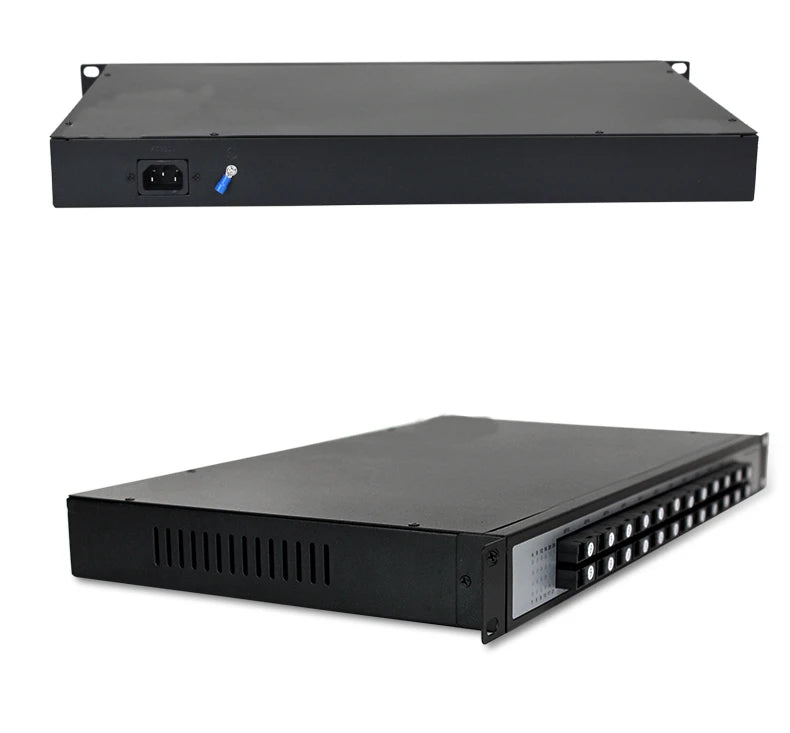

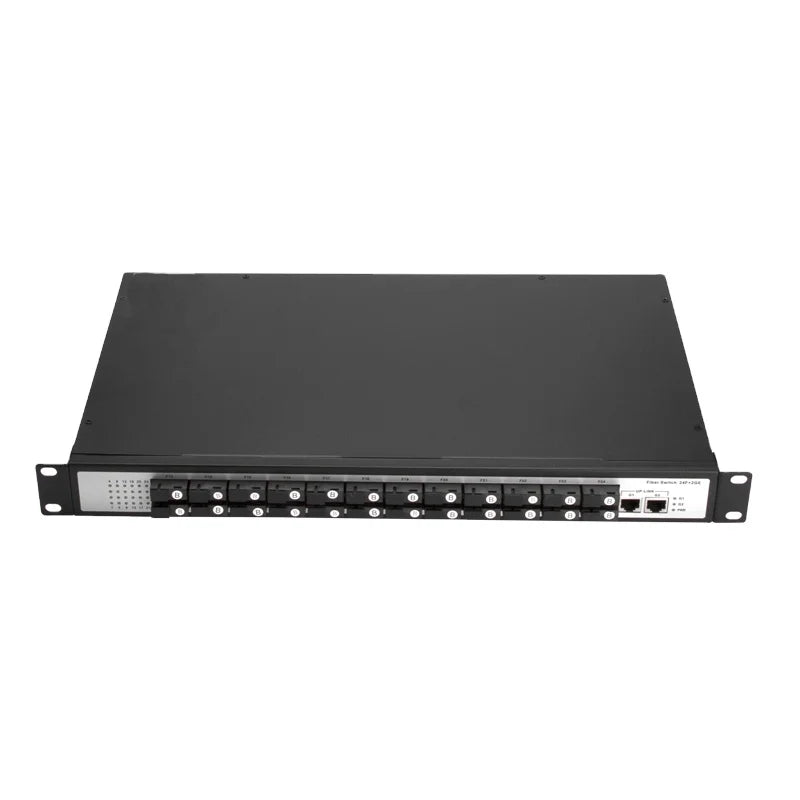

Product Images

Fiber Model Interface use the new module , Have SC/ (SFP ) Optional,Single Mode Support 3KM, at Most support 80KM.

Single fiber SM: 3-100km, Dual fiber MM: 1km, Dual fiber SM:3-100km

IEEE802.3 (10BASE-T), IEEE802.3u 100BASE-TX/FX (Fast-Ethernet),
IEE802.3z 1000BASE-SX/LX(Gigabit-Ethernet), IEEE802.3x (Flow Control), IEEE802.1q, IEEE802.1p QoS, IEEE802.1d Spanning Tree

Power Requirement: AC 110 ~ 240V

Ambient Temperature: -20~ 70°C

Humidity: 5 ~ 90%

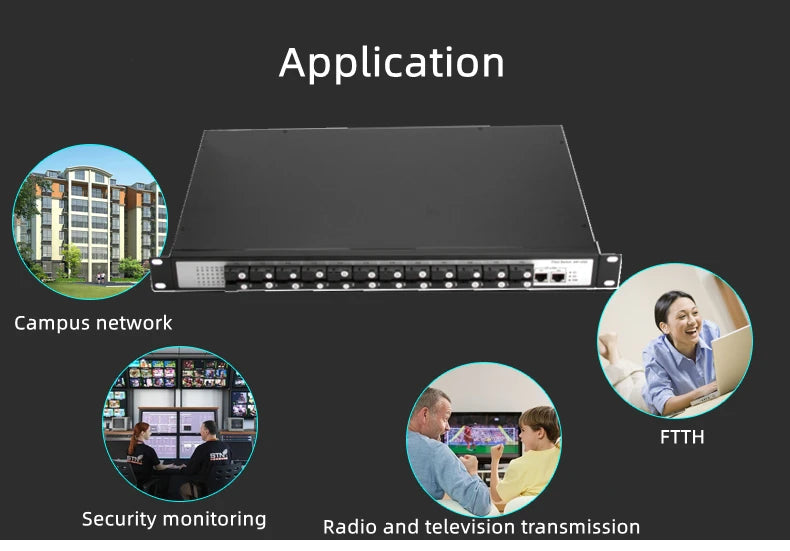

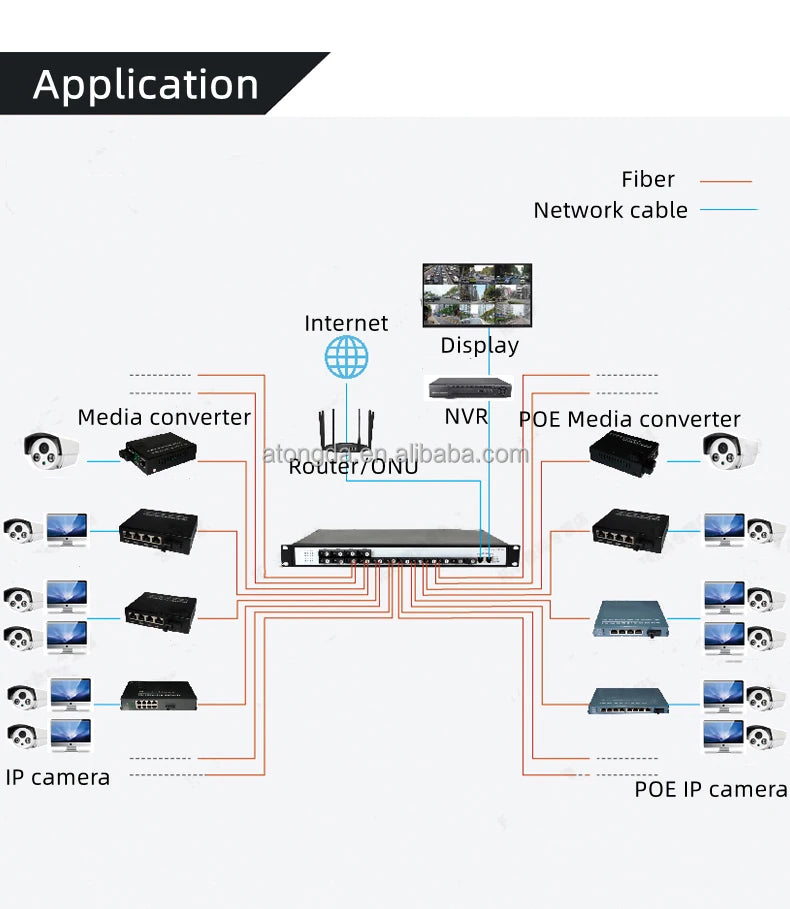

Product Usage

Packing&Shipping

1 Pair per Box, Then put Box into Outer Carton

Packing list: 1. One pair Optical Fiber converter

2. Power Supply

3. Use's Manual
