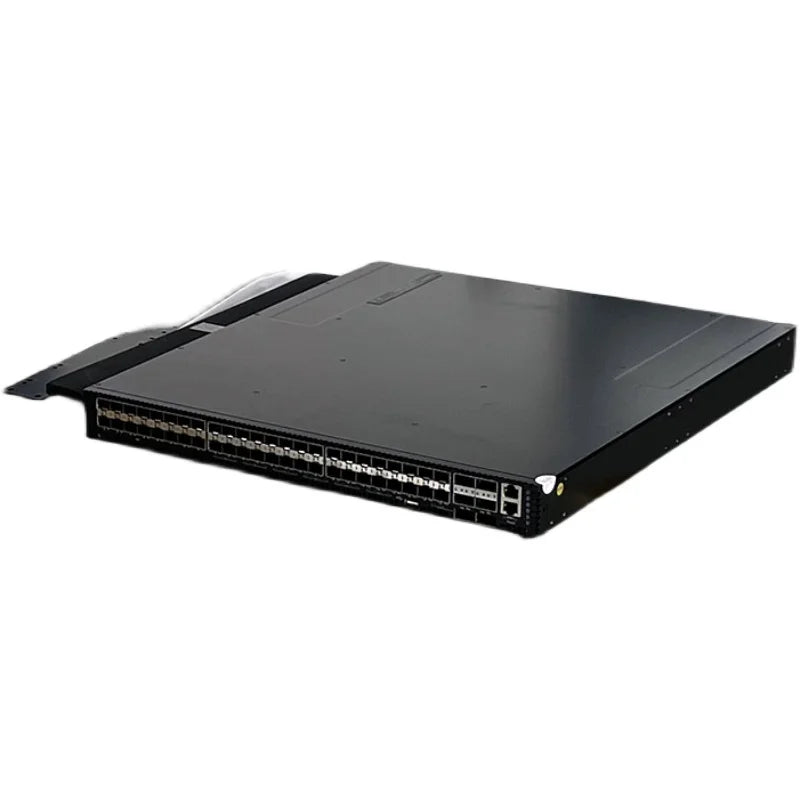

Edgecore AS5812-54X 10Gigabit Data Center Switch 48-port 10G/6-port 40G Open Source Programmable, 1.44 Tbps full duplex Switching

Edgecore Networks AS5812-54X 10Gigabit Data Center Switch 48-port 10G/6-port 40G Open Source Programmable, 1.44 Tbps full duplex Switching Capacity

SPECIFICATIONS

High-concerned Chemical: None

Type: Hand Tool Parts

Model: AS5812-54X

Brand Name: Edgecore Networks

Condition: brand new

after-sales service: Other /other

Switch Type: 10 Gigabit switches

transmission speed: 10000Mbps

Whether it is stackable: Non stackable

Whether VLANs are supported: In the tank

Description

Use of switch main chip Broadcom BCM56864 Trident II+ 720Gbps.

The white box switch is pre-installed with SONiC open source system!Abandoning the black box architecture of traditional network system, the network operating system is presented to users transparently.

SONiC uses a large number of existing open source technologies: Docker,Redis,Quagga and LLDPD, as well as automation configuration tools Ansible,Puppet and Chef, etc. SONiC is an innovative scheme that decomposes the traditional switch operating system software into multiple containerized components, which is convenient for adding new components and functions.

The SONiC system architecture has many advantages, it can be used for rapid iteration, rapid testing, and rapid rollout; And the data forwarding is separated from the application, warm reboot/update; Each component runs in Docker and has its own independent operating environment, which greatly reduces the influence of each other. In addition, we can manage the switch like a management server; SONiC is also open: debian-based, easy to extend, supports C, C++, python, go and other languages.


Accton; AS5812-54X OEM white box switch, pre installed with Microsoft's open-source SONIC switch system! New warranty for 1 year!

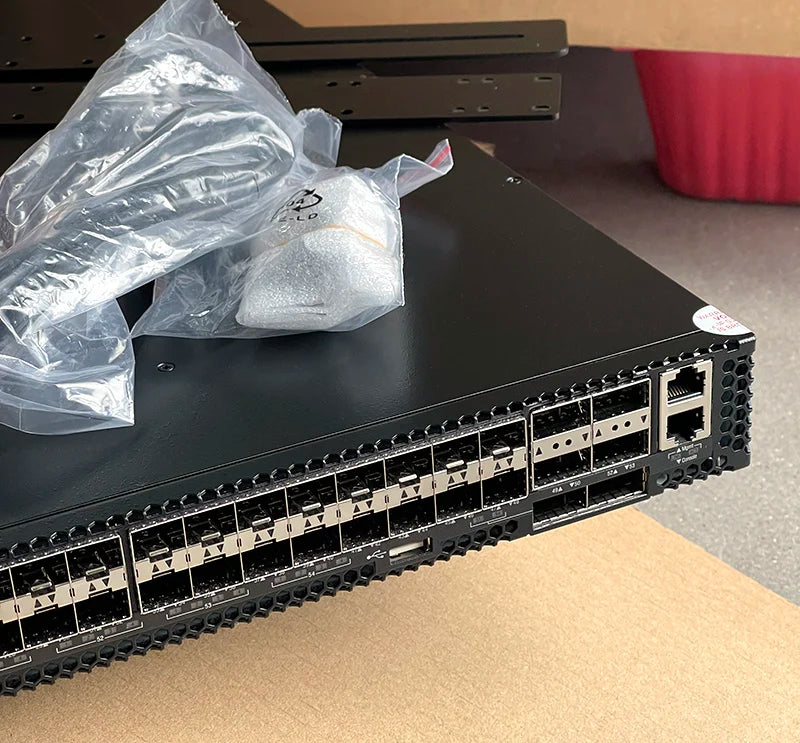

•  48 SFP+ switch ports, Supports 10GbE (DAC,10GBASE-SR / LR) or 1GbE (1000BASE-T / SX / LX).
•  Six 40 QSFP switch ports, Each port supports 40GbE. (DAC, 40GBASE-SR4 / LR4) or 4 x 10GbE(DAC or optical fiber Branch cable).
•  Port grouping, Four 10G ports can be grouped into one physical layer 40G port. In order to make the best use of bandwidth, And implement on MMF & 300 m optical distance (Restricted by NOS option).
•  VXLAN and NVGRE tunnels in hardware support network virtualization
•  Cold/hot channels are supported through the air flow SKU from port to power supply and power supply to port.

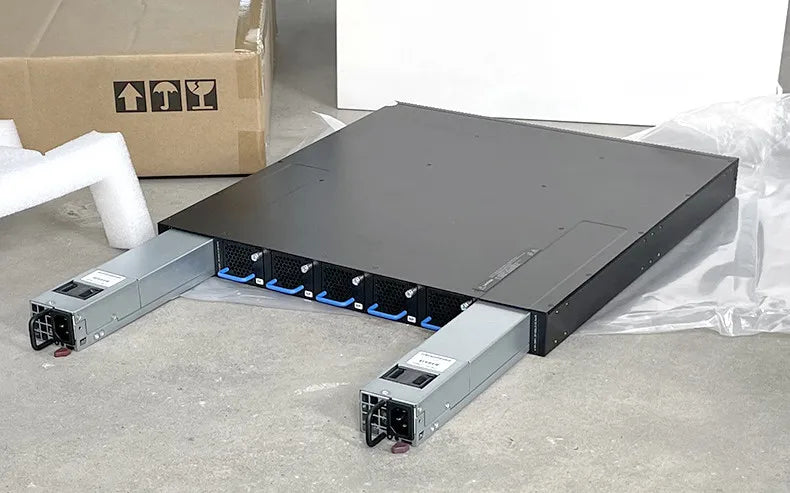

•  Hot switchable, Load sharing, Redundant AC or -48 VDC PSU.12 VDC power input options

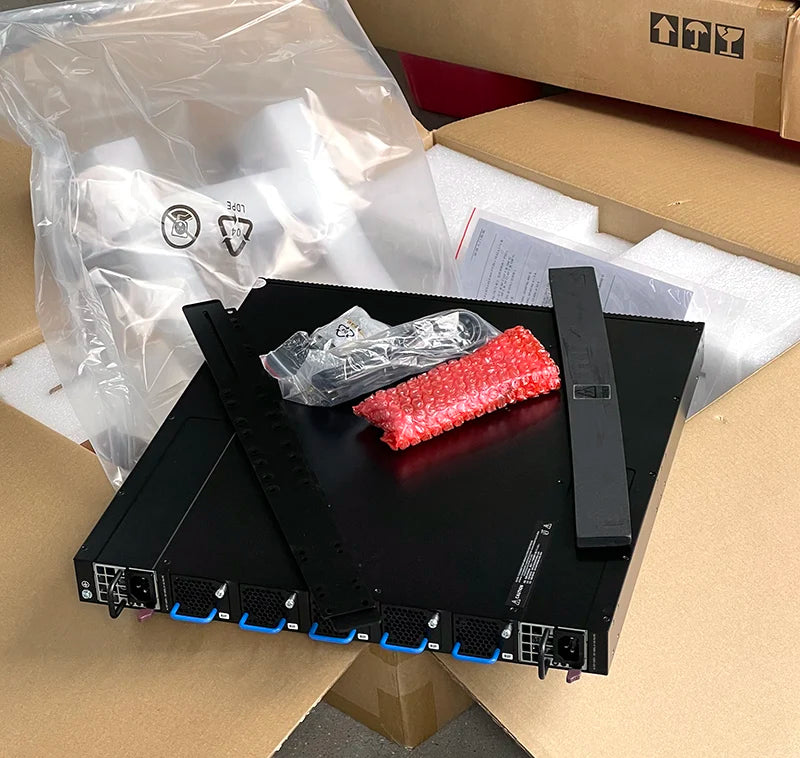

•  Hot swappable 4+1 redundant fan modules
•  Management: Ethernet and console RJ-45 ports;USB storage port
•  Switching Capacity: 1.44 Tbps full duplex

•  size (width x depth x height): 44.3 cm x 47.3cm x 4.34cm

•  Weight: 8.95kg
