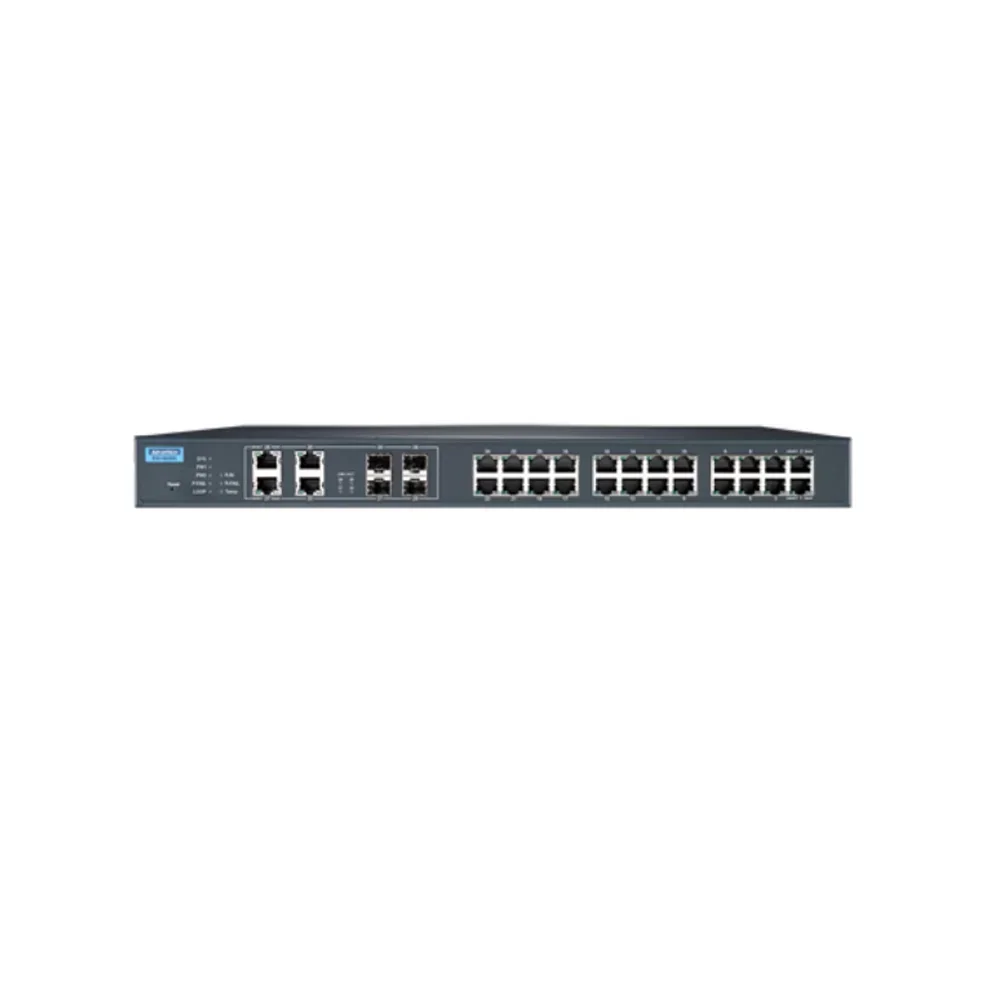

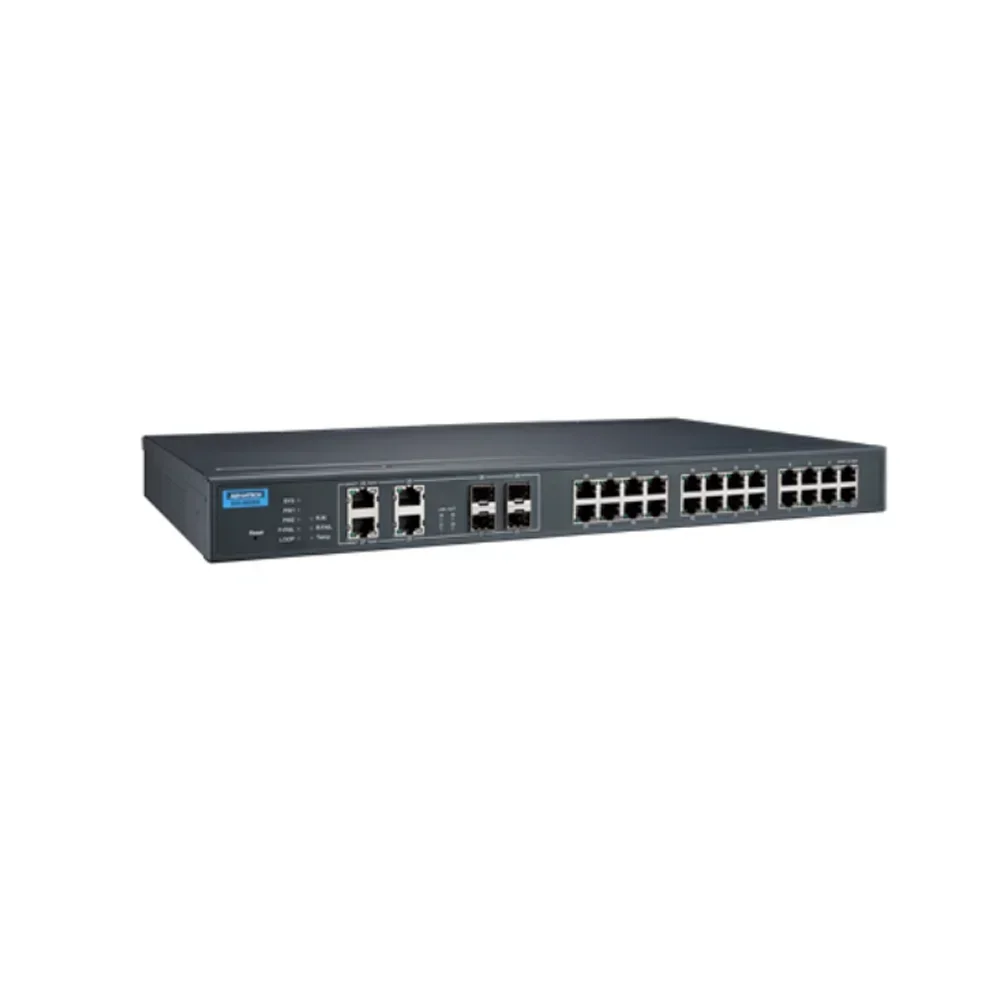

Advantech EKI-9628G-4CI Rackmount 24G+4G Combo Ports Industrial L3 Managed Ethernet Switch, supports static route and NAT

R 66,660.95
R 66,660.95
R 67,942.95
Sold out
Shipping calculated at checkout.

Advantech EKI-9628G-4CI Rackmount 24G+4G Combo Ports Industrial L3 Managed Ethernet Switch, supports static route and NAT

SPECIFICATIONS

Brand Name: Advantech

Certification: CE

Communication Mode: Full-Duplex & Half-Duplex

DIY Supplies: ELECTRICAL

Dimensions (W x H x D): 8 kg

EMI: CE, FCC Class A

Function: POE

Hign-concerned Chemical: None

IP Rating: IP30

Packet Buffer Size: 4.1M bit

Ports: 6

Power Consumption: 20W

Power Input (DC): 12 ~ 48 VDC

Products Status: Stock

RJ-45 Transmission Speed: 10/100/1000 Mbps

Switch Capacity: 96 Gbps

Temperature (Operating Range): -40 ~ 75°C (-40 ~ 167°F)

Transmission Rate: 10/100/1000Mbps

Warranty Period: 5 years

Weight: 3.8 kg

Products Description

Advantech EKI-9628G-4CI Rackmount 24G+4G Combo Ports Industrial L3 Managed Ethernet Switch

Features* Rackmount 24G+4G combo port L3 managed switch

* L3 function: static route, NAT ƒ SFP socket for easy and flexible fiber expansion
* Management: SNMP v1/v2c/v3, WEB, Telnet, standard MIB

* Security: 802.1x ,HTTPS, SSH, and SNMPv3

* Redundancy: Gigabit X-Ring Pro (ultra-high-speed recovery time,<20ms) RSTP/STP (802.1w/1D), MSTP

* Wide operating temperature range of -40 ~ 70°C

Introduction

The EKI-9628G is an industrial-class L3 managed switch that supports static route and NAT. Embedded with 24 Gigabit ports and 4 Gigabit combo ports, it is designed for rackmount installation and can be deployed in demanding industrial environments. It is suitable for edge-to-core industrial networks and supports operating temperatures of -40 ~ 70°C. It is also embedded with Advantech IXM, which benefits users with fast deployment, which can dramatically save on engineering time and cost.

Specifications

 * EMI

 * CE, FCC Class A

 * EMC

 * EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)

 * Safety

* UL 61010

 * Relative Humidity

* 10~95%

 * Temperature (Operating Range)

* -40 ~ 75°C (-40 ~ 167°F)

 * Temperature (Storage Range)

* -40 ~ 85°C (-40 ~ 185°F)

* Fiber Port Number

 * 4

* Fiber Transmission Distance

 * Up to 110 km

* Fiber Port Connector Type

* SFP cage

* Fiber Port Interface

* SFP

* RJ-45 Port Connector Type

 * 24 x RJ-45 + 4 x RJ45/SFP Combo ports

* RJ-45 Transmission Speed

* 10/100/1000 Mbps

 * Weight

* 3.8 kg

 * IP Rating

 * IP30

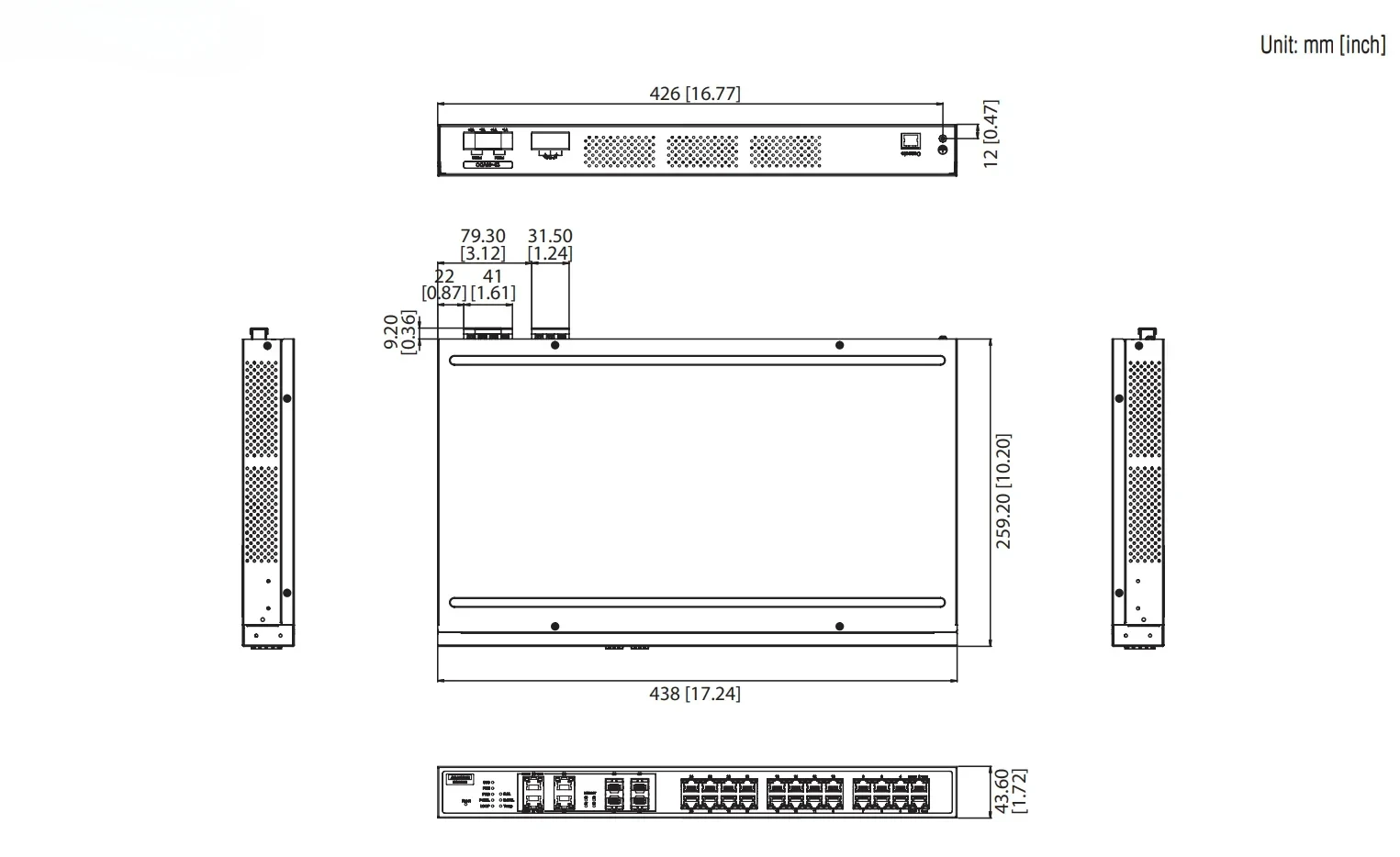

 * Dimensions (W x H x D)

 * 438 x 43.6 x 259.2 mm (17.24 x 1.71 x 10.2 in.)

 * Power Input (DC)

 * 12 ~ 48 VDC

 * Power Consumption

* 20W

 * Packet Buffer Size

 * 4.1M bit

 * Warranty Period

 * 5 years



The Advantech EKI-9628G-4CI Rackmount 24G+4G Combo Ports Industrial L3 Managed Ethernet Switch, supports static route and NAT was built with people like you in mind. Something to keep you happy. Every. Single. Day.
