4K DP KVM Exender with KVM USB2.0 RS232 DP over Single Fiber Optic LC DP Transmitter and Receiver Fibre Optical Transceiver

4K DP KVM Exender with KVM USB2.0 RS232 DP over Single Fiber Optic LC DP Transmitter and Receiver Fibre Optical Transceiver

SPECIFICATIONS

High-concerned Chemical: None

Type: Hand Tool Parts

Private Mold: Yes

Model Number: PIN-DP-USB2.0-4k

Product name: DP KVM Extender

Input: 1*DP+1*Audio+1*Mic+1*USB+1*RS232

Output: 1*DP+1*Audio+1*Mic+2*USB2.0+KVM+1*RS232

Size: 185*105*33mm

Weight: 1.8KG/pair

Material: Iron

Type: Transmitter and Receiver

Resolution: 4K@30Hz

Warranty: 1 Year

MOQ: 1 pair

Products Description

DP HD Video Optical Extender is a device that extends DP signals and USB 2.0 signals and audio signals through optical fibers. It can remotely display and control front-end devices through fiber optic extensions.

1. Optical fiber ultra-clear video KVM extender integrating DPvideo signal, USB keyboard and mouse control signal, USB2.0HUB function (USB device, U KEY, printer, mobile hard disk, touch screen and other USB devices), RS232 interface signal, audio bi-directional signal, LC optical fiber interface, iron shell body；

2. Using gigabit digital coding technology, connect the local sending end of the device to the DPvideo signal and USB control signal of the computer host, etc., and connect it through the optical fiber cable (single-mode can transmit 20 kilometers,multi-mode transmission 300-500 meters) to the receiving end of the extender Users can control remotely at the receiving end.

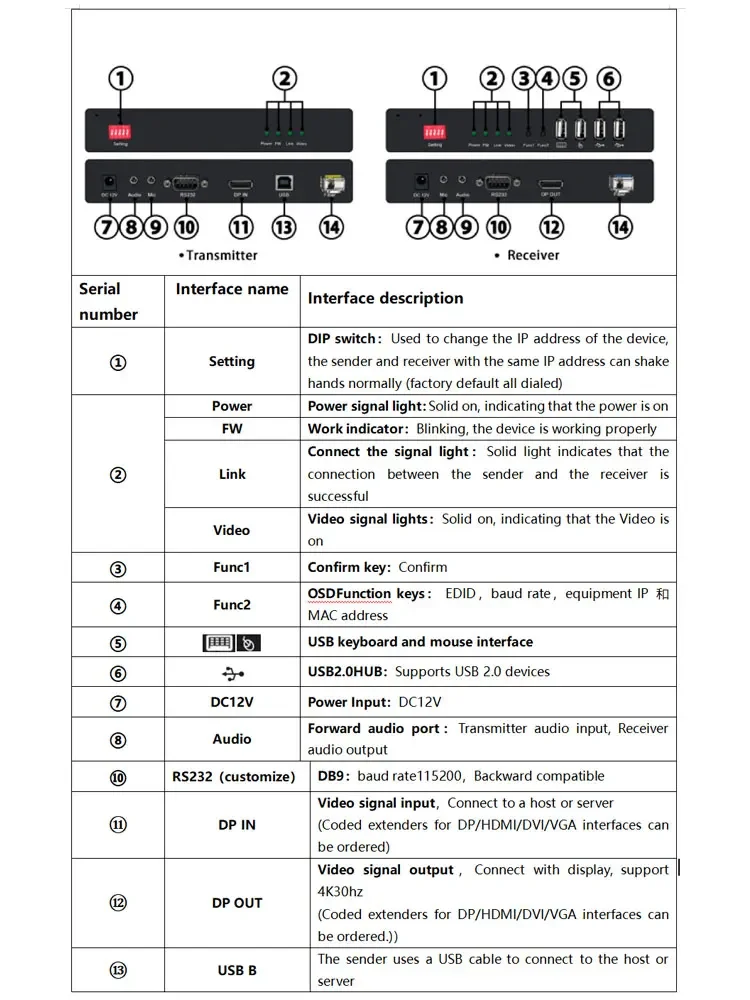

Specifications

1. Confirm whether the code of the DIP switch of the transmitter and receiver is consistent.

2. The transmitter is connected to the managed host using standard video, USB, and audio cables；

3. The receiver is connected to a monitor, audio device, USB keyboard and mouse, and USB device；

4. The transmitter and receiver are connected by a fiber optic cable；

5. Power on the transmitter and receiver；

6.The transmitter and receiver are connected via LEDs

7. Hospitable, controlled devices can be added or removed at any time without KVM powering down；

8. Cross-platform support, supporting major operating systems such as Windows, Linux and Sun.
