Shelly Z-Wave Smart Switch With Dry Contacts Allows You To Connect Various Power Supply Loads To The Device

Regular price: R 1,247.50
Sale price: R 1,247.50
Regular price
Unit price: per

Shipping calculated at checkout.

Quantity must be 1 or more

Description

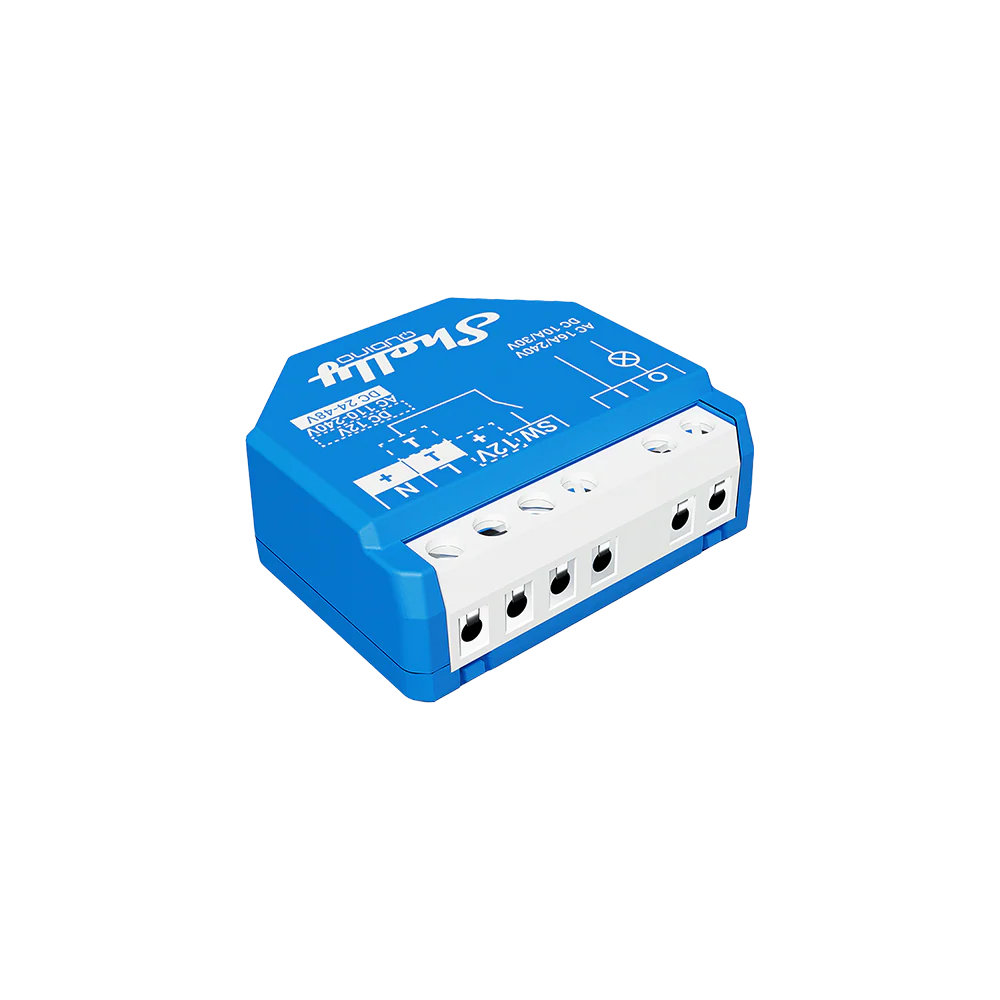

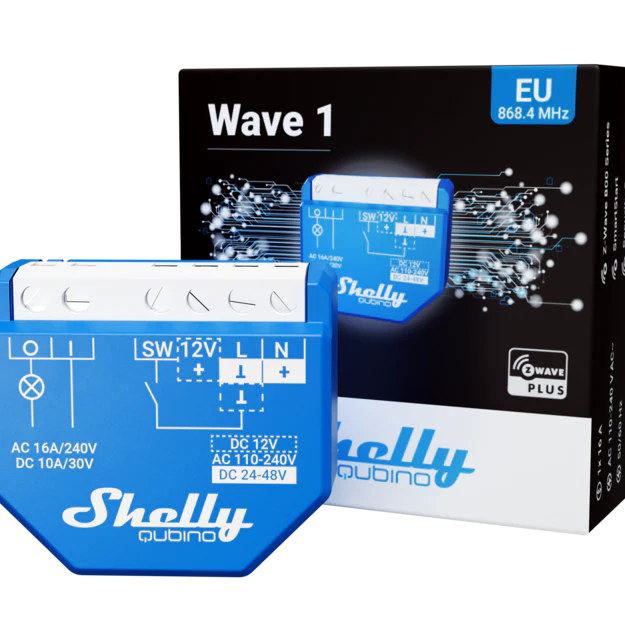

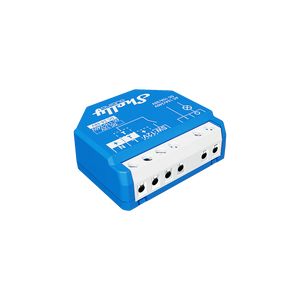

SHELLY WAVE 1

Z-Wave smart switch with dry contacts.

Allows you to connect various power supply loads to the device, such as electrical locks, gates, garage doors, irrigation system, and lights.

Z-Wave smart switch, 1 channel 16 A
Dry contacts
Extremely low power consumption: 0.3 W.
Latest technology: Z-Wave 800 Series
Z-Wave frequency band: 868.4 MHz (CEPT countries)
Automatic set-up with SmartStart
Security 2 Authenticated for the highest level of security
Supports over-the-air firmware updates (OTA)
Works with Z-Wave certified gateways and over 4,000 Z-Wave devices

SPECIFICATIONS

Power supply	110-240 V AC / 24-48 V DC / 12 V DC ± 10%
Power consumption	< 0.3 W
Max. switching voltage AC	240 V
Max. switching current AC	16 A
Max. switching voltage DC	30 V
Max. switching current DC	10 A
Overheating protection	Yes
Distance	Up to 40 m indoors (131 ft.) (depends on local condition)
Z-Wave repeater	Yes
CPU	Z-Wave® S800
Z-Wave frequency band	868,4 MHz
Maximum radio frequency power transmitted in frequency band(s)	< 25 mW
Size (H x W x D)	37x42x16 ±0.5 mm / 1.46x1.65x0.63 ±0.02 in
Weight	26 g / 0.92 oz.
Mounting	Wall console
Screw terminals max. torque	0.4 Nm / 3.5 lbin
Conductor cross section	0.5 to 1.5 mm² / 20 to 16 AWG
Conductor stripped length	5 to 6 mm / 0.20 to 0.24 in
Shell material	Plastic
Color	Blue
Ambient temperature	-20°C to 40°C / -5°F to 105°F
Humidity	30% to 70% RH
Max. altitude	2000 m / 6562 ft

On the fence about this Shelly Z-Wave Smart Switch With Dry Contacts Allows You To Connect Various Power Supply Loads To The Device? Don't be. Let our satisfaction guarantee address your concerns.
