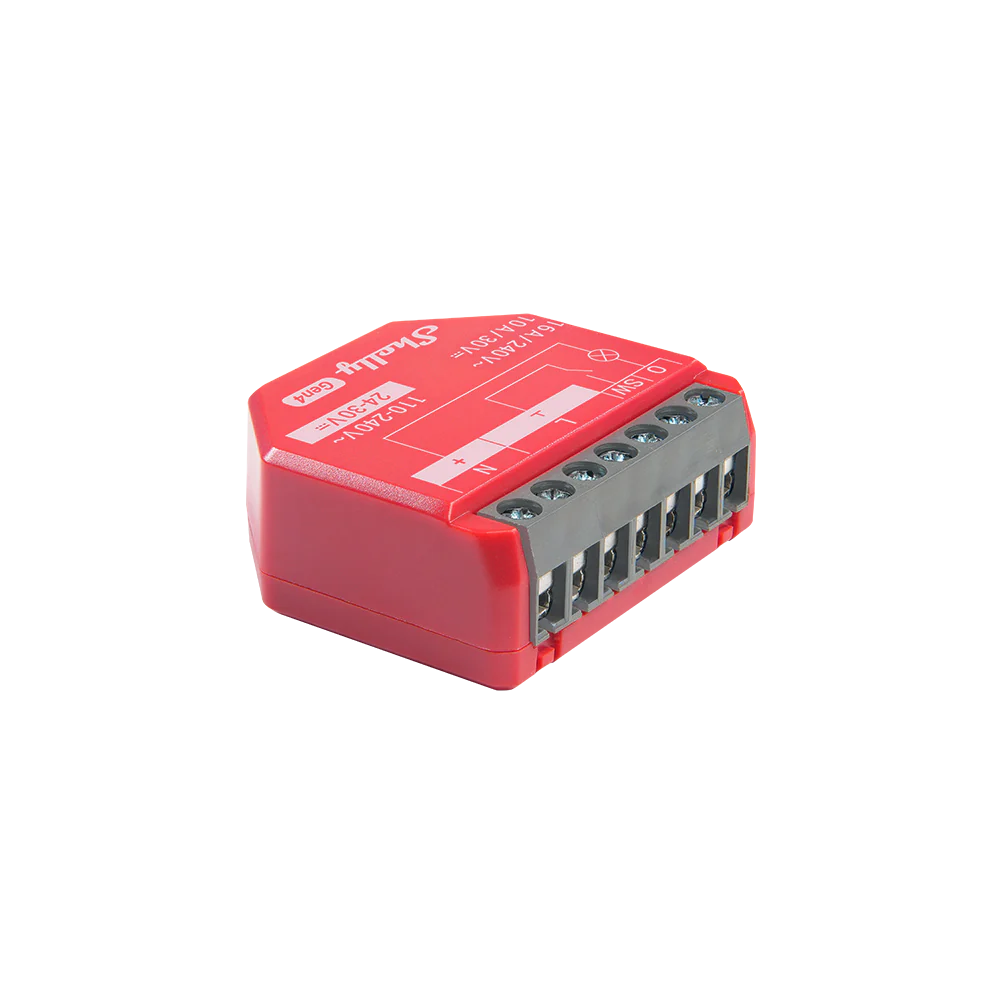

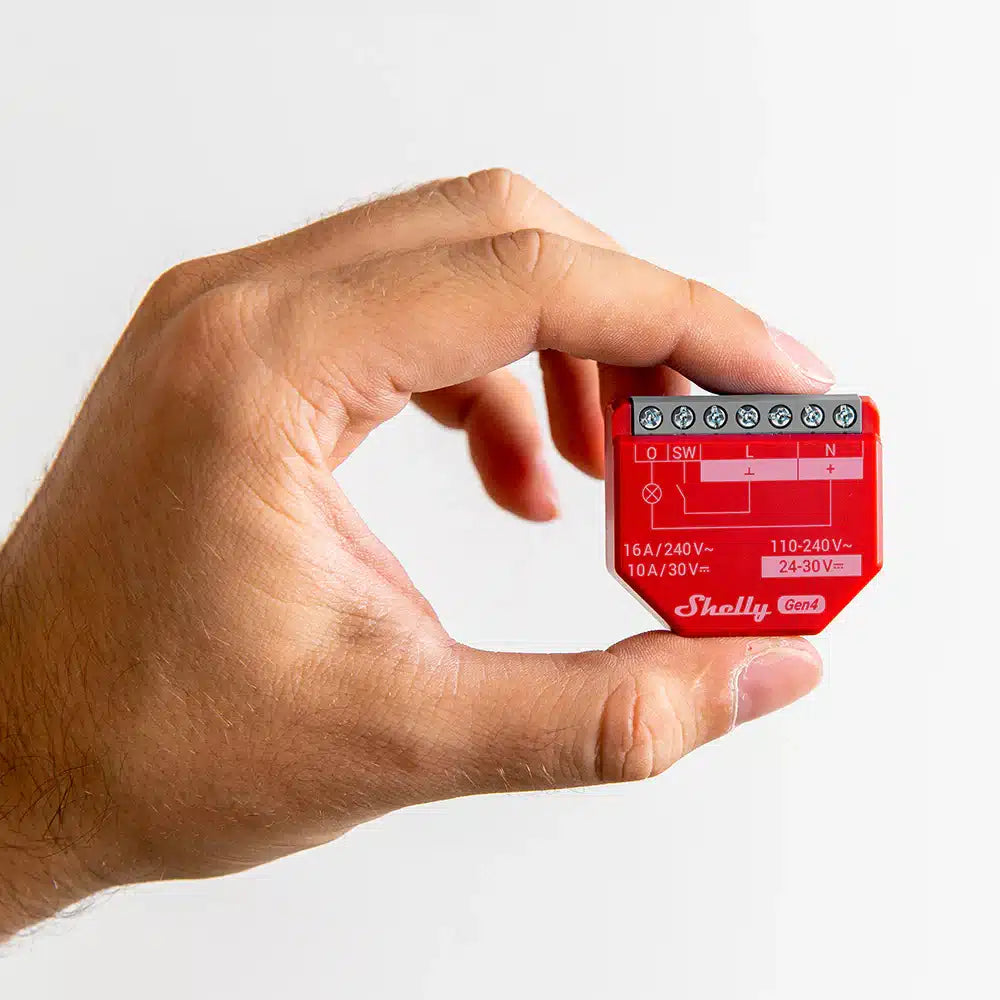

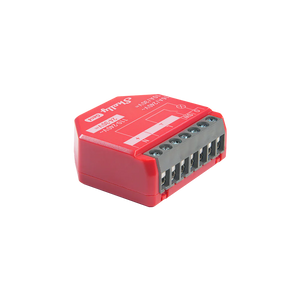

Shelly Compact Smart Switch with Power Monitoring, Multiprotocol Support, and Fast Performance.
Shelly Compact Smart Switch with Power Monitoring, Multiprotocol Support, and Fast Performance.
  • Load image into Gallery viewer, Shelly Compact Smart Switch with Power Monitoring, Multiprotocol Support, and Fast Performance.
  • Load image into Gallery viewer, Shelly Compact Smart Switch with Power Monitoring, Multiprotocol Support, and Fast Performance.

Shelly Compact Smart Switch with Power Monitoring, Multiprotocol Support, and Fast Performance.

R 997.60
R 997.60
Sold out
Shipping calculated at checkout.

Shelly Compact Smart Switch with Power Monitoring, Multiprotocol Support, and Fast Performance.

Description

A compact smart switch with power monitoring, multiprotocol support, and fast performance.

Perfect for controlling lights and appliances, it offers remote control and energy savings.

  • New – Multiprotocol connectivity: Choose from Bluetooth, Wi-Fi or Zigbee.
  • New – Matter certified.
  • New – Wi-Fi, Zigbee range extender & Bluetooth gateway
  • Power monitoring – Equipped with a precise power meter for real-time energy consumption and free storage for data analysis
  • Low and high voltage support
  • Perfect to retrofit behind existing switches and sockets
  • Supports schedules, scenes and local actions
  • Supports scripting, HTTPS, MQTTS, Inbound and Outbound Web Sockets
  • Supports virtual components
  • Supports KNXnet / IP communication
  • Internal temperature sensor for overheating protection
  • No hub required! Easy control through the Shelly Smart Control app, most platforms and protocols, as well as voice assistants. Use it with Alexa, Sir, Home Assistant, Apple Homekit or your preferred automation platform.

SPECIFICATIONS

Quantity

Value

Physical

Size (HxWxD):

37x42x16 mm / 1.46x1.65x0.63 inch

Weight:

27 g / 0.95 oz

Screw terminals max torque:

0.4 Nm / 3.5 lbin

Conductor cross section:

0.2 to 2.5 mm² / 24 to 14 AWG (solid, stranded, and bootlace ferrules)

Conductor stripped length:

6 to 7 mm / 0.24 to 0.28 in

Mounting:

Wall console

Shell material:

Plastic

Shell color:

Red

Terminals color:

Grey (Mouse Grey)

Environmental

Ambient working temperature:

-20 °C to 40 °C / -5 °F to 105 °F

Humidity:

30 % to 70 % RH

Max. altitude:

2000 m / 6562 ft

Electrical

Power supply:

  • 110-240 V~

  • 24-30 V⎓

Power consumption:

< 1 W

Neutral not needed:

No

External protection:

Cable protection switch in accordance with EN60898-1 (tripping characteristic B or C, max. 16 A rated current, min. 6 kA interrupting rating, energy limiting class 3)

Output circuits ratings

Max. switching voltage:

  • 240 V~

  • 30 V⎓

Max. switching current:

  • 16A (240 V~)

  • 10A (30 V⎓)

Sensors, meters

Voltmeter (AC):

Yes

Ammeter (AC):

Yes

Internal-temperature sensor:

Yes

Radio

Wi-Fi

Protocol:

802.11 b/g/n/ax

RF band:

2412 - 2472 МHz

Max. RF power:

< 20 dBm

Range:

Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors
(Depends on local conditions)

Bluetooth

Protocol:

5.0

RF band:

2402 - 2480 MHz

Max. RF power:

< 4 dBm

Range:

Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors
(Depends on local conditions)

Zigbee

Protocol:

802.15.4

Zigbee repeater:

Yes

RF bands:

2400 to 2483.5 MHz

Max. RF power:

< 20 dBm

Range:

Up to 100 m / 328 ft indoors and 300 meters / 984 ft outdoors
(Depends on local conditions)

Microcontroller unit

CPU:

ESP-Shelly-C68F

Flash:

8MB

Firmware capabilities

Schedules:

20

Webhooks (URL actions):

20 with 5 URLs per hook

Scripting:

Yes

MQTT:

Yes
Every product is unique, just like you. If you're looking for a product that fits the mold of your life, the Shelly Compact Smart Switch with Power Monitoring, Multiprotocol Support, and Fast Performance. is for you.

Inventory Last Updated: Sep 02, 2025
