Huawei eKit Wireless AP371 Wi-Fi 7, Indoor, Dual Radio, 2*2 MU-MIMO, 1*GE Base-T, internal smart antennas, 100M/1000M/2.5GE auto-sensing Ethernet port
Huawei eKit Wireless AP371 Wi-Fi 7, Indoor, Dual Radio, 2*2 MU-MIMO, 1*GE Base-T, internal smart antennas, 100M/1000M/2.5GE auto-sensing Ethernet port
  • Load image into Gallery viewer, Huawei eKit Wireless AP371 Wi-Fi 7, Indoor, Dual Radio, 2*2 MU-MIMO, 1*GE Base-T, internal smart antennas, 100M/1000M/2.5GE auto-sensing Ethernet port
  • Load image into Gallery viewer, Huawei eKit Wireless AP371 Wi-Fi 7, Indoor, Dual Radio, 2*2 MU-MIMO, 1*GE Base-T, internal smart antennas, 100M/1000M/2.5GE auto-sensing Ethernet port

Huawei eKit Wireless AP371 Wi-Fi 7, Indoor, Dual Radio, 2*2 MU-MIMO, 1*GE Base-T, internal smart antennas, 100M/1000M/2.5GE auto-sensing Ethernet port

R 3,795.00
R 3,795.00
Sold out
Shipping calculated at checkout.

Huawei eKit Wireless AP371 Wi-Fi 7, Indoor, Dual Radio, 2*2 MU-MIMO, 1*GE Base-T, internal smart antennas

Description

Huawei eKit Wireless AP371 Wi-Fi 7, Indoor, Dual Radio, 2*2 MU-MIMO, 1*GE Base-T, internal smart antennas, 100M/1000M/2.5GE auto-sensing Ethernet electrical port

Basic information about the AP371

Item Details
Description AP371(11be indoor,2+2 dual bands,smart antenna,USB)
Part Number 50087399-001
Model AP371
First supported version V600R023C10

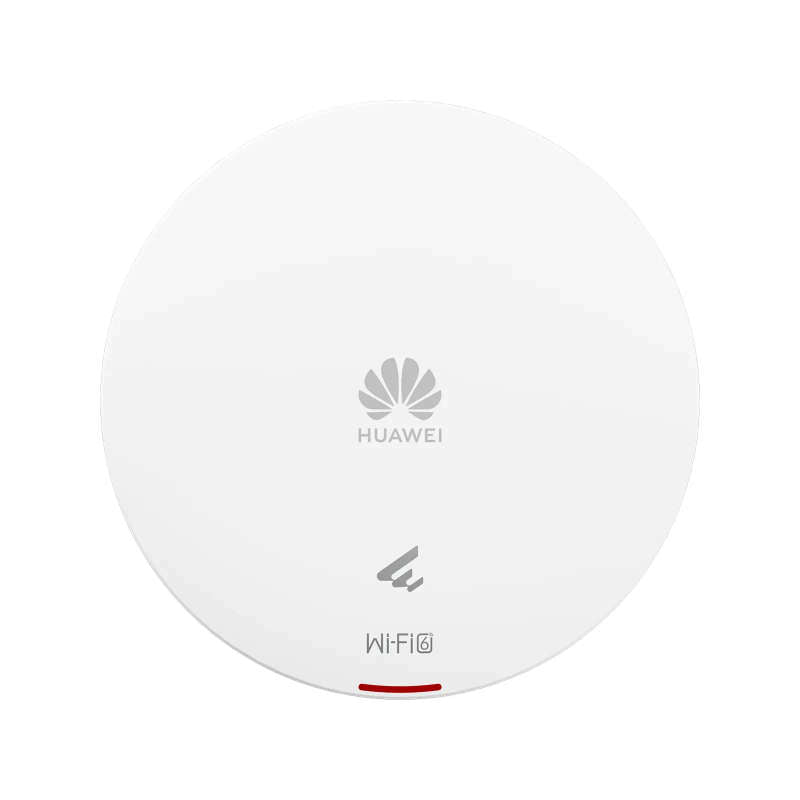

Appearance of the AP371

Ports

Ports on the AP371

1

DC12V

2

2.5GE/PoE_IN

3

USB

4

Security slot

5

Management console port

-

-
Ports on the AP371
Port Connector Type Description Available Components
2.5GE/PoE_IN RJ45 100M/1000M/2.5G auto-sensing Ethernet electrical port that connects to the wired Ethernet and supports PoE input.

Network cable
DC 12V DC connector Connects to a 12 V power adapter.

12 V DC power adapter
USB USB Type A Provides 2.5 W or 5 W power supply. -
Management console port Pin header socket Management console port, allowing operations only by professionals -

Technical Specifications

Item Specification
Installation Type
  • Wall
  • Ceiling (Solid Wall/Gypsum Board/Spring Tee/Flat-Edge T-Rail/Channel Rail/Beam/Threaded Rod)
Dimensions without packaging (H x W x D) [mm(in.)] Diameter x depth: 180 mm x 35 mm (7.09 in. x 1.38 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 61 mm x 231 mm x 203 mm (2.40 in. x 9.09 in. x 7.99 in.)
Weight without packaging [kg(lb)] 0.47 kg (1.04 lb)
Weight with packaging [kg(lb)] 0.69 kg (1.52 lb)
Storage NAND Flash 256 MB
Console port None
Maximum power consumption [W] 13.3 (excluding USB)
Maximum heat dissipation [BTU/hour] 43.1 BTU/hour
Power supply mode
  • PoE
  • DC power adapter
Rated input voltage [V] 12 V
Input voltage range [V]

DC: 12 V ± 10%

PoE: 802.3at/af
Service port surge protection

PoE port:

Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B

Common mode (8 wires to ground): 4 kV (1.2/50 us, 42 ohms), criterion B
PoE OUT Not supported
Maximum number of physical ports on the entire device 2.5GE (RJ45) x 1, 100M/1000M/2500 Mbit/s auto-sensing
Long-term operating temperature [°C(°F)] –10°C to +50°C (14°F to 122°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum ambient temperature decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.)
Storage temperature [°C(°F)] –40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH] 5% RH to 95% RH (non-condensing)
Long-term operating altitude [m(ft.)] –60 m to +5000 m (–196.85 ft to +16404.20 ft)
Atmospheric pressure [kPa] 53kPa - 106kPa ETSI 300 019-2-3
Ground Floating ground
USB Supplies power of 2.5 W or 5 W.
IoT slot Not supported
BLE Not supported
Radio number 2
Operating frequency band
  • 2.4GHz
  • 5GHz
MIMO spatial streams

Radio 0 (2.4 GHz): 2x2

Radio 1 (5 GHz): 2x2
Wi-Fi standard

2.4 GHz: 802.11b/g/n/ax/be

5 GHz: 802.11a/n/ac/ac Wave 2/ax/be
Radio interface Built-in smart antennas
Antenna gain

2.4 GHz:

4 dBi/chain (peak gain)

1 dBi (combined gain)

5 GHz:

5 dBi/chain (peak gain)

3 dBi (combined gain)
Maximum transmit power

2.4 GHz:

20 dBm/chain

23 dBm (combined power)

5 GHz:

20 dBm/chain

23 dBm (combined power)
Singal radio transmit power [dBm]

2.4G: -10 dBm to 20 dBm/chain

5G: -10 dBm to 20 dBm/chain
MTBF [year] 158.215 year
MTTR [hour] 2 hour
Frequency stability [ppm] +/-20
802.3at power supply description No function is limited.
802.3af power supply description The USB power supply is not supported and other functions are not restricted.
DC power supply description No function is limited.



The Huawei eKit Wireless AP371 Wi-Fi 7, Indoor, Dual Radio, 2*2 MU-MIMO, 1*GE Base-T, internal smart antennas, 100M/1000M/2.5GE auto-sensing Ethernet port is a sensational customer favorite, and we hope you like it just as much.
