COMFAST 1200Mbps Wireless WiFi Repeater WiFi Extender Dual Band 2.4G 5G Network Amplifier Long Range Signal Booster Router Home

COMFAST 1200Mbps Wireless WiFi Repeater Wi fi Extender Dual Band 2.4G 5G Network Amplifier Long Range Signal Booster Router Home

Product Description:

CF-WR762AC is a through-wall wireless repeater with an intelligent screen display. It has the characteristics of 1200Mbps dual-band, stable signal, and simple configuration. It is suitable for WiFi signal expansion in home environments such as villas, duplex buildings, and large apartments. It is effective Solving the problem of signal blind spots, it is a good home product for complex and large households.

Technical Specifications:

1.Plug :Standard EU /US/UK Plug

2.Antenna: 4*3dBi Dual Band Antennas

3.Working Mode: Repeater / Router / AP / Bridge

4.Wireless Standard: IEEE802.11a/b/g/n/ac standard

5.Transmission Rate: 2.4GHz: 300Mbps ; 5.8GHz: 867Mbps

6.Chipset:MT7628DAN + MT7613BEN,RAM: 64MB; Flash: 8MB;

7.RF Parameters:Transmit Power: 126mW(21dBm)

8.Acceptance Sensitivity: -96dBm

9.Working Frequency: 2.412-2.472GHz : 5. 180-5.825GHz

10.Physical interface : 1*10/100Mbps LAN/WAN RJ45 Ethernet port , 1*RESET/WPS Button ；

11.Product size:86mm*45mm*197mm

Packing list

1*WiFi Repeater

1*Network Cable

1*Installation Guide

Whole House Wireless Coverage

1200Mbps OLED Wiireless Repeater

1200Mbps High speed

Smart Screen,display More intuitive

External antenna, Through walls

WiFi extension, Wide coverage

The following issues can all be solved with WiFi repeater

The signal in the corner of the room is unstable.

Signal coverage is difficult on large home floors

The wall is too thick and the wireless signal is blocked

Internet lag due to many network devices
Add 1-3pcs wireless repeaters according to actual conditions

Repeater

Router
Smart OLED Display

Not sure where to plug it in?

Not sure if the location is right?

CF-WR762AC adds a smartOLED display, more easy to use.

Smart Screen Repeater

It's easier to see, more convenient

Dual band High Speed

CF-WR762AC adopts 11AC dual band technology,1200Mbps wireless speed, compatible with gigabit dual band routers,Expand WiFi signal, allowing you to enjoy ubiquitous internet experience.

2.4GHz300Mbps

2.4G is more stable, Longer transmission distance

5.8GHz867Mbps

5.8G anti-interference,providing smoother internet access

PS: 1200Mbps is officially claimed, The actual speed is 2.4GHz 300Mbps + 5.8GHz 867Mbps
External four antennas Easily pass through walls

The CF-WR762AC is equipped with four high gain omnidirectional antennas, with flexible and

adjustable angles, Effectively improve the coverage of the repeater and make it more awesome through the wall.

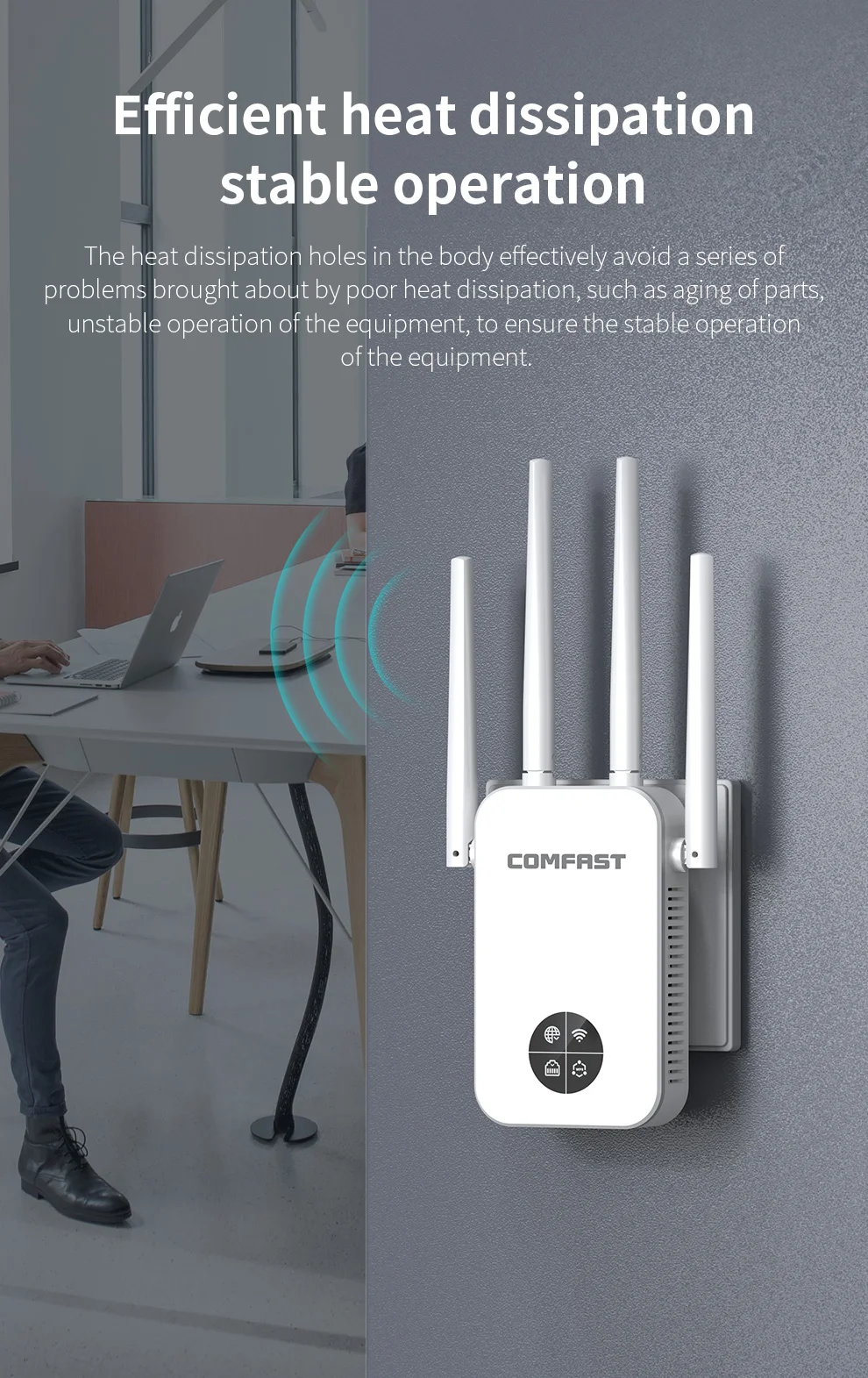

Efficient heat dissipation, stable operation

The heat dissipation holes in the body effectively avoid a series of problems brought about by

poor heat dissipation, such as aging of parts, unstable operation of the equipment, to ensure

the stable operation of the equipment.
Three steps Easy Setup

1.Connect your phone to WiFi SSID like COMFAST_ xxx.

2.Access 192.168.10.1 in the browser, and click repeater mode

3.Select the WiFi SSID you want to extend and input password. The indicator will be on after

succeeded
Plug and play

No need to connect a power adapter, it can be used with a socket;it has a powerful memory function,and can be plugged and used after the setting is completed.

Living room; Balcony; Bedroom; Washroom; Dining room; Kitchen

Multiple Modes for instant connection

1.Repeater mode (wireless to wireless)

Extend the WiFi signal of the main router, effectively solve the problemof weak signal, and clear the dead spots of WiFi.

Main router

With limited coverage, and there is nosignal in remote places such as bedroomsand bathrooms.

CF-WR762AC

Repeater amplifies the signal of therouter, so that WiFi is available inplaces with poor signal.

2.AP/Router Mode (Wired to Wireless)

Equipped with a network port, Connect the network cable to the repeater and use it as a route

to transmit WiFi signal.

Main router

Repeater is too far away from the router to receive the router signal.

CF-WR762AC

Through the network cable, the repeaterconverts wired into wireless for Internet access.

3.Don't worry about not having an internet cable (wireless to wired/wireless to wireless)

Long distance, can receive router wireless signal and then convert to wiredfor desktop/laptop with internet connection.

Main router

Router is in living room, computeris in bedroom. It is troublesome toput a network cable.

CF-WR762AC

Repeater amplifies routersignal + wired output.

Laptop

Intemet TV

Desktop

Flexible Extension, Multi Scenario Application

PS: Used with router

Large Flat

Duplex

Villa

Self-built house

Excellent Quality Authoritative Certification

This product has passed the quality inspection and certification by an authoritative

organization, the quality is guaranteed, and it is safe to use.
Packaging List

Network cable

CF-WR762AC

Installations

Parameter List
