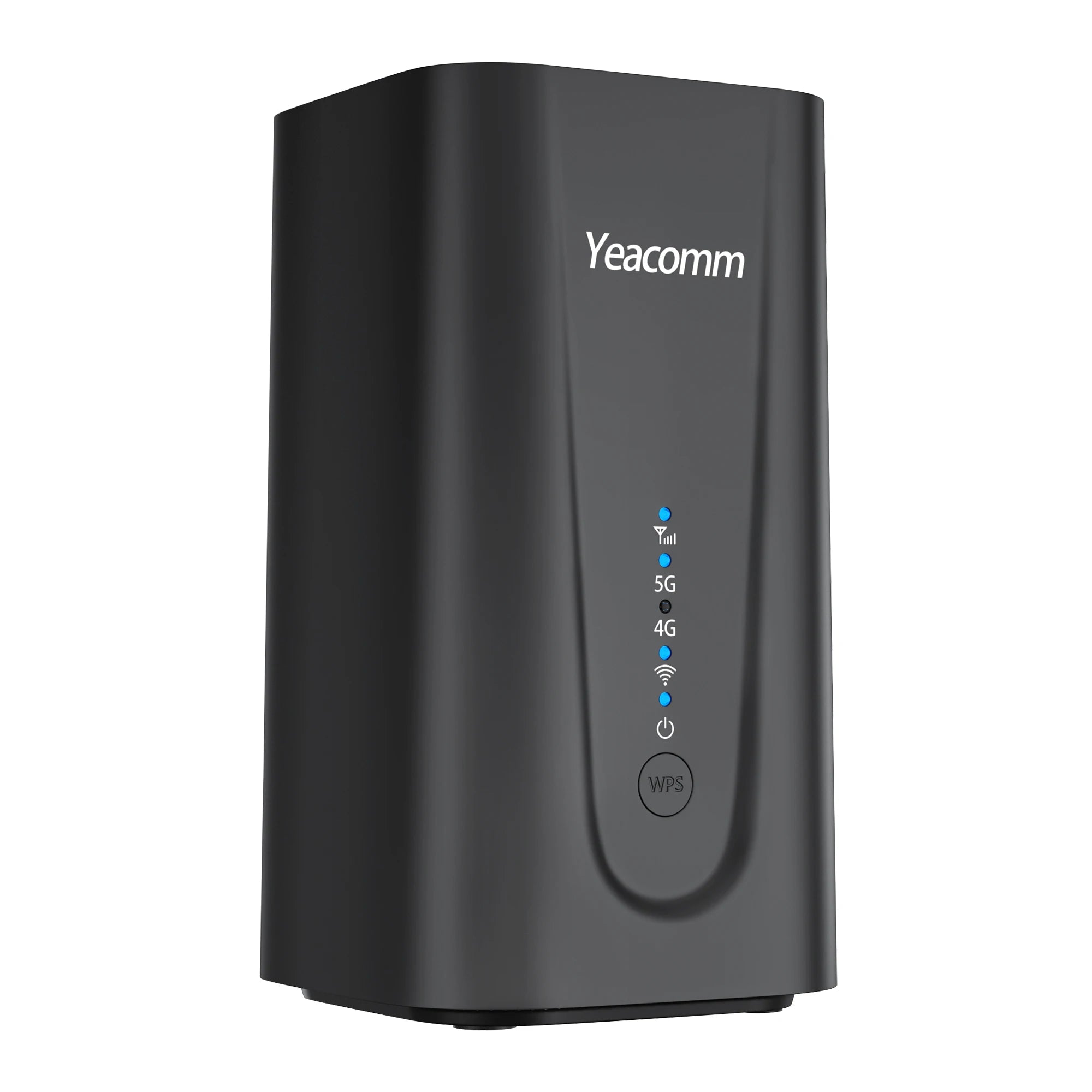

Yeacomm NR330 5G AX3600 CE FWA Gigabit LTE Gateway Indoor Home Internet Broadband Router Wireguard VPN WIFI6 TR069 Modem CPE 3G
SPECIFICATIONS
2.4G Wi-fi Transmission rate: 1200 Mbps
5G Wi-fi Transmission rate: 2167Mbps
Battery Included: Yes
Brand: YEACOMM
Certification: CE
Dimensions: 178x91x94 mm
Encryption Type: WPA2, WPA, WEP
High-concerned chemical: None
Interface: 2 LAN /1 WAN
Network: 5G/4G/3G
Phone Interface: One RJ11 port
Power supply: DC 12V 3A
Product name: 5G Wifi CPE Router
SIM card slot: 1*NANO Sim Card Slot
Supports WDS: Yes
Supports WPS: Yes
VPN: PPTP/L2tp/
WAN Ports: 1 x10/100/1000Mbps
WIFI: 802.11 a/b/g/n/ac/ax
Warranty: One Year
WiFi Transmission Standard: WiFi 802.11 ax
Application: Multi-service
Function: FireWall, QoS, VPN
LAN Ports: 2
Max. LAN Data Rate: 1000Mbps
Private Mold: Yes
Products Status: New
Standards and Protocols: Wi-Fi 802.11g, Wi-Fi 802.11b, Wi-Fi 802.11n, Wi-Fi 802.11ac, Wi-Fi 802
Type: Wireless
Wifi supported frequency: 2.4G & 5G
Wired transfer rate: 10/100/1000Mbps
With Modem Function: Yes
Product Images





Specifications

|

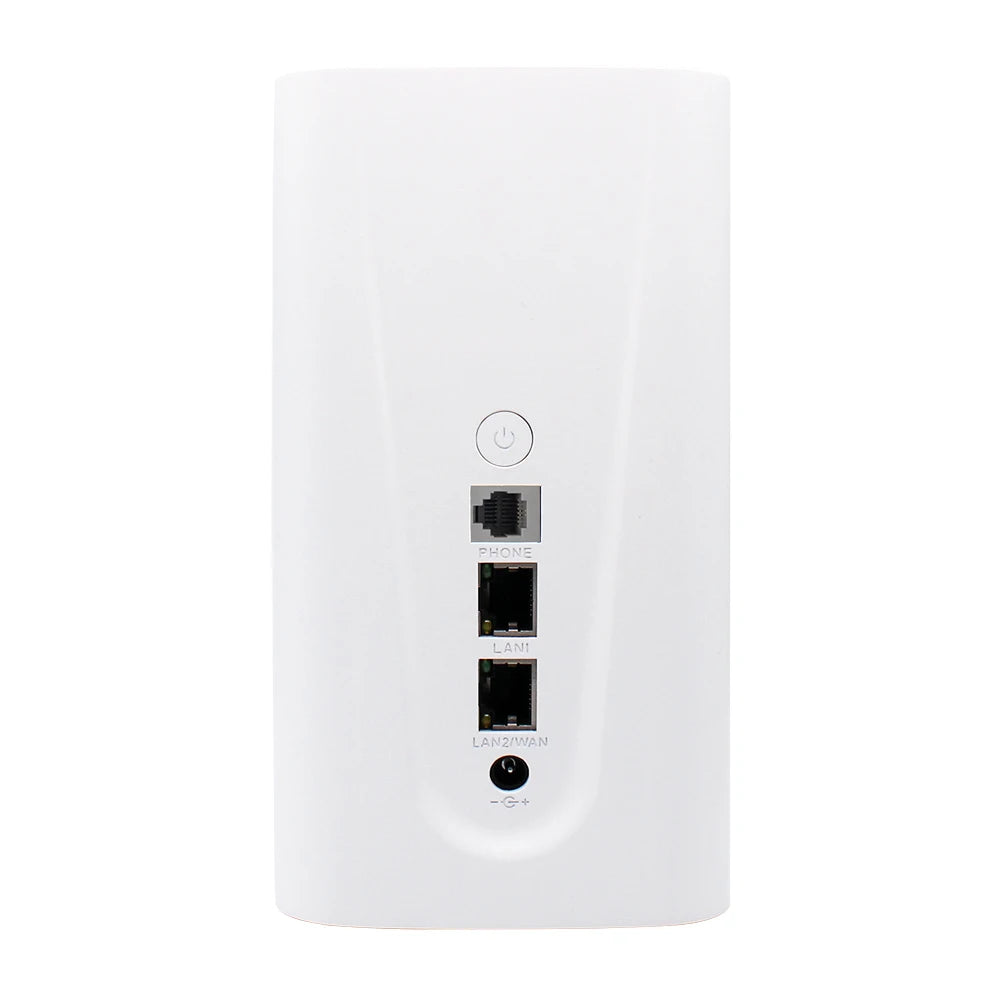

LAN/WAN Port |
One 2.5G ethernet port (RJ45 waterproof joint),self-adaption MDI/MDIX |
|
LAN Port |
One 1G ethernet port (RJ45 waterproof joint),self-adaption MDI/MDIX |
|
Phone Interface (Optional) |
One RJ11 port |
|
Indicator Light |
Singal, 5G, 4G, WIFI, and Power indicator light |
|
SIM/UIM Card |
Three-core DC locomotive power socket, built-in power reverse protection |
|
USB Port |
Type C 2.0 |
|
Reset Button |
Reset the parameters to factory setting |

European/Asian/Australian/Latin American version

North American version
Frequency Band:
Standard: 5GSub-6:n1/3/5/7/8/20/28(a&b)/38/40/41/77/78/79 LTE : B1/3/5/7/8/18/19/20/26/28(a&b)/30/38/40/41/42/43/46 WCDMA: B1/5/8
Optional: 5G NR:n2/5/7/12/14/25/30/41/48/66/71/77/78 LTE:B2/4/5/7/12/13/14/17/25/26/29/30/41/46/48/66/71 WCDMA: B2/4/5
Theoretical Bandwidth:
5G Sub-6: Downlink 4.67Gbps, uplink 1.25Gbps LTE Cat20: Downlink 1.6Gbps, uplink 150Mbps
|
WIFI Parameters: |
||
|
Product Name |
Yeacomm NR330 5G indoor CPE |
|
|
WIFI Protoco |
Support IEEE802.11 a/b/g/n/ac/ax |
|
|
WIFI Frequency Band |
2.4GHz+5GHz |
|
|
Theoretical Bandwidth |
2.4GHz 4x4MIMO 11ax, ~1.146Gbps
5GHz 4x4MIMO 11ax, ~2.4Gbps |
|
Applications
