Wavlink AX3000/AX1800 WiFi 6 Dual Band Router 802.11ax Wireless Internet Router Gigabit Router with 4*5dBi High-Gain Antennas EU
SPECIFICATIONS
Brand Name: WAVLINK
With Modem Function: No
High-concerned Chemical: none
Type: Wireless
WAN Ports: 1 x10/100/1000Mbps
Wi-Fi Supported Frequency: 2.4G & 5G
5G Wi-Fi Transmission Rate: 2167Mbps
2.4G Wi-Fi Transmission Rate: 600Mbps
Function: Firewall
Function: VPN
Certification: CE
Certification: FCC
Number of USB Interfaces: 1 x USB 3.0
Max. LAN Data Rate: 1750Mbps
Standards And Protocols: Wi-Fi 802.11g
Standards And Protocols: Wi-Fi 802.11b
Standards And Protocols: Wi-Fi 802.11n
Standards And Protocols: Wi-Fi 802.11ac
Wired Transfer Rate: 10/100/1000Mbps

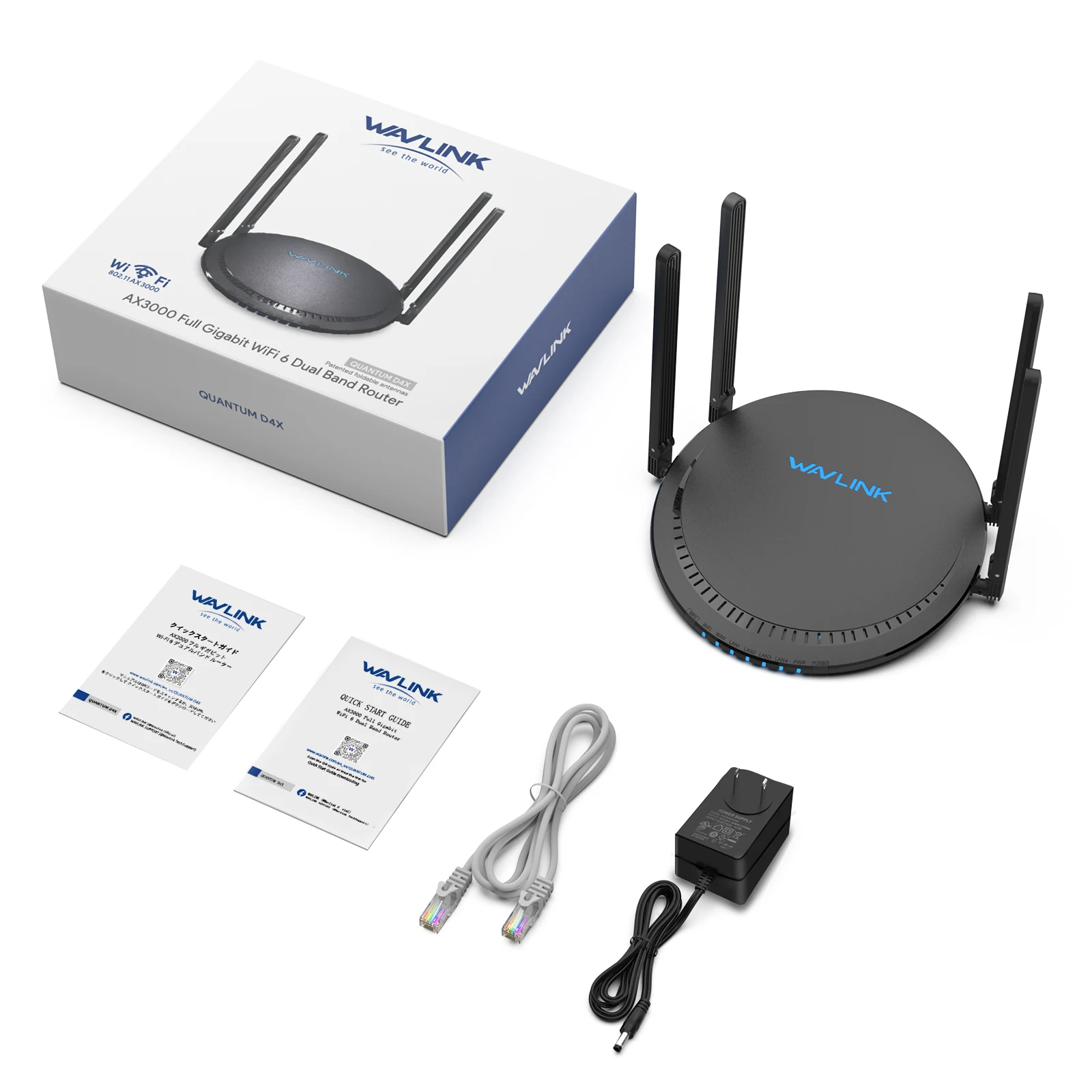

Package: Yes
Supports WDS: No
LAN Ports: 4
Supports WPS: Yes
Application: HOME
CPU: Dual core 880Mhz
Flash: 16MB
DDR3: 256MB

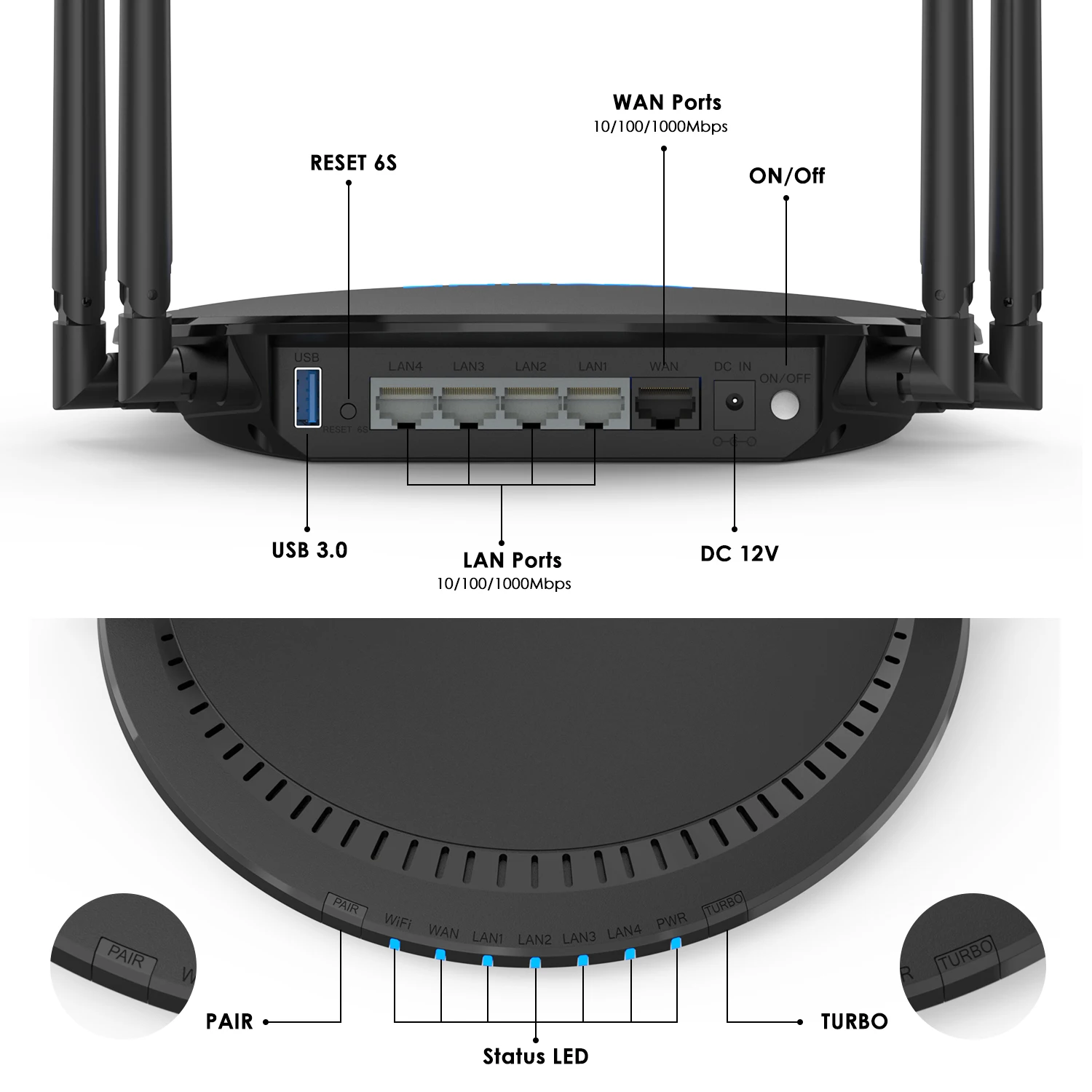

Ports: 1 x WAN(10/100/1000Mbps), 4 x LAN(10/100/1000Mbps), 1 x DC in, 1 x Reset Button, 1 x USB3.0 Port, 1 x Switch
Button: 1*Reset +1*Pair+1*Power on-off
Antenna: 4 x 5dBi Omni Directional Antennas
Power: 12V 1A
WiFi Speed: 2.4G: 574Mbps; 5G:1201Mbps
Default IP: 192.168.10.1 or wifi.wavlink.com

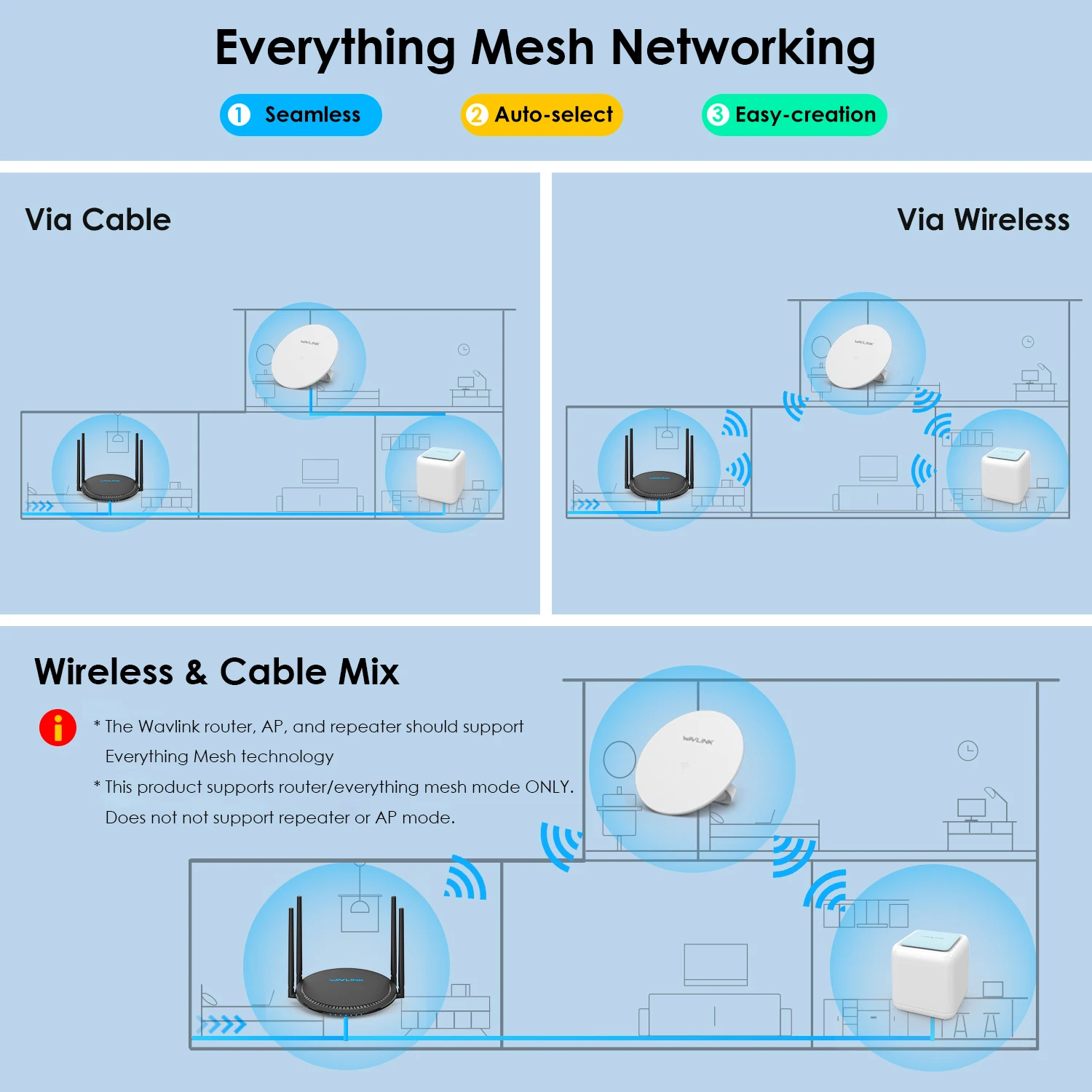

Operating mode: Router/Mesh Router
IPV6: Support
USB: USB Samba/USB Storage
Guest WiFi: TouchLink or Enabled on software
DMZ: Support
VPN: PPTP/L2TP
Port Forwarding: Support

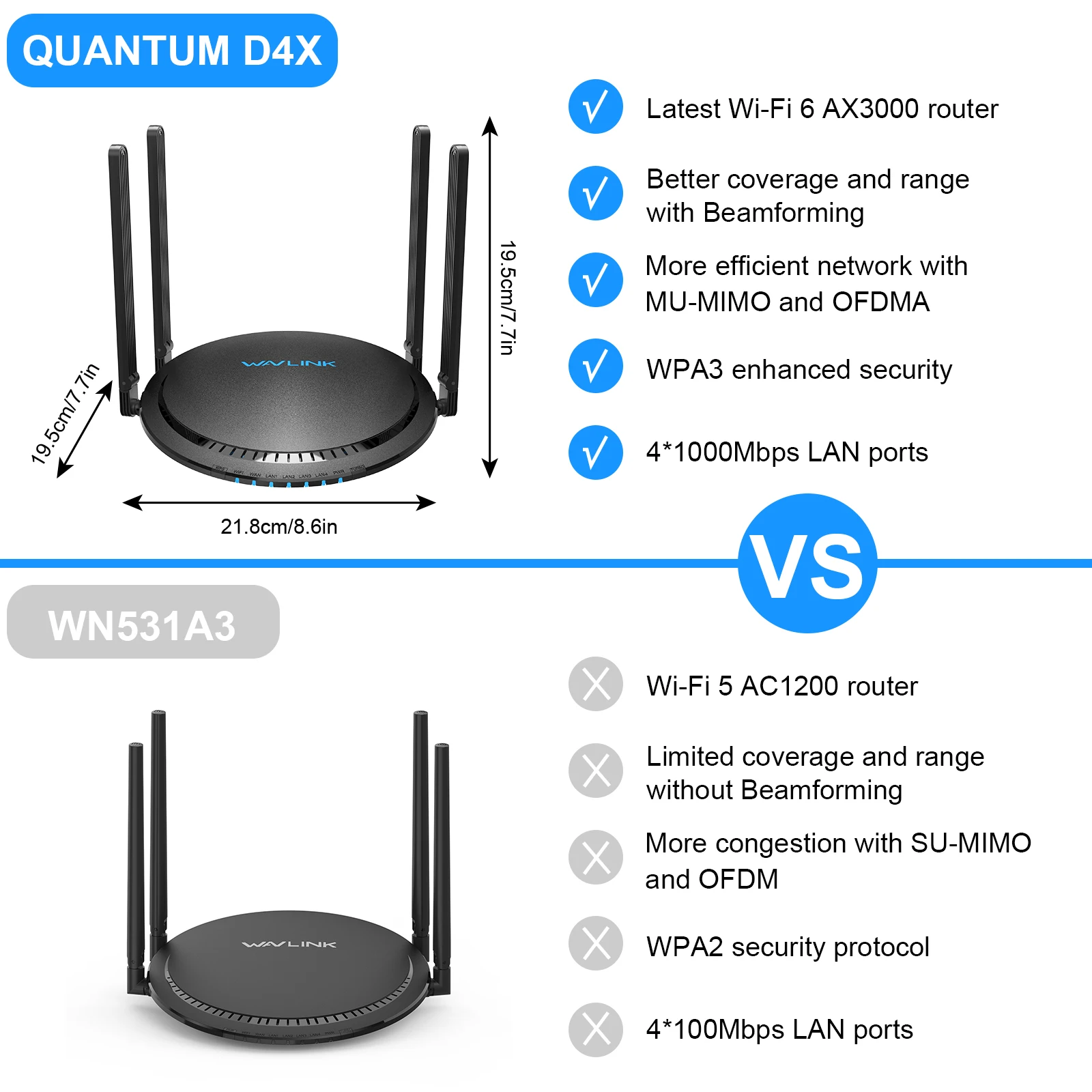

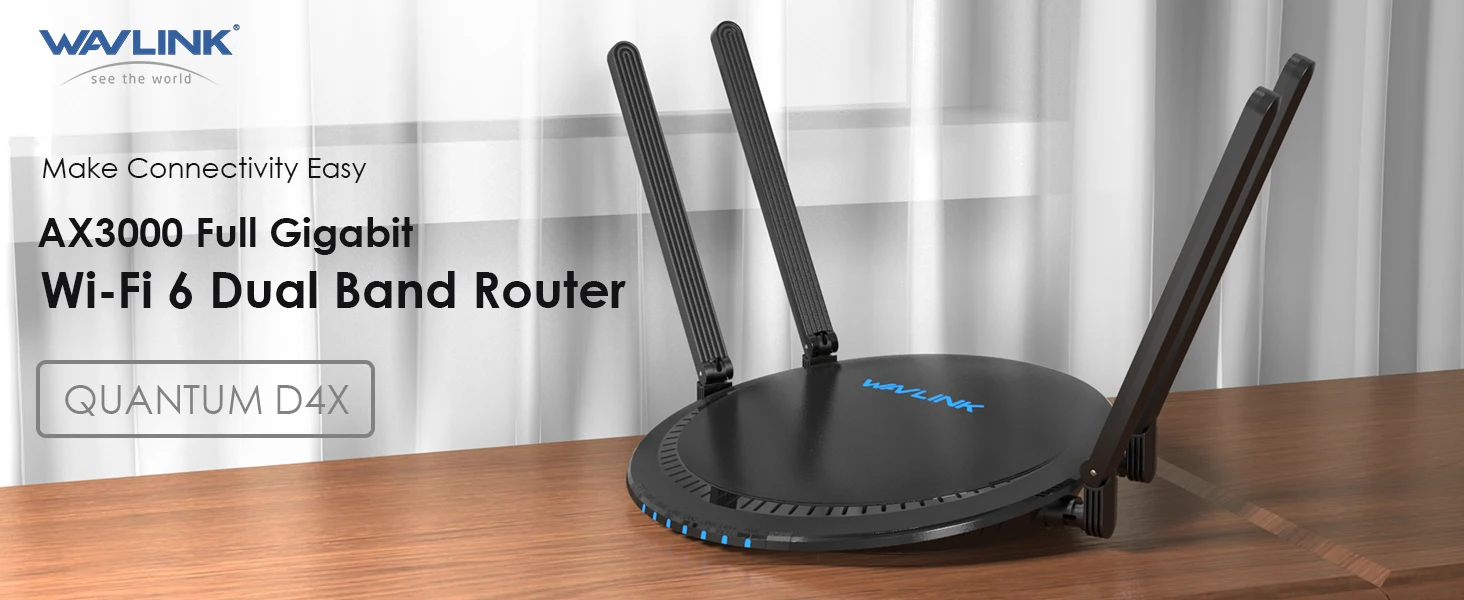

Feature 1: AX3000 WIFI 6 Gigabit Router
Feature 2: Gigabit Wireless Internet Router
Feature 3: AX1800 WIFI6 Mesh Router
Feature 4: 1.8 Gbps WIFI 6 Mesh Dual Band Wireless Router
Feature 5: Wireless WiFi Router
Feature 6: 1.8 Gbps WIFI 6 Every Mesh Dual Band Wireless Router
Feature 7: wpa3 wifi router, multi gig router, 5g router, wifi routers for home
Feature 8: dual band wifi router, gaming router, gigabit router, internet router
WAVLINK AX3000 Dual Band WiFi 6 Router, 802.11ax Wireless Internet Router, Gigabit Router with 4*5dBi High-Gain Antennas, MU-MIMO, OFDMA, Touchlink, Beamforming, WPA3, IPV6 Compatible
AX3000 Product Features:
- Supports 160MHz bandwidth and 1024-QAM for much faster wireless connections.

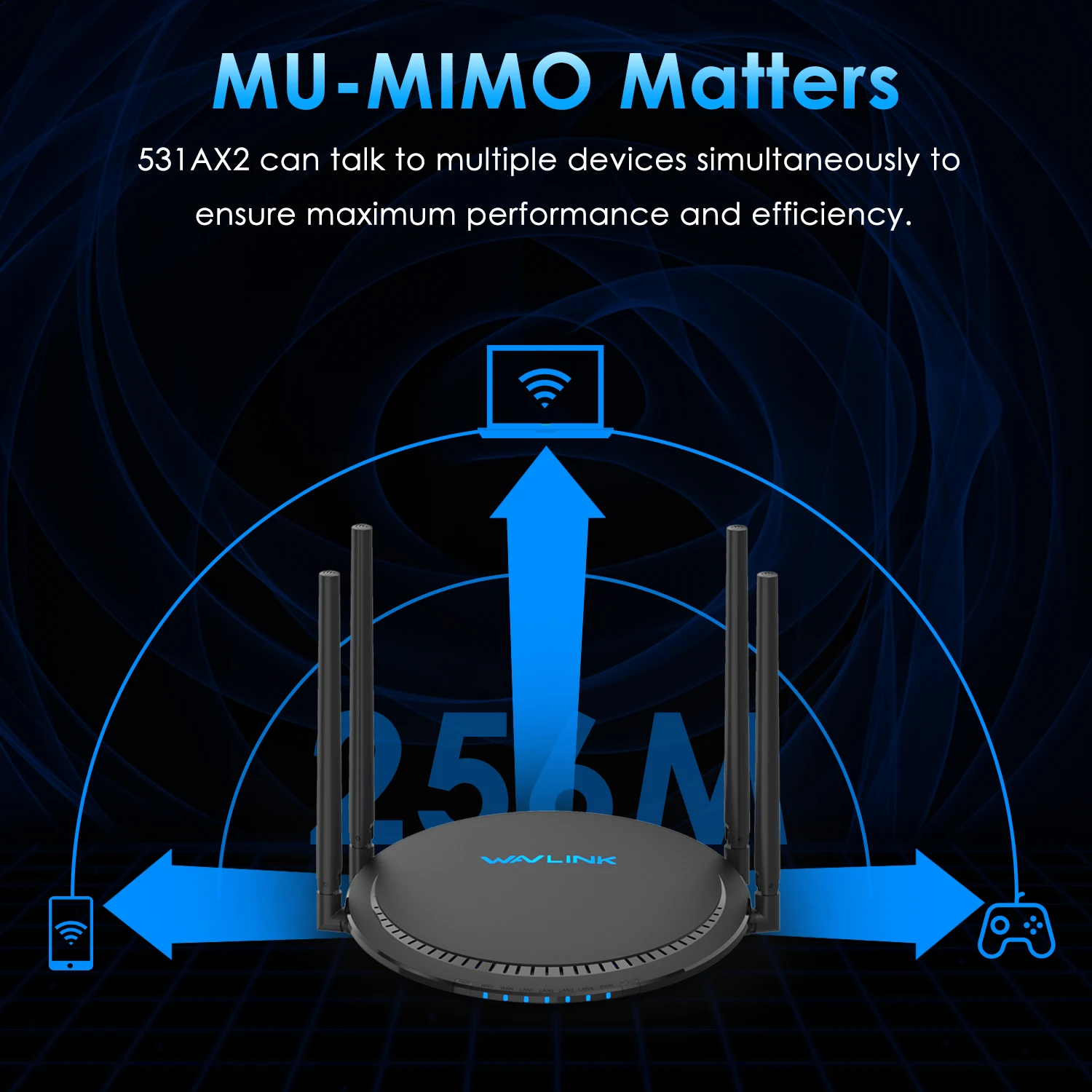

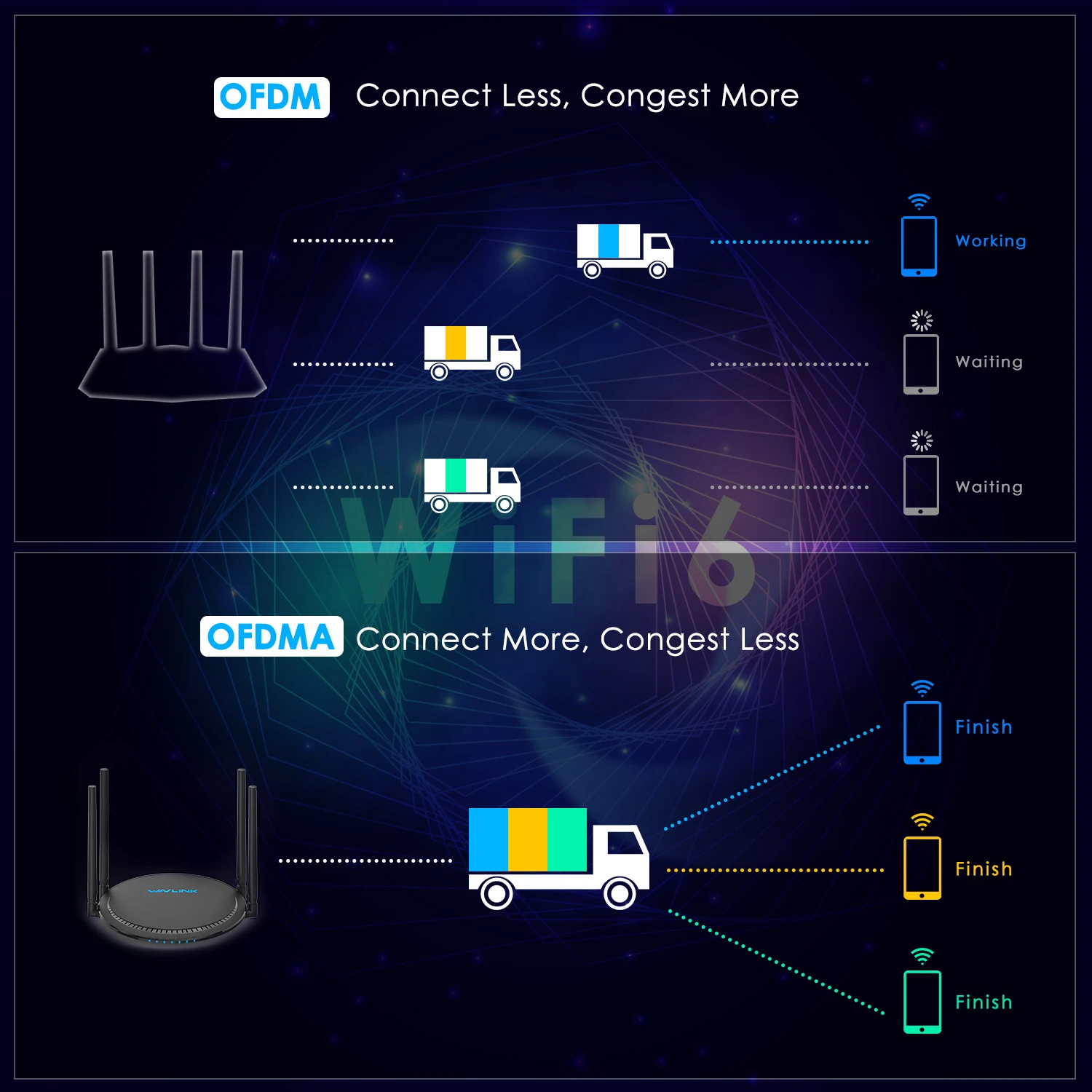

- Supports MU-MIMO & OFDMA techniques to simultaneously communicate with multiple devices in a very effective way.

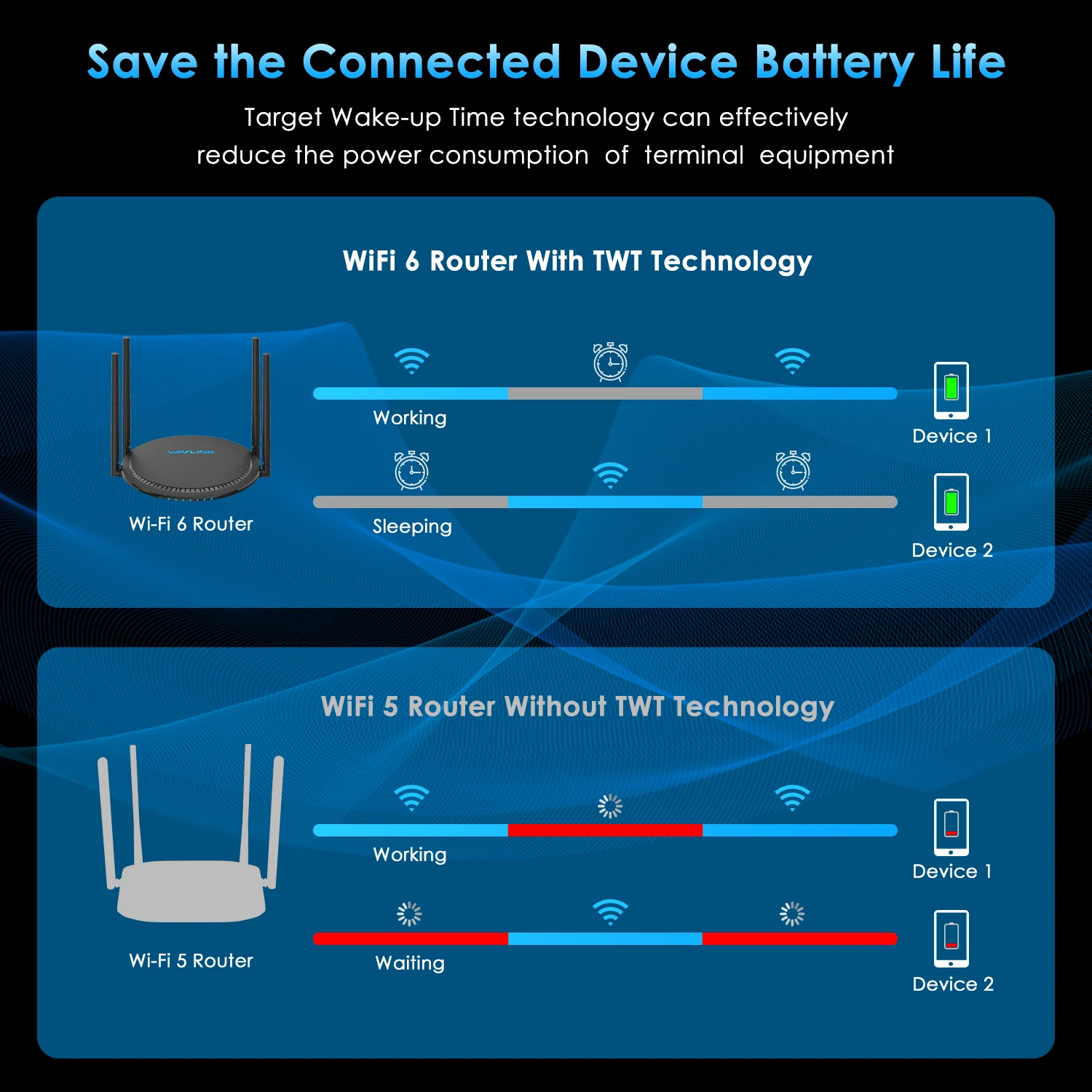

- Supports TWT (Target Wakeup Time) technology to save power consumption.

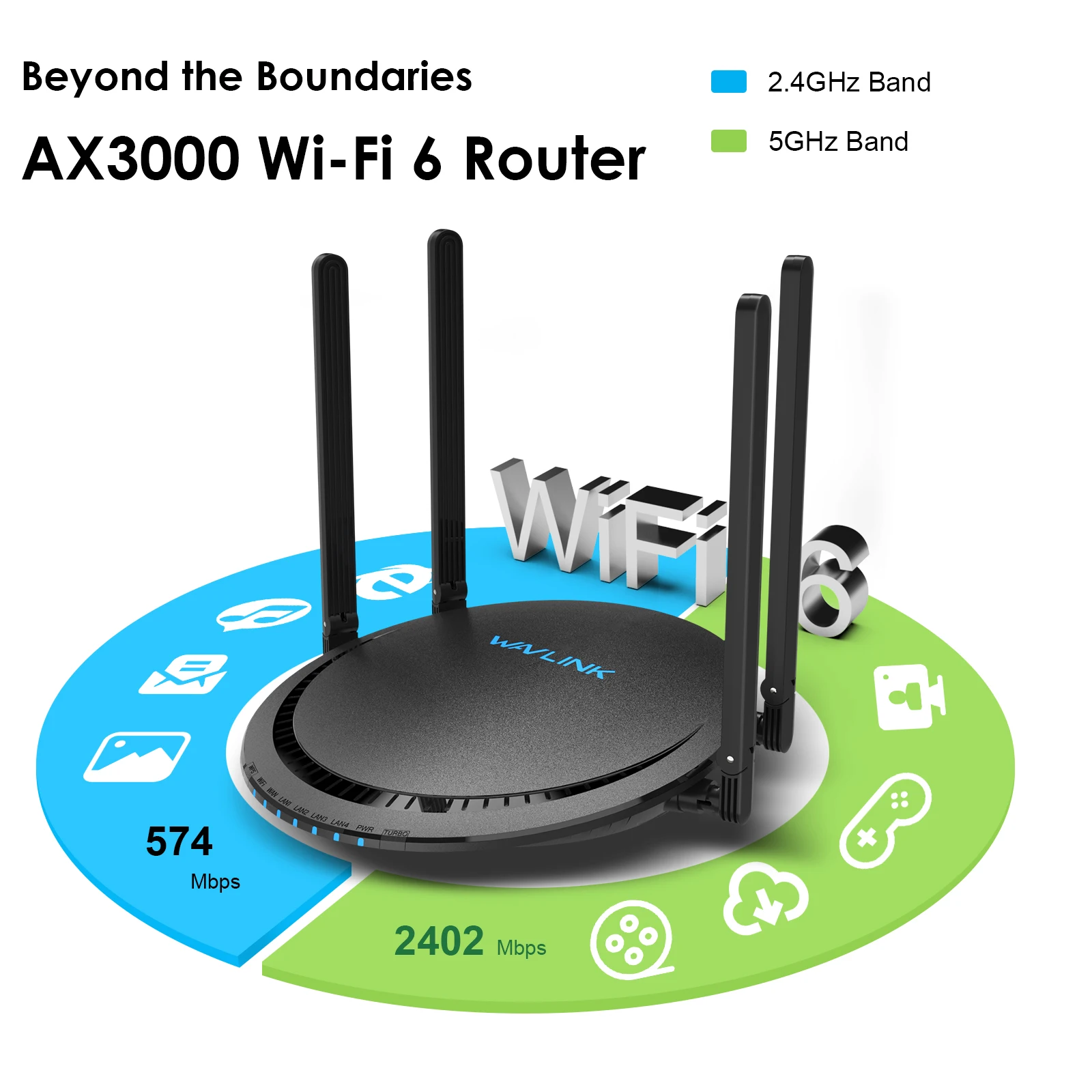

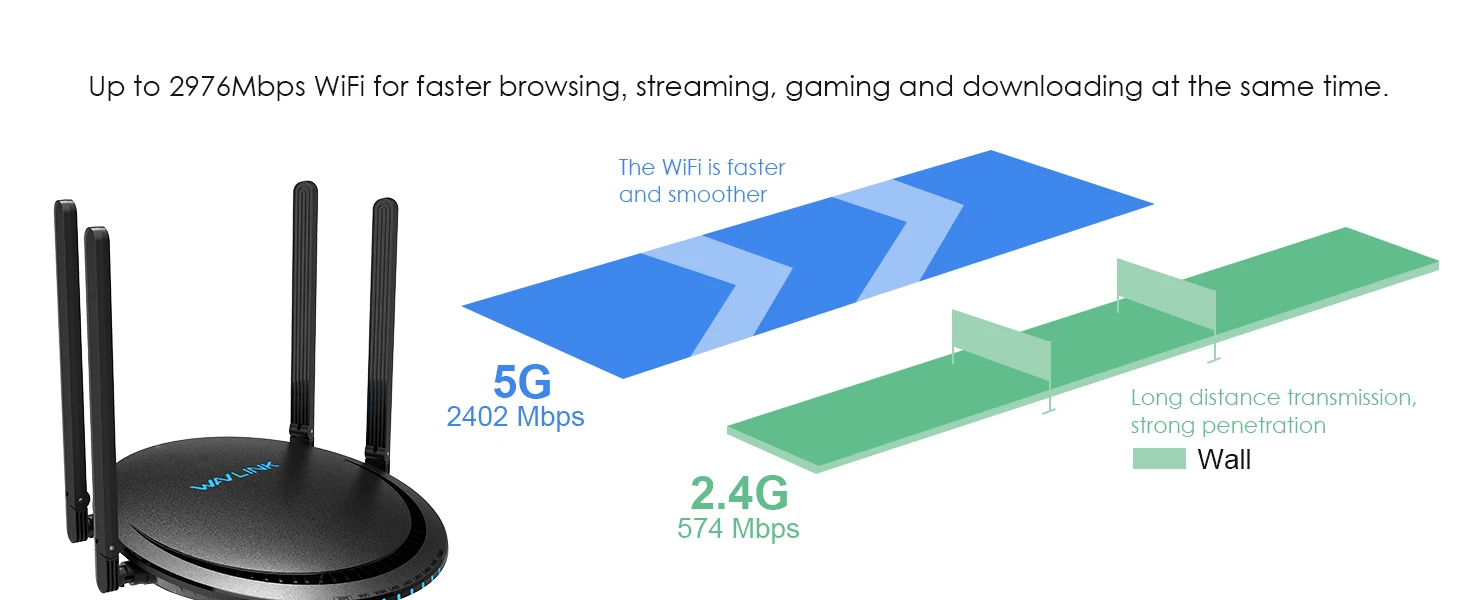

- Provides a total networking speed of about 2976Mbps with 2402Mbps@5GHz and 574Mbps@2.4GHz.

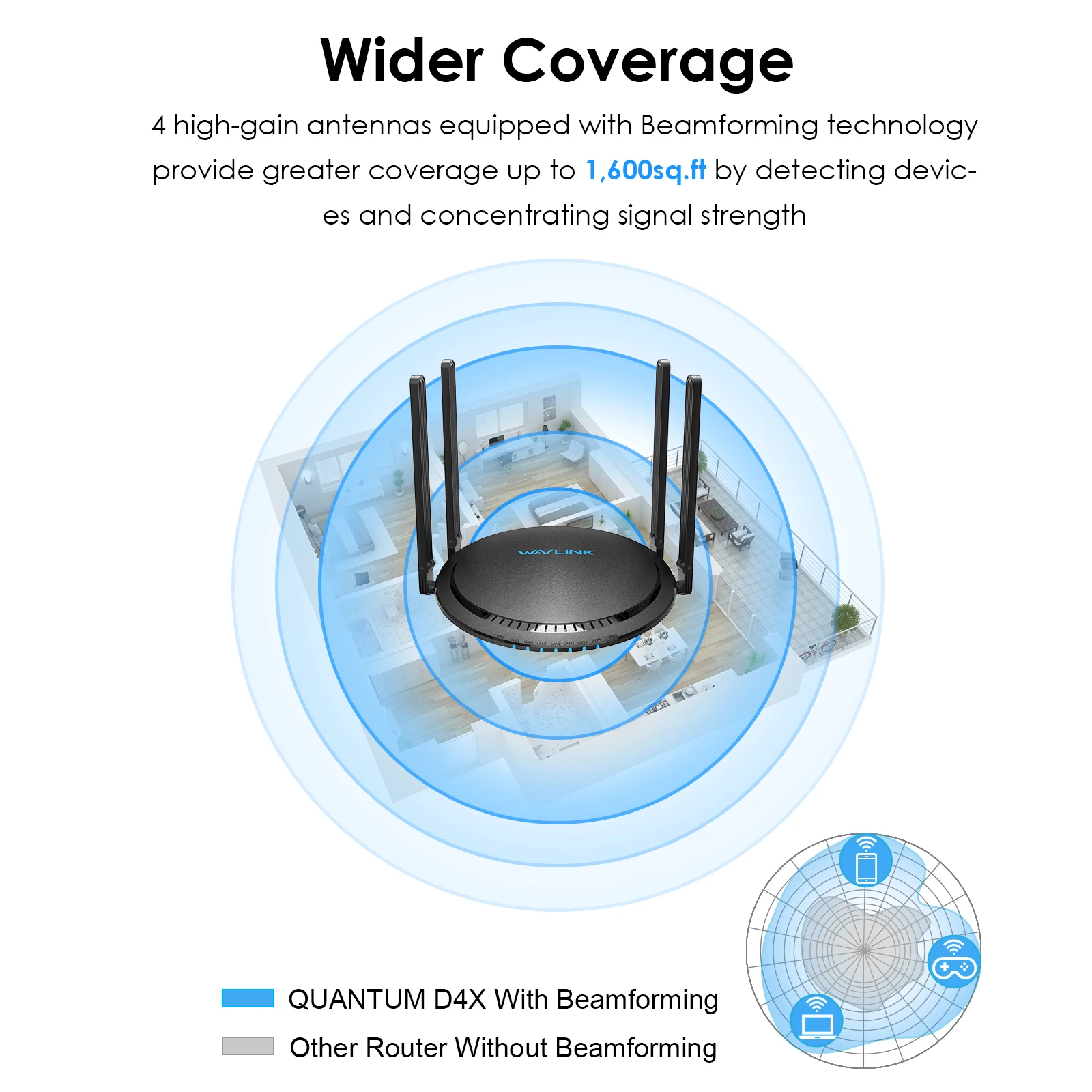

- Features four 5dBi patented antennas that are powerful, omni-directional, foldable and fitting in smaller box.

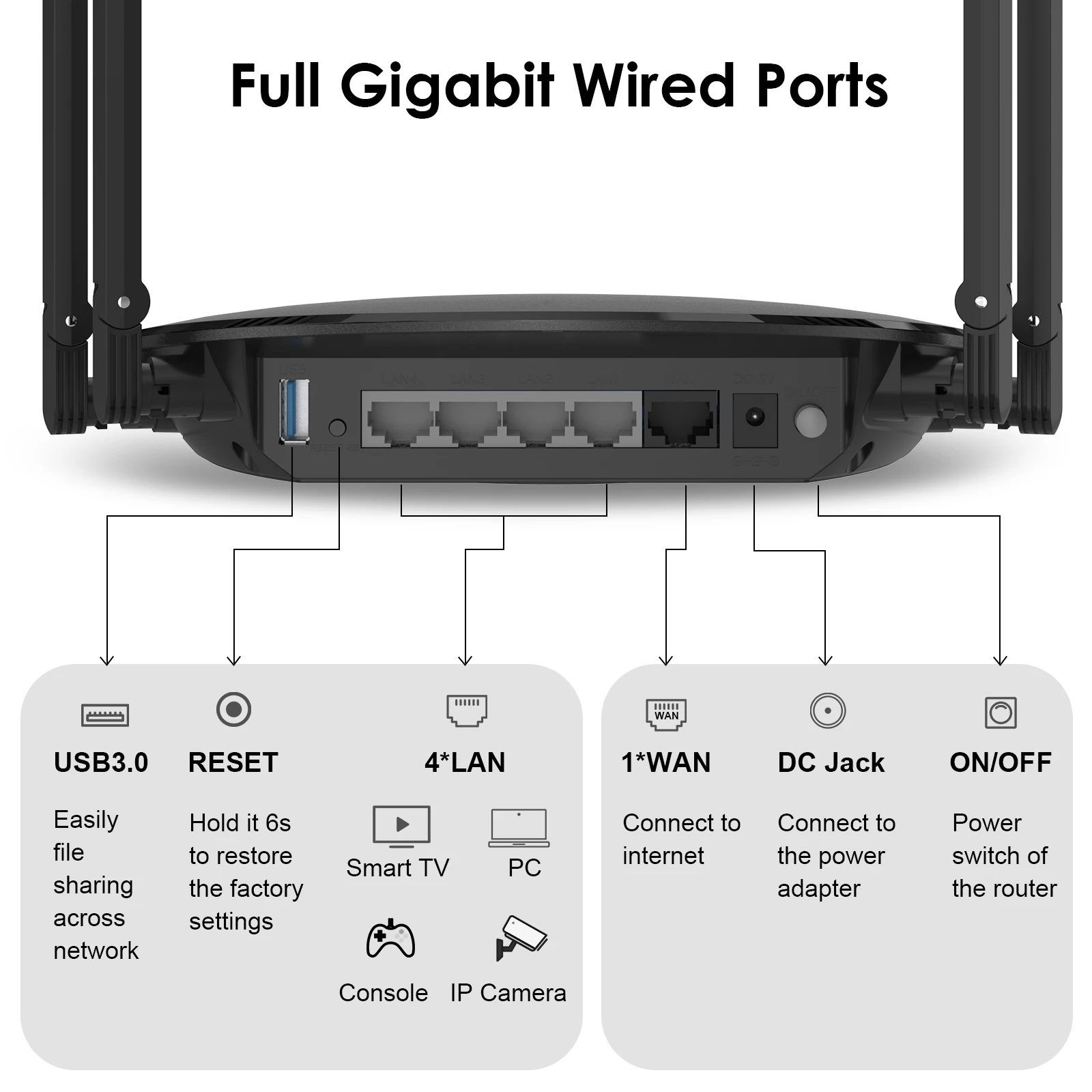

- Provides 1 x Gigabit WAN + 4 x Gigabit LAN (1000Mbps) for high-speed wired Internet.
- Supports 1 x USB3.0 port for Samba.

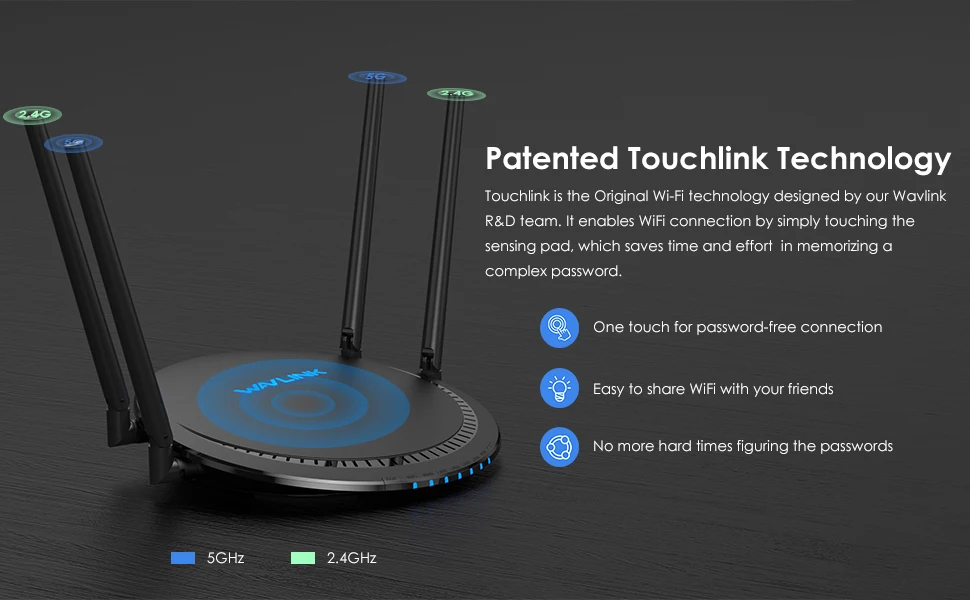

- TouchLink Patent: Share WiFi with your guests in no time by simply touching on the top of this WAVLINK router.
- Protects network security with up to WPA2/WPA3-PSK MIX.
- Supports IPV4 / IPV6.
- Sets up in minutes with the WavRouter APP or Web UI, easily manage WiFi settings and monitor data usage.
Notes
1). AX3000 This router supports router mode ONLY. Does not support AP/Extender/Mesh mode.
2). The actual coverage may vary based on the environment.
3). The 5G frequency band supports 160MHz ultra-high bandwidth, while the 2.4G band does not.

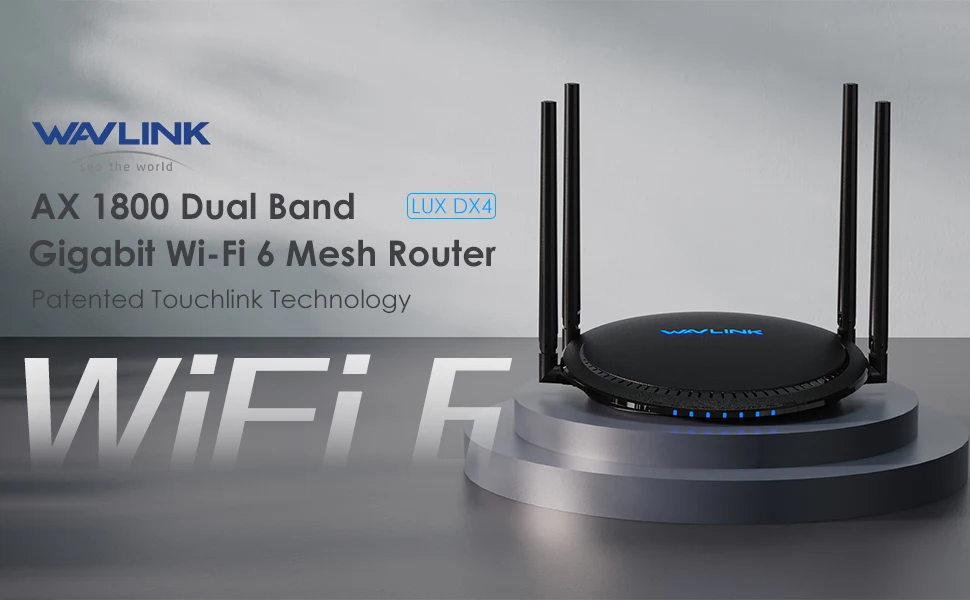

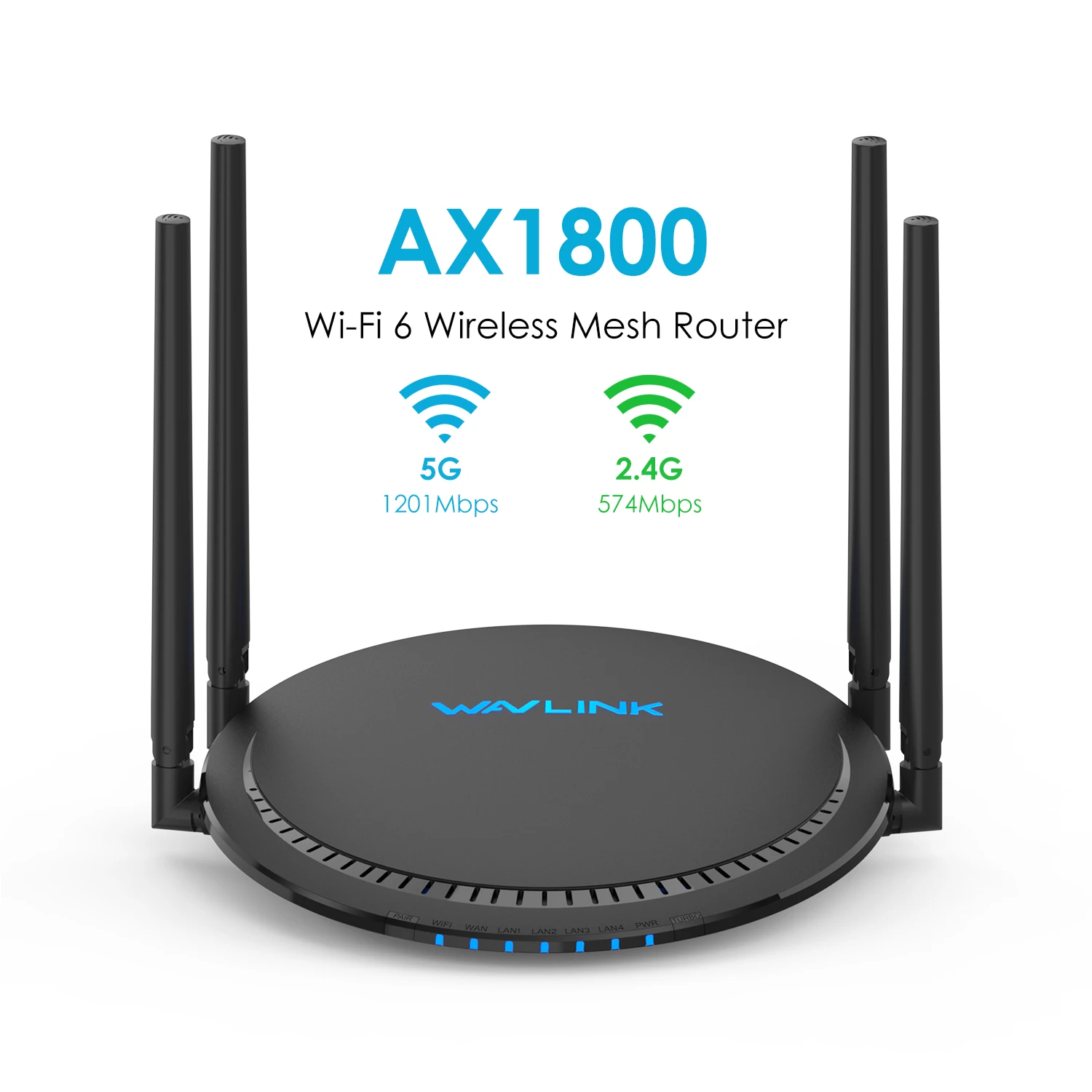

AX1800 Product Feature:
1, Complies with IEEE 802.11ax/ac/a/n/g/b standards.
2, MU-MIMO TX/RX; MU-OFDMA TX/RX; STBC, LDPC, TX Beamformmer and RX BeamFormee
3, WPA2, WPA2/WPA3 Mix.
4, Simultaneous dual AX bands of 573Mbps@2.4GHz and 1201Mbps@5GHz; backward compatible with AC band of 867Mbps@5GHz, N band of 300Mbps@2.4G.
5, Supports PPPoE, Dynamic IP, static IP access to the Internet.
6,Built-in DHCP server & client with automatic dynamic IP address distribution.
7, Provides 10/100/1000Mbps Auto-Negotiation Ethernet WAN port and LAN ports.
8, External antennas provide omni-directional stable signal and superior wireless coverage.
9, Cloud APP supports device management functions for easy control.
Specifications:
-Antenna: 4x 5dBi High-performance antennas
-2.4G:11AX 573Mbps, 5G:11AX 1201Mbps
-Security: OPEN, WPA2PSK ,WPA2PSK/WPA3PSK MIX
-Support OFDMA, MU-MIMO, BSS Color, IPV 6
-POWER adapter: 100V-240V/50-60Hz; DC12V/1A
Easy to set up and control
Through a few simple steps, you can effortlessly connect to the WiFi of the AC1800 WiFi 6 mesh router and enjoy an ultra-high-speed network environment; and through the cloud APP control, you can easily manage various WiFi settings and Parental Control & QoS, etc.
1. Connect the router to the modem and power supply;
2. Reset the router and turn on the power button;
3. Log in to the router's web management page( the initial password is "admin");
4. Follow the page guide for various settings.
