UOTEK 2pcs Fiber Transceiver RS232 RS485 RS422 20KM SC Port RS-232 RS-485 RS-422 to Fibre-optical Converter UT-2577SM+UT-2578SM

UOTEK 2pcs Fiber Transceiver RS232 RS485 RS422 20KM SC Port RS-232 RS-485 RS-422 to Fibre-optical Converter UT-2577SM+UT-2578SM

SPECIFICATIONS

Brand Name: UOTEK

Certification: CE,FCC,RoHS

High-concerned Chemical: None

Model Number: UT-2577SM UT-2578SM

Description

UOTEK 2pcs Fiber Transceiver RS232 RS485 RS422 20KM SC Port RS-232 RS-485 RS-422 to Fibre-optical Converter UT-2577SM+UT-2578SM

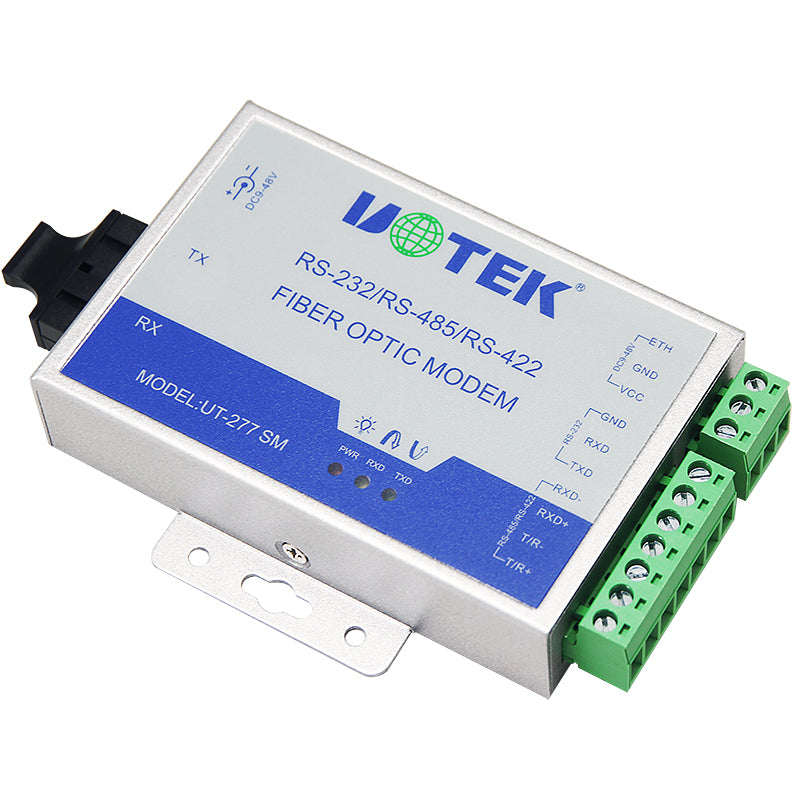

UT-2577SM fiber optic modem supports asynchronous RS-232/485/422 communication. It is the best choice to connect remote terminal unit (RTU) with HOST or SCADA controller. It supports RS-232/485/422 asynchronous protocols; it can be mixed and matched to use 2 RS-232, RS-485 or RS-422 ports, and it supports 2 wires (half-duplex) RS-485 and 4 wires (full-duplex) RS-422 mode.

The RS-485 mode supports data transmission (TXD or SD) control, this enhance the adaptation to most of the software. Optic fiber MODEM supports lots of optic connection between asynchronous serial ports. It supports 2 asynchronous serial devices to communicate under full-duplex or half-duplex via optic fiber; the communication distance can be as far as 4km at multimode, and 20km at single mode.

The fastest transmission rate for RS-232 can be 115.2Kbps, and for RS-485/422 can be 460Kbps. Ports with different electronic standards can be mixed and matched to use; it is without problem to connect RS-232 devices with RS-485/422 devices. This is a good replacement of RS-232 to RS485/422 converter, which with EMI/RFT features.

UT-2577SM supports two signal data transmission: transmit and receive data. At the same time, it is with RS-485/422 data transmission
auto control circuit; Zero delay conversion; all the serial ports is connected via terminal block.

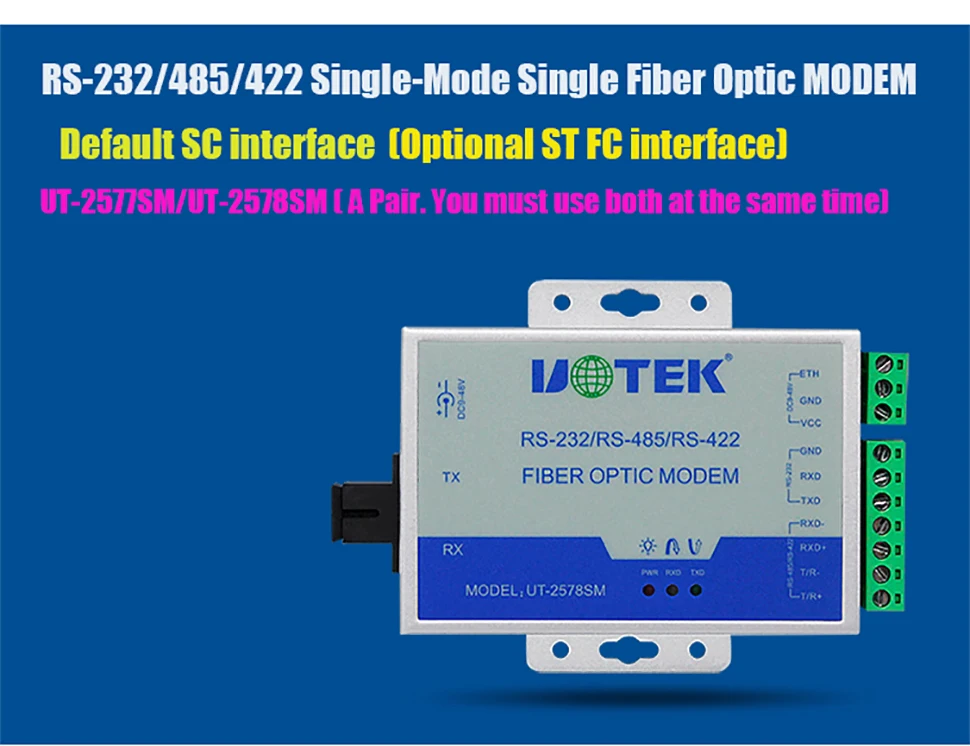

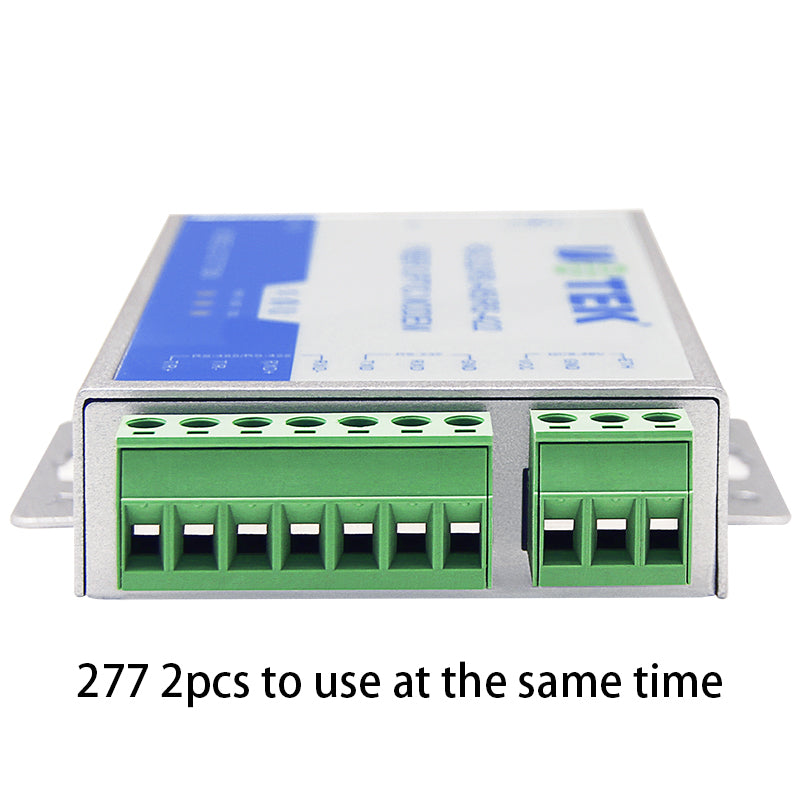

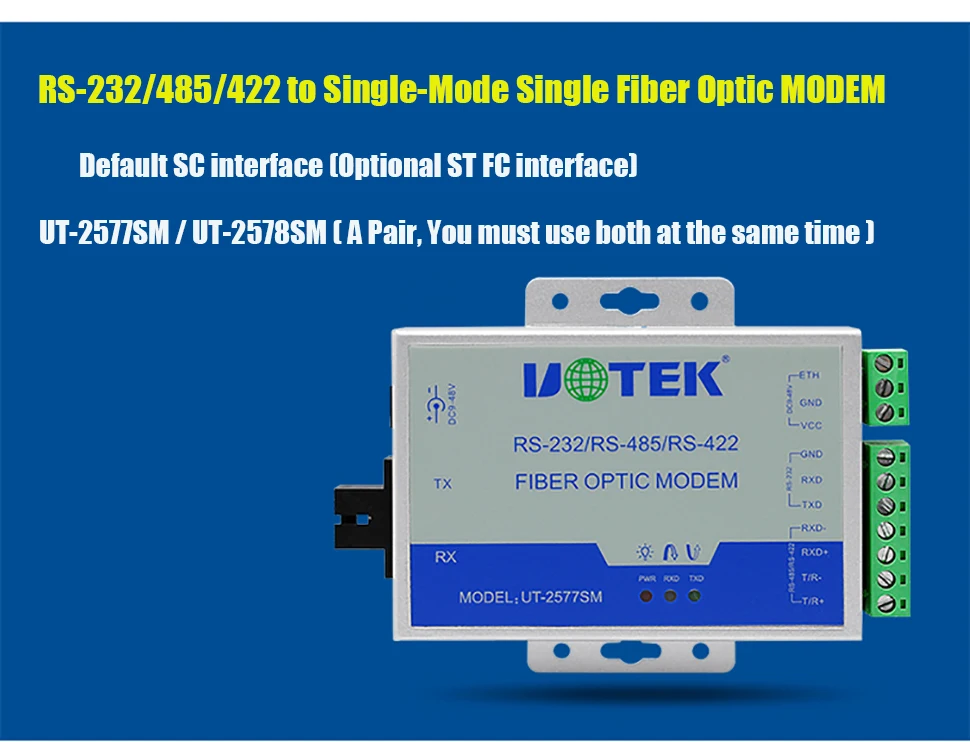

UT-2577SM and UT-2578SM are a pair, you must use them at the same time.

Model:

2577SM 2578SM SC -US :   UT-2577SM + UT-2578SM single mode SC interface, and US standard plug

2577SM 2578SM ST -US :   UT-2577SM + UT-2578SM single mode ST interface, and  US standard plug

2577SM 2578SM FC -US :   UT-2577SM + UT-2578SM single mode FC interface, and  US standard plug

2577SM 2578SM SC -EU :   UT-2577SM + UT-2578SM single mode SC interface, and  EU standard plug

2577SM 2578SM ST -EU :   UT-2577SM + UT-2578SM single mode ST interface, and  EU standard plug

2577SM 2578SM FC -EU :   UT-2577SM + UT-2578SM single mode FC interface, and  EU standard plug

2577SM 2578SM SC -UK :   UT-2577SM + UT-2578SM single mode SC interface, and  UK standard plug

2577SM 2578SM ST -UK :   UT-2577SM + UT-2578SM single mode ST interface, and  UK standard plug

2577SM 2578SM FC -UK :   UT-2577SM + UT-2578SM single mode FC interface, and  UK standard plug

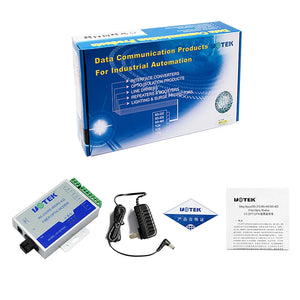

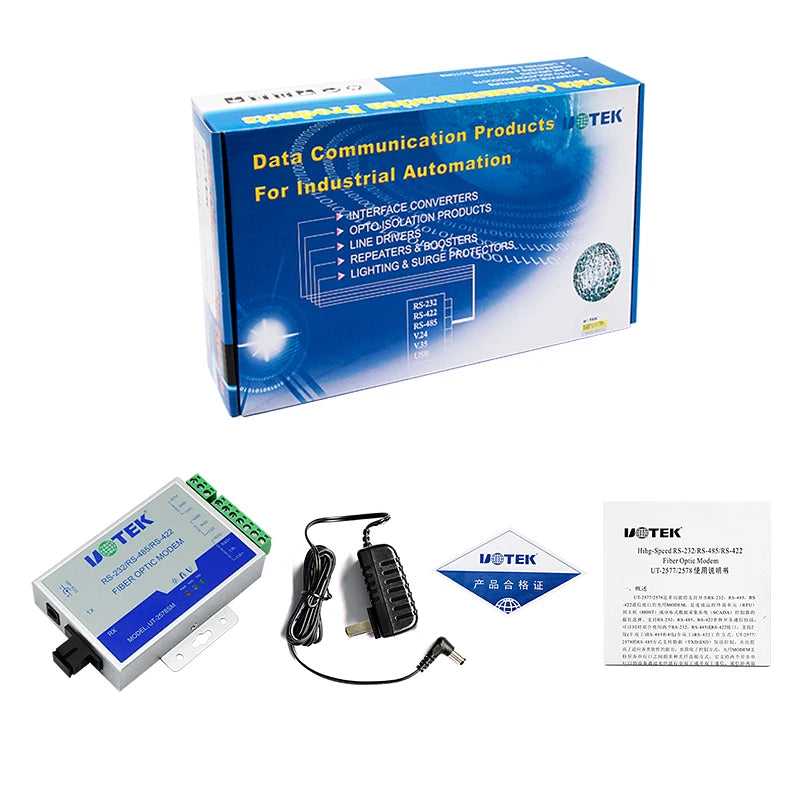

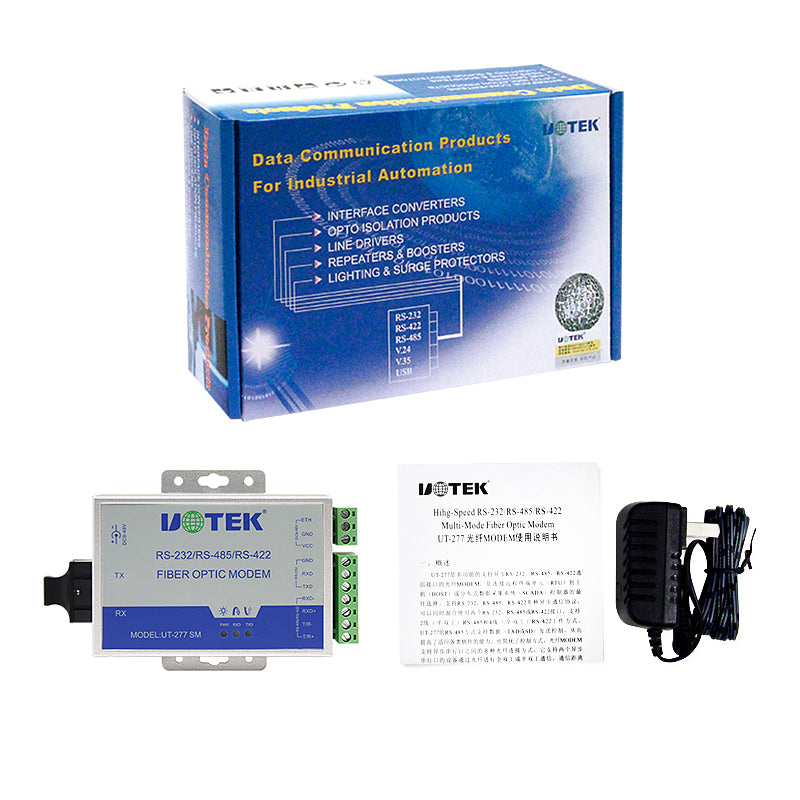

Package includes: 1 x UT-2577SM and 1 x UT-2578SM

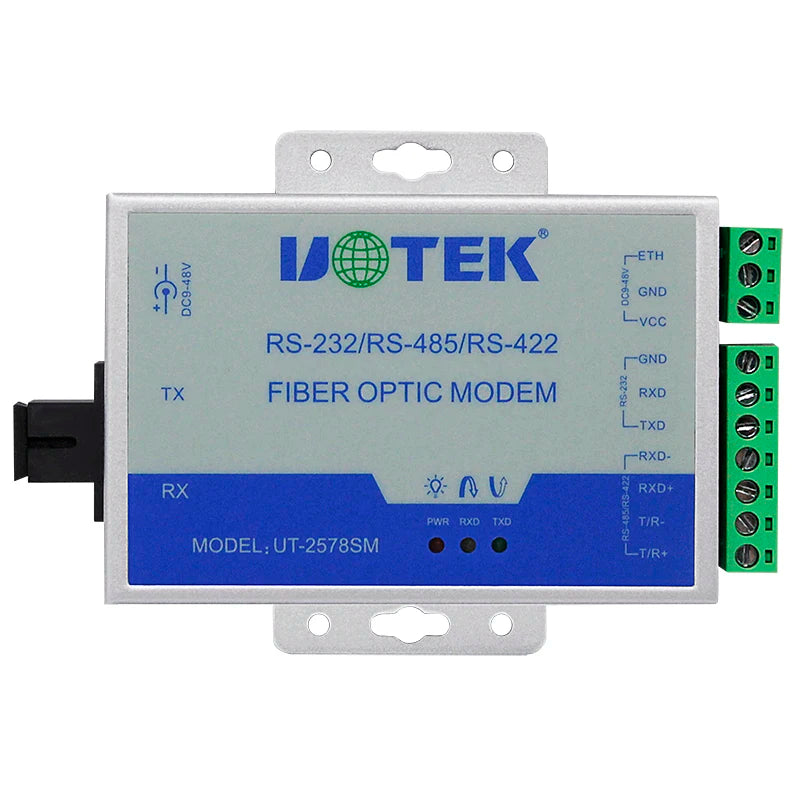

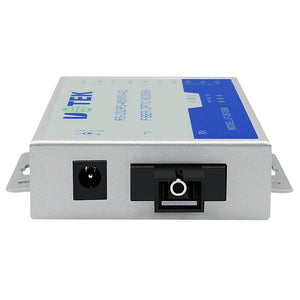

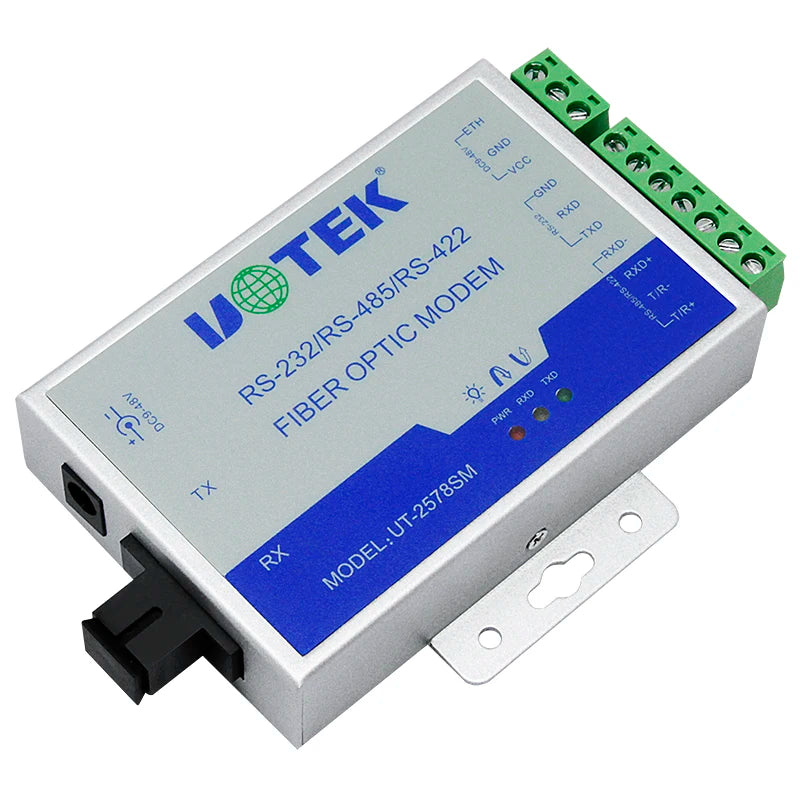

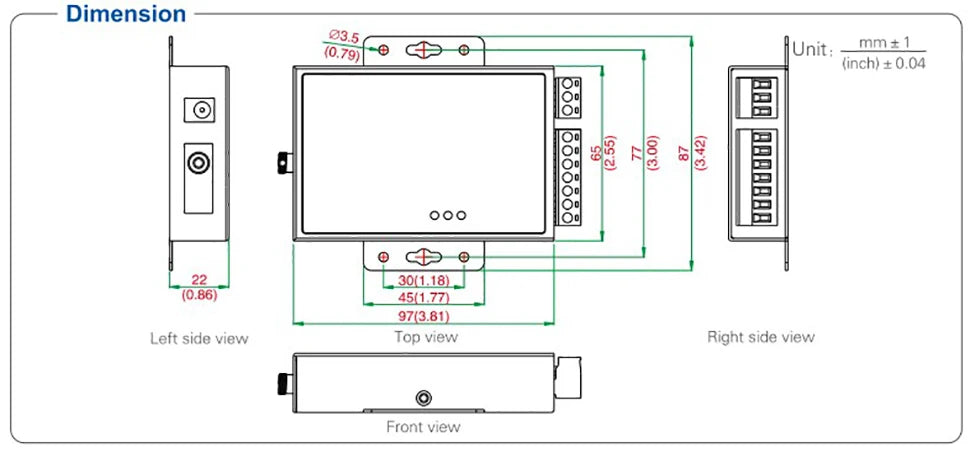

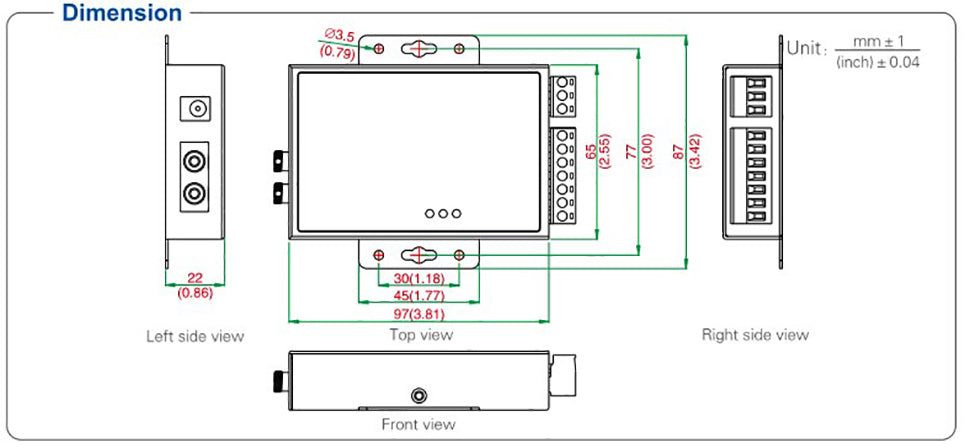

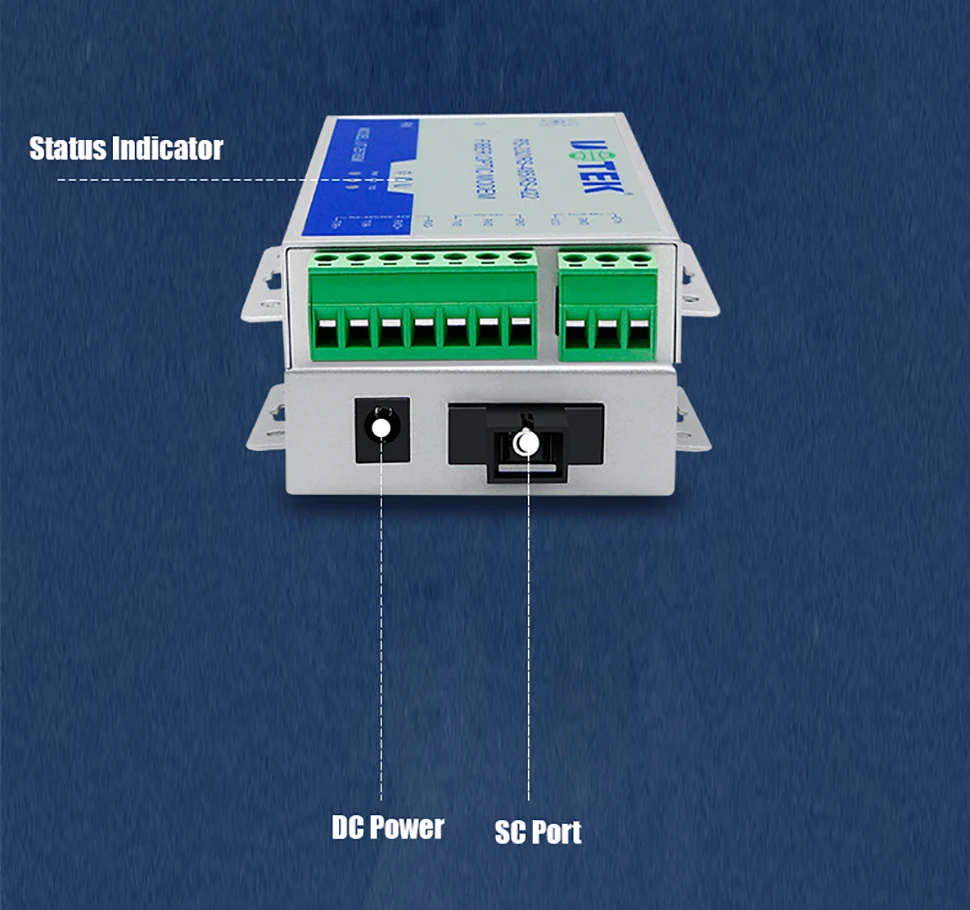

UT-2577SM/UT-2578SM Details

UT-2577SM/UT-2578SM Parameters

● Transmission distance: 20km

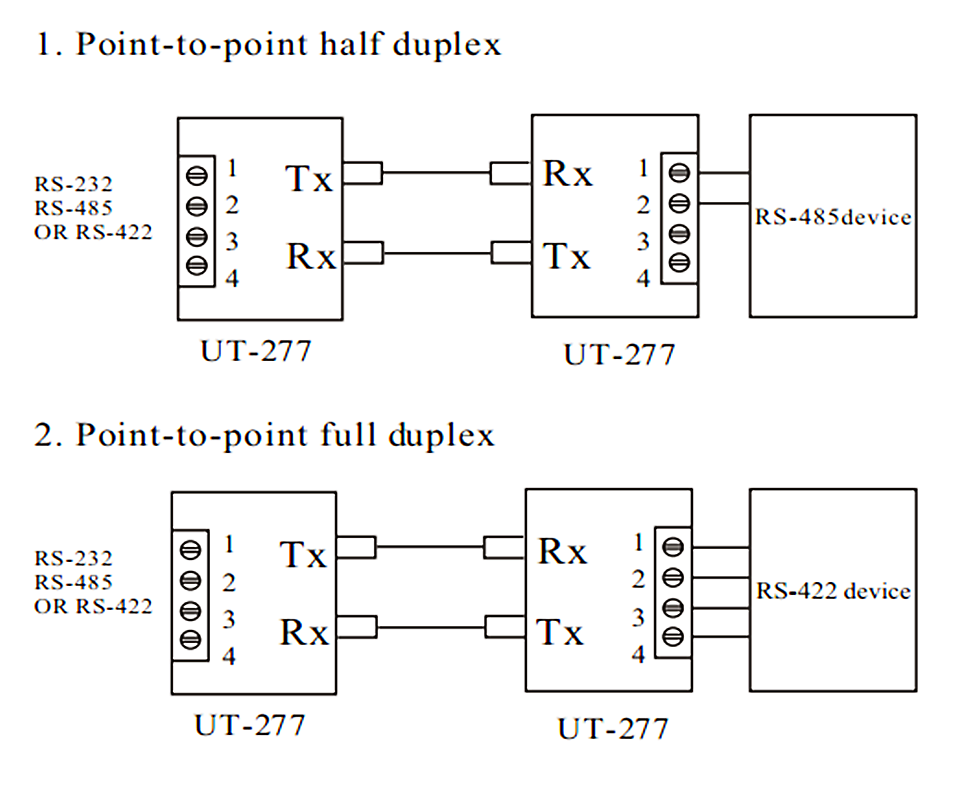

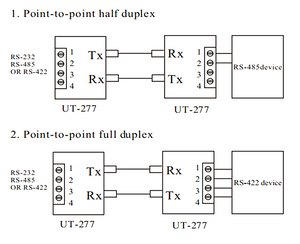

● Point to point or loop circuit (point to multi point) connection

● Supports RS-232, RS-422, RS-485 asynchronous protocol

● RS-232, RS-422/485 working at the same time

● Supports 2 bits (half-duplex) & 4 bits (full-duplex) RS-485 operating mode

● Transmission rate: 460kbps max

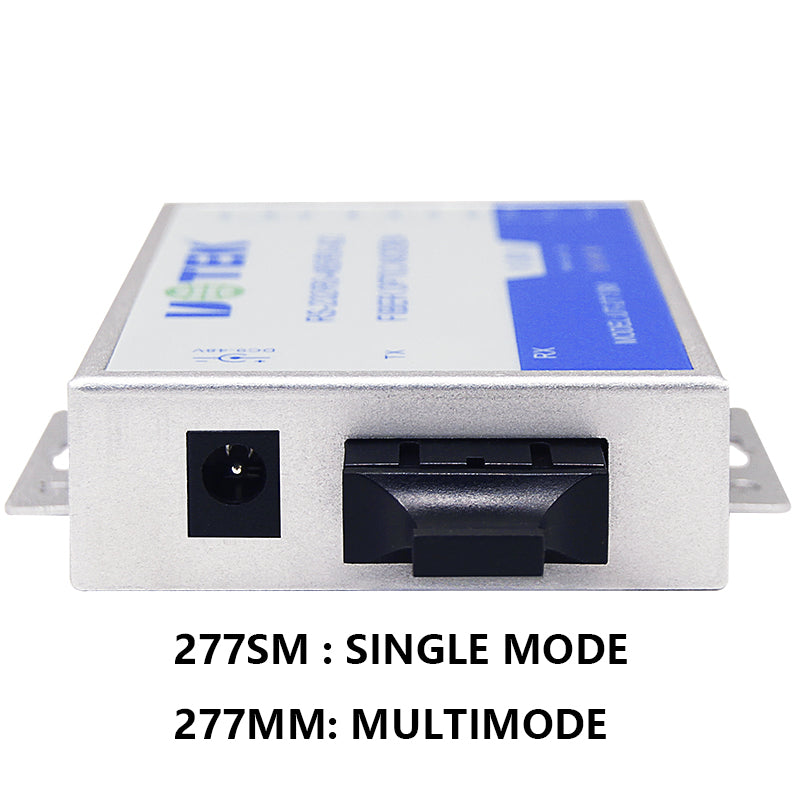

● With optional SC, FC, ST interface

● Supports master-slave working mode

● Slave mode: can be used as Hub

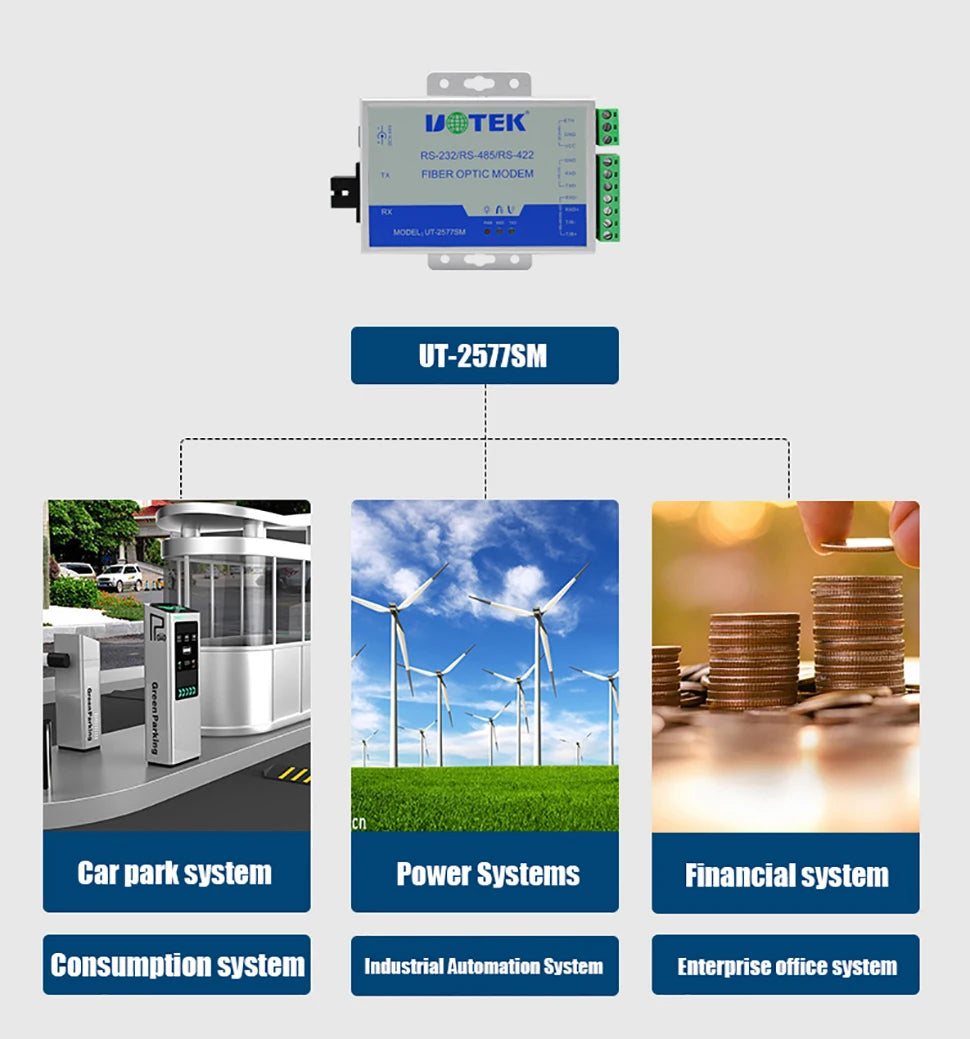

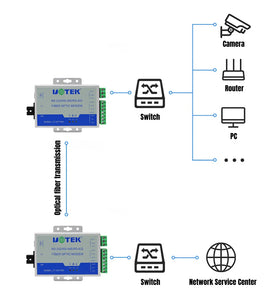

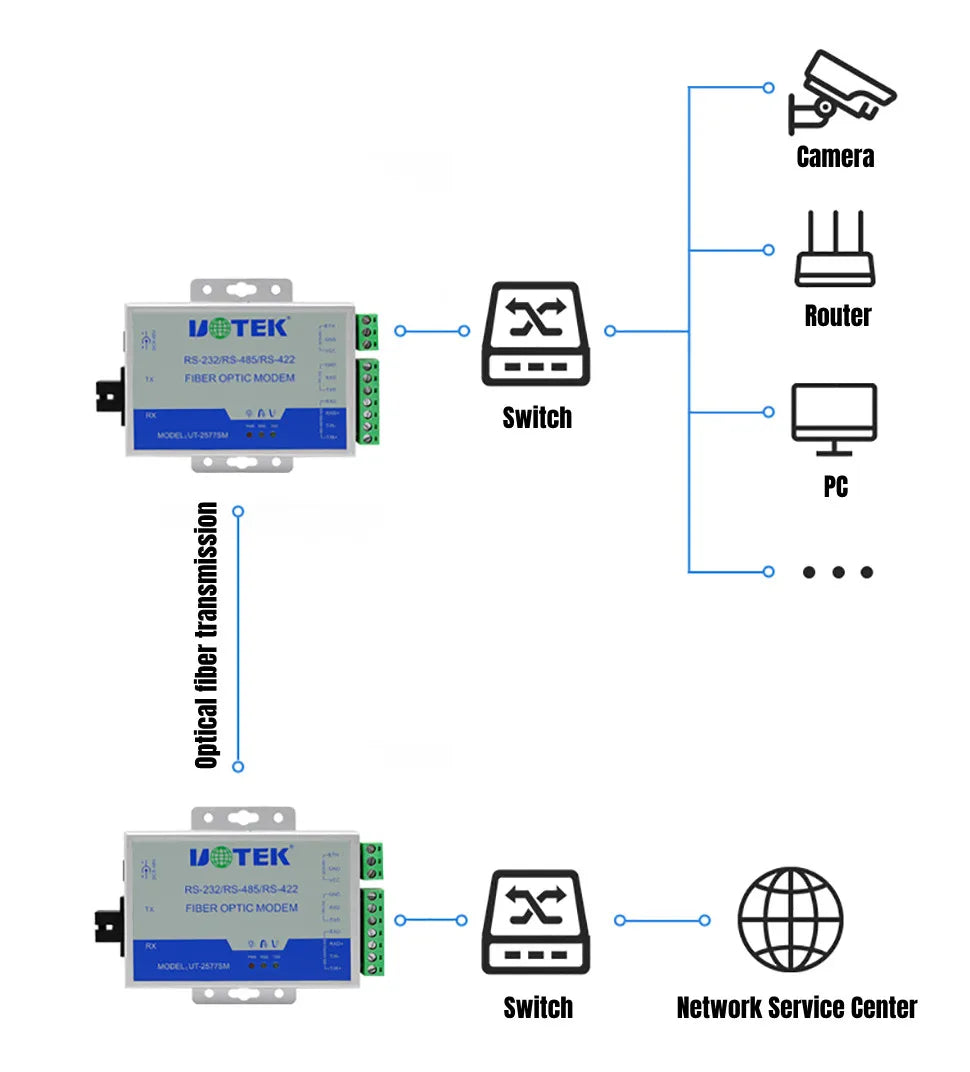

UT-2577SM/UT-2578SM Application
