SUNCOMM S2 WiFi6 5G CPE with SIM Card slot X62 CPU Mobile Home Office Indoor Gaming Wireless 2.4G & 5G Router

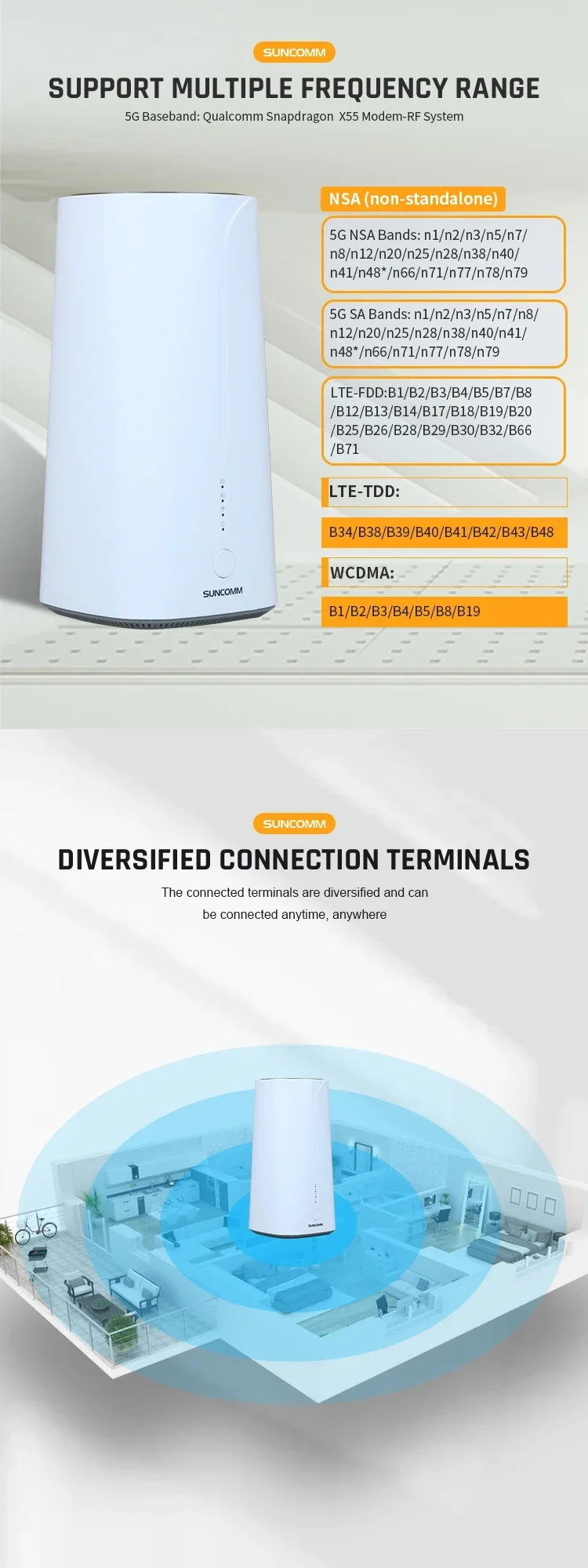

5G Cellular network

1) 5G Baseband: Qualcomm Snapdragon X62 Modem-RF System

2) 5G Network Modes: SA (standalone), NSA (non-standalone)

3) 5G NSA Bands: N1/N2/N3/N5/N7/N8/N12/N13/N14/N18/N20/N25/N26/N28/N29/N30/N38/N40/N41/N48/N66/N70/N71/N75/N76/N77/N78/N79

4) 5G SA Bands: N1/N2/N3/N5/N7/N8/N12/N13/N14/N18/N20/N25/N26/N28/N29/N30/N38/N40/N41/N48/N66/N70/N71/N75/N76/N77/N78/N79

5) 5G Standards:3GPP Release 15

6) 5G SA Transmission Speed:2.1Gbps/900Mbps (up to ISPs)

7) 5G NSA Transmission Speed:2.5Gbps/650Mbps (up to ISPs)

4G Cellular network

8) LTE Category:Down Cat 16/ UP Cat 18

9) LTE-FDD:B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71

10) LTE-TDD: B34/B38/B39/B40/B41/B42/B43/B48

11) LTE Down 4 × 4 MIMO:B1/B2/B3/B4/B7/B25/B30/B32/B34/B38/B39/B40/B41/B42/B43/B48/B66

12) WCDMA:B1/B2/B4/B5/B8/B19

13) LTE : Down 1.0 Gbps;UP 200 Mbps

WiFi6 Datasheet

WiFi 6(802.11ax)

1) Working Radio: #1: 600Mbps @ 2.4GHz; #2: 1200Mbps @ 5.1-5.8GHz

2) Coding Technology:1024-QAM / OFDMA

3) Peak Connections:>100+ Clients

4) Wi-Fi Standard Conformance:WiFi6 and 802.11ac / 802.11n backward

5) Antenna: external 4 pcs high performance antennas with 4 pcs FEM components.

Data Switching

1) Mobile 4G/5G Connection (Support APN)

2) Giga Ethernet Connection

3) MESH:MESH+ hybird

4) 2.4G/5Ghz WiFi

5) Advanced Firewall

6) M AC Filter

7) WiFi Sercurity

8) VPN Passthrough and VPN Client (L2TP PPTP)9) IPV4/IPV6

10) WEB / APP Mangement

11) Firmware upgrade

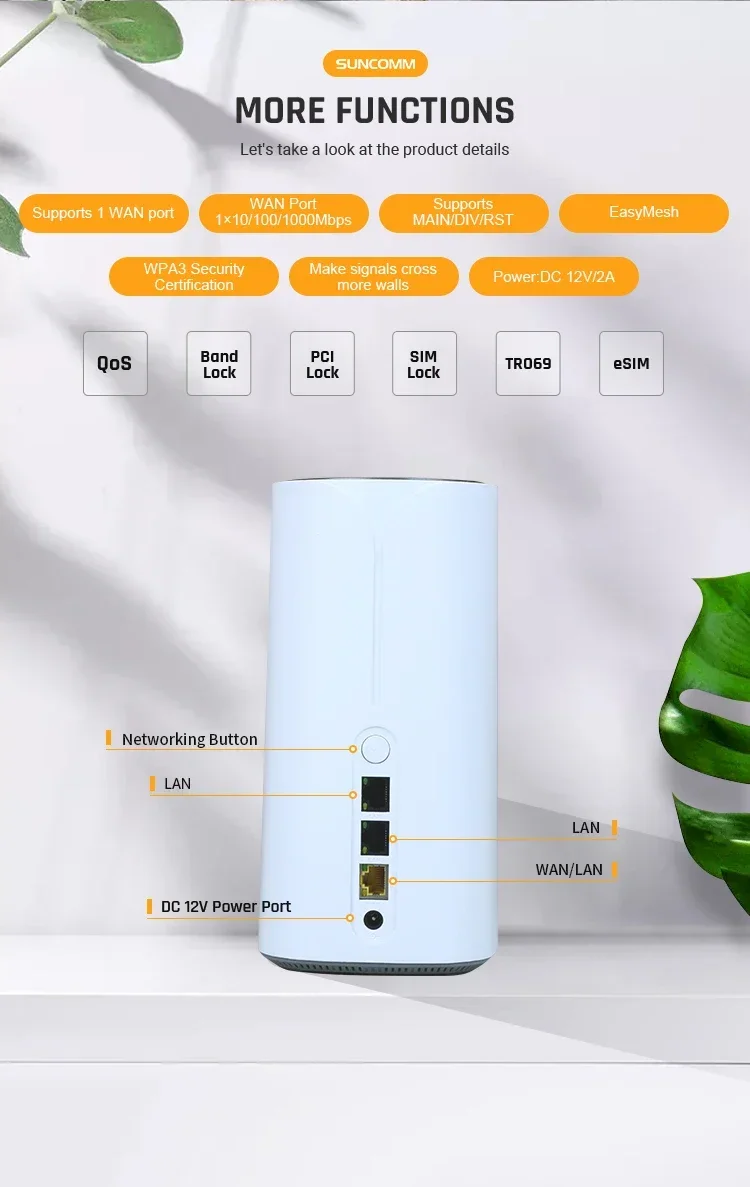

Hardware Specification

1) CPU:     MT7621AT  (AX1800)     /     IPQ5018 (AX3000)

2) Memory:16MB Flash + 256MB DDR3

3) Ethernet:1*1Gbps WAN,2*LAN 1Gbps

4) 1* SIM Slot(Nano-SIM)

5) Reset button

6) MESH+ Button

7) MESH+ LED Switch

8) LED Indicator

– MESH+ Working Status (breathing light)

– 4G Status / – 5G Status  / – WiFi Status  – Power Status

(9) General

– Power Consumption:<20W

– DC Power Supply: 12V/2A

– Working temperature:0℃~40℃, Storage temperature: -20℃~+70℃

– Humidity:5%~95%

– Weight: 0.69kg(N.W.)

Compulsory/Consistency Certification

GCF/ PTCRB/ CE/ Anatel*/ CCC/ RCM/ IC/ FCC/JATE*/ TELEC*/ KC*/ NCC*

Operator certification

T-Mobile/ Verizon*/ AT&T*/ NTT DOCOMO*/Deutsche Telekom*/ Telstra*
