Original ZTE MC6010 Wireless Router 5G CPE Industrial Router 5G 2167Mbps, 2.4G 600Mbps Powerful Outdoor WiFi Repeater Signal Booster

Original ZTE MC6010 Wireless Router 5G CPE Industrial Router Powerful Factory Office Outdoor WiFi Repeater Signal Booster

Description

Original ZTE MC6010 Wireless Router 5G CPE Industry Powerful Factory Office Outdoor WiFi Signal Repeater

MC6000 and MC6010 support 5G SA and NSA modes. Whether the customer uses a 5G private network or a 5G public network, they can be easily accessed. They can also lock in special frequency points for access according to customer requirements. Don't worry about access security at all.

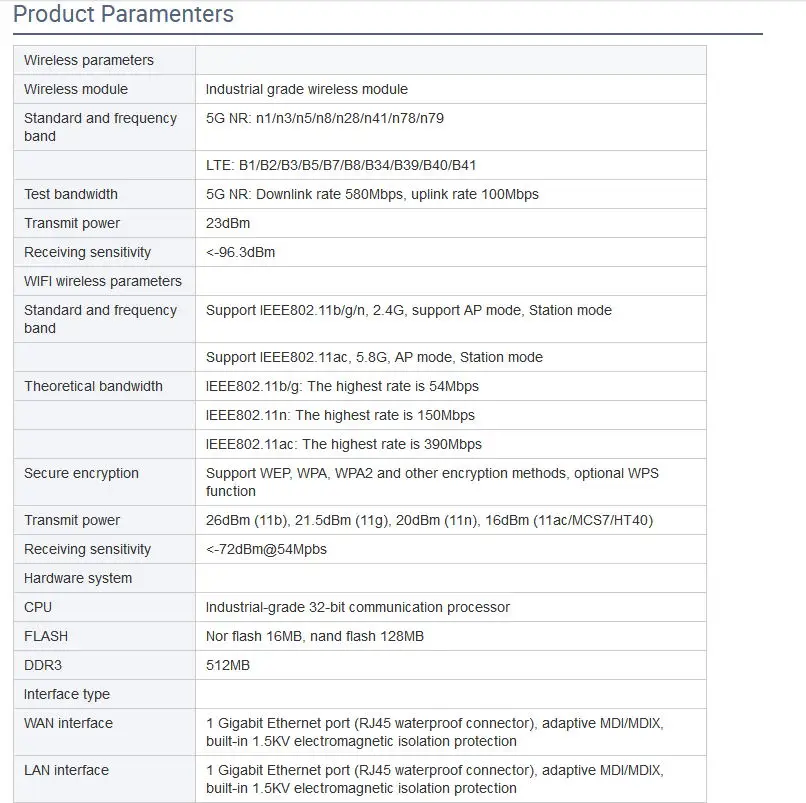

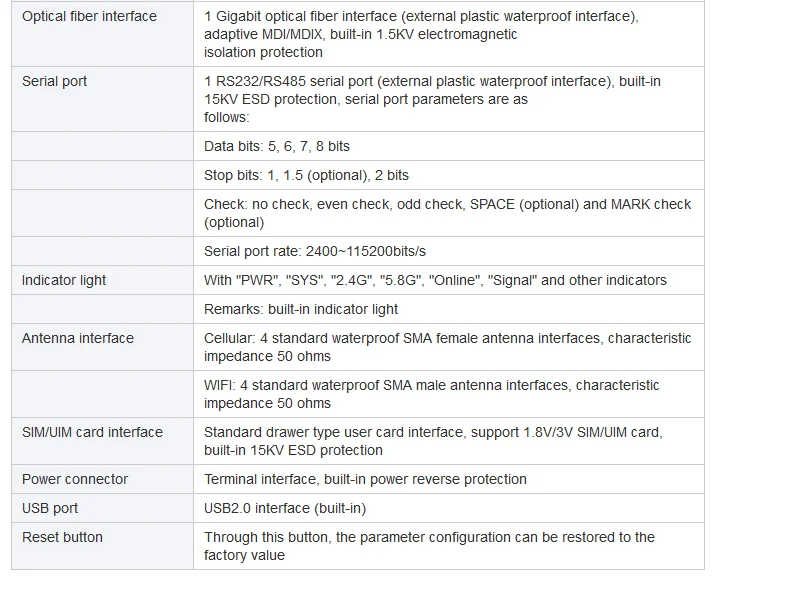

Product Paramenters

Products Description

ZTE Outdoor Industrial CPE Router

MC6010 is a 5G industrial CPE that uses public 3G/4G/5G networks to provide users with wireless long-distance big data transmission functions. The product uses high-performance industrial-grade 32-bit communication processors and industrial-grade wireless modules, with embedded real-time operating system as the software support platform, and provides 1 RS232 (or RS485), 1 Ethernet LAN, and 1 Ethernet WAN, 1 optical fiber interface and support WiFi function, can connect serial device, Ethernet device and WIFI device at the same time, realize data transparent transmission and routing function. This product has been widely used in the M2M industry in the IoT industry chain, such as smart grid, smart transportation, smart home, finance, mobile POS terminals, supply chain automation, industrial automation, smart buildings, fire protection, public safety, environmental protection, meteorology , Digital medical treatment, remote sensing survey, military, space exploration, agriculture, forestry, water affairs, coal mine, petrochemical and other fields.

Product Features

Industrial-grade application design

Adopting high-performance industrial-grade wireless module

Adopting high-performance industrial-grade 32-bit communication processor

Adopting a metal casing with a protection level of IP68. The metal shell is safely isolated from the system, which is especially suitable for the application of industrial control field.

Wide power input (DC 9~36V)

Stable and reliable

WDT watchdog design to ensure system stability

Adopt a complete anti-drop mechanism to ensure that the data terminal is always online

Ethernet interface built-in 1.5KV electromagnetic isolation protection

RS232/RS485 interface power and data isolation, in line with CSA, UL and IEC standards

Built-in 15KV ESD protection for SIM/UIM card interface

Built-in reverse phase protection and overvoltage protection for the power interface

Standard easy to use

Provides standard RS232, RS485, Ethernet and WIFI interfaces, which can be directly connected to serial devices, Ethernet devices and WIFI devices

Provide standard wired WAN port (support standard PPPOE protocol), which can be directly connected to ADSL equipment

Intelligent data terminal, can enter data transmission state after power on

Easy to use, flexible, multiple working mode options

Convenient system configuration and maintenance interface (including local and remote WEB mode or CLI mode)

Support wall-mounted, pole-mounted installation

Powerful

Support multiple WAN connection methods, including static IP, DHCP, PPPOE, 3G/UMTS/4G/LTE, dhcp-4G

Support 3G/4G/5G and wired WAN dual link intelligent switching backup function (optional)

Support VPN client (PPTP, L2TP, IPSEC) (Note: Only the VPN version supports)

Support VPN server (PPTP, L2TP, IPSEC) (Note: Only the VPN version supports)

Support remote management, SYSLOG, SNMP, TELNET, SSHD, HTTPS

Support local and remote online upgrades, import and export configuration files

Support NTP, built-in RTC

Support multiple DDNS at home and abroad

Support VLAN, MAC address cloning, PPPoE server

WIFI supports 802.11b/g/n/ac, supports WIFI AP, AP Client, repeater, repeater bridge and other working modes (optional)

WIFI supports WEP, WPA, WPA2 and other encryption methods, MAC address filtering

Support multiple online and offline trigger modes, including SMS, phone ringing, serial data, network data trigger online and offline modes

Support APN/VPDN

Support multi-channel DHCP server and DHCP client, DHCP binding MAC address, DDNS, firewall, NAT, DMZ host, QoS, traffic statistics, real-time display of data transmission rate

Support TCP/IP, UDP, FTP (optional), HTTP and other network protocols

Support SPI firewall, VPN traversal, access control, URL filtering

Support IPV6/IPV4
