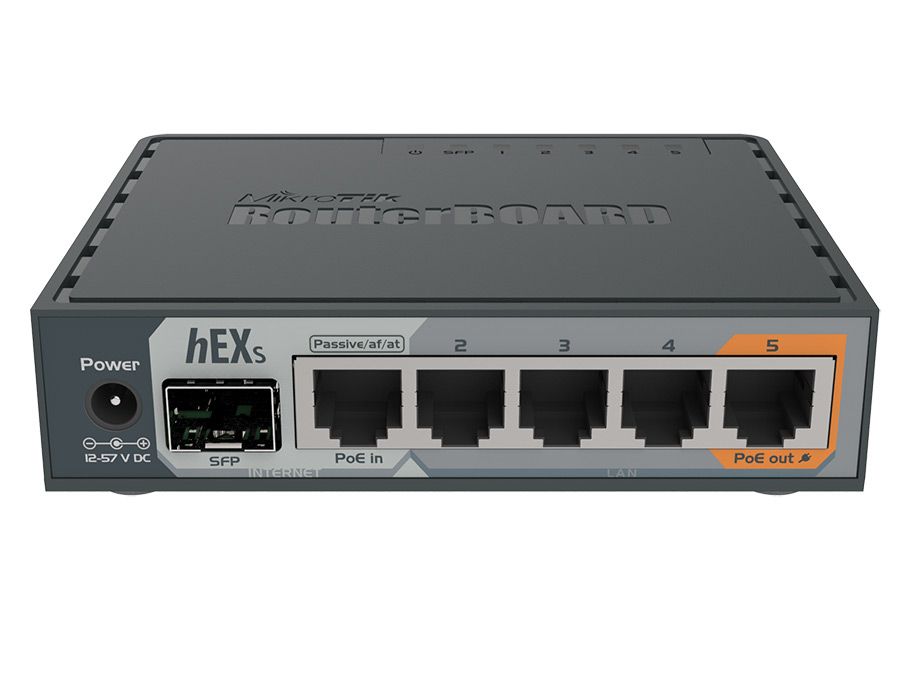

MikroTik hEX S - Desktop Router with 1 SFP, 5 Gb Ports & 1 USB port, Dual-core 880 MHz CPU, 256 MB RAM, PoE in/out, 12v-57v, 5 Gigabit Ethernet ports

Regular price: R 3,485.00
Sale price: R 3,485.00
Regular price
Unit price: per

Shipping calculated at checkout.

Quantity must be 1 or more

MikroTik hEX S - Desktop Router with 1 SFP, 5 Gb and 1 USB port, RB760iGS

Description

MikroTik hEX S - Desktop Router with 1 SFP, 5 Gb and 1 USB port

hEX S

5x Gigabit Ethernet, SFP, Dual Core 880MHz CPU, 256MB RAM, USB, microSD, RouterOS L4, IPsec hardware encryption support and The Dude server package

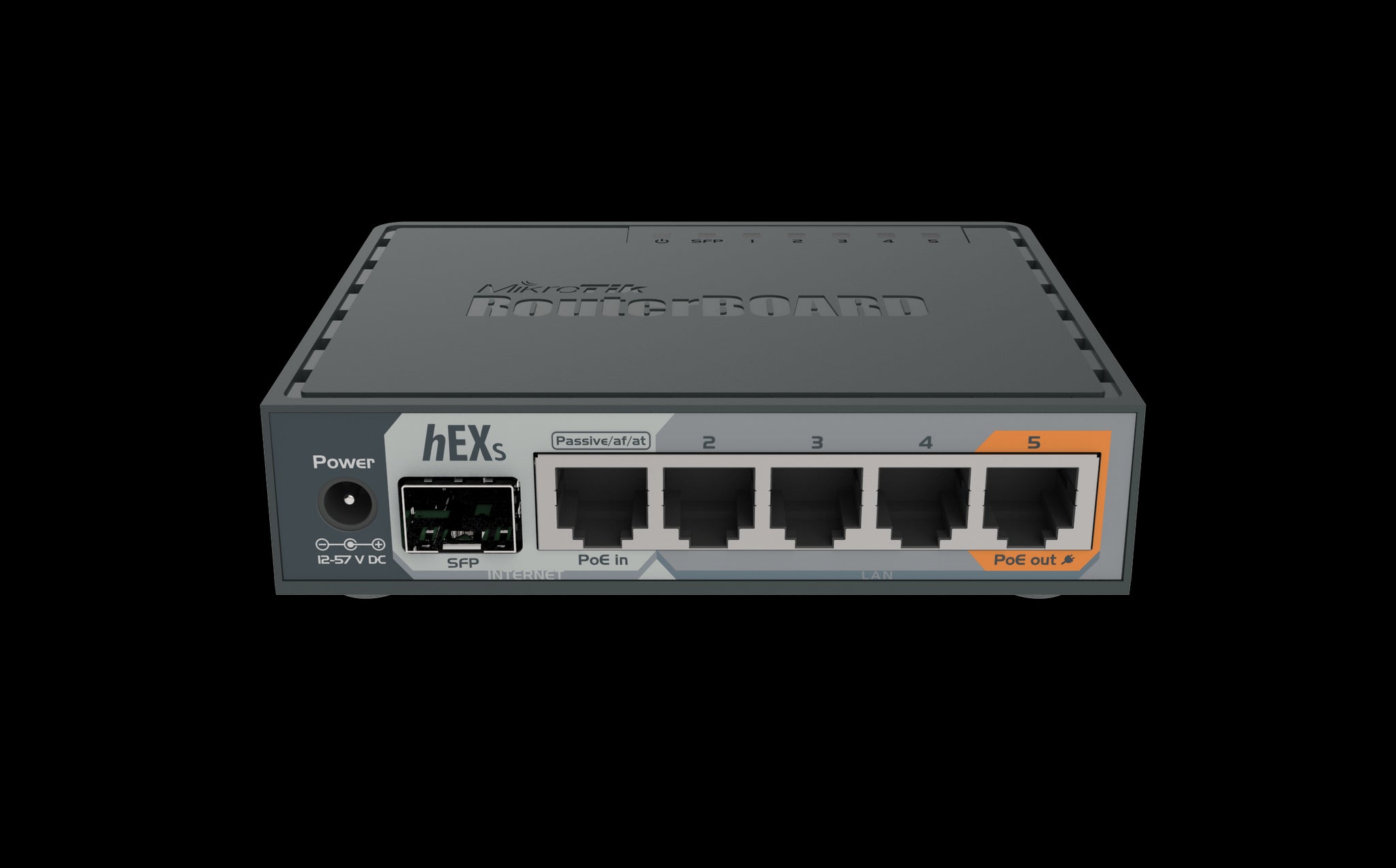

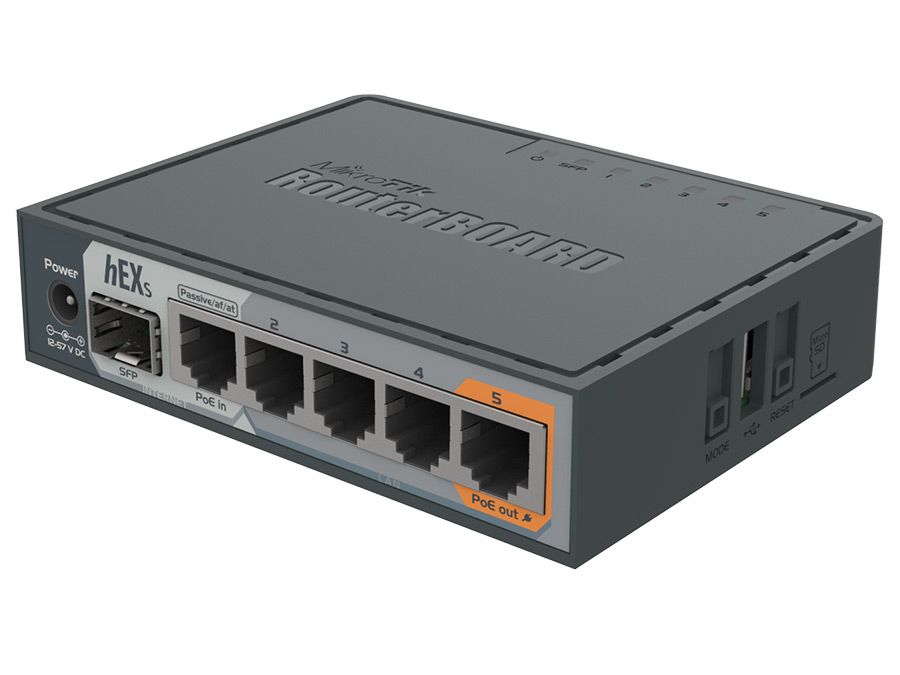

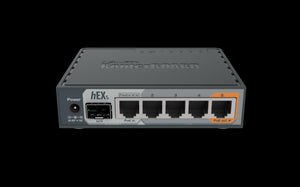

hEX S is a five port Gigabit Ethernet router for locations where wireless connectivity is not required. Compared to the hEX, the hEX S also features an SFP port and PoE output on the last port.

It is affordable, small and easy to use, but at the same time comes with a very powerful dual core 880 MHz CPU and 256 MB RAM, capable of all the advanced configurations that RouterOS supports. The device has a USB 2.0, PoE output for Ethernet port #5 and a 1.25Gbit/s SFP cage. The port #5 can power other passive PoE capable devices with the same voltage as applied to the unit

IPsec hardware encryption (~470 Mbps) and The Dude server package is supported, microSD slot on it provides improved r/w speed for file storage and Dude.

SKU#: MT-RB760iGS
Warranty: 1 Year
Manufacturer SKU#: RB760iGS

Categories:
Networking, Routers, MikroTik
Brand: MikroTik

Features

Dual-core 880 MHz CPU, 256 MB RAM, 5 Gigabit Ethernet ports, 1 USB, 1 SFP, PoE in/out, 12v-57v

Specifications

Details
Product code	RB760iGS
Architecture	MMIPS
CPU	MT7621A
CPU core count	2
CPU nominal frequency	880 MHz
CPU Threads count	4
Switch chip model	MT7621A
Dimensions	113 x 89 x 28 mm
RouterOS license	4
Operating System	RouterOS
Size of RAM	256 MB
Storage size	16 MB
Storage type	FLASH
MTBF	Approximately 100'000 hours at 25C
Tested ambient temperature	-40°C to 70°C
IPsec hardware acceleration	Yes
Suggested price	N/A

Powering

Details
Number of DC inputs	2 (DC jack, PoE-IN)
DC jack input Voltage	12-57 V
Max power consumption	24 W
Max power consumption without attachments	6 W
Cooling type	Passive
PoE in	802.3af/at
PoE in input Voltage	12-57 V

PoE-out

Details
PoE-out ports	Ether5
PoE out	Passive PoE up to 57V
Max out per port output (input 18-30 V)	500 mA
Max out per port output (input 30-57 V)	500 mA
Max total out (A)	500 mA

Ethernet

Details
10/100/1000 Ethernet ports	5

Fiber

Details
SFP ports	1

Peripherals

Details
Memory card type	microSD
Memory Cards	1
Number of USB ports	1
USB Power Reset	Yes
USB slot type	USB type A
Max USB current (A)	1

Other

Details
PCB temperature monitor	Yes
Voltage Monitor	Yes
Mode button	Yes
Beeper	Yes

Certification & Approvals

Details
Certification	CE, EAC, ROHS
IP	IP20

Included parts

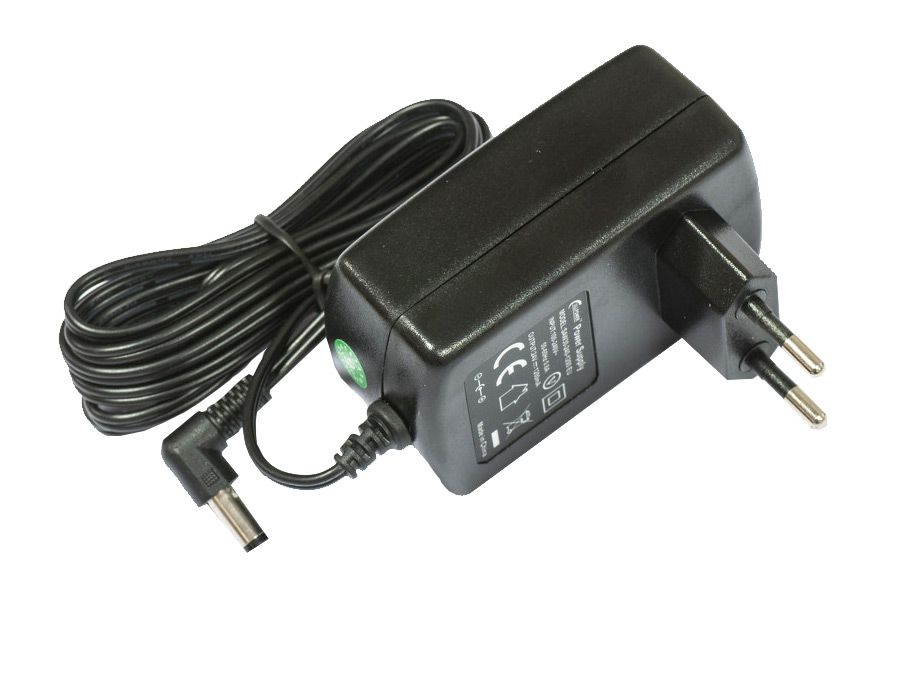

24V 1.2A power adapter
