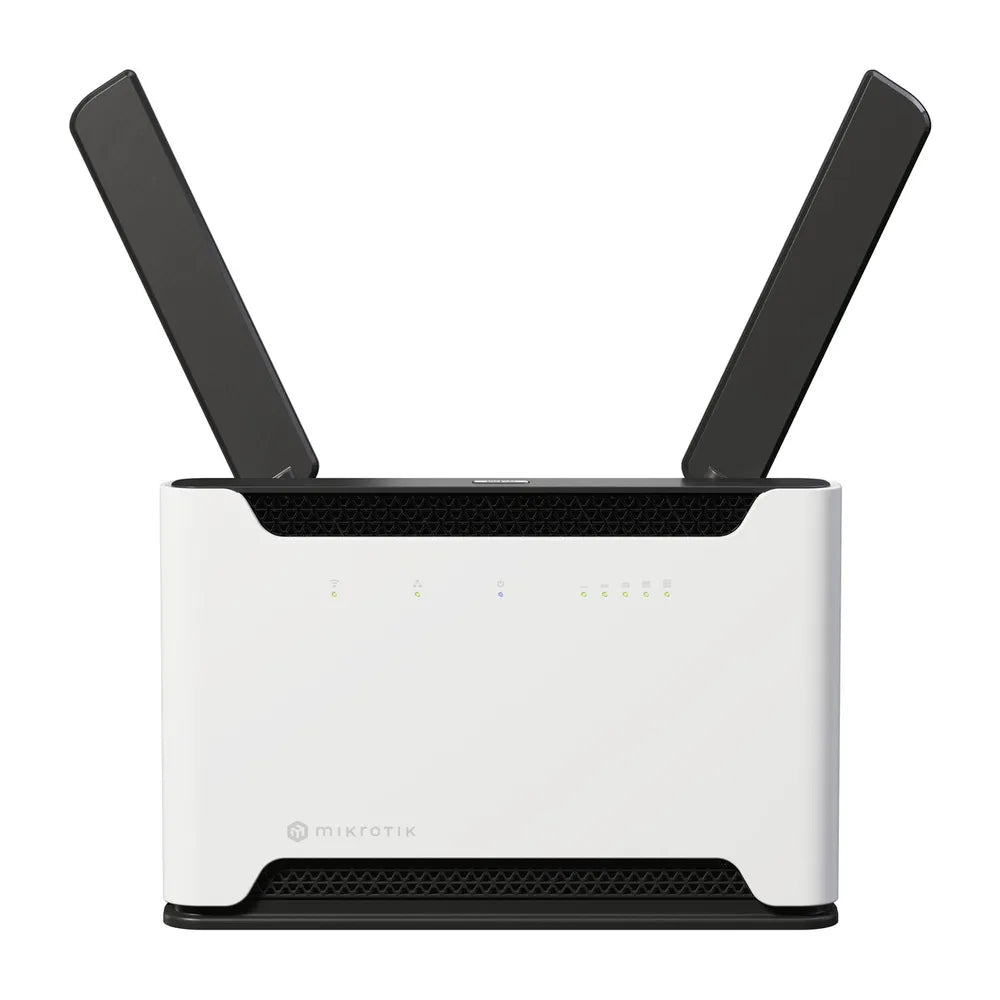

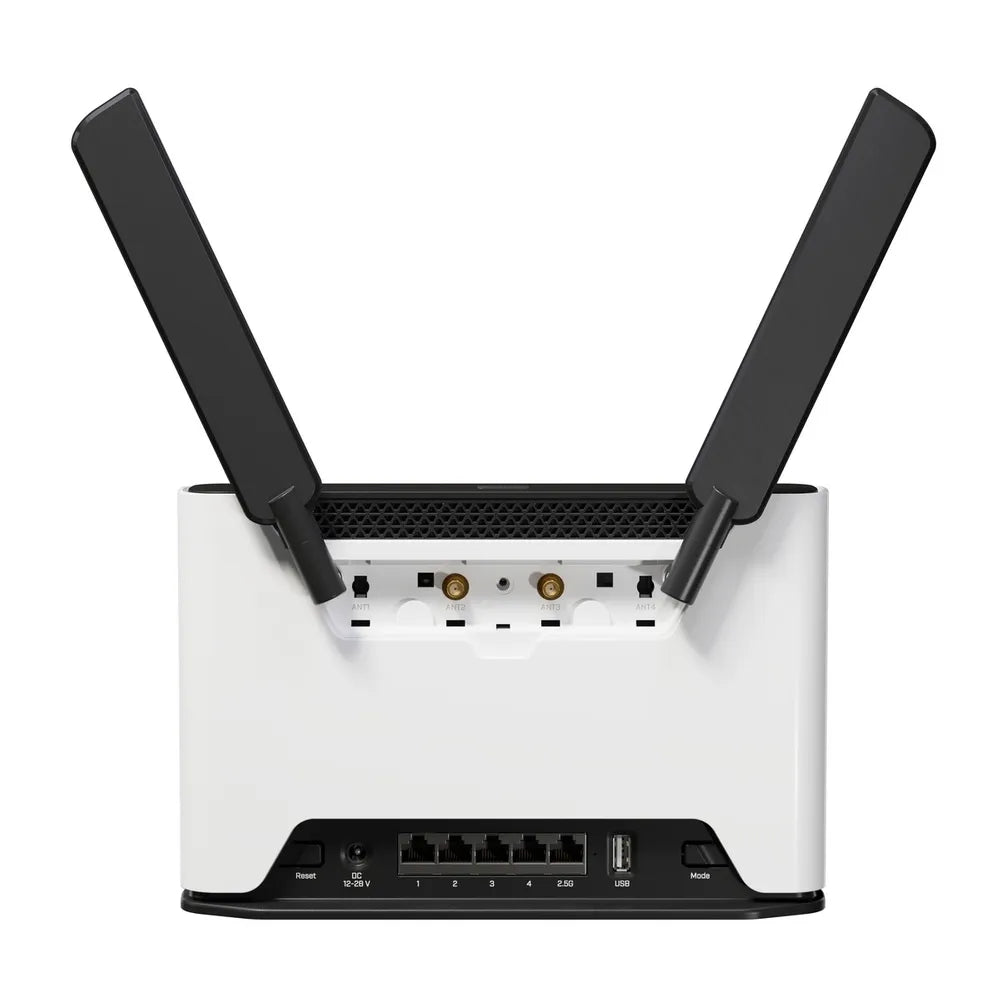

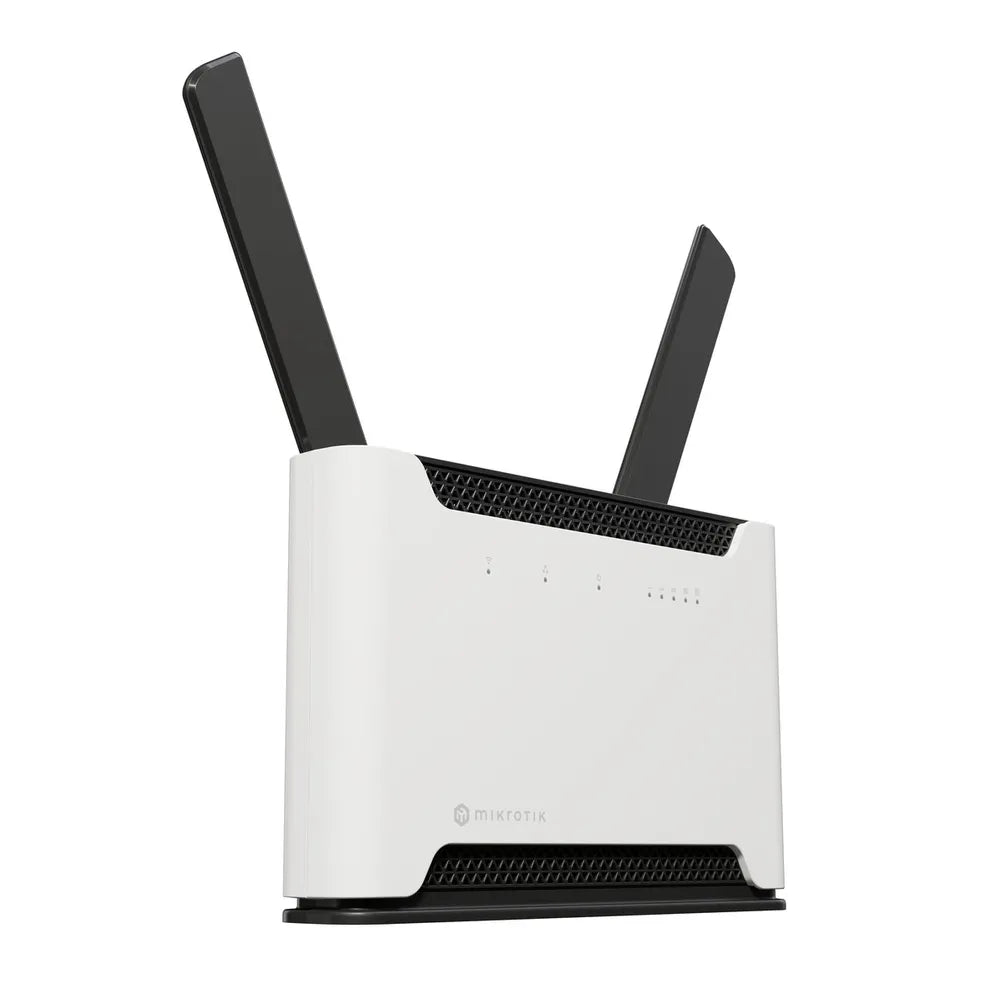

MikroTik Chateau LTE6 ax WiFi Router with 1.8GHz 4 core CPU, 1GB RAM, 1 x 2.5 Gigabit LAN, 4 x Gigabit LAN, built-in 2.4Ghz wireless, built-in 5Ghz

Regular price: R 6,677.90
Sale price: R 6,677.90
Regular price
Unit price: per

Shipping calculated at checkout.

Quantity must be 1 or more

Description

S53UG+5HAXD2HAXD-TC&FG621-EA

Chateau LTE6 ax

A supercharged Chateau LTE6 access point with even faster wireless and an improved CPU. For mobile network users who need that extra speed and responsiveness of Gen6 ax wireless. Perfect for large, busy households or medium-sized offices.

Chateau is a high-speed, dual-band home access point that adapts to your needs. It features a powerful quad- core ARM CPU, a fast, reliable, and responsive CAT6 LTE modem for excellent mobile connectivity, and the most advanced networking software on the market – RouterOS. But don’t worry – it can be as simple or as complex as you want. Chateau is designed to serve the most diverse user groups: IT professionals can push it to its limits, regular households can plug it in and forget it exists.

Compared to the regular Chateau LTE6, this version features a supercharged quad-core ARM CPU running at 1.8 GHz. It can handle even the most complex tasks without breaking a sweat. You can run complex firewall rules, provide encrypted VPN tunnels for an entire office, run the most demanding container apps right on your router, and more! The addition of 2.5 Gigabit Ethernet gives you even more options. You can use the ultra- fast port to connect extra devices – like a home media server – or use it as your primary ISP connection while keeping the LTE modem for backup.

The freedom of LTE

Reach consistent speeds of up to 300 Mbps with carrier aggregation, as CAT6 allows devices to use multiple bands simultaneously. That is a huge advantage in areas with many LTE users. Chateau LTE6 provides better responsiveness in a crowded environment and higher efficiency for weaker signal situations in the countryside.

Chateau features two integrated LTE antennas (2x2 MIMO compatible) for strong mobile connectivity out of the box. For improved performance in low-signal areas, you can connect up to two external LTE antennas (not included) via the SMA connectors.

Perfect for all walks of life

Chateau comes with all the advanced RouterOS features, so you’re getting enterprise-level solutions with consumer-grade pricing. Run a secure VPN from the office directly to your home, enable all kinds of parental control, dive deep into specific firewall rules and IPsec hardware acceleration, configure VLANs, set up e-mail or SMS notifications... You can even automate complex trigger notifications. Chateau supports the TR-069 technology that allows creating custom remote client management options.

Specifications

Details
Product code	S53UG+5HaxD2HaxD-TC&FG621-EA
Architecture	ARM 64bit
CPU	IPQ-6010
CPU core count	4
CPU nominal frequency	auto (864 -1800) MHz
Switch chip model	IPQ-6010
RouterOS license	4
Operating System	RouterOS v7
Size of RAM	1 GB
Storage size	128 MB
Storage type	NAND
MTBF	Approximately 200'000 hours at 25C
Tested ambient temperature	-40°C to 70°C
IPsec hardware acceleration	Yes
Suggested price	N/A

Powering

Details
Number of DC inputs	1 (DC jack)
DC jack input Voltage	12-28 V
Max power consumption	17 W
Max power consumption without attachments	13 W
Cooling type	Passive

Mobile

Details
3G Category	R8 (42.2Mbps Downlink, 11.2Mbps Uplink)
3G bands	1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
LTE Category	6 (300Mbit/s Downlink, 50Mbit/s Uplink)
MIMO DL	2x2
MIMO UL	1x1
LTE FDD bands	1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 28 (700MHz)
LTE TDD bands	38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz)
TAC	86335904

Wireless specifications

Details
Wireless 2.4 GHz Max data rate	574 Mbit/s
Wireless 2.4 GHz number of chains	2
Wireless 2.4 GHz standards	802.11b/g/n/ax
Antenna gain dBi for 2.4 GHz	2
Wireless 2.4 GHz chip model	QCN-5022
Wireless 2.4 GHz generation	Wi-Fi 6
Wireless 5 GHz Max data rate	1200 Mbit/s
Wireless 5 GHz number of chains	2
Wireless 5 GHz standards	802.11a/n/ac/ax
Antenna gain dBi for 5 GHz	4
Wireless 5 GHz chip model	QCN-5052
Wireless 5 GHz generation	Wi-Fi 6

Ethernet

Details
10/100/1000 Ethernet ports	4
Number of 2.5G Ethernet ports	1

Peripherals

Details
Number of SIM slots	1 Modem (Micro SIM)
Number of USB ports	1
USB Power Reset	Yes
USB slot type	USB type A
Max USB current (A)	1

Other

Details
PCB temperature monitor	Yes
Voltage Monitor	Yes
Mode button	Yes

Certification & Approvals

Details
Certification	CE, EAC, ROHS
IP	20

Wireless specifications

2.4 GHz	Transmit (dBm)	Receive Sensitivity
1MBit/s		-100
11MBit/s		-94
6MBit/s	24	-96
54MBit/s	21	-80
MCS0	24	-96
MCS7	20	-75
MCS9	19	-70
MCS11	17	-67

5 GHz	Transmit (dBm)	Receive Sensitivity
6MBit/s	24	-96
54MBit/s	21	-80
MCS0	24	-96
MCS7	20	-75
MCS9	19	-70
MCS11	17	-67

Included parts

The MikroTik Chateau LTE6 ax WiFi Router with 1.8GHz 4 core CPU, 1GB RAM, 1 x 2.5 Gigabit LAN, 4 x Gigabit LAN, built-in 2.4Ghz wireless, built-in 5Ghz destined to impress, and priced at only R 6,677.90, for a limited time.
