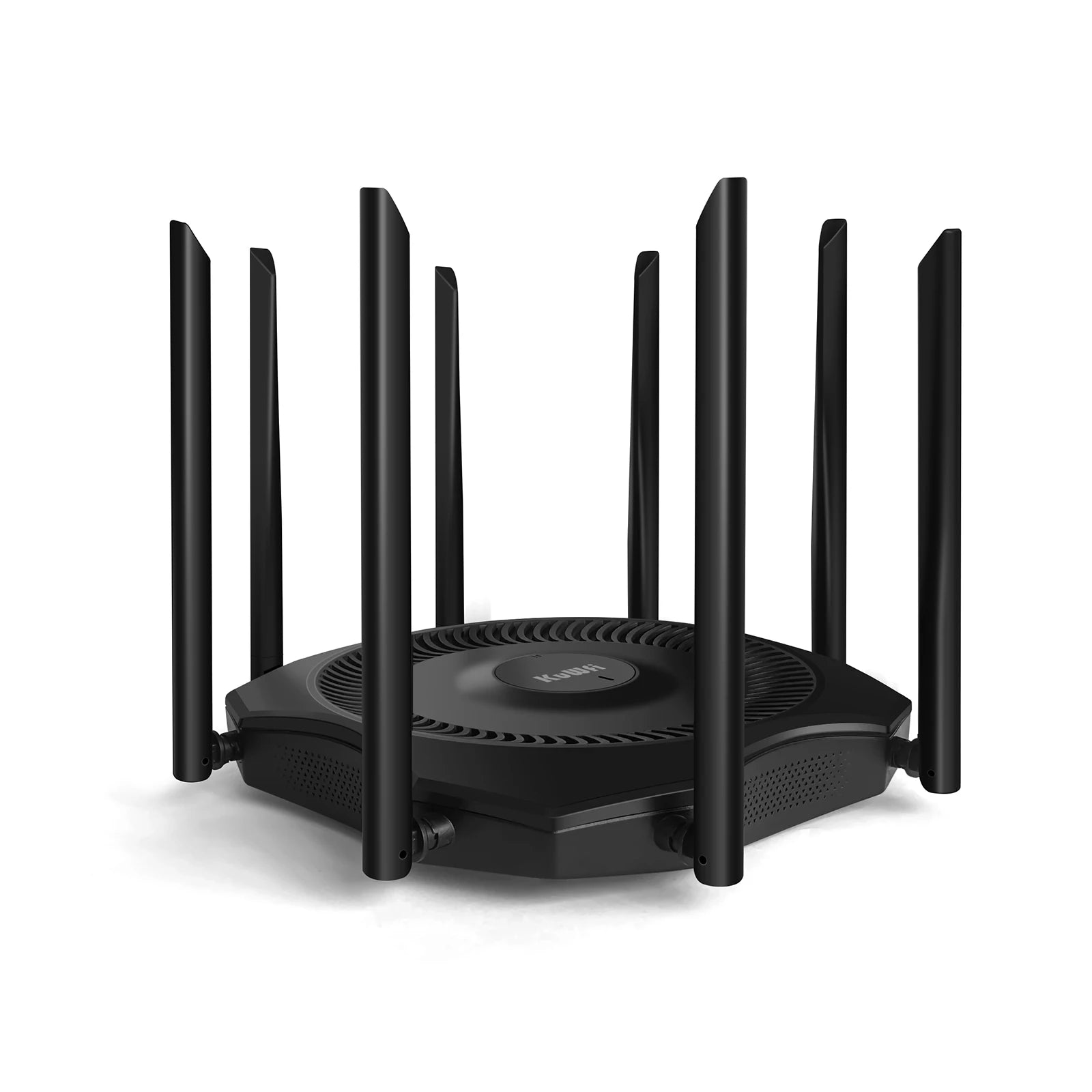

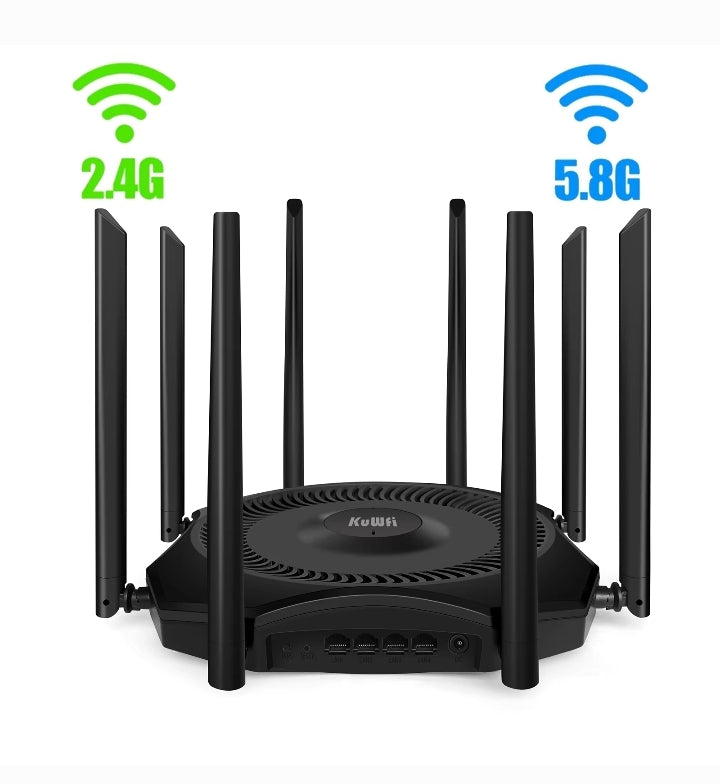

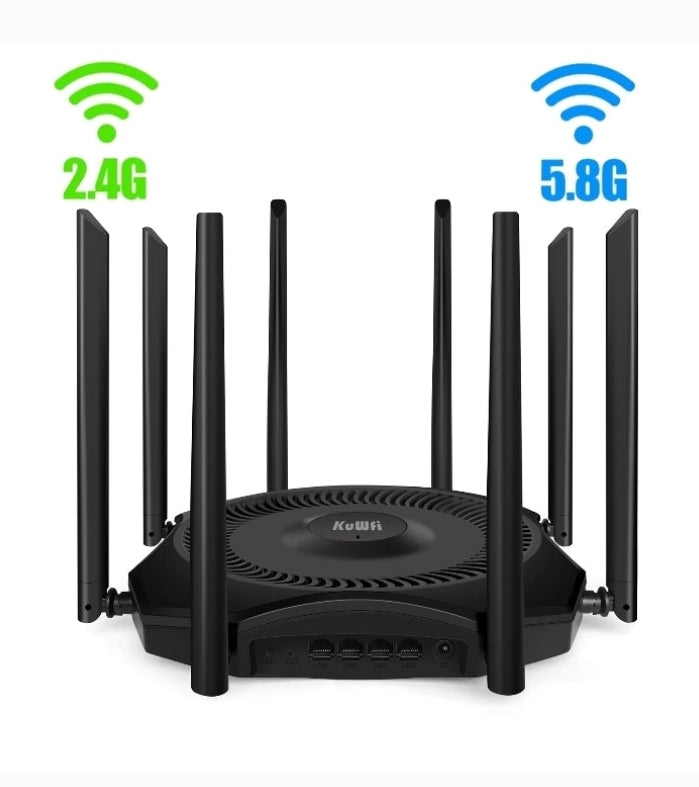

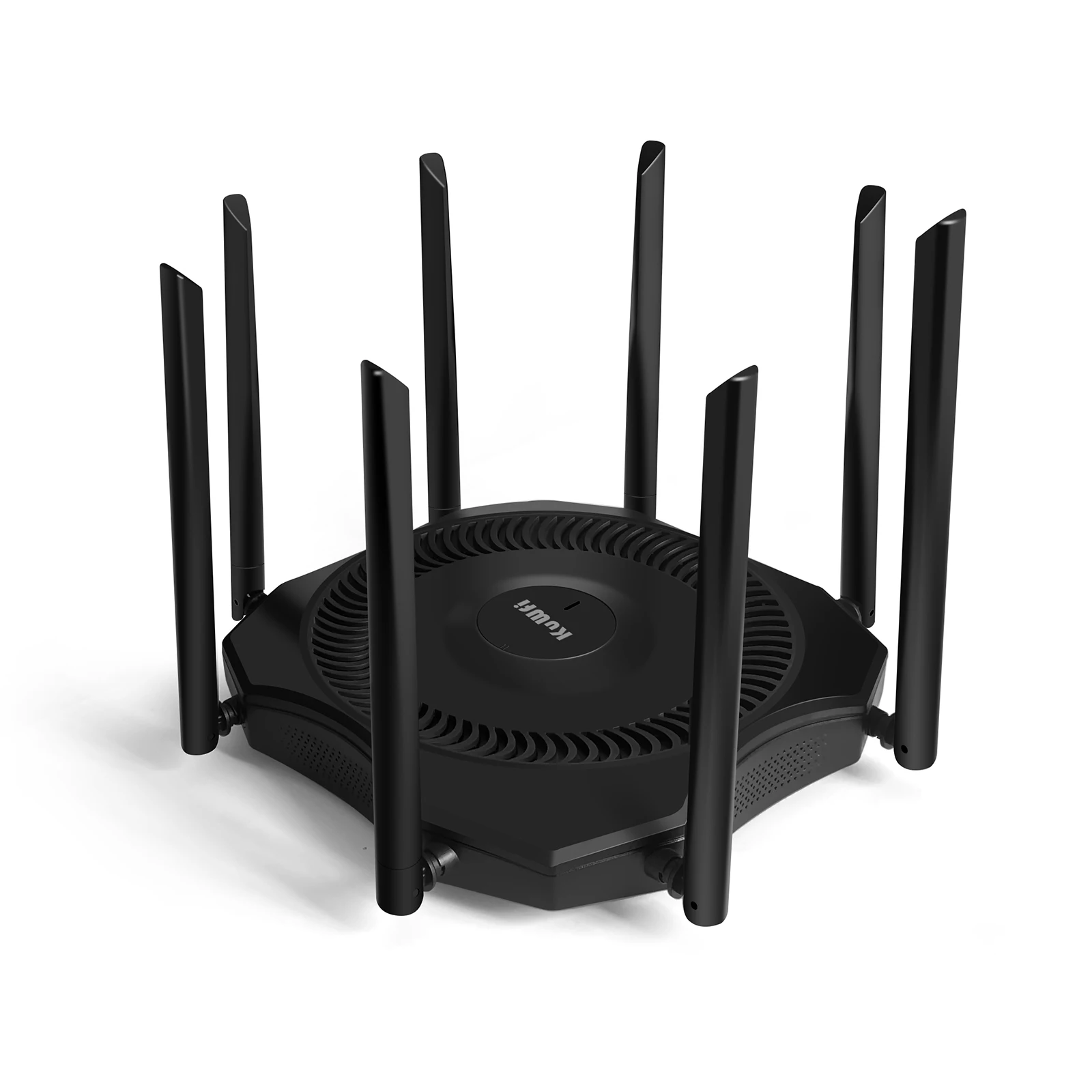

KuWFi 1200Mbps AP Router 11ac 2.4G 5G Dual Band WiFi Router External Antennas Gigabit WAN LAN Port Support 64 Users MESH VPN
SPECIFICATIONS
2.4G MIMO technology: 802.11b/g/n
2.4G Wi-Fi Transmission Rate: 300 Mbps
2.4Ghz WiFi Speed: Up to 300Mbps
5.8G MIMO technology: 802.11a/n/ac
5G Wi-Fi Transmission Rate: 867Mbps
5Ghz WiFi Speed: Up to 867Mbps
Antenna Type: Fixed
Application: Home
Brand Name: KuWFi
Certification: CE
Choice: yes
Frequency: 5 GHz
Frequency Band Class: Dual-Band
Function: Firewall
High-concerned chemical: None
LAN Port: 3x 10/100/1000Mbps
LAN Ports: 1
Max. LAN Data Rate: 1000Mbps
Number of USB Interfaces: None
Package: Yes
Recommended Uses: Home
Standards And Protocols: Wi-Fi 802.11g,Wi-Fi 802.11b,Wi-Fi 802.11n,Wi-Fi 802.11ac
Support Mesh: Support
Support Wi-Fi Users/Devices Number: 64
Supports WDS: No
Supports WPS: Yes
Type: WireLess
WAN Port: 1x 10/100/1000Mbps
WAN Ports: 1 x10/100/1000Mbps
Wi-Fi Supported Frequency: 2.4G & 5G
Wi-Fi Transmission Standard: 802.11ac
Wired Transfer Rate: 150 Mbps
Wireless Communication Standard: 802.11.ac
Wireless transmission rate: 900M
With Modem Function: No
semi_Choice: yes
Features:

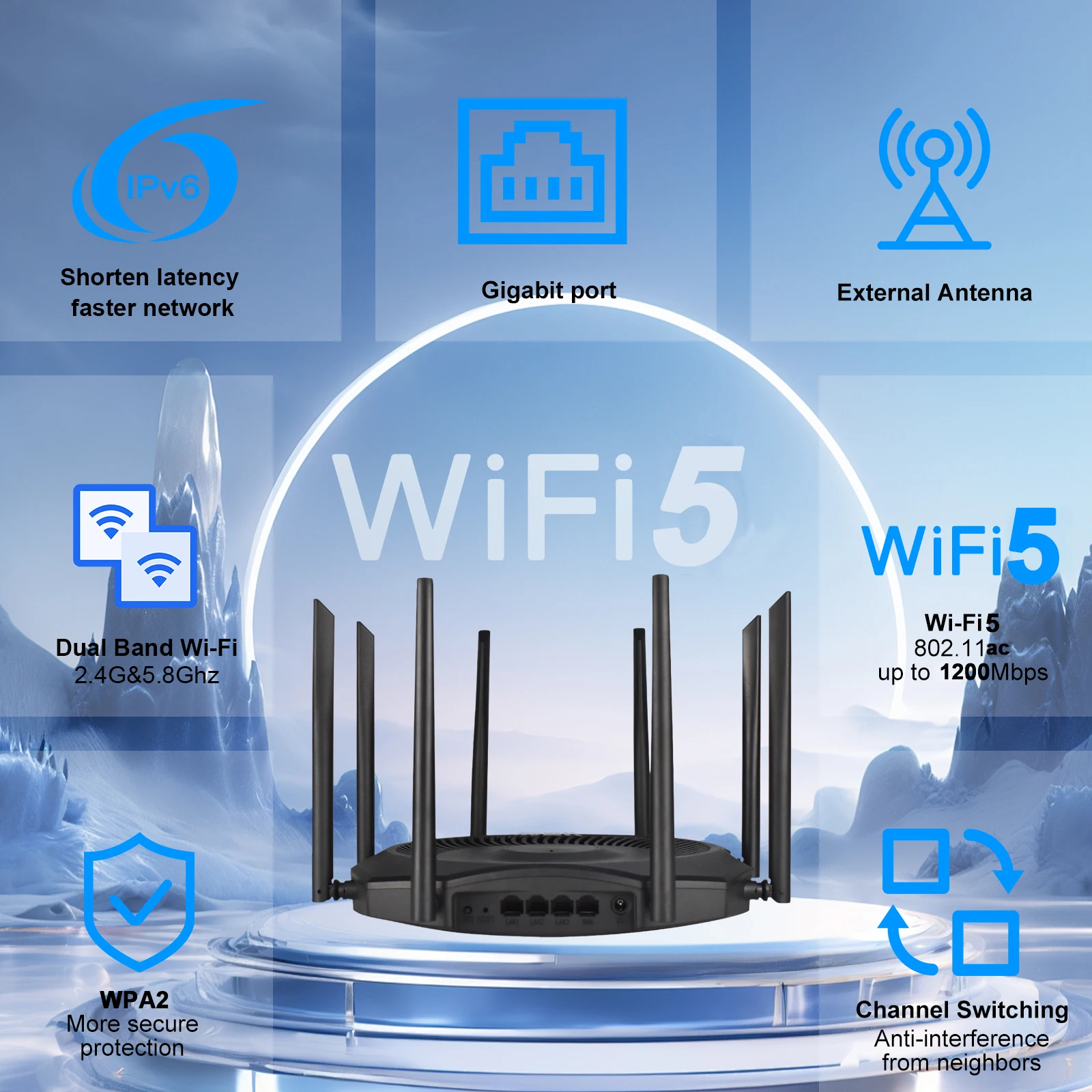

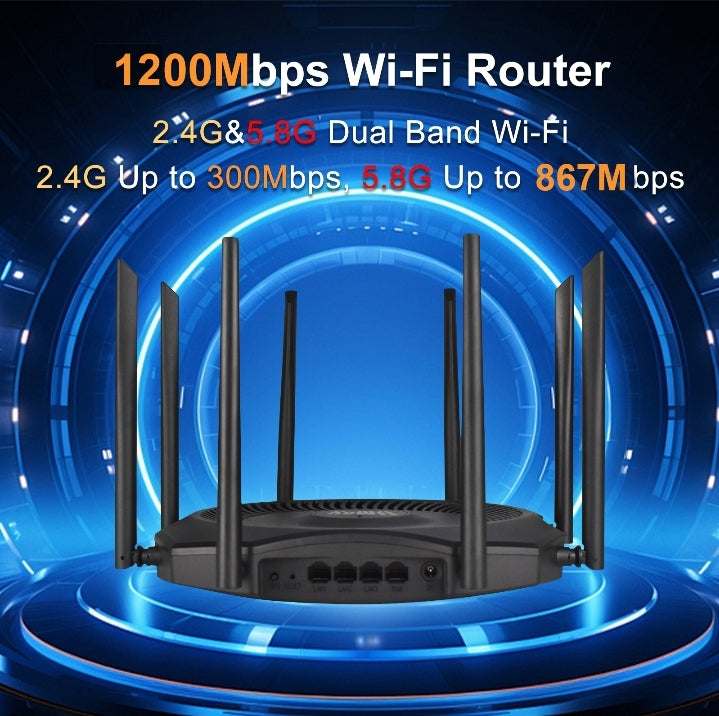

1200Mbps Dual Band Wi-Fi5 Router

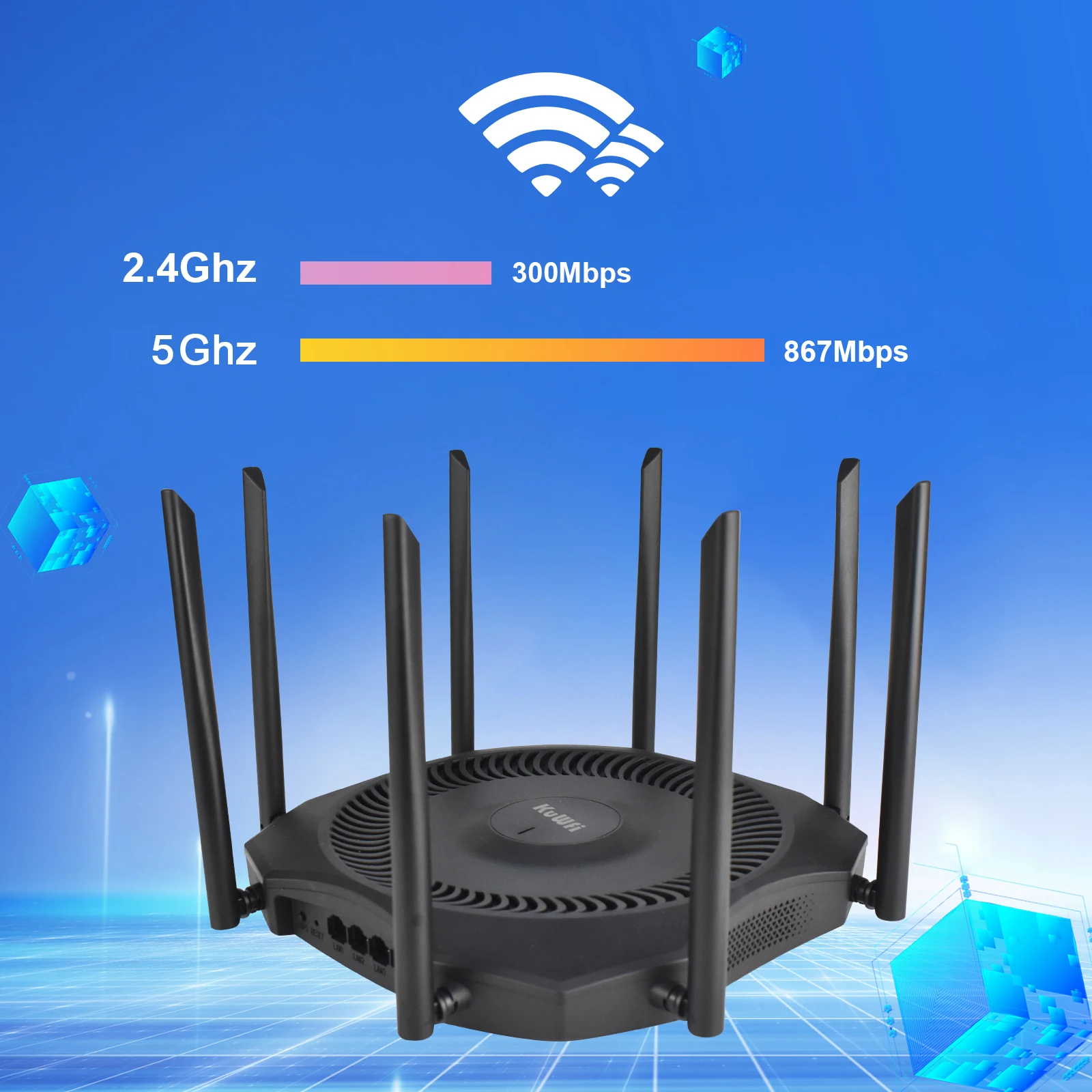

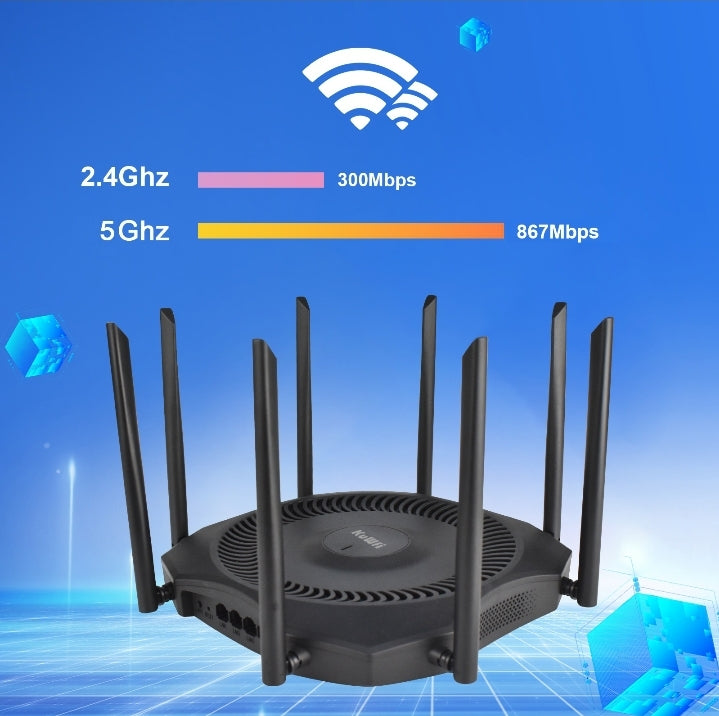

Supports the 802.11ac protocol, providing wireless access speeds of 300Mbps in 2.4GHz and 867Mbps in 5GHz, with a total wireless access speed of 1200Mbps.

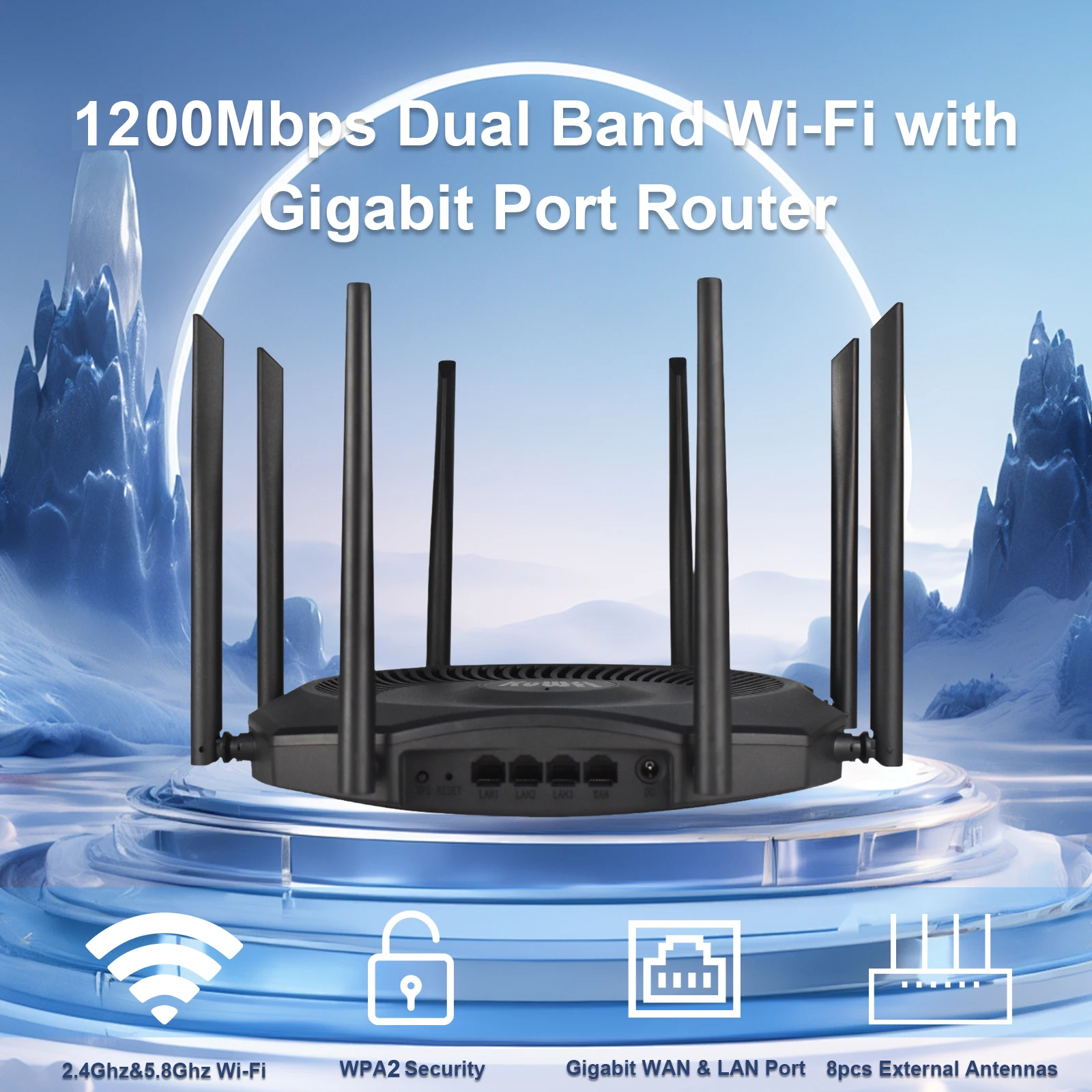

With Gigabit Ethernet Port

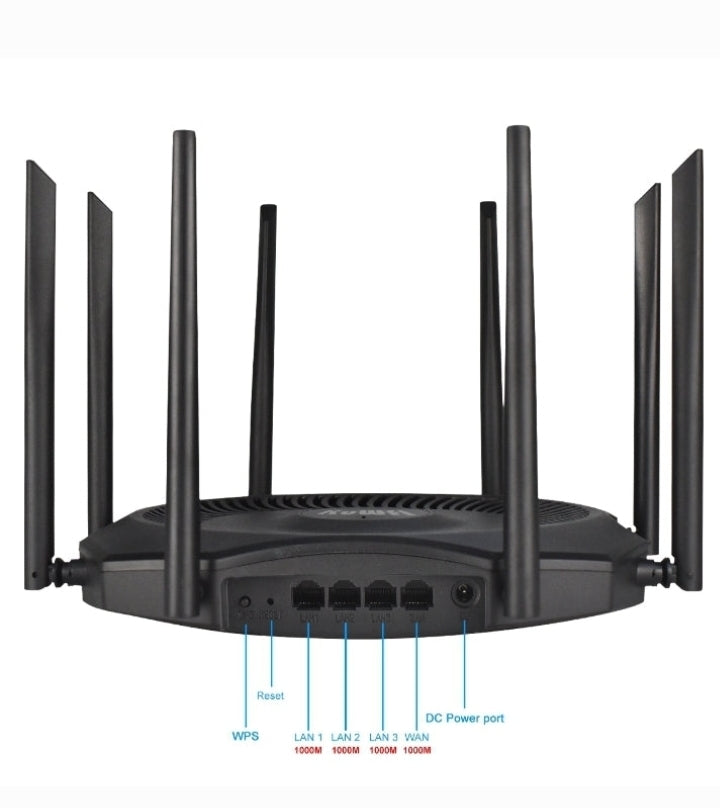

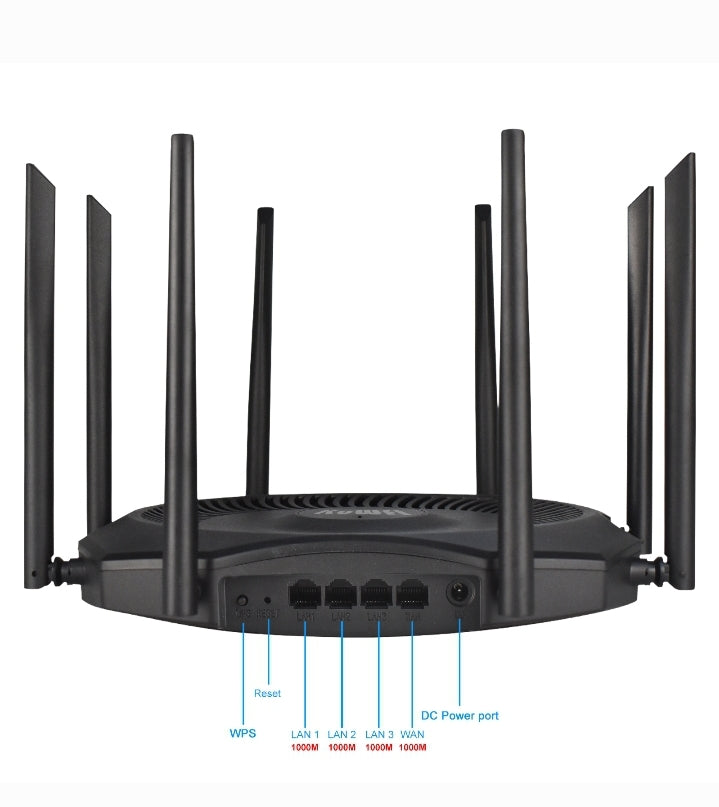

The WR1208S router comes with 1x 1000Mbps WAN port and 3x 1000Mbps LAN ports,provides faster network speed for other network devices through the Ethernet port.
Support 64 Users
This router supports 64 users or devices to connect to the WiFi signal at the same time. You can choose different frequencies of WiFi signals for different devices, which can improve the utilisation of the router.
HNAT Fast Forwarding
Supports HNAT hardware fast forwarding, with bidirectional forwarding performance of up to 2Gbps on the WAN port.
Security Protection Strategy
Provides security protection through features such as WPS, WPA/WPA2, SSID hiding, guest network, MAC/IP filtering, URL control, and DDoS attack prevention, ensuring the security of user data.
Handle Various Network Scenarios
Offers a variety of network functions including router mode, bridge mode, IPv4/IPv6, IPTV, relay, MESH, DDNS, VPN client, port mapping/DMZ, traffic control, etc., to easily handle various complex network scenarios.
Quick Setup Setting
Built-in quick setup wizard, no professional knowledge required, easily connect to the router's WiFi for internet access.
Improve Device Stability
The enhanced heat sink and optimized airflow ensure that the product can operate smoothly even in hot summer days, guaranteeing real-time, long-term, stable, and efficient transmission of network data to enhance user experience.
Features MU-MIMO, OFDMA, high data rates, improved coverage, and low latency, providing better wireless network performance and user experience in high-density network environments with numerous connected devices.
Specifications:
Main Chip: SF19A2890
Memory: 128MB
Flash: 16MB
2.4Ghz Wi-Fi: 802.11 b/g/n,up to 300Mbps
5Ghz Wi-Fi: 802.11 a/n/ac,up to 867Mbps
WAN Port: 1*10/100/1000Mbps
LAN Port: 3*10/100/1000Mbps
2.4G Wi-Fi Channel : 1、2、3、4、5、6、7、8、9、10、11、12、13
5G Wi-Fi Channel : 36、40、44、48、52、60、64、149、153、157、161、165
Support Wi-Fi Users/Devices Number: 64
USIM Slot: None USIM Slot
Working Temperature: 0℃ to +40℃
Storage Temperature: -20℃ to +70℃
Operating Humidity (non-condensing): 10% to 90%
Storage Humidity (non-condensing): 5% to 90%
Power: DC 12V/1A
DC power interface: Compatible with power plug with outer diameter of 5.5mm, inner diameter of 2.1mm, and length above 9.5mm
Package List
1x WR1208S Dual Band Wi-Fi5 Router
1x DC 12V/1A Power Adapter
1x Ethernet Cable
1x User Manual
