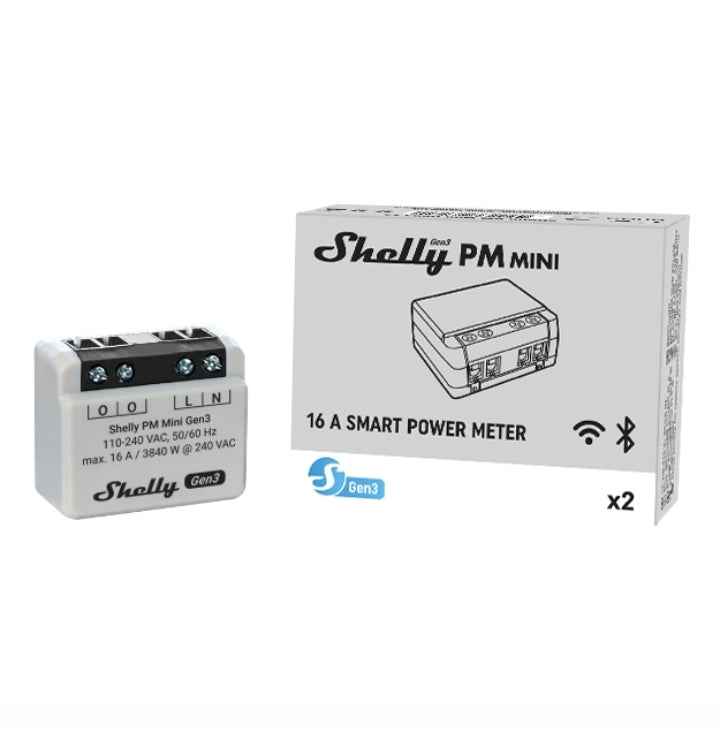

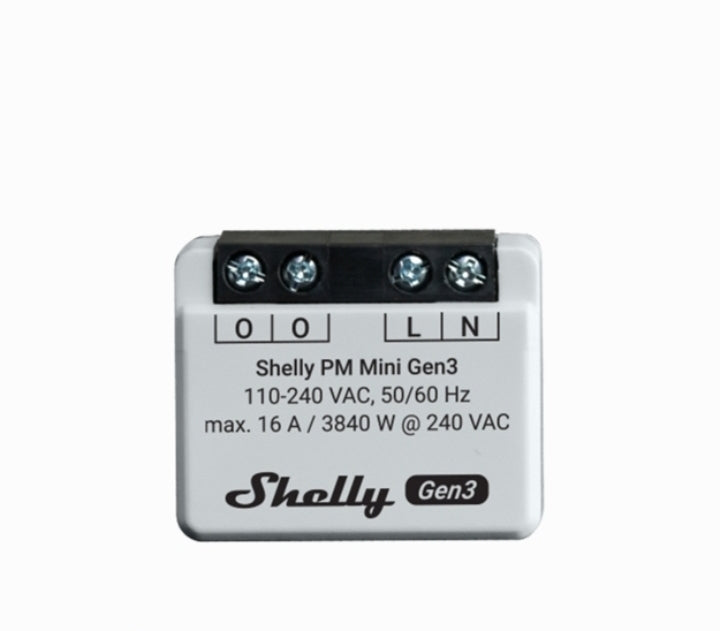

Shelly PM mini gen3 Power Meter (16A x 1channel)

Description

Shelly PM Mini Gen3 Power Meter, WiFi-operated smart power meter, 1 Channel 16 A, Supports up to 16 A at 240 VAC, No hub required, Easy Control via Shelly Control App

Wi-Fi-operated smart power meter, 1 channel 16 A

The smallest power meter in the world for precise power monitoring. Automate your lights or electrical appliances in less than 10 minutes and monitor their power consumption from anywhere. Small enough to fit behind any wall switch or socket, Shelly PM Mini Gen3 is retrofit and highly compatible with your existing smart ecosystem.

  • Equipped with a new processor & increased flash memory - ESP Shelly
  • Improved durability of terminals
  • Supports up to 16 A at 240 VAC
  • Precise and real-time power metering with free cloud data storage for analysis and energy usage optimization.
  • Wi-Fi range extender & Bluetooth gateway
  • No hub required! Easy control through the Shelly Smart Control app, most platforms and protocols, as well as voice assistants. Use it Home Assistant or your preferred automation platform
  • Supports scripting, webhooks, MQTT, WebSocket, HTTPS, UDP, TLS and custom certificates
    *This is only a power meter. There is no relay inside.

Specifications

PHYSICAL
Size (HxWxD): 29x34x16 ±0.5 mm / 1.11x1.34x0.63 ±0.02 in
Weight: 13 ±1 g / 0.46 ±0.04 oz
Mounting: Wall box
Screw terminals max torque: 0.4 Nm / 3.5 lbin
Conductor cross section: 0.2 to 2.5 mm² / 24 to 14 AWG (solid, stranded, and bootlace ferrules)
Conductor stripped length: 6 to 7 mm / 0.24 to 0.28 in
Shell material: Plastic
Color: White
ENVIRONMENTAL
Ambient temperature: -20 °C to 40 °C / -5 °F to 105 °F
Humidity 30 % to 70 % RH
Max. altitude 2000 m / 6562 ft
ELECTRICAL
Power supply: 110 - 240 VAC
External protection: 16 A, tripping characteristic B or C,
6 kA interrupting rating,
Energy limiting class 3
Power consumption: <1.2 W
OUTPUT CIRCUITS RATINGS
Max measurement voltage: 240 VAC
Max measurement current: 16 A
Max measurement power: 3840 W
Power measurement: Yes
Voltage protection / Cutoff: No
Current protection / Cutoff: No
Max power protection / Cutoff: No
RADIO
RF band: 2400 - 2495 MHz
Max. RF power: <20 dBm
Wi-Fi protocol: 802.11 b/g/n
Wi-Fi Range: Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors
(Depends on local conditions)
Bluetooth Protocol: 4,2
Bluetooth Range: Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors
(Depends on local conditions)
MCU
CPU: ESP-Shelly-C38F
Flash: 8 MB
FIRMWARE CAPABILITIES
Webhooks (URL actions): 20 with 5 URLs per hook
MQTT: Yes
UPD: Yes
Scripting: Yes

Certification

CE, UL, RoHS Compliant
