Eaton 9SX3000I UPS, 3000 VA, 2700 W, Input: C20, Outputs: (8) C13, (1) C19, Tower

General specifications

Product Name
Eaton 9SX UPS
Catalog Number
9SX3000I
UPC
743172090997
Product Length/Depth
412 mm
Product Height
346 mm
Product Width
214 mm
Product Weight
33.4 kg
Compliances
CE Marked
TUV
cULus Listed
CSA 22.2
FCC part 15 Class B
CISPR22 Class B
Certifications
IEC/EN 62040-1
UL 1778
IEC/EN 62040-2
CE
cULus Listed
EAC

Battery

Battery type
Sealed, lead-acid
Runtime graph
View runtime graph
Battery replacement

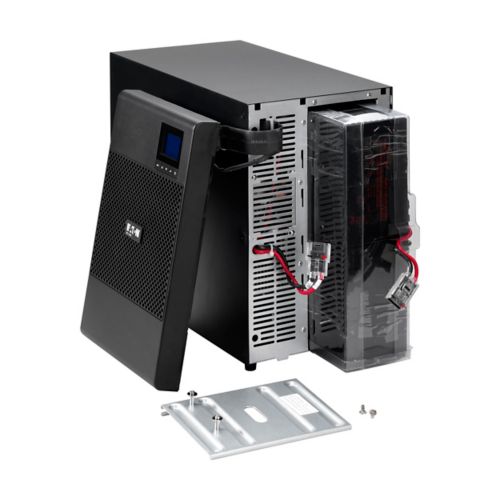

Hot-swappable internal batteries and extended battery modules (EBMs)
Battery quantity
8
Battery management
  • ABM & Temperature compensated charging method (user selectable)
  • Automatic battery test
  • Deep discharge protection
  • Automatic recognition of external battery units
Battery rating
12 V / 9 Ah
Extended battery capability
Yes

Electrical output

Receptacle
(8) C13, (1) C19
Voltage
230V
Wattage
2700 W
Output power factor
0.9
Output voltage range
200/208/220/230/240 V +/- 2%
Output waveform
Sine wave
Output nominal voltage
230V default (200/208/220/230/240V)
Voltage distortion output (linear load) - max
3
Feed type
1
Topology
Online/Double-conversion
VA rating
3000 VA

Electrical input

Input connection
C20
Input nominal voltage
230V default (200/208/220/230/240/250V)
Nominal frequency
50/60 Hz
Input power factor
>.99
Input cord length
1.8m
Input voltage range
200-276 Vac without derating (up to 140-276 Vac with derating)
Input frequency range
40-70 Hz

Communications

Includes network card
No
Communication
  • USB port (HID compliant)
  • Serial port (RS232)
  • Mini-terminal block for remote power off
  • Mini-terminal block for output relay
  • Dry contacts (2 outputs, 1 input, optocoupler, DB9)
Ethernet interface
No
User interface
Multilingual graphical LCD display
Potential free switch contact
Yes
Expansion slots
One slot for optional communication card
Software compatibility
Eaton Intelligent Power Manager, Eaton Intelligent Power Protector
Type of interface
Other

Environmental

Altitude
3000 m
Noise level
<45 dB at 1 meter
Temperature range
0° to 40°C (32° to 104°F)
Relative humidity
0-96% non-condensing



The Eaton 9SX UPS, 3000 VA, 2700 W, Input: C20, Outputs: (8) C13, (1) C19, Tower 9SX3000I is a sensational customer favorite, and we hope you like it just as much.
