Solis 4kW 5kW Off Grid Inverter S6-EO1P(4-5)K-48 Single Phase Low Voltage Inverters Parallel Up To 6 Units Li-ion

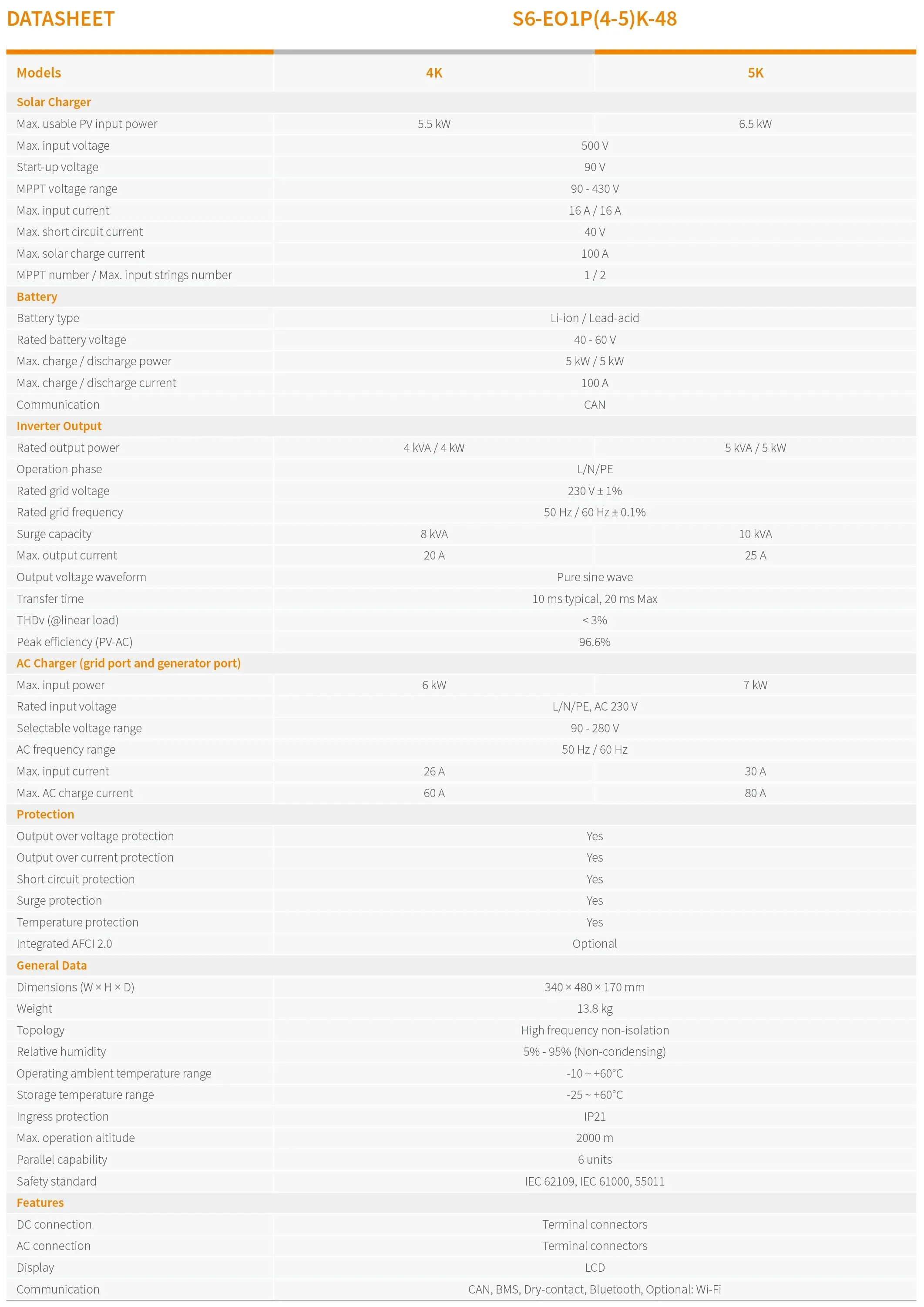

SPECIFICATIONS
Battery type: Li-ion / Lead-acid
Brand Name: Solis
Communication: CAN,CAN, BMS, Dry-contact, Bluetooth, Optional: Wi-Fi
High-concerned chemical: None
Ingress protection: IP21
Is Smart Device: Yes
MPPT voltage range: 90 - 430 V
Max. charge / discharge current: 100 A
Max. charge / discharge power: 5 kW / 5 kW
Max. input current: 16 A / 16 A
Max. input voltage: 500 V
Max. operation altitude: 2000 m
Max. short circuit current: 40 A
Max. solar charge current: 100 A
Model Number: S6-EO1P(4-5)K-48
Operating ambient temperature range: -10 ~ + 60°C
Output Current: 20/25A
Output Frequency: 50 Hz / 60 Hz
Output Type: SINGLE
Output voltage waveform: Pure sine wave
Rated battery voltage: 40 - 60 V
Rated grid voltage: 230 V ± 1%
Rated voltage: 360 V

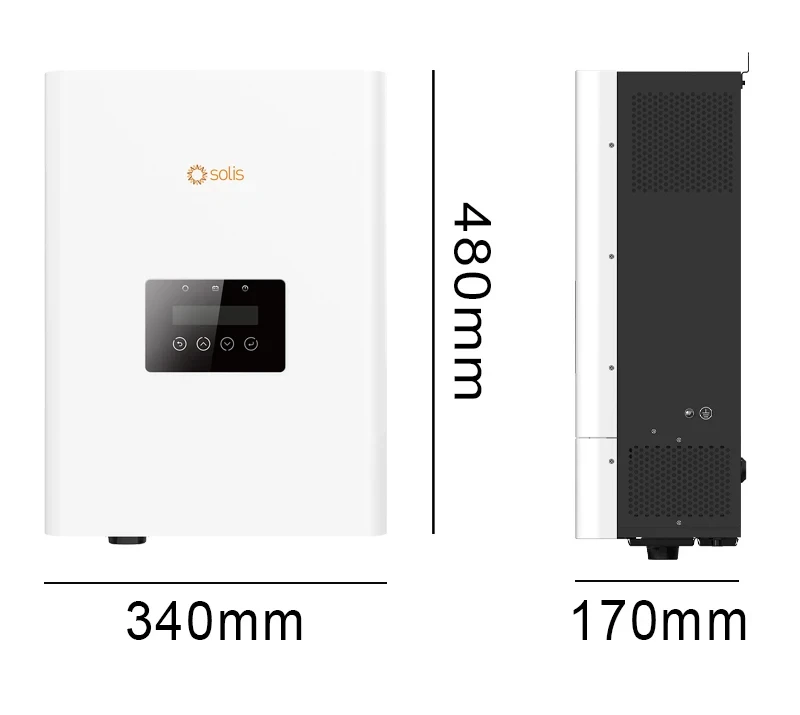

Size: 340*480*170 mm
Start-up voltage: 90 V
Storage temperature range: -25 ~ + 60°C
Weight: 13.8kg
Description
Solis 4kW 5kW Off Grid Inverter S6-EO1P(4-5)K-48 Single Phase Low Voltage Inverters Parallel Up To 6 Units Li-ion /Lead-acid Battery






Inventory Last Updated: Nov 18, 2025
