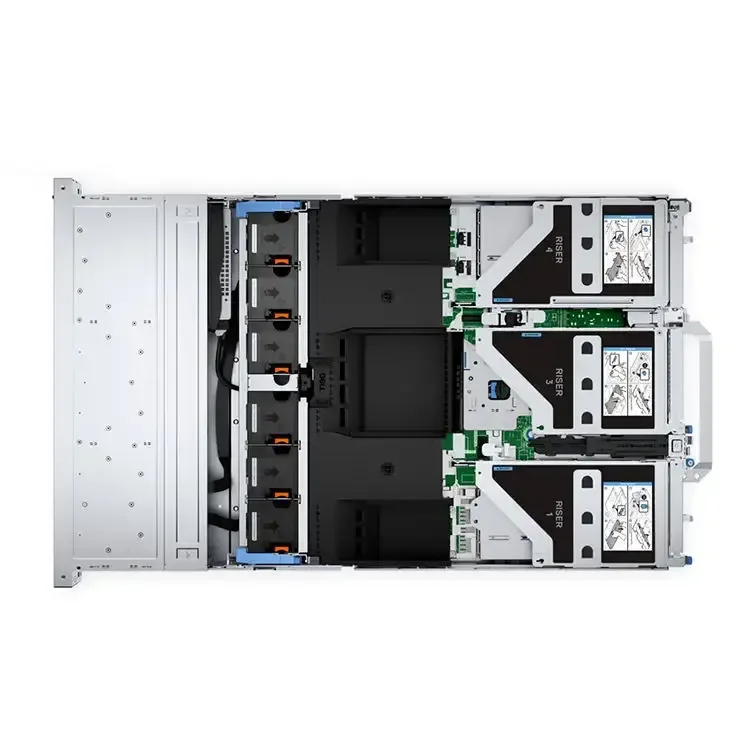

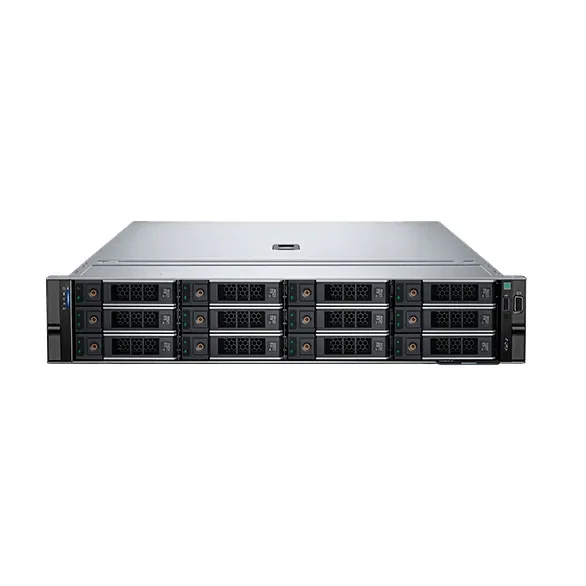

Dell PowerEdge Intel Xeon Processor Server R760 PowerEdge R760xs 2U Rack Server 3.84TB SSD vSAS 12Gbps 512e RI 2.5inch Hot-Plug

Regular price: R 184,345.95
Sale price: R 184,345.95
Regular price: ~~R 238,564.95~~
Unit price: per

Shipping calculated at checkout.

Default Title

Quantity must be 1 or more

SPECIFICATIONS

Brand Name: Dell PowerEdge

DIY Supplies: Electrical

Hard Drive: 3.84TB SSD vSAS 12Gbps 512e RI 2.5in Hot-Plug

High-concerned Chemical: None

Model NO.: R760 server

Processor Main: 3.4GHz

Processor Type: Intel Xeon

RAID Controller: H345 h745 h755 raid card

Raid: Front PERC H355 Rear Load

Specification: 2U rack server

Type: Rack

Model Number: R760

Private Mold: NO

Processor main frequency: 3.4GHz

Processor type: intel xeon

Products status: Stock

Size: 707mm*482mm*86.8mm

Type: Rack

Product Description

Technical Specifications

Processor	Up to two 4th Generation Intel Xeon Scalable processor with up to 32 cores per processor
Memory	• 16 DDR5 DIMM slots, supports RDIMM 1 TB max, speeds up to 4800 MT/s, supports registered ECC DDR5 DIMMs only
Storage controllers	• Internal Controllers: PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i • Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 1, 2 x M.2 NVMe SSDs or USB • External HBA (non-RAID): HBA355e; Software RAID: S160
Drive Bays	Front bays: • 0 drive bay • Up to 8 x 3.5-inch SAS/SATA (HDD/SSD) max 160 TB • Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 240 TB •Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB • Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) max 121.6 TB • Up to 16 x2.5-inch (SAS/SATA) + 8 x 2.5-inch (NVMe) (HDD/ SSD) max 244.48 TB
GPU Options	2 x 75 W SW, LP
Hot swap Redundant Power Supplies	• 1800 W Titanium 200—240 VAC or 240 HVDC • 1400 W Platinum 100—240 VAC or 240 HVDC • 1100 W Titanium 100—240 VAC or 240 HVDC •1100 W LVDC -48 — (-60) VDC 800 W Platinum 100—240 VAC or 240 HVDC, • 700 W Titanium 200—240 VAC or 240 HVDC • 600 W Platinum 100—240 VAC or 240 HVDC
Cooling Options	• Air cooling
Fans	• Standard (STD) fans/High performance Silver (HPR) fans/ High performance Gold (VHP) fans, Up to 6 hot swappable fans
Dimensions	• Height – 86.8 mm (3.41 inches) • Width – 482 mm (18.97 inches) • Depth – 707.78 mm (27.85 inches) – without bezel 721.62 mm (28.4 inches) – with bezel • Weight – Max 28.6 kg (63.0 lbs.)
Form Factor	2U rack server
Embedded Management	• iDRAC9 • iDRAC Direct • iDRAC RESTful API with Redfish • iDRAC Service Module • Quick Sync 2 wireless module
Bezel	Optional LCD bezel or security bezel
OpenManage Software	• CloudIQ for PowerEdge plug in • OpenManage Enterprise • OpenManage Enterprise Integration for VMware vCenter • OpenManage Integration for Microsoft System Center • OpenManage Integration with Windows Admin Center • OpenManage Power Manager plugin • OpenManage Service plugin • OpenManage Update Manager plugin
Mobility	OpenManage Mobile
Embedded NIC	2 x 1 GbE LOM

Imagine if you could be satisfied and content with your purchase. That can very much be your reality with the Dell PowerEdge Intel Xeon Processor Server R760 PowerEdge R760xs 2U Rack Server 3.84TB SSD vSAS 12Gbps 512e RI 2.5inch Hot-Plug.
