Fortinet Fortigate 400F Firewall FG-400F with 18*GE RJ45 ports (including 1*MGMT port, 1*HA port, 16*switch ports), 8*GE SFP slots

R 145,956.95
R 145,956.95
R 148,818.95
Sold out
Shipping calculated at checkout.

Fortinet Fortigate 400F Firewall FG-400F with 18*GE RJ45 ports (including 1*MGMT port, 1*HA port, 16*switch ports), 8*GE SFP slots

Products Description

Fortinet Fortigate 400F Firewall FG-400F with 18 x GE RJ45 ports (including 1 x MGMT port, 1 X HA port, 16 x switch ports), 8 x GE SFP slots, 8 x 10GE SFP+ slots, SPU NP7 and CP9 hardware accelerated, dual AC power supplies

The FG-400F is a high-performance firewall designed to provide robust network security and advanced threat protection. With 18 GE RJ45 ports, 8 GE SFP slots, and 8 10GE SFP+ slots, it offers flexible connectivity options for various network environments. The appliance is equipped with SPU NP7 and CP9 hardware acceleration, ensuring efficient processing of network traffic and delivering high throughput.

Specs Overview

FG-400F

Parameter Description
Hardware Accelerated GE RJ45 Interfaces 16
USB Ports 1
Number of 10GE SFP+ Slots 8
Power Supplies Dual AC

Product Features

  • ● Robust network security
  • ● Advanced threat protection
  • ● Flexible connectivity options
  • ● High-performance hardware acceleration
  • ● Dual AC power supplies for redundancy

Product Applications

  • ● Enterprise networks
  • ● Data centers
  • ● Service providers

Compare to Similar Items

Table 2 shows the comparison to similar items of the FG-400F.

Model Differences
FG-200F Lower number of ports
FG-600F Higher throughput capacity
FG-1000F Additional hardware acceleration features

Technical Specifications

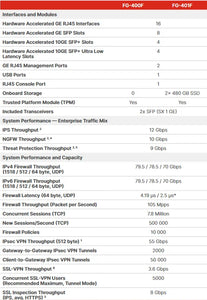

FG-400F Specifications
Interfaces and Modules
Hardware Accelerated GE RJ45 Interfaces 16
Hardware Accelerated GE SFP Slots 8
Hardware Accelerated 10GE SFP+ Slots 4
Hardware Accelerated 10GE SFP+ Ultra Low Latency Slots 4
GE RJ45 Management Ports 2
USB Ports 1
RJ45 Console Port 1
Onboard Storage 0
Trusted Platform Module (TPM) √
Bluetooth Low Energy (BLE) √
Signed Firmware Hardware Switch —
Included Transceivers 2x SFP (SX 1 GE)
System Performance — Enterprise Traffic Mix
IPS Throughput 12 Gbps
NGFW Throughput 10 Gbps
Threat Protection Throughput? 9 Gbps
System Performance and Capacity
IPv4 Firewall Throughput (1518/512/64 byte, UDP) 79.5 / 78.5 / 70 Gbps
IPv6 Firewall Throughput (1518/512/64 byte, UDP) 79.5 / 78.5 / 70 Gbps
Firewall Latency (64 byte, UDP) 4.19 ps / 2.5 ps*
Firewall Throughput (Packet per Second) 105 Mpps
Concurrent Sessions (TCP) 7.8 Million
New Sessions/Second (TCP) 500 000
Firewall Policies 10 000
IPsec VPN Throughput (512 byte) 55 Gbps
Gateway-to-Gateway IPsec VPN Tunnels 2000
Client-to-Gateway IPsec VPN Tunnels 50 000
SSL-VPN Throughput 3.6 Gbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) 5000
SSL Inspection Throughput (IPS, avg. HTTPS)  8 Gbps
SSL Inspection CPS (IPS, avg. HTTPS)  6000
SSL Inspection Concurrent Session (IPS, avg. HTTPS)  800 000
Application Control Throughput (HTTP 64K) 28 Gbps
CAPWAP Throughput (HTTP 64K) 65 Gbps
Virtual Domains (Default / Maximum) 10/10
Maximum Number of FortiSwitches Supported 72
Maximum Number of FortiAPs (Total / Tunnel) 512/256
Maximum Number of FortiTokens 5000



Model

FG-400F







Description

FortiGate-400F 18 x GE RJ45 ports (including 1 x MGMT port, 1 X HA port, 16 x switch ports), 8 x GE SFP slots, 8 x 10GE SFP+
slots, SPU NP7 and CP9 hardware accelerated, dual AC power supplies.







IPS Throughput

2.6 Gbps







Chassis height [U]

ack Mount, 1 RU
